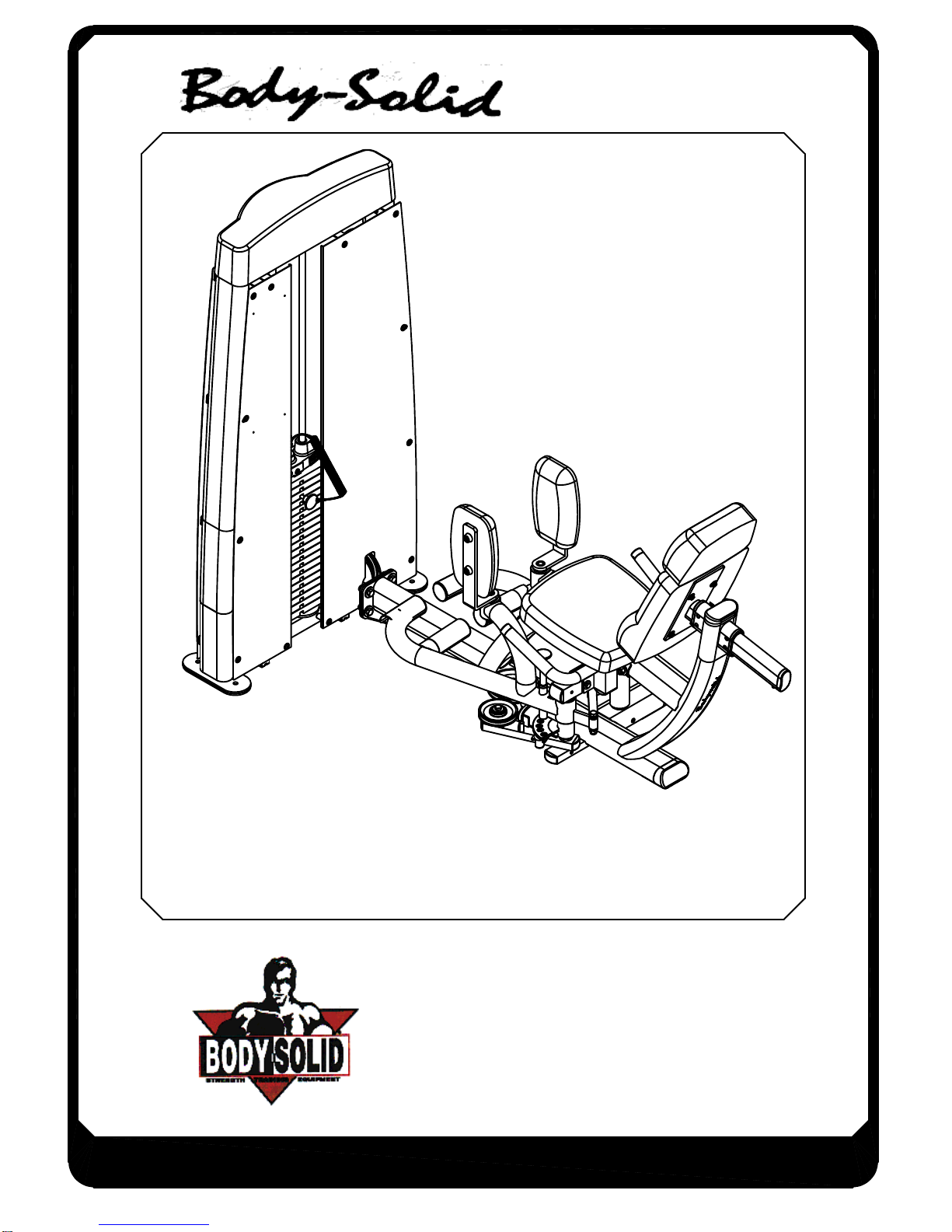

Body Solid DIOT.2 User manual
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DIOT.2

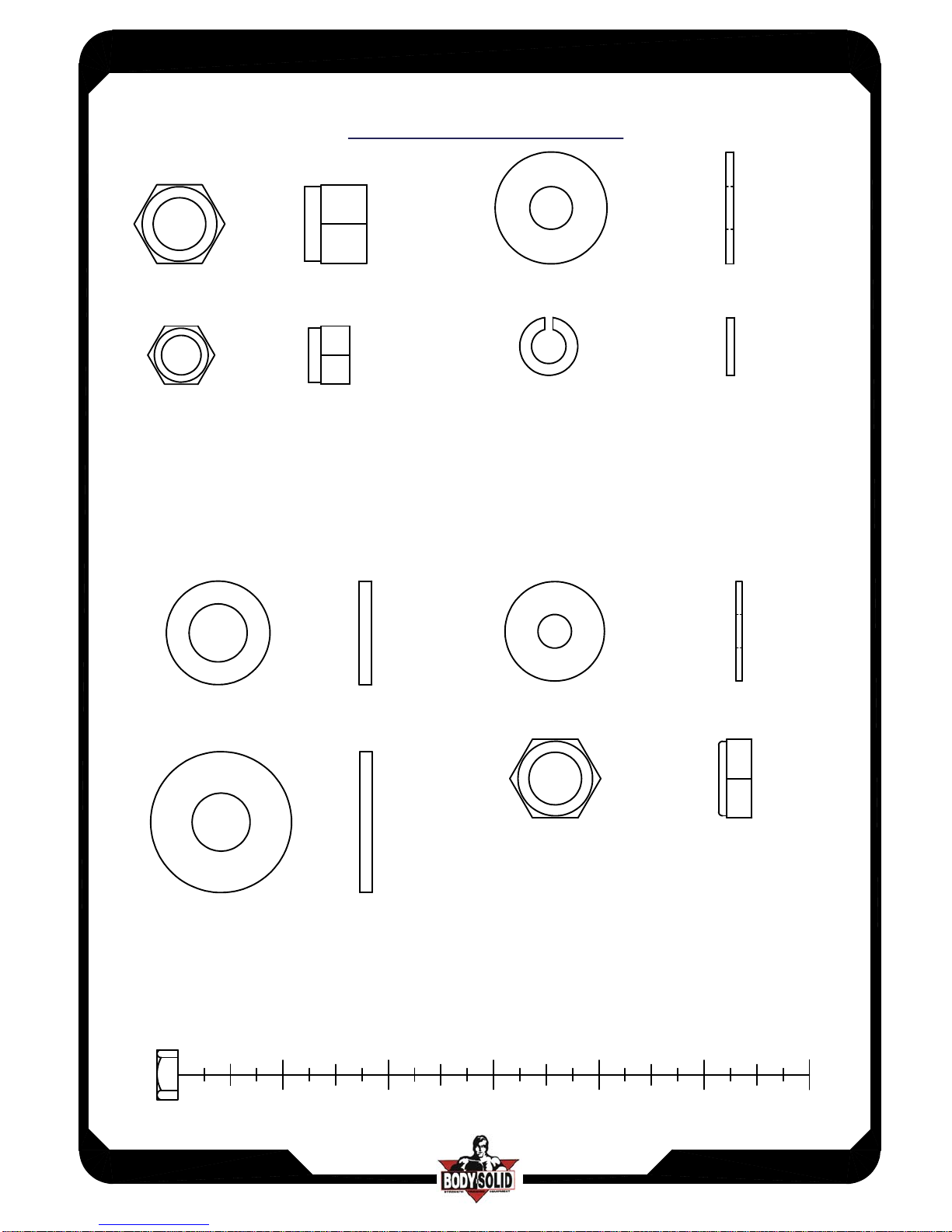

ASSEMBLY INSTRUCTIONS
Page
DIOT.2-042007 1.1
DIOT
(A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.4
(A2)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.2
(A3)HEX BOLT 3/8"x3"L PARTIAL THREAD QTY.2
(A4)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.4
(A5)ROUND ALLEN HEAD 5/16"x1 1/4"L PARTIAL THREAD QTY.4
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DIOT.2-042007 1.2
DIOT

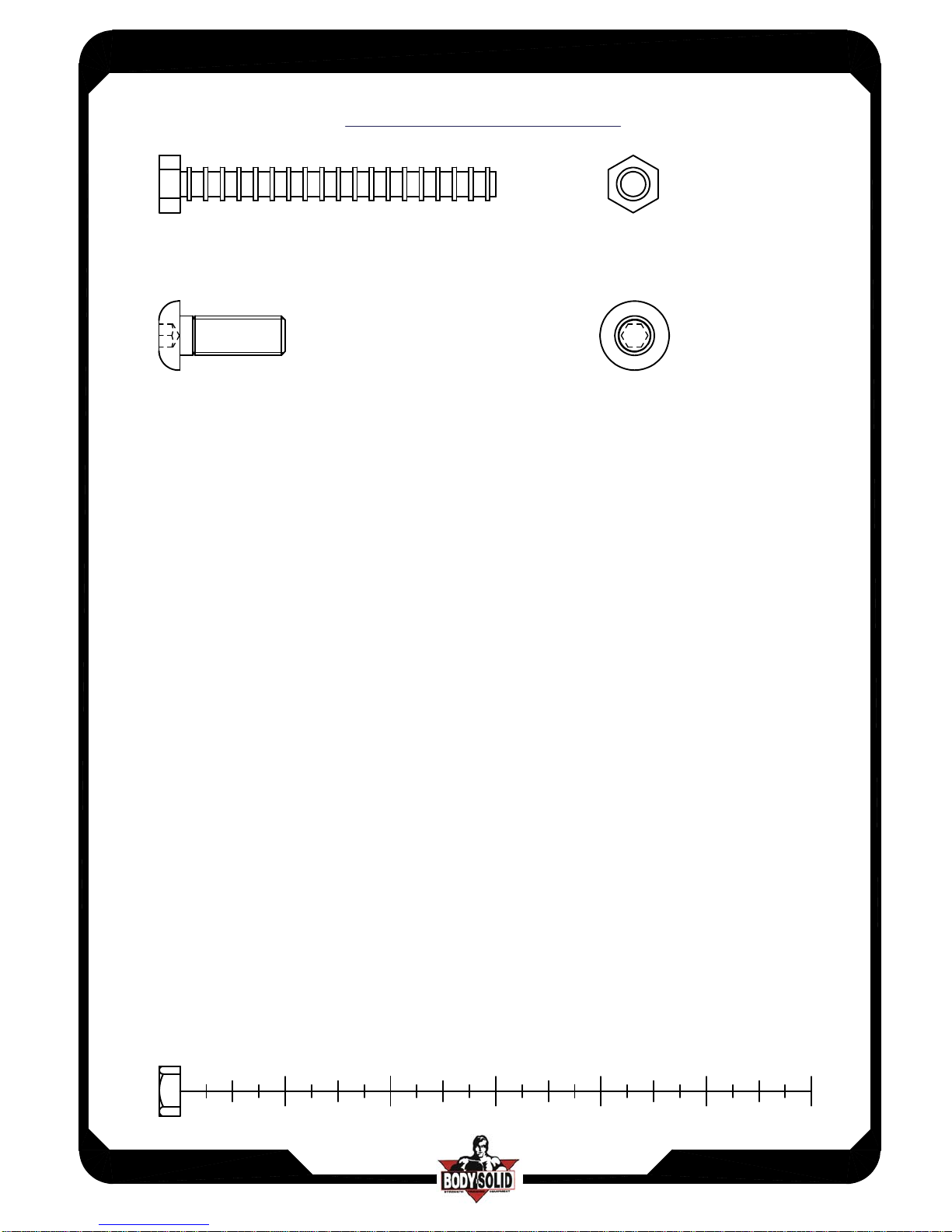

(A19)HEX BOLT 3/8"x1"L PARTIAL THREAD QTY.1
(A7)HEX BOLT 5/16"x3"L PARTIAL THREAD QTY.2
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.2-062007 1.3

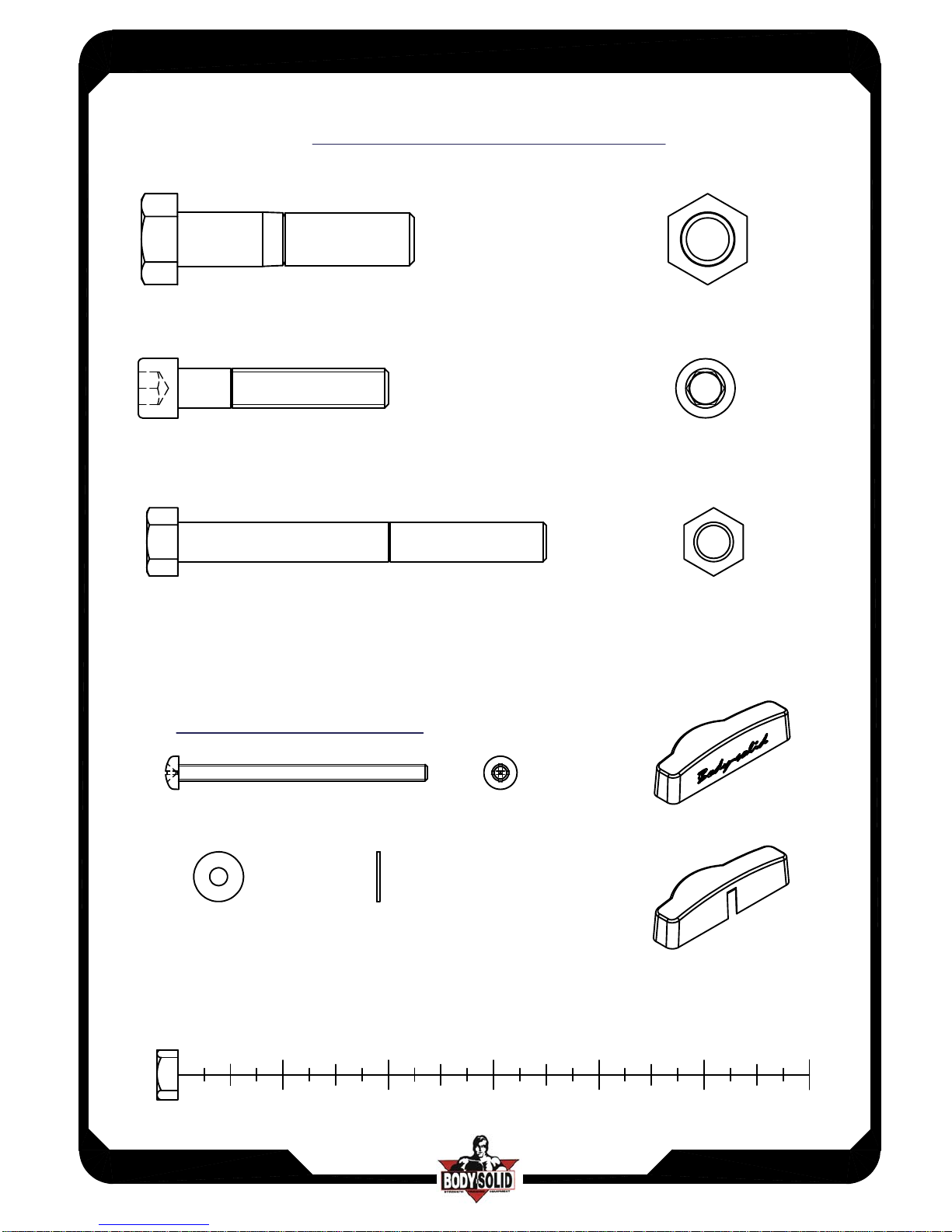

(A9)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.4
(A10)HEX BOLT M4X65L PARTIAL THREAD QTY.2
(A11)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1
(A12)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
Optional Purchase
(C12)M4(I.D.)FLAT WASHER n12 QTY.2
"M4X65L HEX BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP
TOP CAP(9211-111)
TOP CAP(9211-119)
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.2-042007 1.4

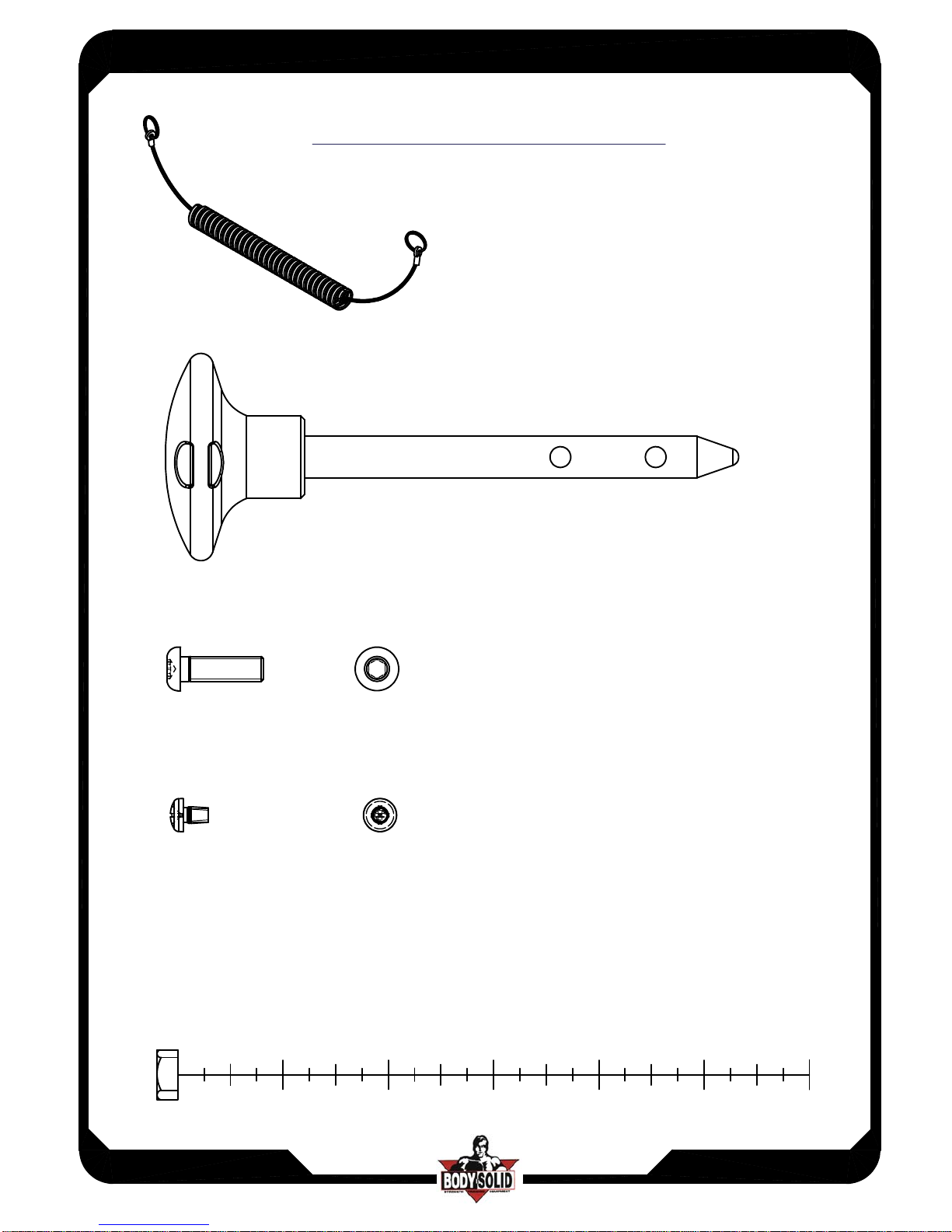

(A13)ELASTIC BOLT QTY.1
(A14)10LB PIN (8250-071) QTY.1
(A16)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20
(A17)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4
2
13456
FRAME HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.2-072007 1.5
(B1)NYLON LOCK NUT 1/2" QTY.6 (C3)3/8"(I.D.)FLAT WASHER n27 QTY.6
(C4)5/16" SPRING WASHER QTY.6
(B2)NYLON LOCK NUT 3/8" QTY.3
(C1)1/2"(I.D.)FLAT WASHER n25 QTY.10
(C2)1/2"(I.D.)FLAT WASHER n34 QTY.4
(C6)5/16"(I.D.)FLAT WASHER n24 QTY.6
(B7)NYLON LOCK NUT 1/2"X8H QTY.2
2
13456
HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.2-062007 1.6
(B5)NYLON LOCK NUT 1/2" QTY.4
(C8)1/2"(I.D.)FLAT WASHER n34 QTY.6
(C10)3/8" SPRING WASHER QTY.1
(C11)M6(I.D.)FLAT WASHER n13 QTY.20
(C9)3/8"(I.D.)FLAT WASHER n19 QTY.2
(B6)NYLON LOCK NUT 3/8" QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
(C13)1/2"(I.D.)FLAT WASHER n25 QTY.2
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.2-042007 1.7

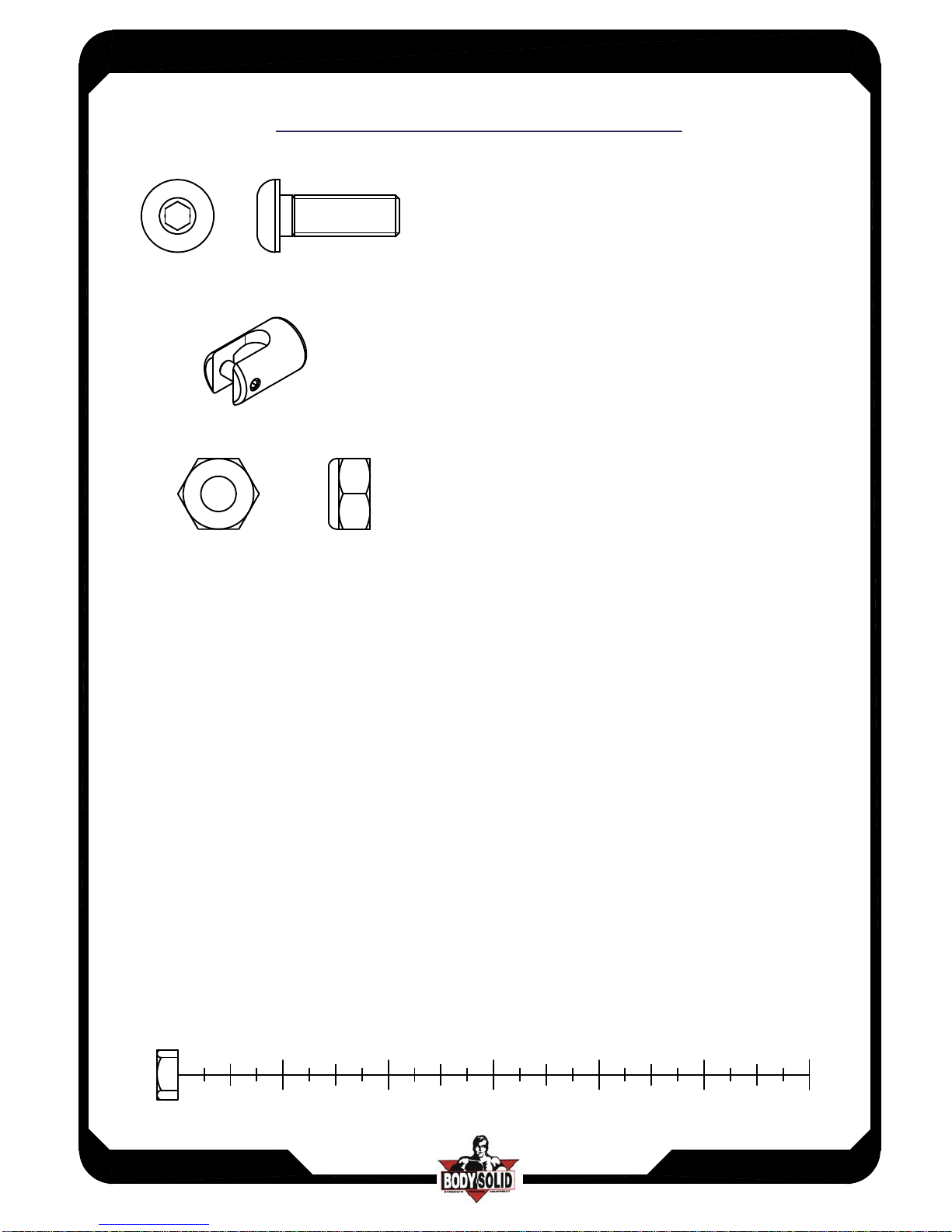

(A20)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1
(B8)NYLON LOCK NUT M10 QTY.1
2
13456
Selector Rod HARDWARE ILLUSTRATION
(A21)FIRM SHEATH(8890-046) QTY.1
ASSEMBLY INSTRUCTIONS
Page
DIOT
DIOT.1-042007 2

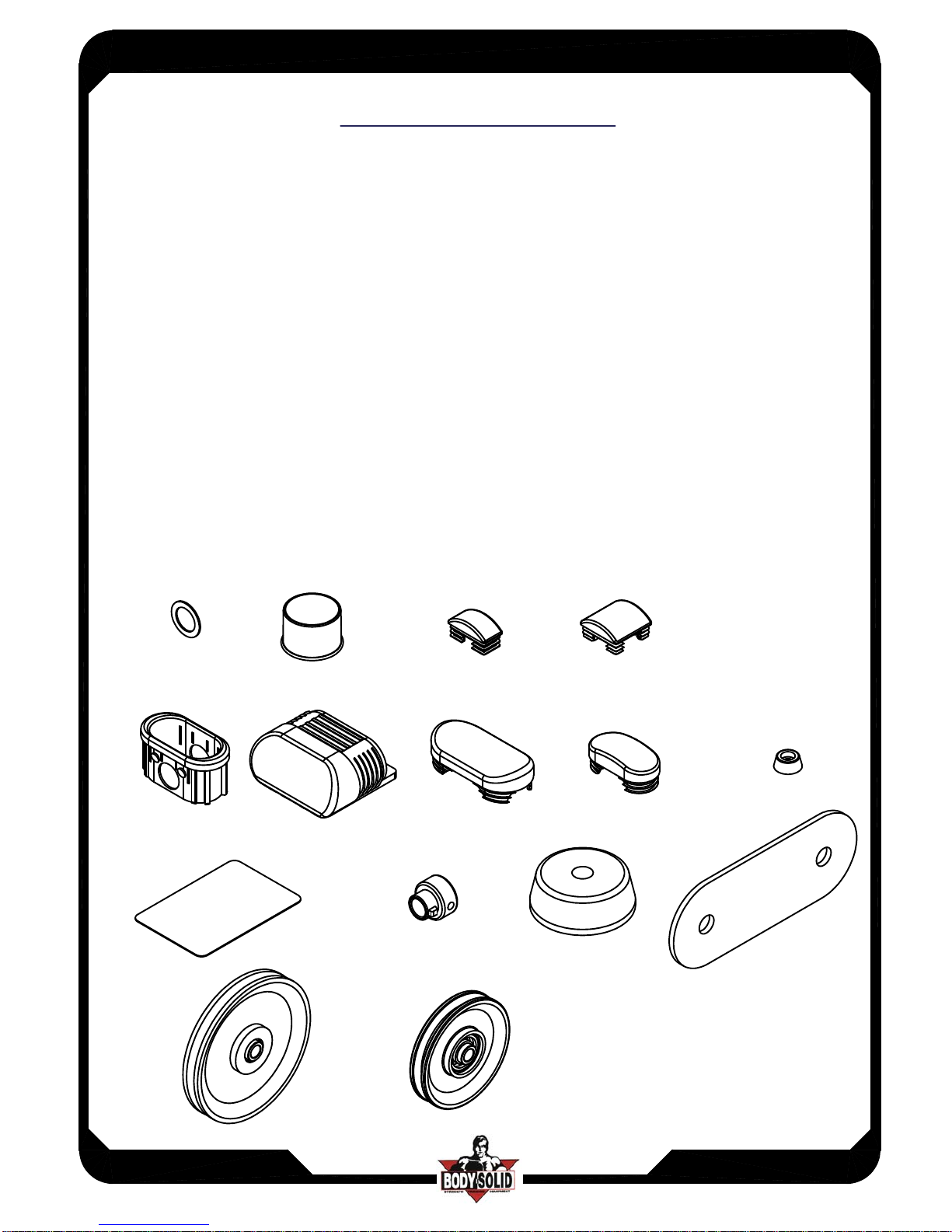

D2.n1" CU WASHER (8520-008)-------------------------------------[7PCS]
D5.2"X2" END CAP (9211-087)----------------------------------------[3PCS]
D7.58X116X2.5T FOOT CAP(9211-109)----------------------------[2PCS]
D8.58X116 END CAP(9211-112)--------------------------------------[2PCS]
D12.n3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS]
D13.n4" RUBBER DOUNT(9310-017)-------------------------------[2PCS]
D14.95X250 RUBBER PAD(9310-060)------------------------------[2PCS]
D15.n6" PULLEY(9213-009A)------------------------------------------[1PCS]
D2 D3 D4
D6 D7 D8 D9
D11 D12 D13 D14
D16
D5
D10
D15
D3.n60 END CAP (9211-065)------------------------------------------[4PCS]
D4.1"X2" END CAP (9211-086)----------------------------------------[3PCS]
D6.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS]
D9.40X80 END CAP(9211-113)----------------------------------------[1PCS]
D10.RUBBER BOLT HEAD PROTECTOR 5/16"(9214-030)----[4PCS]
D11.95X140L RUBBER PAD(9310-035)-----------------------------[2PCS]~
D16.n117 PULLEY(9213-010B)----------------------------------------[5PCS]
HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DIOT

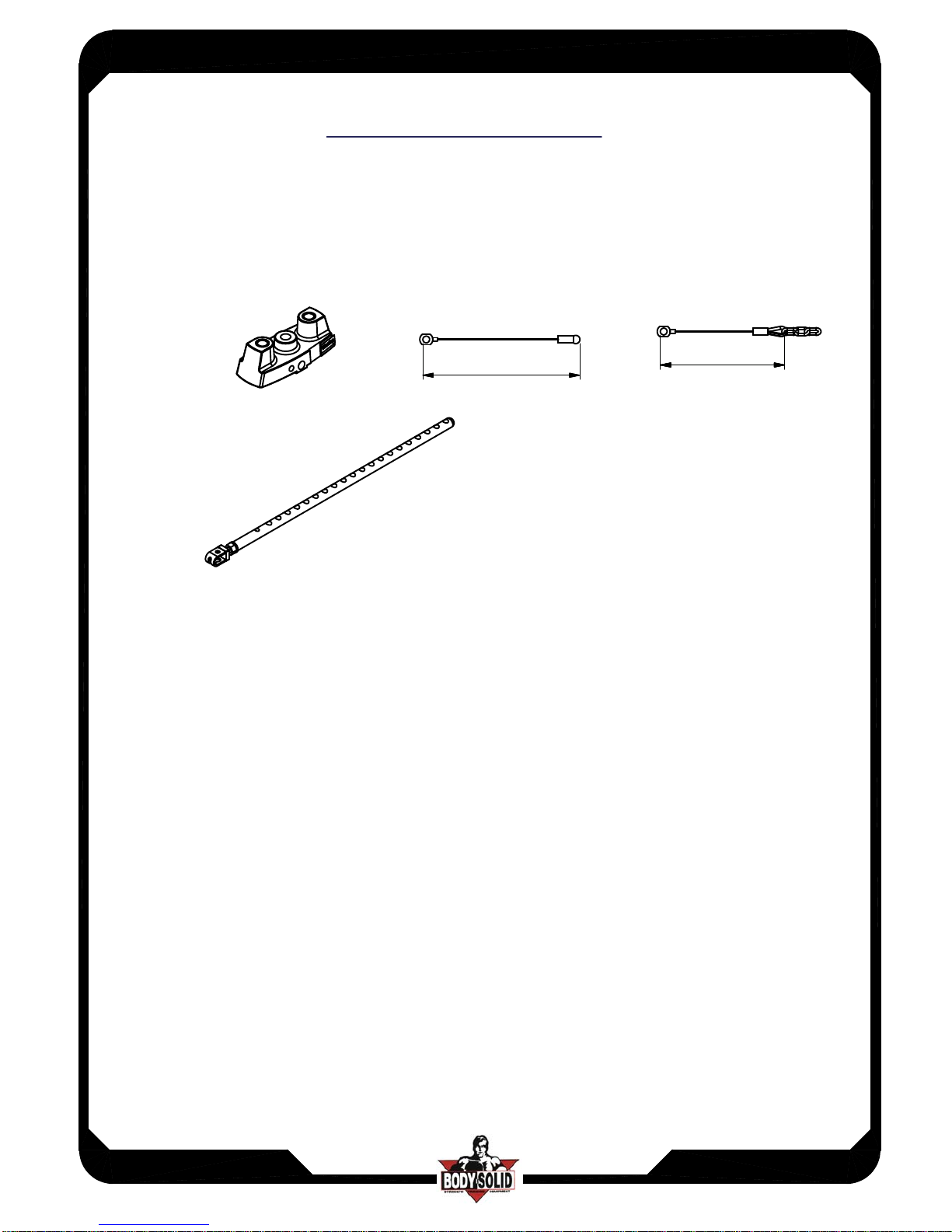

DIOT.2-042007 3
D18.TOP PLATE(8400-006)------------------------------------------[1PCS]
D19.1860mm STEEL CABLE(FDIOTA)----------------------------[1PCS]
D20.2220mm STEEL CABLE(FDIOTB)----------------------------[1PCS]
D18 D19 D20
1860 22202220
D21.DIOT For DGYM Steel Cable(FDIOTC)----------------------[1PCS]
HARDWARE ILLUSTRATION
D22.WEIGHT SELECTOR BAR(8210-042B)---------------------[1PCS]
D22
