SAFETY

PRECAUTIONS BEFORE START-UP

• Remove all parts of the packaging.

• The appliance may only be installed and connected by a qualified electrician. The manufacturer

cannot be held responsible for damage caused by errors in installation or connection. Only use

the appliance when it is installed.

• The appliance may only be used when it is erected and installed in a piece of furniture and a

confirmed and adjusted work plan is used.

• This appliance may only be used for the household cooking and frying of food and is not

intended for commercial purposes.

• Remove all labels and stickers from the glass.

• The appliance may not be modified.

• Do not use the hob as a work surface or storage area.

• Safety is only guaranteed if the appliance is connected to a protective conductor that complies

with the applicable regulations.

• The appliance may not be connected to the power supply via an extension cable.

• The appliance may not be used over a dishwasher or tumble dryer: the water vapours released

could damage the electronics.

• Do not switch on the appliance using an external timer or a separate remote control.

• CAUTION: The cooking process must be monitored. A short-term cooking process must be

constantly monitored.

GENERAL SAFETY INSTRUCTIONS

• Switch off the cooking zones after each use.

• Overheated fats and oils ignite quickly. If you prepare dishes in fat or oil (e.g. chips), you should

observe the cooking process.

• When you cook and fry, the cooking zones become hot. For this reason, protect yourself from

burns while and after using the appliance.

• Ensure that no electrical cable from a freestanding or built-in appliance comes into contact with

the panel or the hot cooking zone.

• Magnetic objects such as credit cards, diskettes, pocket calculators, etc. must not be in the

immediate vicinity of the appliance when it is switched on. Their function could be impaired.

• Metal objects such as knives, forks, spoons and pot lids should not be placed on the hob as

they could become hot.

• In general, do not place any metal objects (e.g. spoons, pot lids, etc.) on the induction surface,

as they may heat up during operation.

• Never cover the cooking surface with a cloth or protective foil; these could become very hot and

catch fire.

• This appliance can be used by children from the age of 8 years and above and persons with

reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are

supervised or if they are instructed in the safe use of the appliance and understand the resulting

hazards.

• Children may not play with the appliance.

• Cleaning and user maintenance may not be carried out by children without supervision.

PROTECTION AGAINST DAMAGE

• Do not use any pots or pans with unpolished or damaged bases

(e.g. made of cast iron). These can scratch the glass ceramic panels.

• Note that grains of sand can also cause scratches.

• Glass ceramic is insensitive to temperature shocks and very resistant, but it is not unbreakable.

Especially pointed and hard objects that fall onto the cooking surface can damage them.

• Do not knock pots and edges against the panel.

• Do not use the cooking zones with empty cookware.

• Avoid placing sugar, plastic or aluminium foil on the hot cooking zones. These materials melt,

stick firmly and can therefore lead to cracks, fractures or other permanent changes in the panel

when cooling down. If they still get onto the hot cooking zones, please switch off the appliance

and remove these substances while they are still hot. As the cooking zones are hot, there is a

risk of burns.

• Do not place any objects on the cooking zone.

• Never place hot cookware on the control unit. The electronics under the glass could be

damaged.

• If there is a drawer under the built-in appliance, make sure there is a minimum distance of 2 cm

between the underside of the appliance and the contents of the drawer, otherwise the ventilation

of the appliance is not guaranteed.

• No flammable objects (e.g. aerosol cans) may be stored in this drawer. Any cutlery trays in the

drawer must be made of heat-resistant material.

• Do not heat closed containers (e.g. tins) on the cooking zones. The containers or tins can burst

due to the resulting excess pressure, resulting in a risk of injury!

PRECAUTIONS IN CASE OF APPLIANCE FAILURE

• If an error is detected, the appliance must be switched off and disconnected from the mains.

• If breaks, fissures or cracks occur on the glass: Immediately switch off the hob, unscrew or

remove the hob fuse, and contact our customer service or your specialist retailer.

• Repairs to the appliance may only be carried out by qualified personnel.

• WARNING: If the glass surface is cracked, switch off the appliance to avoid the risk of electric

shock.

PROTECTION AGAINST OTHER HAZARDS

• Make sure that the cookware is always centred on the cooking zone. The base of the pan must

cover as much of the cooking zone as possible.

• For persons with a pacemaker: an electromagnetic field is generated near the appliance when it

is switched on, which could possibly affect the pacemaker. In case of doubt, please contact the

manufacturer of the pacemaker or your doctor.

• Do not use cookware made of aluminum or plastic: it could melt on the hot cooking zones.

• NEVER try to extinguish a fire with water. Switch the device off and then cover the flame, e.g.

with a lid or a fire blanket.

WARNING

The use of pots of poor quality or of an adapter disc for induction will lead to a premature

termination of the warranty. The manufacturer accepts no liability for damage that may

occur on or near the hob.

APPLIANCE DESCRIPTION

TECHNICAL DESCRIPTION

Type

5IE64252

5IE84252

5II84251

5II94291

5IB64211

5IZ34291

Total power

7400W

7400 W

6700 W

3700 W

Energy consumption

of the hob EChob**

180 Wh/kg

173.4 Wh/kg

175.3 Wh/kg

180.7 Wh/kg

177.3 Wh/kg

Front left cooking

zone

Ø 200 mm

Ø 160 mm

210x190mm

Ø 200 mm

Ø 160 mm

Minimum pot base

diameter

Ø 110 mm

Ø 90 mm

Ø 110 mm

Ø 90 mm

Nominal power*

2300 W

1400 W

2100 W

2300 W

1400 W

Booster power*

3000 W

2100 W

3000 W

2100 W

Standardised

cookware category**

Energy consumption

ECcw**

182.9 Wh/kg

191.8 Wh/kg

159.5 Wh/kg

182.9 Wh/kg

191.8 Wh/kg

Rear left cooking

zone

Ø 160 mm

Ø 200 mm

210x190mm

Ø 160 mm

Minimum pot base

diameter

Ø 90 mm

Ø 110 mm

Ø 90 mm

Nominal power*

1400 W

2300 W

2100 W

1400 W

Booster power*

2100 W

3000 W

2100 W

Standardised

cookware category**

Energy consumption

ECcw**

191.8 Wh/kg

182.9 Wh/kg

159.5 Wh/kg

162.7 Wh/kg

Rear right cooking

zone

Ø 200 mm

210x190mm

Minimum pot base

diameter

Ø 110 mm

Nominal power*

2300 W

2100 W

Booster power*

3000 W

Standardised

cookware category**

Energy consumption

ECcw**

182.9 Wh/kg

188 Wh/kg

Front right cooking

zone

Ø 160 mm

210x190mm

Ø 250 mm

Minimum pot base

diameter

Ø 90 mm

Ø 110 mm

Nominal power*

1400 W

2100 W

2300 W

Booster power*

2100 W

3000 W

Standardised

cookware category**

Energy consumption

ECcw**

162.7 Wh/kg

186.4 Wh/kg

196.5 Wh/kg

Central cooking

zone

Ø 200 mm

Minimum pot base

diameter

Ø 110 mm

Nominal power*

2300 W

Booster power*

3000 W

Standardised

cookware category**

Energy consumption

ECcw**

182.9 Wh/kg

* These outputs may vary depending on the shape, size and quality of the pots.

** calculated on the basis of the method for measuring the functional properties (EN 60350-2).

Smart Slider

On/Off

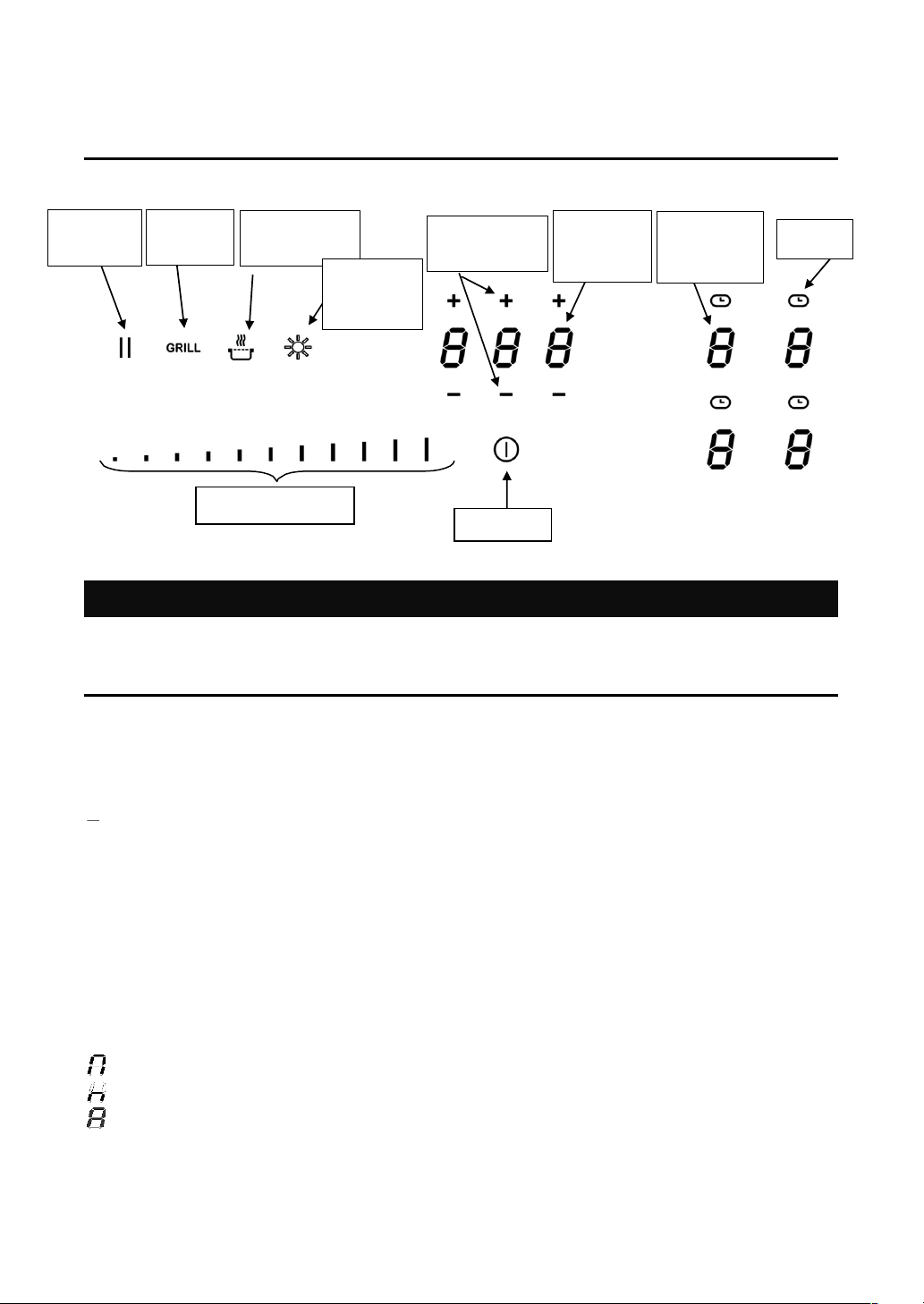

OPERATING PANEL

OPERATING THE HOB

DISPLAY

Display

Name

Description

Zero

The hub is activated

1…9

Power level

The power setting

No pot detection

Pot not in place or not suitable

Automatic preheating

Maximum power + preheating

Error display

Electronics error

Residual heat

Hob is hot

Booster

Booster power is activated

Keep warm function

With this function, food is kept warm at 70°C.

Pause

The hob is on pause

∏

Bridge

Two cooking zones can be combined into one

cooking zone

GRILL

Grill function

The grill function is activated

Hood – Manual operation

Ventilation takes place in manual mode

Hood – Semi-automatic operation

Ventilation takes place in semi-automatic mode

Hood – Automatic operation

Ventilation takes place in automatic mode

Pause

function

Grill

function

Keep warm

function

Hood

light

function

Timer

function [+/-]

Timer

Selection

button

Power

selection

button

Timer

This manual suits for next models

Table of contents

Other Blaupunkt Hob manuals

Blaupunkt

Blaupunkt 5EA611 Series User manual

Blaupunkt

Blaupunkt 5RH84352 User manual

Blaupunkt

Blaupunkt 5GB62191IN User manual

Blaupunkt

Blaupunkt 5II94290 Guide

Blaupunkt

Blaupunkt 5RZ34411 User manual

Blaupunkt

Blaupunkt 5RZ32210 User manual

Blaupunkt

Blaupunkt 5II94290 Guide

Blaupunkt

Blaupunkt 5IL.4 Series User manual

Blaupunkt

Blaupunkt 5IX94291 User manual

Blaupunkt

Blaupunkt 5G6B2P50 User manual

Blaupunkt

Blaupunkt 5GB61150AU User manual

Blaupunkt

Blaupunkt 5IE 4 Series User manual

Blaupunkt

Blaupunkt 5GB 72290 Guide

Blaupunkt

Blaupunkt 5RE64360 User manual

Blaupunkt

Blaupunkt 5RG64361 User manual

Blaupunkt

Blaupunkt 5IX99350 Technical manual

Blaupunkt

Blaupunkt 5IE64251 Technical manual

Blaupunkt

Blaupunkt 5IX99291 User manual

Blaupunkt

Blaupunkt 5GB91250AU User manual

Blaupunkt

Blaupunkt 5RG64360 User manual

Blaupunkt

Blaupunkt 5IX99290 User manual

Blaupunkt

Blaupunkt 5RF64351 User manual

Blaupunkt

Blaupunkt 5RG74350 User manual

Blaupunkt

Blaupunkt 5IZ34290 Guide

Popular Hob manuals by other brands

Siemens

Siemens EX875KYV1E INFORMATION FOR USE

AEG

AEG CERAMIC HOB 6010 K Installation and operating instructions

VALERA

VALERA CT 70A datasheet

Zanussi

Zanussi ZGF 6420 Instruction booklet

Gaggenau

Gaggenau CI 273 use and care manual

G3 Ferrari

G3 Ferrari Energy user manual

Pkm

Pkm IN4B instruction manual

Award

Award H903BG user manual

Zanussi

Zanussi VCH 5005 RZ Instruction booklet

Miele

Miele KM 523 Operating and installation instructions

Hotpoint

Hotpoint IS67V8CCXT/E manual

AEG

AEG HK854870XB user manual

Cookology

Cookology SEP600BK instruction manual

Bauknecht

Bauknecht Hob Instructions for use

Zanussi

Zanussi ZGM 782 Instruction booklet

dipo INDUCTION

dipo INDUCTION DIBK218S quick start guide

Miele

Miele KM 5987 Operating and installation instructions

Miele

Miele KM 360 G installation instructions
