Black Box EMERALD SE DUAL-HEAD User manual

STEP X - Name of Step

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

EMD2002SE-T, EMD2002SE-R

EMERALD SE

DUAL-HEAD

QUICK START GUIDE

STEP 1A - Transmitter Diagrams

2 3 4 5 6 7 7

8 9

STEP 1B - Transmitter Components

TABLE 1. EMD2002SE-T COMPONENTS

NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION

1 Power LED button Deactivated, not used

2 5 VDC Power In connector Connect to supplied power adapter

3 USB Type B connector Connect to PC/workstation USB

connector

4 Speed LED Indicates 10/100/1000 Mbps

5 RJ-45 port Connect to network

6Activity LED Indicates activity on the link

7(2) DVI Video connectors Connect to PC Video

8Audio Line In Connect to speakers

9 Audio Line Out Connect to speakers

NOTE: Unit automatically powers on when plugged in; must be powered off at the power source.

STEP 2A - Receiver Diagrams

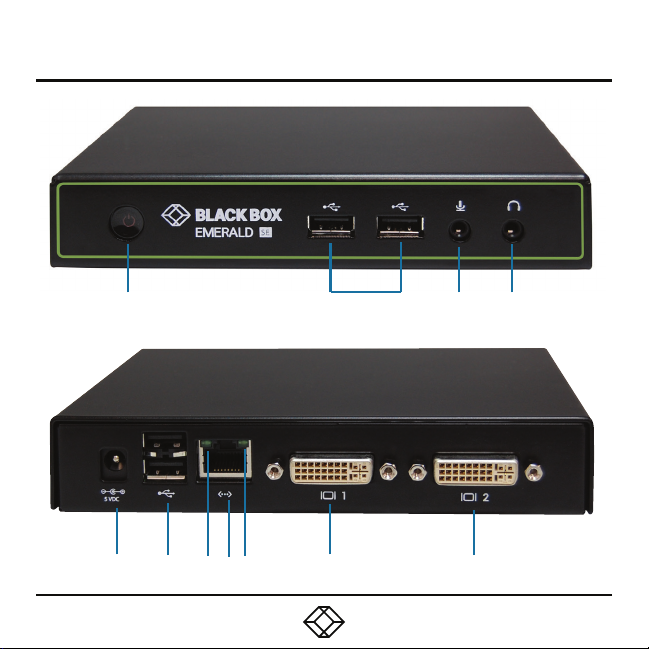

2 3 4

5 6 7 8 9 10 10

STEP 2B - Receiver Components

TABLE 2. EMD2002SE-R COMPONENTS

NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION

1On/Off button Deactivated, not used

2 (2) USB Type A connectors Connect to USB peripherals

3Microphone Connect to microphone

4Speakers Connect to speakers

5 5 VDC Power In connector Connect to supplied power adapter

6 (2) USB Type A connectors Connect to USB peripherals

7 Speed LED Indicates 10/100/1000 Mbps

8 RJ-45 port Connect to network

9Activity LED Indicates activity on the link

10 (2) DVI Video connectors Connect to monitor

NOTE: Unit automatically powers on when plugged in; must be powered off at the power source.

STEP 3 - Connect Power

CONNECT POWER TO TRANSMITTER

1. Locate the power supply adapter and the AC

line cord.

2. Plug the DC connector of the power supply

into the matching socket on the rear of the

transmitter.

3. Attach the AC line cord to the power supply

adapter.

CONNECT POWER TO RECEIVER

1. Locate the power supply adapter and the AC

line cord.

2. Plug the DC connector of the power supply

into the matching socket on the rear of the

receiver.

3. Attach the AC line cord to the power supply

adapter.

CONNECT THE TRANSMITTER

1. Attach the Emerald SE Transmitter to the

target PC/workstation using DVI and USB Type

B cables.

2. Connect to the LAN using standard CAT5

UTP cables between the RJ-45 connector

and the local network connection.

NOTE: The Emerald SE works best with

a 1 Gigabit connection.

CONNECT THE RECEIVER

1. Attach the monitor, keyboard, mouse, USB

and audio devices to the Emerald SE Receiver.

2. Connect to the LAN using standard CAT5

UTP cables between the RJ-45 connector

and the local network connection.

NOTE: The Emerald SE works best with

a 1 Gigabit connection.

STEP 4 - Connect the Peripherals

STEP 5 - Starting Up and Default Settings

STARTING UP

1. Once everything is connected, press the

Power button on the front of the Emerald SE

Receiver.

2. The Graphical User Interface (GUI) will

appear on the screen.

3. Enter the default administrator user name

and password.

User name: admin

Password: blank (just press the Enter key)

4. The default network setting for the Emerald

SE Receiver uses a preconfigured static IP

address.

5. If you require the unit to be set to use DHCP,

select the Control tab on the GUI and then

choose the Network option. Select the DHCP

option and click Apply.

DE FAULT SETTINGS

Default Settings:

Transmitter IP Address: 192.168.1.22

Receiver IP Address: 192.168.1.21

Type: Static

Subnet Mask: 255.255.255.0

Default Gateway: 0.0.0.0

Admin username: admin

Admin password: no password, it is blank by

default

Ports Used: 3389

IMPORTANT: Do not lose the admin password

once configured; there is no way to reset or

retrieve it. The Emerald SE receiver has the

option to create a second administrator account

as a secondary entrance.

STEP 6 - Point-to-Point Installation

POINT-TO-POINT INSTALLATION

In a point-to-point configuration, no

administrator setup of the Emerald SE

Transmitter or the Emerald SE receiver is

required. This enables you to install the

system quickly, directly out of the box. In the

point-to-point configuration, you can install

only one transmitter and receiver pair on a

subnet and both must be on the same subnet

unless a router is present in the network

to span subnets. To span across different

subnets, you will need to have admin rights to

both routers on either side of the installation

and setup port forwarding for port “3389”

for Remote Desktop.

If further configuration is required to change

the default IP addresses, you can access

the transmitter’s network settings through

the remote unit:

1. Simply connect the transmitter to the receiver

using a CATx cable (but do not power up the

transmitter yet), then connect a keyboard,

monitor, and mouse to the remote unit (remote

unit is on at this time).

2. Login as “admin” and go to (Control)>>

(Transmitter)>> (Discover) and follow the

on-screen steps.

3. It will advise you to connect both devices

together and then power up the transmitter

and press the “Next” button.

4. It will take several minutes to discover

the transmitter, but once found, you can modify

the network parameters.

STEP 7 - Matrix Installation and Getting Started

MATRIX INSTALLATION

In a matrix installation, every Emerald SE

transmitter and receiver requires its own IP

address. By default, the DHCP setting is set

to static, so the addresses will need to be

configured manually:

1. Always configure the transmitter first by

connecting the transmitter to the receiver

using a CATx cable (but do not power up the

transmitter yet), then connect a keyboard,

monitor, and mouse to the remote unit (remote

unit is on at this time).

2. Login as “admin” on the remote unit and

go to (Control)>> (Transmitter)>> (Discover)

and follow the on-screen steps.

3. It will advise you to connect both devices

together, and then power up the transmitter

and press the “Next” button.

4. It will take several minutes to discover the

transmitter, but once found, you can modify

the network parameters.

5. Once the transmitter is configured, you can

now configure the receiver.

6. If the units are on different subnets,

then routers will need to be used to properly

direct traffic.

GETTING STARTED

Once the IP addresses have been configured,

each receiver will need to be configured for

users, user passwords, user access rights

and default video resolutions. You can access

these settings from the receiver’s OSD (reboot

the receiver and login as admin) and begin

configuring these parameters.

NOTE: Each receiver can support a maximum

of 32 users and a maximum of 32 targets

(virtualized or transmitter).

STEP 8 - Download the User Manual (Optional)

The full user manual/installation guides

can be downloaded from the Black Box Web site.

FOR US, AUSTRALIA NEW ZEALAND, AND

CANADA

1. Go to BLACKBOX.COM

2. Enter the part number in the search box

(for example, EMD2002SE-T).

3. Click on the product in the “Products” page.

4. Click on the “Support” tab on the product page

and select the document you wish to download.

FOR OTHER COUNTRIES

1. Go to BLACK-BOX.EU/SUPPORTCENTER

2. Enter the part number in the search box and

check the le type: application diagram, data-

sheet, rmware or manual.

3. Select the document you want to download.
