Black Box EMERALD PE DUAL-HEAD User manual

STEP X - Name of Step

T-

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

EMD2002PE-T, EMD2002PE-R-P, EMD2002PE-K

EMERALD PEEMERALD PE

DUAL-HEADDUAL-HEAD

QUICK START GUIDE

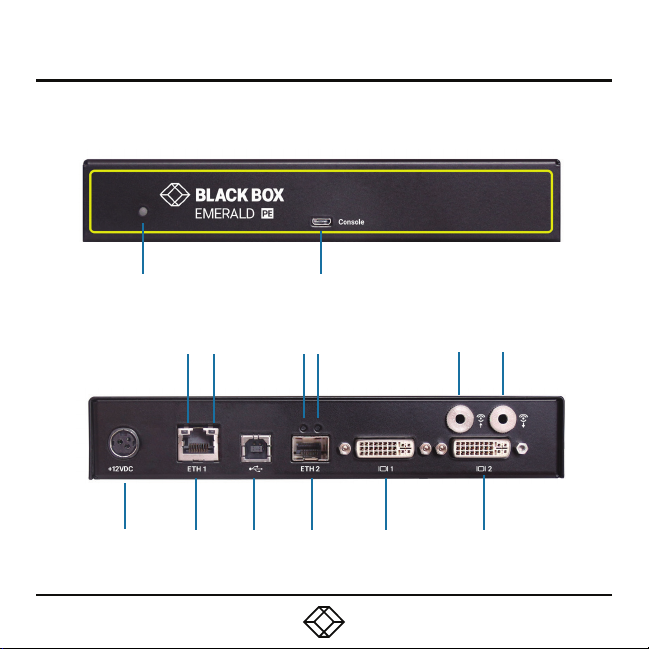

STEP 1A - Transmitter Diagrams

1 2

3 4 5 6 7 7

8 9 10 11 12 13

STEP 1B - Transmitter Components

TABLE 1. EMD2002PE-T COMPONENTS

NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION

1 Power LED Lights when power is ON

2Micro USB connector For future use

3 12 VDC Power In connector Connects to supplied power adapter

4 RJ-45 PoE port Connects to network and supports

Power over Ethernet (PoE)

5 USB Type B connector Connects to PC/workstation USB

connector

6 SFP cage Holds fiber network SFP module

7(2) DVI Video connectors Connect to PC Video

8 TP port Speed LED Indicates 10/100/1000 Mbps

9 TP port Activity LED Indicates activity on the link

10 Fiber port Speed LED Indicates 10/100/1000 Mbps

11 Fiber port Activity LED Indicates activity on the link

12 Audio Line In Connects to speakers

13 Audio Line Out Connects to microphone

NOTE: Unit automatically powers on when plugged in; must be powered off at the power source.

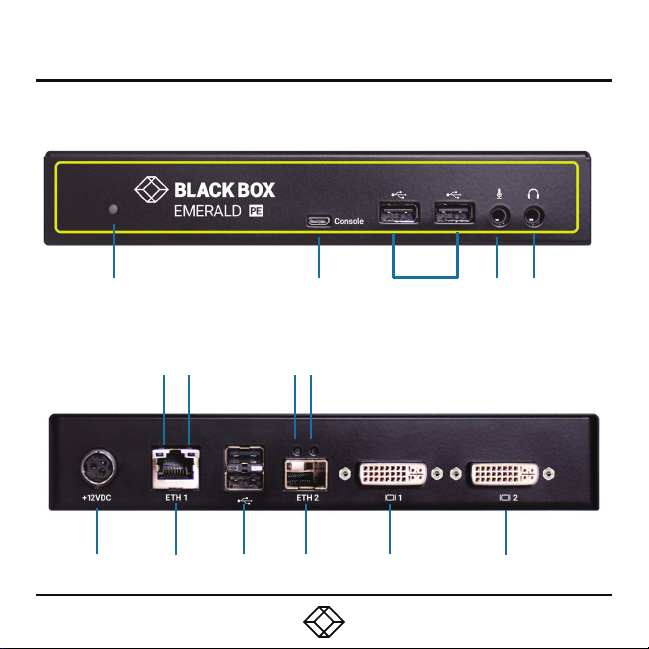

STEP 2A - Receiver Diagrams

2 3 4 5

6 7 8 9 10 10

11 12 13 14

STEP 2B - Receiver Components

TABLE 2. EMD2002PE-R-P COMPONENTS

NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION

1 Power LED Lights when power is ON

2Micro USB connector For future use

3 (2) USB Type A connectors Connect to USB peripherals

4Microphone Connects to microphone

5Speakers Connects to speakers

6 12 VDC Power In connector Connects to supplied power adapter

7 RJ-45 PoE port Connects to network and supports

Power over Ethernet (PoE)

8 (2) USB Type A connectors Connect to USB peripherals

9 SFP cage Holds fiber network SFP module

10 (2) DVI Video connectors Connects to monitors

11 TP port Speed LED Indicates 10/100/1000 Mbps

12 TP port Activity LED Indicates activity on the link

13 Fiber SFP port Speed LED Indicates 10/100/1000 Mbps

14 Fiber SFP port Activity LED Indicates activity on the link

NOTE: Unit automatically powers on when plugged in; must be powered off at the power source.

STEP 3 - Install SFPs in the SFP cages

INSTALL AN SFP MODULE IN THE TX

1. Plug a compatible SFP in the SFP slot on the

transmitter unit (TX).

NOTE: See Table 3 for a list of compatible

SFPs (ordered separately).

INSTALL AN SFP MODULE IN THE RX

1. Plug a compatible SFP in the SFP slot on the

receiver unit (RX).

NOTE: See Table 3 for a list of compatible

SFPs (ordered separately).

NOTE: The EMD2002PE-K kit contains one TX (EMD2002PE-T) and one RX (EMD2002PE-R-P).

TABLE 3. COMPATIBLE SFPS

PART NUMBER DESCRIPTION DISTANCE

1-Gbps Connections

LFP441

SFP, Gigabit Ethernet, 850-nm Multimode Fiber, LC

550 m

LFP442

SFP, Gigabit Ethernet, 1310-nm Singlemode Fiber, LC

20 km

LFP443

SFP, 10/100/1000BASE-T RJ-45 SGMII

100 m

LFP411

SFP, 1.25-Gbps, 850-nm Multimode Fiber, LC

550 m

LFP413

SFP, 1.25-Gbps 1310-nm Singlemode Fiber, LC

10 km

LFP414

SFP, 1250 Ext. Diag. 1310-nm Singlemode Fiber, LC

30 km

LFP415

SFP, 1.25-Gbps Copper RJ-45, SerDes

100 m

LFP416

SFP, 1250 Ext. Diag. 10/100/1000 RJ-45 SGMII

100 m

STEP 4A - Connect Power via External Power Supply

CONNECT POWER TO TRANSMITTER

1. Locate the power supply adapter and the AC

line cord.

2. Plug the DC connector of the power supply

into the matching socket on the rear of the

transmitter.

3. Attach the AC line cord to the power supply

adapter.

CONNECT POWER TO RECEIVER

1. Locate the power supply adapter and the AC

line cord.

2. Plug the DC connector of the power supply

into the matching socket on the rear of the

receiver.

3. Attach the AC line cord to the power supply

adapter.

CONNECT POWER USING POE

1. Connect all computer cables to the

Transmitter.

2. Plug the POE enabled network cable into the

transmitter; power will be enabled immediately.

3. Connect the monitor and peripheral devices

into the receiver.

4. Plug the POE enabled network cable into the

receiver; power will be enabled immediately.

STEP 4B - Connect Power via PoE

STEP 5 - Connect the Peripherals

CONNECT THE TRANSMITTER

1. Attach the Emerald PE Transmitter to the

target PC/workstation using DVI and USB Type

B cables.

2. Connect to the LAN using standard CATx

UTP or fiber cables to the local network

connection.

CONNECT THE RECEIVER

1. Attach the monitor, keyboard, mouse, USB

and audio devices to the Emerald PE Receiver.

2. Connect to the LAN using standard CATx

UTP or fiber cables to the local network

connection.

STEP 6 - Starting Up and Default Settings

STARTING UP

1. Once everything is connected, the unit

automatically powers on when it is plugged

in via a power adapter or PoE.

2. The Graphical User Interface (GUI) will

appear on the screen.

3. Enter the default administrator user name

and password.

User name: admin

Password: blank (just press the Enter key)

4. The default network setting for the Emerald

PE Receiver uses a preconfigured static IP

address.

5. If you require the unit to be set to use DHCP,

select the Control tab on the GUI and then

choose the Network option. Select the DHCP

option and click Apply.

DE FAULT SETTINGS

Default Settings:

Transmitter IP Address: 192.168.1.22

Receiver IP Address: 192.168.1.21

Type: Static

Subnet Mask: 255.255.255.0

Default Gateway: 0.0.0.0

Admin username: admin

Admin password: no password, it is blank by

default

Ports Used: 3389

IMPORTANT: Do not lose the admin password

once configured; there is no way to reset or

retrieve it. The Emerald PE receiver has the

option to create a second administrator account

as a secondary entrance.

STEP 7 - Point-to-Point Installation

POINT-TO-POINT INSTALLATION

In a point-to-point configuration, no

administrator setup of the Emerald PE

Transmitter or the Emerald PE receiver is

required. This enables you to install the

system quickly, directly out of the box. In the

point-to-point configuration, you can install

only one transmitter and receiver pair on a

subnet and both must be on the same subnet

unless a router is present in the network

to span subnets. To span across different

subnets, you will need to have admin rights to

both routers on either side of the installation

and setup port forwarding for port “3389”

for Remote Desktop.

If further configuration is required to change

the default IP addresses, you can access

the transmitter’s network settings through

the remote unit:

1. Simply connect the transmitter to the receiver

using a CATx cable (but do not power up the

transmitter yet), then connect a keyboard,

monitor, and mouse to the remote unit (remote

unit is on at this time).

2. Login as “admin” and go to (Control)>>

(Transmitter)>> (Discover) and follow the

on-screen steps.

3. It will advise you to connect both devices

together and then power up the transmitter

and press the “Next” button.

4. It will take several minutes to discover

the transmitter, but once found, you can modify

the network parameters.

This manual suits for next models
