Black Box AVX-HDMI2-FO-HDB User manual

24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

HDMI 2.0

EXTENDER

OVER FIBER

AVX-HDMI2-FO-HDB

USER MANUAL

IR IN

IR OUT

RS232 IR

SWITCH

RS232 IR

IR OUT

DC 12V RS232

TX RX G

RS232

HDMI IN

DC 12V

TX RX G

HDMI IN

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................................................................................... 3

1. SPECIFICATIONS........................................................................................................................................................................... 4

2. OVERVIEW...................................................................................................................................................................................... 6

2.1 Introduction...............................................................................................................................................................................................6

2.2 Features ....................................................................................................................................................................................................6

2.3 What’s Included........................................................................................................................................................................................7

2.4 Additional Items You Will Need...............................................................................................................................................................7

2.5 Hardware Description..............................................................................................................................................................................8

2.5.1 Transmitter ..........................................................................................................................................................................................................8

2.5.2 Receiver..............................................................................................................................................................................................................10

3. CONNECTIONS AND INSTALLATION........................................................................................................................................ 12

3.1 Installation Steps....................................................................................................................................................................................12

3.2 IR Passthrough.......................................................................................................................................................................................12

3.3 RS-232 Passthrough ..............................................................................................................................................................................13

APPENDIX A. REGULATORY INFORMATION ................................................................................................................................ 14

A.1 FCC Statement .......................................................................................................................................................................................14

A.2 NOM Statement .....................................................................................................................................................................................15

APPENDIX B. DISCLAIMER/TRADEMARKS ................................................................................................................................. 16

B.1 Disclaimer ...............................................................................................................................................................................................16

B.2 Trademarks Used in this Manual ..........................................................................................................................................................16

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

IMPORTANT SAFETY INSTRUCTIONS

1. Do not expose this apparatus to rain, moisture, dripping or splashing liquids. Do not place any objects filled with liquids, such as vases, on

the apparatus.

2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Make sure the unit is well ventilated.

3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the unit’s ventilation openings with newspapers,

tablecloths, curtains, and similar items.

4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

5. Do not place sources of open flames, such as lighted candles, on the unit.

6. Clean this apparatus only with a dry cloth.

7. Unplug this apparatus during lightning storms or when unused for long periods of time.

8. Do not walk on or pinch the power cord, particularly at plugs.

9. Only use attachments/accessories specified by the manufacturer.

10. Refer all servicing to qualified service personnel.

41. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 1: SPECIFICATIONS

TABLE 1-1. SPECIFICATIONS

SPECIFICATION DESCRIPTION

Transmitter

Video Input (1) HDMI female

Input Signal Type HDMI 2.0 and HDCP 2.2

Input Resolution Support

800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768,

1440 x 900,1600 x 900,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P,

4096 x 2160P

Input Video Level 0.5 – 1.0 V p-p

Maximum Pixel Clock 600 MHz

Output (1) optical output with LC connector

Output Fiber Type MM module standard, SM can be purchased separately

Fiber Connector Type (2) LC

Max. Transmission Distance 1000 ft. (300 m) over OM3 cable

Receiver

Video Input (1) optical input with LC connector

Input Fiber Type MM module standard, SM can be purchased separately

Fiber Connector Type (2) LC

Max. Transmission Distance 1000 ft. (300 m) over OM3 cable

Output Signal Type HDMI 2.0 and HDCP 2.2

Output Resolution Support

800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768,

1440 x 900,1600 x 900,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P,

4096 x 2160P

Video Impedance 100 Ohms

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 1: SPECIFICATIONS

TABLE 1-1 (CONTINUED). SPECIFICATIONS

SPECIFICATION DESCRIPTION

General

ESD Protection Human-Body Model: ±8 kV (air-gap discharge)/±4 kV (contact discharge)

Surge Protection Voltage: ±1 kV

Electrical Fast Transient/Burst Data communication cord: 1 kV

Power cord: 2 kV

Approvals CE, FCC, IC, RCM, and VCCI

Power

Power Supply Each unit: (1) External 12 VDC, 0.5 A

Power Consumption 3.9 W (max.)

Environmental

Operating Temperature 32 to 113° F (0 to 45° C)

Storage Temperature -4 to +158° F (-20 to +70° C)

Humidity 0 to 90%, noncondensing

Mechanical

Dimensions Each unit: 0.8” H x 5.9” W x 2.9” D (2 x 15 x 7.4 cm)

Weight Each unit: 0.7 lb. (0.3 kg)

61. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 2: OVERVIEW

2.1 INTRODUCTION

The HDMI 2.0 Extender over Fiber is an HDMI Extender with HDCP 2.2 compatibility. It distributes compressed UHD video, audio, RS-232

or IR together up to 1000 feet (300 meters) over fiber optic cable.

The extender features bi-directional RS-232 or IR ports to control AV devices, easy to choose by the slide switch on the rear panels.

Sources and displays can be controlled from either the transmitter or receiver end using either RS-232 or IR signals.

The extender supports duplex fiber up to 1000 feet (300 meters).

2.2 FEATURES

Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission

Supports HDCP 2.2 passthrough

Supports HDR

Transmits 4K @ 60 4:4:4 signals up to 1000 ft. (300 m) via MM OM3 cable with 10 Gbit/s multimode SFP+ modules (SFP+ modules

are included)

Compressed video transmits when the data rate is above 3 Gbps (e.g. 4K @ 60 Hz 4:4:4)

Uncompressed video transmits when the data rate equal or less than 3 Gbps (e.g. 4K @ 30 Hz 4:4:4)

Supports Bi-directional IR or RS-232 passthrough (select via the DIP switch on the rear panel)

Multichannel audio supports up to PCM 7.1, DTS Master HD and Dolby True HD

Locking DC power plugs

Visual LED indication for power supply to units, HDCP presence in signal, units status and fiber optic cable link

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 2: OVERVIEW

2.3 WHAT’S INCLUDED

Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support

at 877-877-2269 or info@blackbox.com

AVX-HDMI2-FO-HDB includes:

(1) Transmitter with 10 Gbit/s MM SFP+ module

(1) Receiver with 10 Gbit/s MM SFP+ module

(2) Power adapters (12 VDC, 0.5 A)

(2) Phoenix male connectors (3.5-mm, 3-pin)

(1) IR emitter cable

(1) IR broadband receiver cable

(4) Mounting brackets

2.4 OPTIONAL ITEMS

The SFPs are included by the manufacturer, but you can also use our SM or MM SFP+ modules to replace a lost SFP or to use SM instead

of MM. Parts are:

LSP421, SFP+, 10-Gb, Extended Diagnostics, 850-nm Multimode Fiber, 300-m, LC

LSP422, SFP+, 10GBASE-SR, 1310-nm Single-Mode, 10 km, Extended Diag, LC

81. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 2: OVERVIEW

2.5 HARDWARE DESCRIPTION

The HDMI 2.0 Extender over Fiber consists of a Transmitter unit and a Receiver unit.

2.5.1 TRANSMITTER

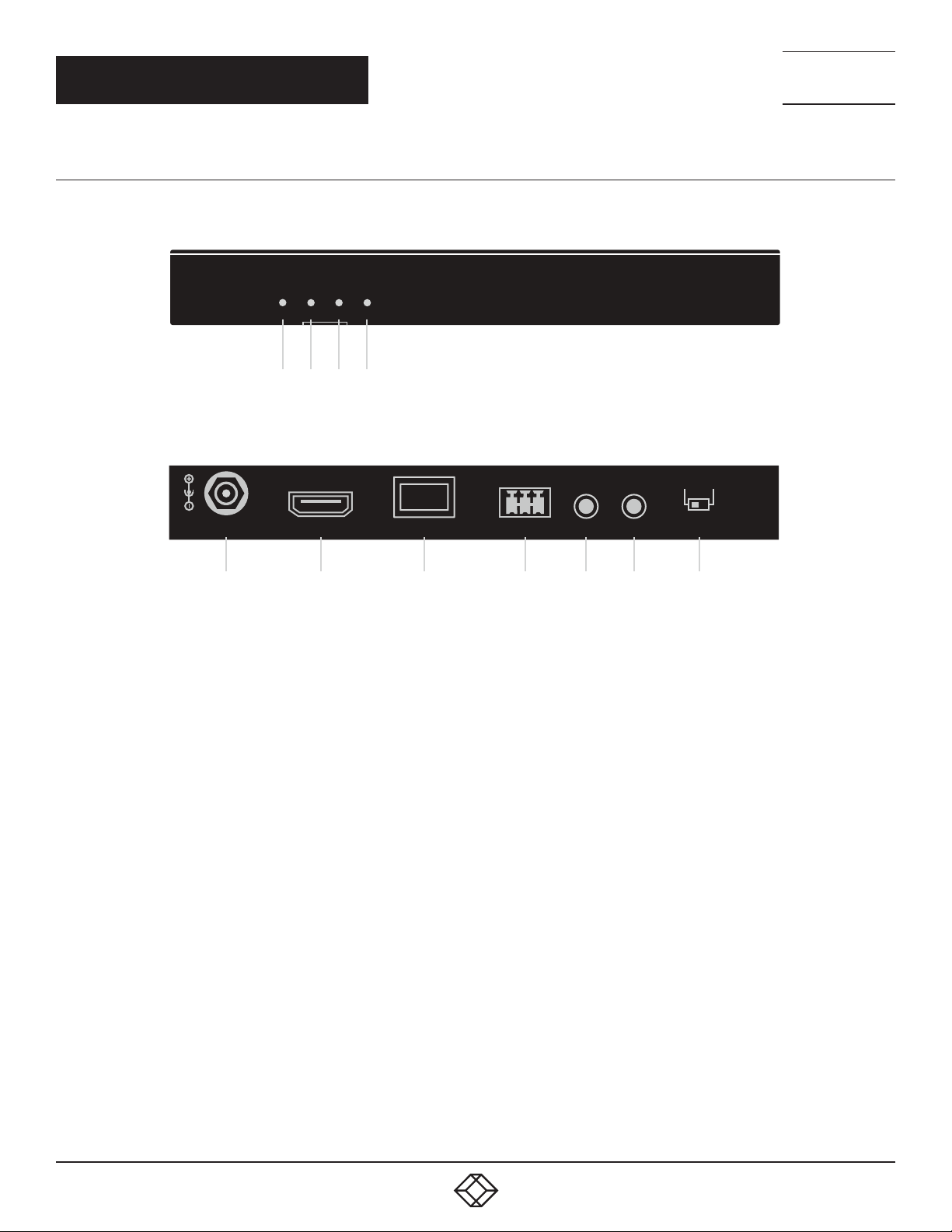

Figures 2-1 and 2-2 show the front and back panels of the transmitter. Table 2-1 describes its components.

POWER

12 3 4

STATUS HDCP LINK

FIGURE 2-1. TRANSMITTER FRONT PANEL

IR IN SWITCH

RS232 IR

IR OUT

DC 12V RS232

TX RX G

HDMI IN OPTICAL OUT

123 4 56 7

FIGURE 2-2. TRANSMITTER BACK PANEL

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 2: OVERVIEW

TABLE 2-1. TRANSMITTER COMPONENTS

NUMBER IN

FIGURE 2-1 COMPONENT DESCRIPTION

1 Power LED ON: The transmitter is powered on.

OFF: The transmitter is powered off.

2 Status LED Flashing: The transmitter is working properly.

OFF: The transmitter is not working properly.

3 HDCP LED

ON: HDCP video is being transmitted.

Flashing: Non-HDCP video is being transmitted.

OFF: No HDMI signal.

4 Link LED ON: Link to receiver has been established.

Blinking/OFF: Link to receiver has not been established.

NUMBER IN

FIGURE 2-2 COMPONENT DESCRIPTION

1 Power connector Links to 12-VDC power input

2 HDMI IN Connects to an HDMI source

3 Optical OUT Connects to Optical IN port of receiver

4 RS-232 RS-232 passthrough

5 IR IN Connects to IR receiver

6 IR OUT Connects to IR emitter

7 Switch RS-232 passthrough

IR: IR passthrough

10 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1. 8 7 7. 87 7. 2 2 6 9

CHAPTER 2: OVERVIEW

2.5.2 RECEIVER

Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2 describes its components.

POWER

12 3 4

STATUS HDCP LINK

FIGURE 2-3. RECEIVER FRONT PANEL

IR IN SWITCH

RS232 IR

IR OUT

DC 12V RS232

TX RX G

HDMI OUT OPTICAL IN

123 4 56 7

FIGURE 2-4. RECEIVER BACK PANEL
