————— Instruction Manual —————
VB0050
Bison 2-3/8” Diameter Volleyball System
Item Qty Description Item Qty Description
A 2 VB00S Poles E 4 3.5” Adapter Rings w/ Set Screws
B 4 5/16” x 2” Hex Bolts F 1 SVB2000 Hardware Kit
C 4 5/16” Lock Nuts G 1 SVB08 Net
D 4 3” Adapter Rings w/ Set Screws H 2 VB24 Floor Sockets (instructions included)
P A R T S L I S T
2 each 1/2” Combination Wrench
TOOLS/MATERIALS REQUIRED
♦ Inspect all contents prior to installation. Report any missing parts to dealer immediately.
♦ Read all instructions before proceeding.
Slider Tracks
36'
Dor
A
E
29'6"
Playing Surface
36'
59'
CB

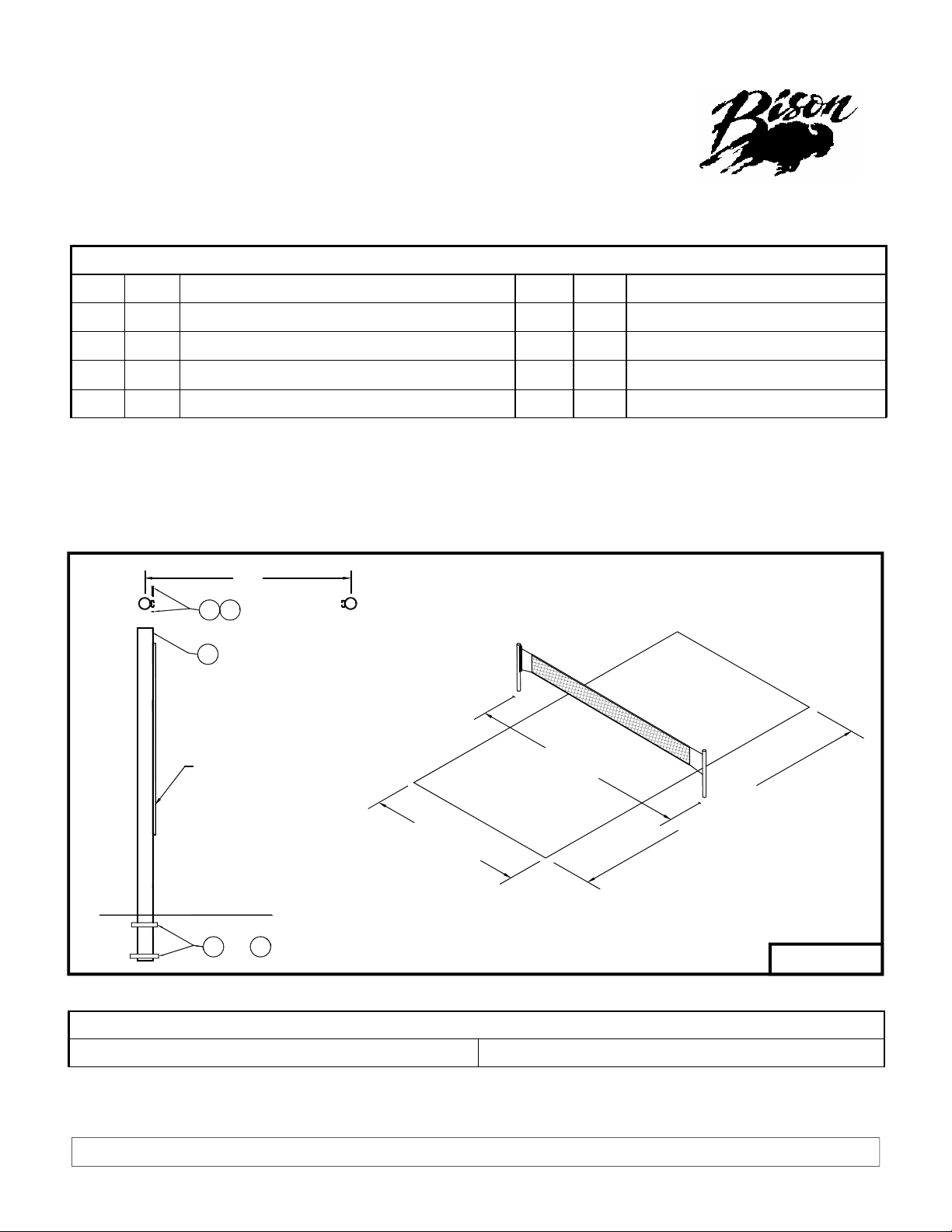

Figure 1
Date: 06/06/2000 Rev: I.R. B.A. N.J.C. File:\\bisonserver\publisher\instructions\VB00S.pub Ref#: 960148
Customer Service
(800) 247-7668
2
1. If you are installing the system in existing 3” or 3-1/2” diameter floor sockets, install the appropriate
adapter rings (D) or (E) on the bottom portion of the pole that will be installed in the floor. Tighten the
setscrews. Disregard the VB24 Floor Sockets (H) if provided.
2. If you are installing the system using the provided VB24 Floor Sockets (H), refer to the court layout in
Figure 1 and follow the instructions provided with the floor sockets. Allow at least 48 hours for any
grout to cure.
3. Install the slider bars provided in the hardware box into the track with the pulley to the top (see Figure
2.) Lock Slider bars in the middle of the track with a turn of the hand knob.
4. Install the 5/16” x 2” Hex Bolts (B) and 5/16” Locknuts (C) in the holes at the top and at the bottom of
the track to retain the slider bar.
5. Insert poles into the floor sockets. Loop the top rope of the SVB08 Net (G) around the top pulley and
down into the rope cleat.
6. When the top rope is tight, tie the additional tensioning strings to the eyelets provided on the slider bar.
(see Figure 2)
7. Adjust the net to the desired height by first loosening the top rope, and then loosening the hand knob on
the slider bars and moving the slider bar to the desired height. Mark the most commonly used heights
on the outside of the track with a permanent marker.
8. VB50P-XX Post Padding and VB14 Antennas are available as optional equipment.

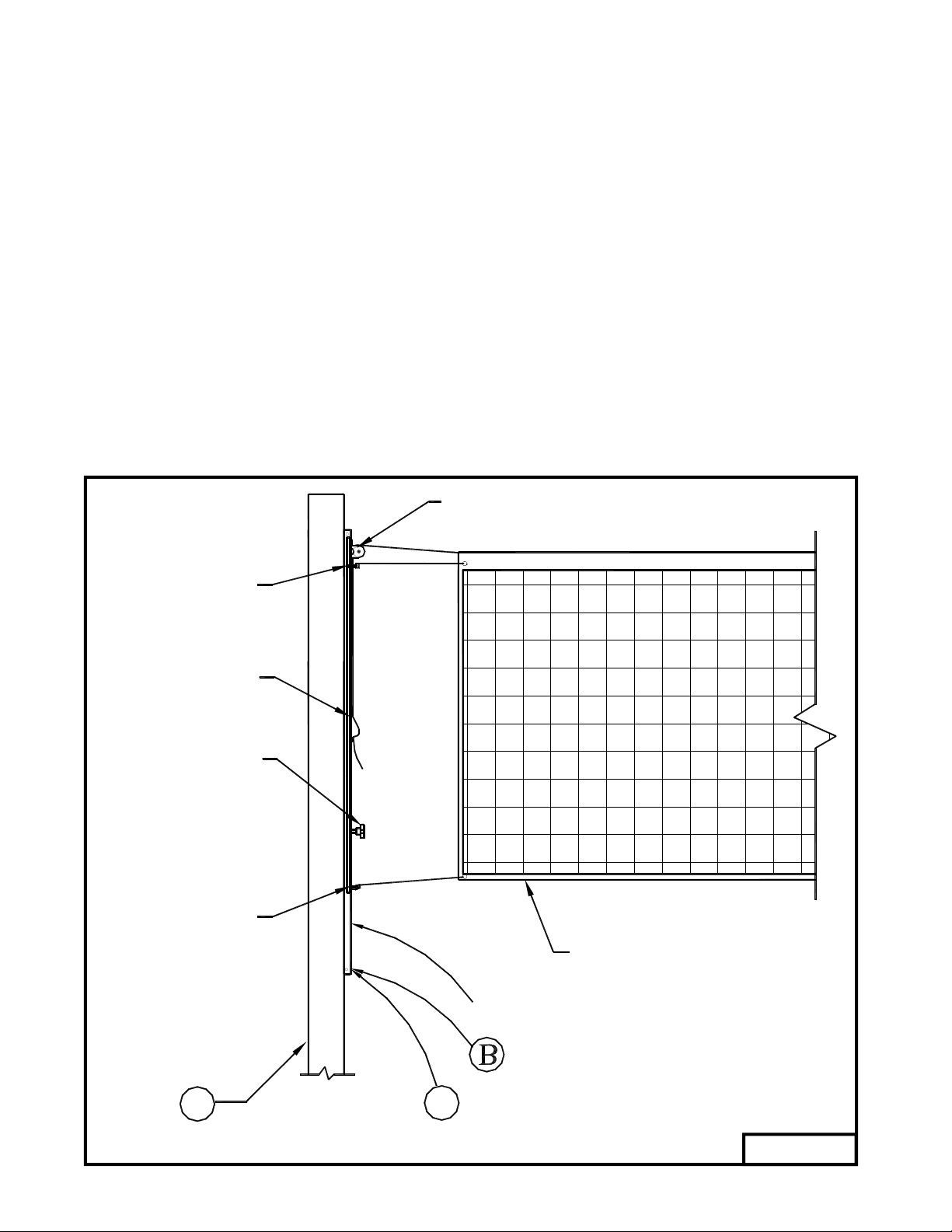

Figure 2
Eyelet
Hand Knob
Eyelet
Rope Cleat
Top Pulley
C
A
Volleyball Net
Slider Bars
