Service Manual

SERVICE PARTS & DIAGRAMS

This guide is a troubleshooting reference used for maintaining and

servicing your Bend Pak product. It provides comprehensive information

on identifying serviceable parts and components and assists in

troubleshooting problems and performing assembly /disassembly

procedures.

BENDPAK

MD-6XP

PRODUCT SKU

5175730

DRAWING Nº

5260652

CATEGORY

Mid-Rise Scissor Li

REV

Version E

DATE

03.08.2022

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 5

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

REPLACED LABELS WITH COLORS & GRAPHICS

NOTE, REPLACED 5940070 WITH PACKAGING

INSTRUCTION NOTE

09/30/2021

01350

ADDED POWER UNIT AND REFERENCE NOTE,

UPDATED BOM REVISION

12/17/2021

01368

UPDATED BOM REVISION

03/02/2022

01397

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

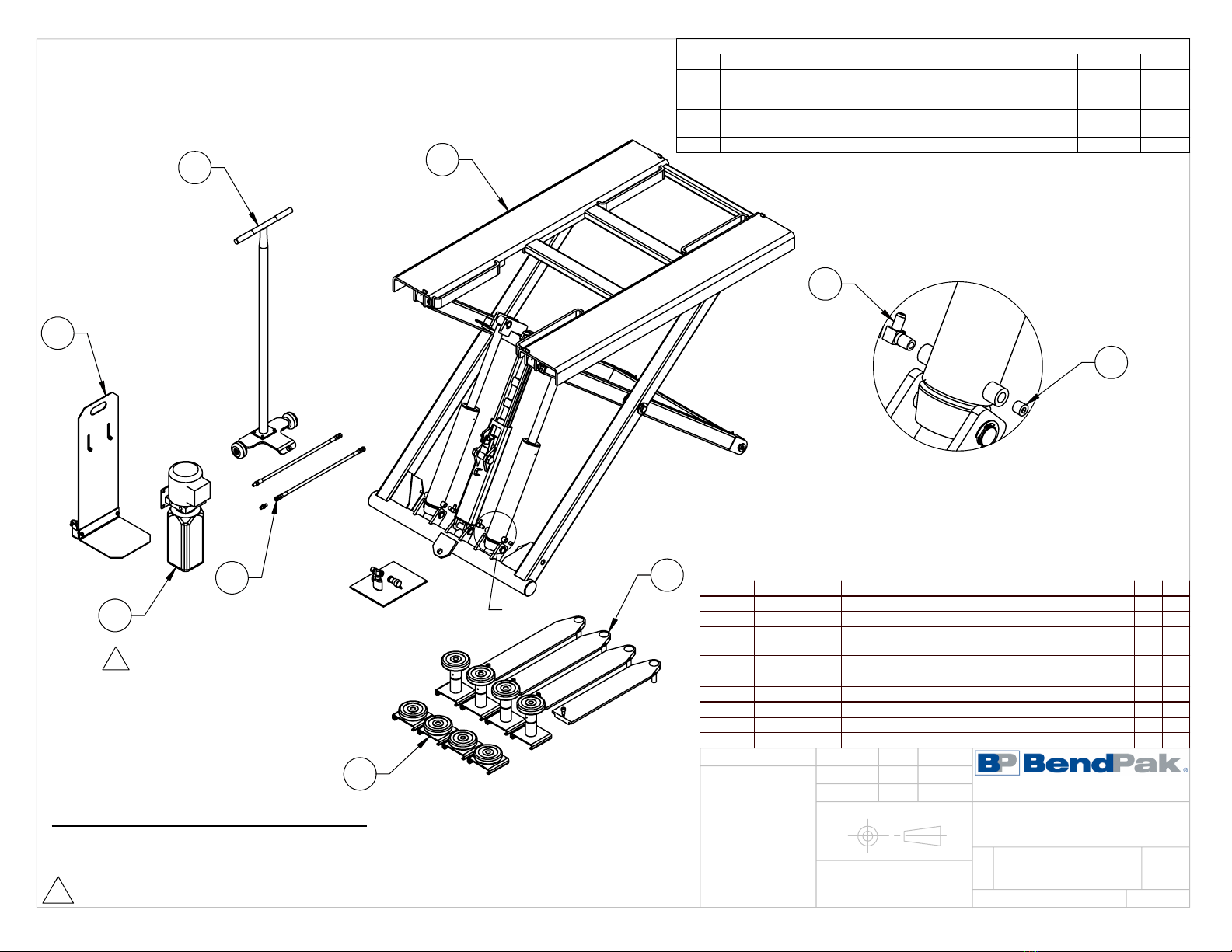

1 5245128

MD-6XP LIFT SUPERSTRUCTURE

2 5215871

LOW RISE TOW CART ASSEMBLY

3 5215983

LOW RISE WHEELED POWER UNIT STAND

ASSEMBLY

4 5250128

MD-6XP PARTS BOX

5 5570054

HYDRAULIC HOSE ASSEMBLY Ø6.4 x 540mm DS

6 5600237

MD-6XP LIFT ARM WELDMENT

7 5550086

FTG ELB -04 NPT x -04 JIC

8 5550145

FTG PLG -04 NPT

REF

POWER UNIT

SHEET 1 OF 3

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5260652

MD-6XP PRODUCTION

LIFT VER C

06/03/2021

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

03/02/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

SEE COLORS & GRAPHICS FOR LABEL PLACEMENT

POWER UNIT REFERENCE ON PURCHASE ORDER

936.6mm

36.876in

1190.3mm

46.863in

1464.1mm

57.642in

561.8mm

22.120in

1929.6mm

75.969in

119.8mm

4.717in

SHEET 2 OF 3

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260652

MD-6XP PRODUCTION

LIFT VER C

1:12

SCALE:

42.313in

1074.7mm

TOP LOCK

22.998in

584.1mm

LOWEST LOCK

46.863in

1190.3mm

FULLY RAISED

4.717in

119.8mm

FULLY LOWERED

SHEET 3 OF 3

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260652

MD-6XP PRODUCTION

LIFT VER C

1:20

SCALE:

DIMENSIONS ARE IN MM

☺

167

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

06/16/2016

00766

UPDATED BOM REVISION

08/03/2017

00861

UPDATED BOM REVISION

06/03/2021

01306

NEXT ASSEMBLY

5260169

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5600238

MD-6XP INNER ARM WELDMENT

2 5600240

MD-6XP OUTER ARM WELDMENT

3 5600239

MD-6XP COVER WELDMENT

4 5215253

MD-6XP SAFETY ASSEMBLY

5 5502175

CYLINDER ASSEMBLY Ø3.0 x 15

6 5601085

DMR-6/MD-6XP MAIN ARM PIVOT PIN

WELDMENT

7 5505723

DMR-6/MD-6XP INNER ARM PIN WELDMENT

8 5540275

E RING Ø25mm OD DIN 6799 0250

9 5505722

MD-6XP CYLINDER PIN, LOWER

10 5215265

DMR-6/MD-6XP ROLLER ASSEMBLY

11 5505719

DMR-6/MD-6XP OUTER SCISSOR ROLLER PIN

WELDMENT

12 5505720

DMR-6/MD-6XP SAFETY PIN

13 5505721

DMR-6/MD-6XP CYLINDER PIN, UPPER

14 5505400

Ø6 x 50mm COTTER PIN

15 5545001

WASHER 25mm x 37mm

16 5545415

WASHER M30 x 56 FLAT

17 5505106

SPRING PIN M6 x 50

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5245128

MD-6XP LIFT

SUPERSTRUCTURE

02/19/2009

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

WHERE USED

LR-60P

MD-6XP

DLR-6P

DMR-6

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE

08/11/2020

01188

UPDATED BOM REVISION AND NEXT ASSEMBLY

12/17/2021

01368

UPDATED BOM REVISION

03/02/2022

01397

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601407

LOW RISE POWER UNIT STAND WELDMENT

2 5737141

LOW RISE POWER UNIT STAND EXTENSION PLATE

3 5716192

QUICKJACK POLYURETHANE WHEEL

4 5530027

HHB M6 x 1.0 x 35

5 5545026

WASHER M6 x Ø12 SL

6 5535357

NUT M6 x 1.0 NL

7 5530304

HHB M8 x 1.25 x 20mm

8 5545202

WASHER M8 x Ø15 SL

9 5535001

NUT M8 x 1.25 NL

NEXT ASSEMBLY

5260168

5260630

5260632

5260652

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215983

LOW RISE WHEELED POWER

UNIT STAND ASSEMBLY

08/10/2020

DO NOT SCALE DRAWING

1:5

SCALE:

THIRD ANGLE PROJECTION

03/02/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

DIMENSIONS ARE IN MM

☺

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

REMOVED (2) 5530304, (2) 5535001, AND (2)

5545202

09/24/2019

01128

ADDED 5580012

03/31/2020

01152

ADDED 5530031, REPLACED 5550103 WITH

5550413, REPLACED 5570013 WITH 5570245

08/11/2020

01188

WHERE USED

MD-6XP

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5545343

WASHER, M20 FLAT

2 5535017

NUT M20 x 2.5 NL

3 5530336

SHCS M12 x 1.75 x 20

4 5550413

FTG NPL -06 ORB x ¼ NS; QUICK-CON COUP MALE

5 5550147

FTG NPL -04 JIC x -04 NPT

6 5535001

NUT M8 x 1.25 NL

7 5545202

WASHER M8 x Ø15 SL

8 5530304

HHB M8 x 1.25 x 20

9 5215523

MD-6XP/P9000/RBJ4500 SHORT ROUND LIFT PAD

ASSEMBLY

10 5600257

MD-6XP/P9000/RBJ4500 LIFT PAD WELDMENT BASE

11 5746390

MEDIUM LIFT PAD EXTENSION Ø35 x 113mm

12 5215507

ROUND LIFT PAD ADAPTER ASSEMBLY

13 5570245

HYDRAULIC HOSE ASSEMBLY Ø6.4 x 3660mm DS-M

14 5900108

MD-6XP INSTALLATION MANUAL

15 5580012

LIQUID PTFE THREAD SEALANT 50ml

16 5550031

FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR COUPLER

FEMALE; NON SPILL DESIGN

NEXT ASSEMBLY

5260169

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5250128

MD-6XP PARTS BOX

02/18/2009

DO NOT SCALE DRAWING

1:18

SCALE:

THIRD ANGLE PROJECTION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM T1201

02/04/2009

00233

UPDATED BOM REVISION

11/07/2011

00483

UPDATED BOM REVISION

01/04/2016

00736

WHERE USED

MD-6XP

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5620296

MD-6XP SAFETY WELDMENT

2 5731283

MD-6XP SAFETY LATCH

3 5600258

MD-6XP SAFETY CATCH WELDMENT

4 5540016

MD-6XP SAFETY SPRING

5 5620099

MD-6XP SAFETY STOP WELDMENT

6 5530760

HHB M10 x 1.5 x 38

7 5535013

NUT M10 x 1.5 NL

8 5530041

HHB M20 x 2.5 x 90 CL10.9

9 5535017

NUT M20 x 2.5 NL

NEXT ASSEMBLY

5245128

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215253

MD-6XP SAFETY

ASSEMBLY

02/04/2009

DO NOT SCALE DRAWING

1:4

SCALE:

THIRD ANGLE PROJECTION

01/08/2016

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

E-001

E-002

E-003

E-004

E-005

E-006

E-007

E-008

E-009

UPDATE BOM REVISION AND NEXT ASSEMBLY

UPDATED NEXT ASSEMBLY

UPDATED NEXT ASSEMBLIES

UPDATED NEXT ASSEMBLY

UPDATED NEXT ASSEMBLIES

UPDATED NEXT ASSEMBLY

UPDATED NEXT ASSEMBLIES

UPDATED NEXT ASSEMBLY

12/19/2012

03/14/2013

06/21/2013

10/16/2014

03/24/2015

08/06/2015

11/24/2015

01/21/2016

05/25/2017

09/12/2017

00572

00586

00605

00663

00691

00715

00738

00739

00833

00867

UPDATED BOM REVISION

02/02/2018

00922

UPDATED BOM REVISION AND NEXT ASSEMBLY

05/31/2018

00953

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5600588

ROUND LIFT PAD WELDMENT

2 5715017

ROUND LIFT PAD ADAPTER POLYURETHANE PAD

NEXT ASSEMBLY

5150561 5250273

5210163 5250288

5210194 5250293

5210214 5250297

5215865 5250298

5215866 5250316

5216062

5250080 5250328

5250115 5250331

5250128 5250373

5250271 5250374

WHERE USED

QUICKJACK

SERIES

MAXJAX

P9000 SERIES

D2-10 SERIES

MD-6XP

DMR-6

D2-8F

SP-7XE SERIES

HD-7BXT

ACCY

GP-7 SERIES

RJ-45LP

RJW SERIES

RBJ7000A

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215507

ROUND LIFT PAD

ADAPTER ASSEMBLY

12/30/2010

DO NOT SCALE DRAWING

1:2

SCALE:

THIRD ANGLE PROJECTION

06/18/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

540

2 1

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE

01/25/2008

00142

B-001

UPDATED DRAWING TO NEW STANDARDS AND TITLE

UPDATED NEXT ASSEMBLY

02/19/2009

03/07/2011

00233

00443

C-001

REPLACED 5570110 WITH 5570129

UPDATED NEXT ASSEMBLY

09/21/2015

04/13/2016

00726

00755

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5570129

Ø6.4 ID HYDRAULIC HOSE

474mm*

2 5550325

FTG NPL Ø1/4 CRIMP x -04 JIC

NEXT ASSEMBLY

5260630

5260652

WHERE USED

DMR-6

MD-6XP

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

5570054

HYDRAULIC HOSE

ASSEMBLY Ø6.4 x 540mm DS

01/18/2008

DO NOT SCALE DRAWING

1:2

SCALE:

THIRD ANGLE PROJECTION

06/23/2016

DIMENSIONS ARE IN MM

TOLERANCES:

0. = ±1.5

0.0 = ±1.0

0.00 = ±0.25

0.000 = ±0.13

SURFACE FINISH 1.6 ISO Ra µm

FOR MACHINED SURFACES

UNLESS OTHERWISE SPECIFIED

NOTE: UNLESS OTHERWISE SPECIFIED.

FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM

(*)ITEM 1 QTY FOR REFERENCE ONLY

Other manuals for MD-6XP

This manual suits for next models

Table of contents

Other Bend-Pak Lifting System manuals

Bend-Pak

Bend-Pak HDS-18EA User manual

Bend-Pak

Bend-Pak XPR-10S-168 User manual

Bend-Pak

Bend-Pak PL-7000XR User manual

Bend-Pak

Bend-Pak HDS-40 User manual

Bend-Pak

Bend-Pak XPR-12FDL User manual

Bend-Pak

Bend-Pak SP-7XF User manual

Bend-Pak

Bend-Pak HD-9STX User manual

Bend-Pak

Bend-Pak HD-12SS-B User manual

Bend-Pak

Bend-Pak XPR-10AXLS-LP User manual

Bend-Pak

Bend-Pak HD-9ST User manual

Bend-Pak

Bend-Pak HD-14T User manual

Bend-Pak

Bend-Pak XPR-10XLS-LP User manual

Bend-Pak

Bend-Pak HDSO-14P User manual

Bend-Pak

Bend-Pak PL-6000DC User manual

Bend-Pak

Bend-Pak GP-7LC User manual

Bend-Pak

Bend-Pak HD-14T User manual

Bend-Pak

Bend-Pak EXCEL Series User manual

Bend-Pak

Bend-Pak PL-12000DP User manual

Bend-Pak

Bend-Pak GP-7 User manual

Bend-Pak

Bend-Pak HD-7P User manual

Bend-Pak

Bend-Pak HD-7PXW User manual

Bend-Pak

Bend-Pak HDSO-14P User manual

Bend-Pak

Bend-Pak HD-7ZM User manual

Bend-Pak

Bend-Pak XPR-18CL-192 User manual

Popular Lifting System manuals by other brands

morse

morse 82H-124 Operator's manual

Braun

Braun NL955 Series Operator's manual

haacon

haacon 1889.10 quick start guide

Protekt

Protekt AT 252 instruction manual

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 operating manual

Nova Technology International, LLC

Nova Technology International, LLC NAS Series quick start guide

Genie

Genie Z-60/34 Operator's manual

Screen Technics

Screen Technics INTERFIT Vertical Up Lift instructions

Mortuary Lift

Mortuary Lift ULTIMATE 1000 instructions

Custom Equipment

Custom Equipment Hy-Brid 3 Series MAINTENANCE & TROUBLESHOOTING MANUAL

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Maintenance and troubleshooting manual

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 MAINTENANCE & TROUBLESHOOTING MANUAL

BERG

BERG BeNomic EasyLeaf Technical manual

Powermate

Powermate LiftGate LG-3 Installation & operation manual

Snorkel

Snorkel TM12 Series Operator's manual

Terberg

Terberg OMNIDEKA Translation of the original instructions

Harmar Mobility

Harmar Mobility AL625 Installation & owner's manual

Rotary

Rotary SPO16 installation instructions
