Bend-Pak HD-7MZ User manual

INSTALLATION AND OPERATION MANUAL

1645 Lemonwood Dr.

Santa Paula, CA. 93060, USA

Toll Free 1-800-253-2363

Tel: 1-805-933-9970

www.bendpak.com

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO

INSTALLATION AND OPERATION. BY PROCEEDING WITH LIFT

INSTALLATION AND OPERATION YOU AGREE THAT YOU FULLY

UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF THIS

MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS. FAILURE TO

OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY OR DEATH.

Revision B2- June 2019

Part Number 5900972

RECEIVING

The shipment should be thoroughly inspected as soon as it

is received. The signed Bill of Lading is acknowledgement

by the shipping carrier as receipt of this product as listed

in your invoice as being in a good condition of shipment. If

any of these goods listed on this Bill of Lading are missing

or damaged, do not accept goods until the shipping carrier

makes a notation on the freight bill of the missing or dam-

aged goods. Do this for your own protection.

BE SAFE

Your new lift was designed and built with safety in mind.

However, your overall safety can be increased with proper

training and thoughtful operation on the part of the operator.

DO NOT operate or repair this equipment without reading

this manual and the important safety instructions shown

inside. Keep this operation manual near the lift at all times.

Make sure that ALL USERS read and understand this

manual.

7,000 POUND / 3,175 KG CAPACITY

FOUR-POST PARKING LIFT

MODELS:

• HD-7MZ

• HD-7PXW

• HD-7PXN

Keep this operation manual near the

machine at all times. Make sure that

ALL USERS read this manual.

7,000 POUND / 3,175 KG CAPACITY,

COMMERCIAL GRADE FOUR-POST LIFT

This instruction manual has been prepared especially for you.

READ THIS ENTIRE MANUAL BEFORE INSTALLATION & OPERATION BEGINS.

RECORD HERE THE LIFT AND

POWER UNIT INFORMATION WHICH IS LOCATED

ON THE SERIAL NUMBER

DATA PLATES ON THE LIFT AND

ON THE POWER UNIT

Power Unit Model # _____________

Power Unit Date Of Mfg. _____________

Power Unit Serial # _____________

Max Operating Pressure __3,100 PSI

This information is required when

calling for parts or warranty issues.

PRODUCT WARRANTY

Our comprehensive product warranty means more than a commitment to you. It is also a commitment to the value of

your new BendPak lift. For full warranty details and to register your new lift contact your nearest BendPak dealer or visit:

http:/ /www.bendpak.com/support/warranty/

NOTE:

Every effort has been taken to ensure complete and accurate instructions have been included in this manual, however, possible

product updates, revisions and or changes may have occurred since this printing. BendPak Ranger reserves the right to change

specications without incurring any obligation for equipment previously or subsequently sold. Not responsible for typographical errors.

IMPORTANT NOTICE

Do not attempt to install this lift if you have never been

trained on basic automotive lift installation procedures.

Never attempt to lift components without proper lifting

tools such as forklift or cranes. Stay clear of any moving

parts that can fall and cause injury. These instructions

must be followed to ensure proper installation and

operation of your lift. Failure to comply with these

instructions can result in serious bodily harm and void

product warranty. Manufacturer will assume no liability for

loss or damage of any kind, expressed or implied

resulting from improper installation or use of this product.

PLEASE READ ENTIRE MANUAL

PRIOR TO INSTALLATION.

DEFINITIONS OF

HAZARD LEVELS

Identify the hazard levels used in this manual

with the following definitions and signal words:

Watch for this symbol: It Means: Immediate hazards

which will result in severe personal injury or death.

Watch for this symbol: It Means: Hazards or unsafe

practices which could result in severe personal

injury or death.

Watch for this symbol: It Means: Hazards or unsafe

practices which may result in minor personal injury,

product or property damage.

OWNER’S RESPONSIBILITY

To maintain the lift and user safety, the responsibility of

the owner is to read and follow these instructions:

t Follow all installation and operation instructions.

t Make sure installation conforms to all applicable Local,

State, and Federal Codes, Rules, and Regulations;

such as State and Federal OSHA Regulations and

Electrical Codes.

t Carefully check the lift for correct initial function.

t Read and follow the safety instructions. Keep them

readily available for machine operators.

t Make certain all operators are properly trained, know

how to safely and correctly operate the unit, and are

properly supervised.

t Allow unit operation only with all parts in place and

operating safely.

t Carefully inspect the unit on a regular basis and

perform all maintenance as required.

t Service and maintain the unit only with authorized or

approved replacement parts.

t Keep all instructions permanently with the unit and

all decals on the unit clean and visible.

BEFORE YOU BEGIN

Receiving:

The shipment should be thoroughly inspected as soon as it

is received. The signed bill of lading is acknowledgement by

the carrier of receipt in good condition of shipment covered

by your invoice. If any of the goods called for on this bill of

lading are shorted or damaged, do not accept them until the

carrier makes a notation on the freight bill of the shorted or

damaged goods. Do this for your own protection.

NOTIFY THE CARRIER AT ONCE if any hidden loss or

damage is discovered after receipt and request the carrier

to make an inspection. If the carrier will not do so, prepare

a signed statement to the effect that you have notified the

carrier (on a specific date) and that the carrier has failed to

comply with your request.

IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE

AFTER YOU HAVE GIVEN THE CARRIER A CLEAR

RECEIPT. File your claim with the carrier promptly. Support

your claim with copies of the bill of lading, freight bill, invoice,

and photographs, if available. Our willingness to assist in

helping you process your claim does not make BendPak

Inc. responsible for collection of claims or replacement of

lost or damaged materials.

TABLE OF CONTENTS

Contents Page No.

Warranty / Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Denitions of Hazard Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Owner’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installer Operator/ Protective Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety / Warning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Step 1 / Selecting Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Step 2 / Floor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Concrete Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Assembly View / Description of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Floor Plan / Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Power Unit Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Step 3 / Column and Cross Tube Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13

Step 4 / Raising the Cross Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Step 5 / Powerside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Step 6 / Offside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Cable Routing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Step 7 / Sheave Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Step 8 / Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Step 9 / Power Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-20

Step 10 / Routing Hydraulic Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

Step 11 / Routing Air Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Safety Air Line Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Step 12 / Power Unit Hook Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

Step 13 / Inspecting Slack Safety Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Step 14 / Lift Start Up / Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28

Step 15 / Anchoring The Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

Step 16 / Attaching Approach Ramps / Tire stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Step 17 / Leveling / Synchronizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Step 18 / Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31

Step 19 / Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Step 20 / Lift Operation Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-33

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-38

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-42

Grease Port Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Installation Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Part Number Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-52

INSTALLER / OPERATOR

PLEASE READ AND FULLY

UNDERSTAND THAT

BY PROCEEDING YOU AGREE TO

THE FOLLOWING:

tI have visually inspected the site where the lift is to be

installed and verified the concrete to be in good

condition and free of cracks or other defects. I understand

that installing a lift on cracked or defective concrete could

cause lift failure resulting in personal injury or death.

tI understand that a level floor is required for proper

installation and level lifting.

tI understand that I am responsible if my floor is of

questionable slope and that I will be responsible for all

charges related to pouring a new level concrete slab if

required and any charges.

tI understand that the lifts are supplied with concrete

fasteners meeting the criteria of the American National

Standard “Automotive Lifts - Safety Requirements for

Construction, Testing, and Validation” ANSI/ALI ALCTV-

2009 (R2015), and that I will be responsible for all charges

related to any special regional structural and/or seismic

anchoring requirements specified by any other agencies

and/or codes such as the Uniform Building Code (UBC)

and/or International Building Code (IBC).

tI will assume full responsibility for the concrete floor

and condition thereof, now or later, where the above

equipment model(s) are to be installed. Failure to follow

danger, warning, and caution instructions may lead to

serious personal injury or death to operator or bystander

or damage to property.

tI understand that BendPak lifts are designed to be

installed in indoor locations only. Failure to follow

installation instructions may lead to serious personal

injury or death to operator or bystander or damage to

property or lift.

Failure to follow danger, warning, and caution instruc-

tions may lead to serious personal injury or death to

operator or bystander or damage to property.

Please read entire manual prior to installation.

Do not operate this machine until you read and

understand all the dangers, warnings and cautions

in this manual. For additional copies

or further information, contact:

BendPak Inc. / Ranger Products

1645 Lemonwood Dr.

Santa Paula, CA. 93060

1-805-933-9970

www.bendpak.com

INSTALLER / OPERATOR

PROTECTIVE EQUIPMENT

Personal protective equipment helps makes installation

and operation safer. However, it does not take the place

of safe operating practices. Always wear durable work

clothing during any installation and/or service activity.

Shop aprons or shop coats may also be worn. However,

loose fitting clothing should be avoided. Tight fitting

leather gloves are recommended to protect technicians’

hands when handling parts. Sturdy leather work shoes

with steel toes and oil resistant soles should be used by

all service personnel to help prevent injury during typical

installation and operation activities.

Eye protection is essential during

installation and operation activities. Safety

glasses with side shields, goggles, or face

shields are acceptable. Back belts provide

support during lifting activities and are also

helpful in providing worker protection. Consideration

should also be given to the use of hearing protection if

service activity is performed in an enclosed area, or if

noise levels are high.

THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED

COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OR YOURSELF AND OTHERS

AND CAN CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL INSTRUCTIONS IN

THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

1. Carefully remove the crating and packing

materials. CAUTION! Be careful when cutting steel

banding material as items may become loose and fall

causing personal harm or injury.

2. Check the voltage, phase and proper amperage

requirements for the motor shown on the motor plate.

Wiring should be performed by a certied electrician only.

IMPORTANT SAFETY INSTRUCTIONS

Read these safety instructions entirely!

IMPORTANT NOTICE

Do not attempt to install this lift if you have never been trained on basic automotive lift installation procedures.

Never attempt to lift components without proper lifting tools such as forklift or cranes.

Stay clear of any moving parts that can fall and cause injury.

INTRODUCTION

• READ AND UNDERSTAND all safety warning

procedures before operating lift.

• KEEP HANDS AND FEET CLEAR. Remove hands

and feet from any moving parts. Keep feet clear of lift

when lowering. Avoid pinch points.

• KEEP WORK AREA CLEAN. Cluttered work areas

invite injuries.

• Consider work area environment. Do not expose equip-

ment to rain. DO NOT use in damp or wet locations.

Keep area well lighted.

• ONLY TRAINED OPERATORS should operate this

lift. All non-trained personnel should be kept away from

work area. Never let non-trained personnel come in

contact with, or operate lift.

• USE LIFT CORRECTLY. Use lift in the proper manner.

Never use lifting adapters other than what is approved

by the manufacturer.

• DO NOT override self-closing lift controls.

• REMAIN CLEAR of lift when raising or lowering vehicle.

• CLEAR AREA if vehicle is in danger of falling.

• ALWAYS ENSURE that the safeties are engaged

before any attempt is made to work on or near vehicle.

• DRESS PROPERLY. Non-skid steel-toe footwear is

recommended when operating lift. Keep hair, loose

clothing, ngers, and all parts of body away from

moving parts.

• GUARD AGAINST ELECTRIC SHOCK.

This lift must be grounded while in use to

protect the operator from electric shock.

Never connect the green power cord wire

to a live terminal. This is for ground only.

• DANGER! The power unit used on this

lift contains high voltage. Disconnect

power at the receptacle before per-

forming any electrical repairs. Secure

plug so that it cannot be accidentally

plugged in during service.

• WARNING! RISK OF EXPLOSION.

This equipment has internal arcing or

sparking parts which should not be

exposed to ammable vapors. This

machine should not be located in a recessed area or

below oor level.

• MAINTAIN WITH CARE. Keep lift clean for better and

safer performance. Follow manual for proper lubrication

and maintenance instructions. Keep control handles

and/or buttons dry, clean and free from grease and oil.

• STAY ALERT. Watch what you are doing. Use com-

mon sense. Be aware.

• CHECK FOR DAMAGED PARTS. Check for align-

ment of moving parts, breakage of parts or any condi-

tion that may affect its operation. Do not use lift if any

component is broken or damaged.

• NEVER remove safety related components from the lift.

Do not use lift if safety related components are dam-

aged or missing.

• BendPak requires all operators to read ANSI/ALI

ALIS, Safety Requirements for Installation and

Service of Automotive Lifts.

• Use only as described in this manual. Use only

manufacturer’s recommended attachments.

• ALWAYS WEAR SAFETY GLASSES. Normal

eyeglasses only have impact resistant lenses; they

are not safety glasses.

SAVE THESE INSTRUCTIONS

STEP 1

( Selecting Site )

Before installing your new lift, check the following:

1. LIFT LOCATION: Always use architects plans when

available. Check layout dimension against floor plan

requirements making sure that adequate space if

available.

2. OVERHEAD OBSTRUCTIONS: The area where

the lift will be located should be free of overhead

obstructions such as heaters, building supports, elec-

trical lines etc.

3. DEFECTIVE FLOOR: Visually inspect the site where

the lift is to be installed and check for cracked or

defective concrete.

4. OPERATING TEMPERATURE: Operate lift only

between temperatures of 41° -104° F.

5. Lift is designed for INDOOR INSTALLATION ONLY.

Outdoor use is not permitted.

STEP 2

( Floor Requirements )

The lift must be installed on a solid, level, con-

crete floor with no more than 3-degrees of slope.

Failure to do so could cause personal injury or

death.

A level floor is suggested for proper use and

installation and level lifting. If a floor is of question-

able slope, consider a survey of the site and/or the pos-

sibility of pouring a new, level concrete slab.

tDO NOT install or use this lift on any asphalt surface

or any surface other than concrete.

tDO NOT install or use this lift on expansion seams

or on cracked or defective concrete.

tDO NOT install or use this lift on a second / elevated

floor without first consulting building architect.

CONCRETE SPECIFICATIONS

Lift Model

HD-7MZ

HD-7PXW

HD-7PXN

Concrete Requirements

4.25” Min. Thickness / 3,000 PSI

All models MUST be installed on 3,000 PSI or above con-

crete only, conforming to the requirements shown above.

New concrete must be adequately cured for a minimum of

28 days.

IMPORTANT NOTICE

These instructions must be followed to ensure proper installation and operation of your lift.

Failure to comply with these instructions can result in serious bodily harm and void product warranty.

Manufacturer will assume no liability for loss or damage of any kind, expressed or implied resulting

from improper installation or use of this product.

PLEASE READ ENTIRE MANUAL PRIOR TO INSTALLATION.

tRotary Hammer Drill or Similar

t3/4” Masonry Bit

tHammer

t4 Foot Level

tOpen-End Wrench Set: SAE/Metric

tSocket And Ratchet Set: SAE/Metric

tHex-Key / Allen Wrench Set

tLarge A-Frame Ladder

tMedium Crescent Wrench

tMedium Pipe Wrench

tCrow Bar

tChalk Line

tMedium Flat Screwdriver

tTape Measure: 25 Foot Minimum

tNeedle Nose Pliers

TOOLS REQUIRED

NOTE: An air supply (30 PSI Min / 3 CFM Min.) will be required for the safety-lock mechanisms. See Step 11.

ASSEMBLY VIEW

Large Windows

(4 Pulleys)

Small Windows

(2 Pulleys)

Drive Up

Ramps

Rear

Crosstube

Front

Crosstube

Offside

Runway

Stiffener

Bar

Tire Stops

Power Unit

Column

Stabilizing

Cables

WARNING: When removing the lift from shipping angles, pay close attention as the posts

can slide and can cause injury. Prior to removing the bolts, make sure the posts are held

securely by a fork lift or some other heavy lifting device.

MODEL HD-7MZ HD-7PXW HD-7PXN

Lifting Capacity 7,000 lbs / 3,175 kg 7,000 lbs / 3,175 kg 7,000 lbs / 3,175 kg

A – Overall Width 110" / 2,800 mm 110" / 2,800 mm 100" / 2,546 mm

B – Outside Length 198" / 5,028 mm 198" / 5,028 mm 198" / 5,028 mm

C – Overall Length (includes ramps) 213" / 5,688 mm 213" / 5,688 mm 213" / 5,688 mm

D – Height of Columns 158" / 4,010 mm 158" / 4,010 mm 158" / 4,010 mm

E – Minimum Runway Height 5" / 125 mm 5" / 125 mm 5" / 125 mm

F – Maximum Rise 140" / 3,560 mm 140" / 3,560 mm 140" / 3,560 mm

G – Maximum Lifting Height 145" / 3,681 mm 145" / 3,681 mm 145" / 3,681 mm

H – Width Between Columns 100" / 2,547 mm 100" / 2,547 mm 90" / 2,292 mm

I – Runway Width 19" / 482 mm 19" / 482 mm 19" / 482 mm

J – Width Between Runways (*) Narrow N/A 38" / 963 mm 37.5" / 955 mm

J – Width Between Runways (*) Wide 44" / 1,121 mm 44" / 1,121 mm 44" / 1,121 mm

K – Runway Centerline (*) Narrow N/A 56.75" / 1,445 mm / 1,437 mm

K – Runway Centerline (*) Wide 63" / 1,603 mm. 63" / 1,603 mm 63" / 1,603 mm

L – Outside Edge of Runways (*) Narrow N/A 75.5" / 1,927 mm 75.5" / 1,919 mm

L – Outside Edge of Runways (*) Wide 82" / 2,085 mm 82" / 2,085 mm 82" / 2,085 mm

M – Drive Thru Clearance 86.5" / 2,201 mm 86.5" / 2,201 mm 97" / 2,467 mm

N – Length of Runways 188" / 4,788 mm 188" / 4,788 mm 188" / 4,788 mm

Minimum Wheelbase @ Rated Capacity 135" / 3,429 mm 135" / 3,429 mm 135" / 3,429 mm

Minimum Wheelbase @ 75% Capacity 115" / 2,921 mm 115" / 2,921 mm 115" / 2,921 mm

Minimum Wheelbase @ 50% Capacity 95" / 2,413 mm 95" / 2,413 mm 95" / 2,413 mm

Minimum Wheelbase @ 25% Capacity 80" / 2,032 mm 80" / 2,032 mm 80" / 2,032 mm

Locking Positions 30 30 30

Lock Spacing Every 4" / 101 mm Every 4" / 101 mm Every 4" / 101 mm

Lifting Time 80 Seconds 80 Seconds 80 Seconds

Standard Motor(**) 220 VAC, 60 Hz, 1 Ph 220 VAC, 60 Hz, 1 Ph 220 VAC, 60 Hz, 1 Ph

*This dimension may be limited with the addition of rolling jacks.

** Special voltages available on request. Specications subject to change without notice.

*IMPORTANT NOTE*

Check Diagonal Measurements to Ensure

Square Layout Diagonal Measurements Must Be Equal.

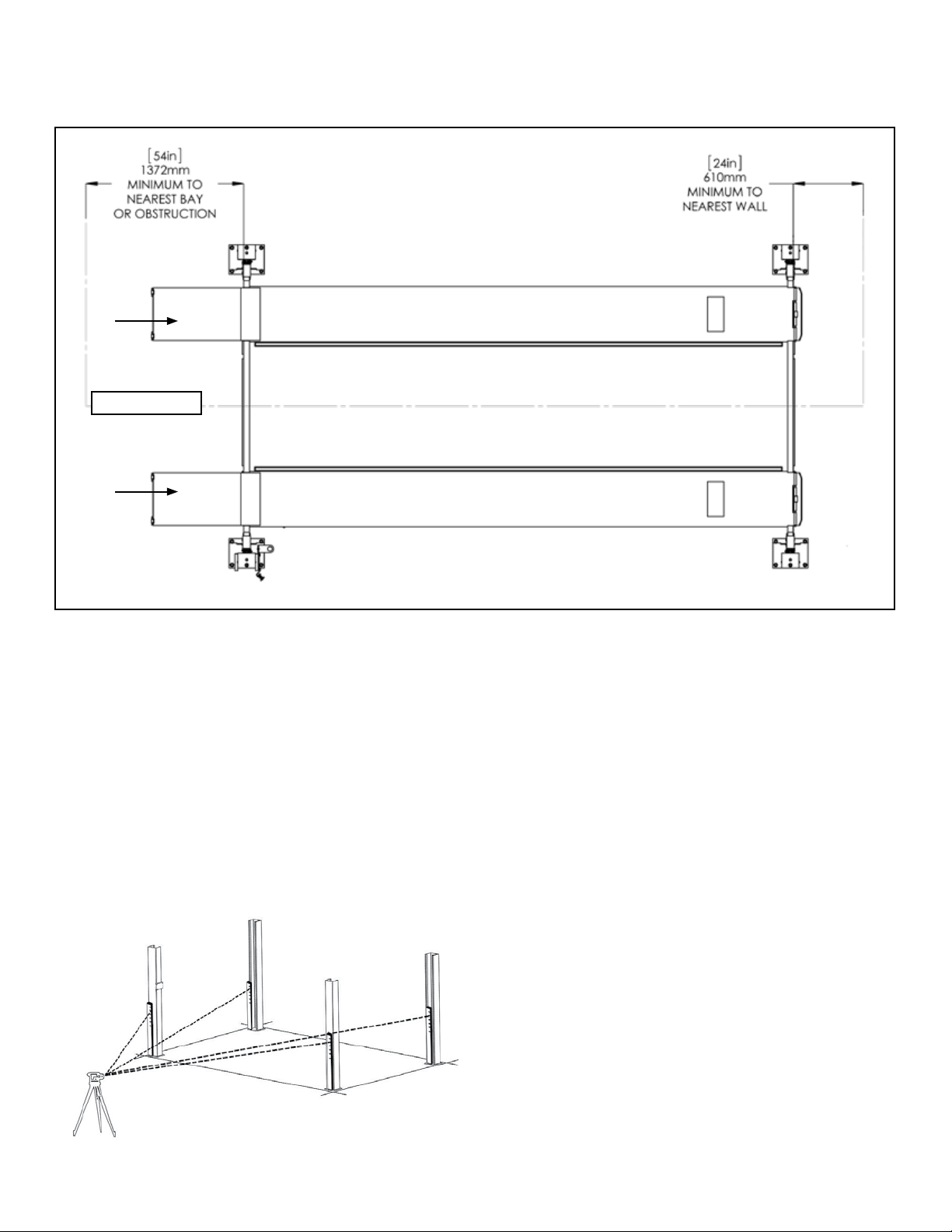

FLOOR PLAN

CLEARANCES

HD LIGHT DUTY

1. Lift Location: Use architects plan and Engineers

automatic level (transit) when available to locate lift. The

above shows clearances of a typical bay layout. Lift oor

area should be level.

2. Ceiling or overhead clearance must be 149 inches plus

height of tallest vehicle.

3. Estimating Column Shim requirements:

In the following section, the terms “highest” and “lowest”

refer to elevation of oor.

A. Mark locations where lift columns will be posi-

tioned in bay.

B. Place target on oor at column positions (NOT

on column base plates) and record readings.

C. Find the highest of the four locations. Find the

difference between the readings at each of the

remaining three columns and the highest reading.

D. The difference is the estimated amount of shim

thickness needed at each column.

Note: Maximum shim thickness is 1/2 inch per column us-

ing provided shims and anchors.

If no transit is available, oor slope can be determined by

using a chalk line and level.

APPROACH

This manual suits for next models

Table of contents

Other Bend-Pak Lifting System manuals

Bend-Pak

Bend-Pak XPR-10AXLS User manual

Bend-Pak

Bend-Pak XP Series User manual

Bend-Pak

Bend-Pak LR-5T User manual

Bend-Pak

Bend-Pak Clearfloor 10APX User manual

Bend-Pak

Bend-Pak XPR-10A User manual

Bend-Pak

Bend-Pak HD-9ST User manual

Bend-Pak

Bend-Pak HDSO-14P User manual

Bend-Pak

Bend-Pak PL-7000XR User manual

Bend-Pak

Bend-Pak HDS-35X User manual

Bend-Pak

Bend-Pak MDS-6EXT User manual

Bend-Pak

Bend-Pak HD-7500BL User manual

Bend-Pak

Bend-Pak XPR-10XLS-181 User manual

Bend-Pak

Bend-Pak HD-973P User manual

Bend-Pak

Bend-Pak PL-6000DC Reference manual

Bend-Pak

Bend-Pak XPR-9FS User manual

Bend-Pak

Bend-Pak HD-7PXW User manual

Bend-Pak

Bend-Pak XPR-9S User manual

Bend-Pak

Bend-Pak XP-10CX User manual

Bend-Pak

Bend-Pak XPR-10 Series User manual

Bend-Pak

Bend-Pak HD-7W User manual

Bend-Pak

Bend-Pak XPR-9D Series User manual

Bend-Pak

Bend-Pak HDS-18 User manual

Bend-Pak

Bend-Pak XPR-9DT User manual

Bend-Pak

Bend-Pak RBJ4500 User manual

Popular Lifting System manuals by other brands

morse

morse 82H-124 Operator's manual

Braun

Braun NL955 Series Operator's manual

haacon

haacon 1889.10 quick start guide

Protekt

Protekt AT 252 instruction manual

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 operating manual

Nova Technology International, LLC

Nova Technology International, LLC NAS Series quick start guide

Genie

Genie Z-60/34 Operator's manual

Screen Technics

Screen Technics INTERFIT Vertical Up Lift instructions

Mortuary Lift

Mortuary Lift ULTIMATE 1000 instructions

Custom Equipment

Custom Equipment Hy-Brid 3 Series MAINTENANCE & TROUBLESHOOTING MANUAL

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Maintenance and troubleshooting manual

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 MAINTENANCE & TROUBLESHOOTING MANUAL

BERG

BERG BeNomic EasyLeaf Technical manual

Powermate

Powermate LiftGate LG-3 Installation & operation manual

Snorkel

Snorkel TM12 Series Operator's manual

Terberg

Terberg OMNIDEKA Translation of the original instructions

Harmar Mobility

Harmar Mobility AL625 Installation & owner's manual

Rotary

Rotary SPO16 installation instructions
