Bellini BRA603SX2 Installation instructions
INSTALLATION & OPERATION
INSTRUCTIONS
60cm Slim Line Range hood
Model No.
BRA603SX2
BRA603SX2-F FINELINE: 195634
BRA603SW2
BRA603SW2-F FINELINE: 195633
V3 Sep20
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au
Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au
Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood
Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199
Content
Safety instructions------------------------------2
Product description-----------------------------4
Operation-----------------------------------------5
Installation----------------------------------------6
Start using your Range hood-----------------10
Maintenance and cleaning -------------------11
Warranty------------------------------------------12
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au
Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood
2
Safety Instructions
This manual explains the proper installation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be
kept in a safe place for future reference. In case of failure, only the Authorised Technical
Service may repair this range hood. Otherwise the guarantee will be null and void. All
Bellini Appliances are for domestic use only.
Never to do:
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Never carry out flamable cooking under the
appliance
The exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
Do not leave lit gas burners exposed due to the risk
of fire.
This range hood is not recommended for
barbecues.
Always to do:
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
Young children should be supervised to
ensure that they do not play with the
appliance.
Ensure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
Grease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
There must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
Always cover lit gas burners with pots or pans
when range hood is in use.
Always switch off gas burners before you
remove pots or pans.
If the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
Plug must be accessible after installation.
3
Safety Instructions
Never to do:
This range hood cannot be installed for outdoor use.
It is prohibited to fit the range hood over a solid fuel
stove
This appliance must not be connected to a chimney
or vent flue which is in use.
This appliance is not to be vented into the roof
cavity, must exit into open air.
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
This appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
Attention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
This appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
Before connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.
4
Product Description

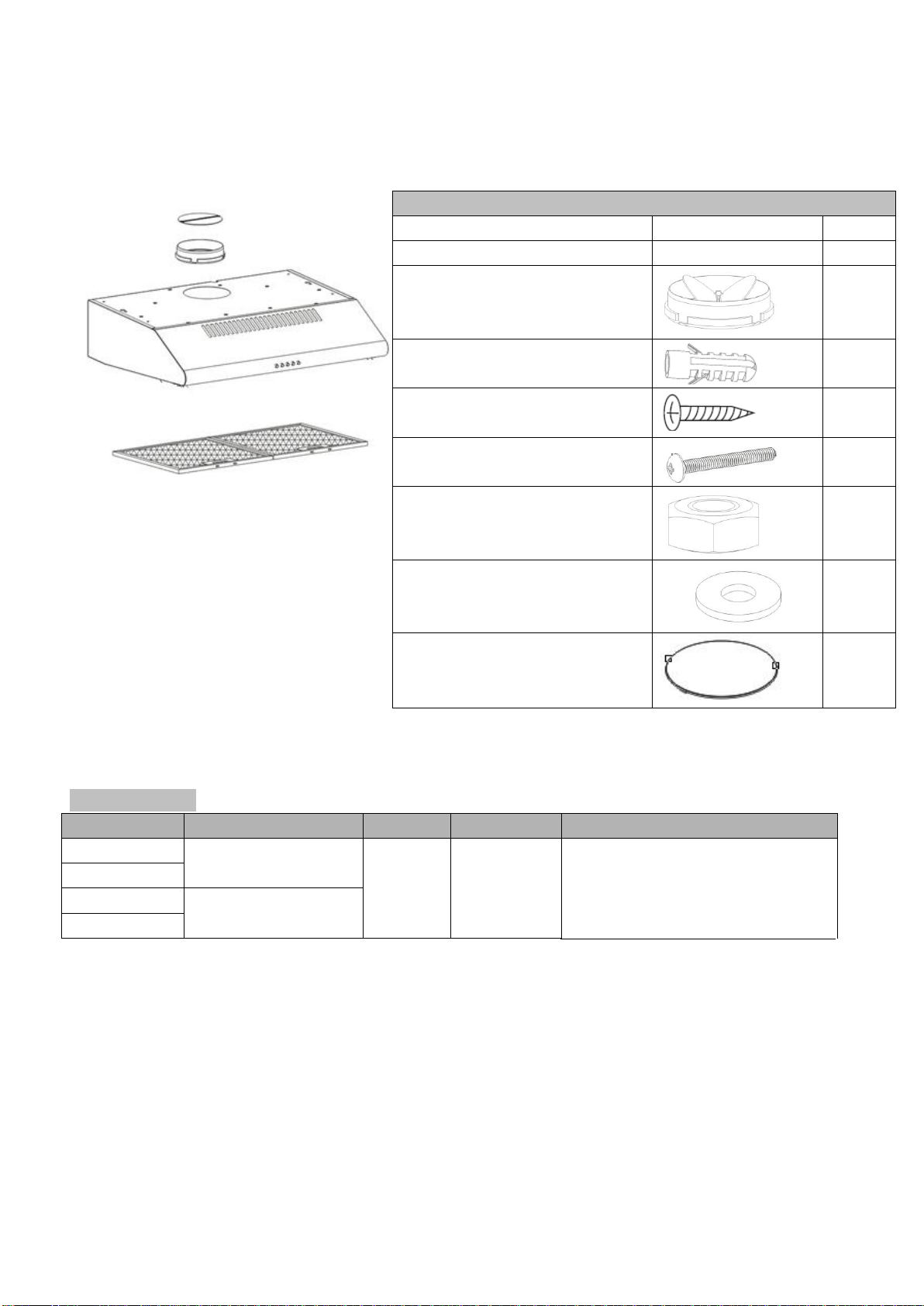

Component list:
1. Outlet(diameter 120mm)
2. Main body
3. Grease mesh filters*
*2pcs for 60cm
Technical data:
Model
Description
Motor
Width
Others
BRA603SX2
60cm slim line stainless
steel range hood
2x100W
600mm
Power supply: 220 – 240v, 50Hz
Lights: 1x1.5W LED Light
Length of power cord: 1.5m
Air outlet diameter: 120mm
BRA603SX2-F
BRA603SW2
60cm slim line painted
white range hood
BRA603SW2-F
Accessories
Description
QTY
Installation & User Manual
1
Outlet( diameter 120mm)
1
Dry wall anchors plugs
4
Screw (ST4x30mm)
4
Screw (M4*35mm)
4
Nut (M4)
4
washer
8
Outlet cover
1
5
Operation Mode

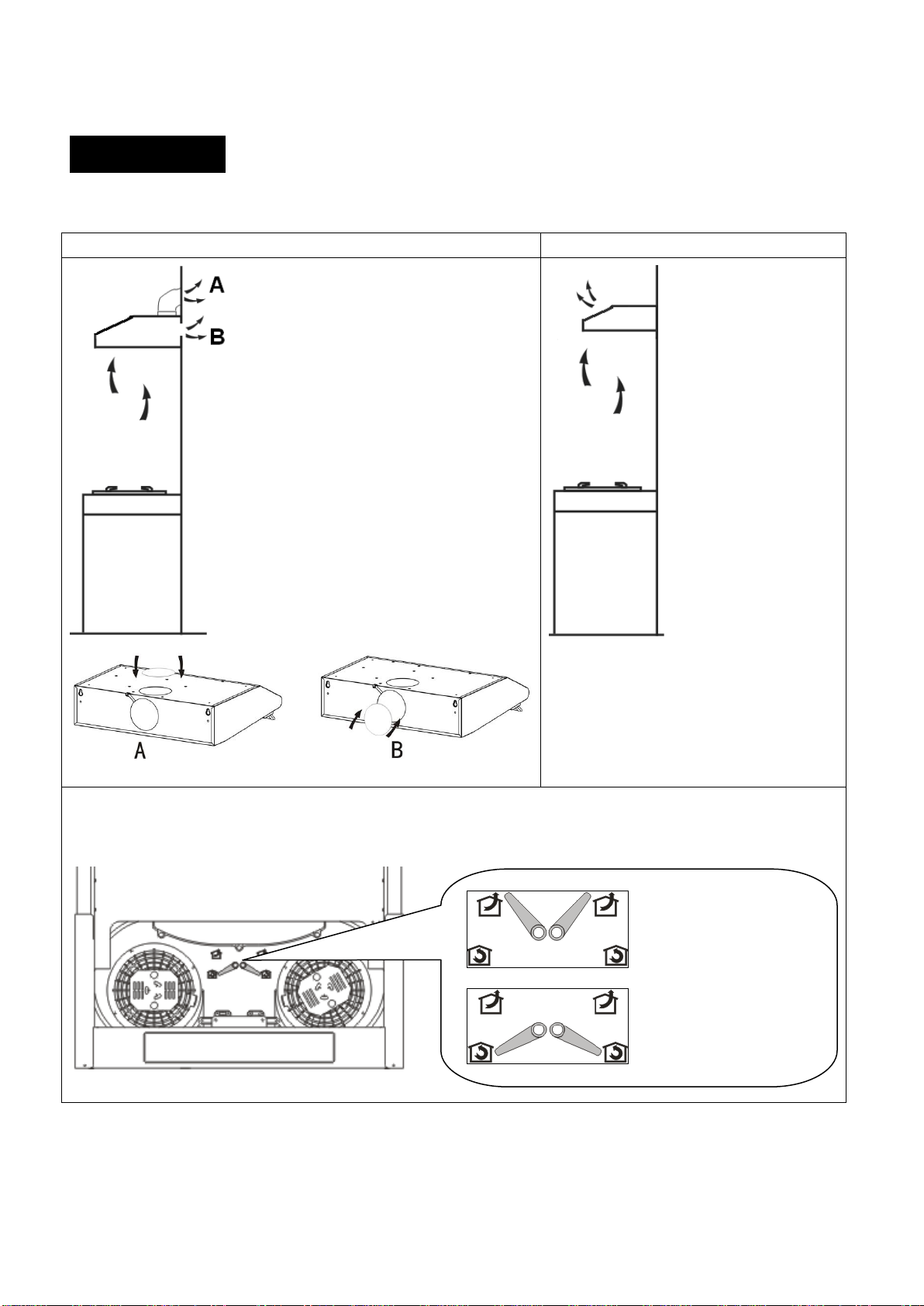

Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before
installation.
Air ([WUDFWLRQ
Air Recirculation
You can shift between above 2 modes by turning the shifter
Air ([WUDFWLRQ Mode
Air Recirculation Mode
For air ex . mode, a
ducting kit is required, the
air is drawn in and cleaned
by the grease filters and
directed outside.
Ducting must be vented to
outside atmosphere.
Your range hood can duct
from back(A) or top(B).
For air recirculation
mode, charcoal filter
is a must to eliminate
cooking smells.
The air is drawn in
and cleaned first by
the grease filters
and then charcoal
filter. The cleaned air
is then re-circulated
back into kitchen
through holes above
front panel.
traction
6
Installation
Dimensions:
*Width data please refer to page 4
Installation:
Warning:
Check that the installation complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
Keep exhaust duct short and straight
Do not reduce the size or restrict exhaust duct
When using flexible duct always install the duct pulled taut to minimize pressure loss
7
Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose
what kind of method you want and then follow up corresponding instruction.
A: Install against wall
1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal
line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm Free space to a gas cook top and a maximum height of 750mm.
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
2. Drill 4 holes of 8mm diameter on the wall according to below drawing.
Hood base
Horizontal line
Vertical centre line
Top of hob/Trivet
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
Where the range hood will be
Hood base
Horizontal line
Vertical centre line
92mm
543mm (60cm hood), 840mm(90cm hood)
42mm
8

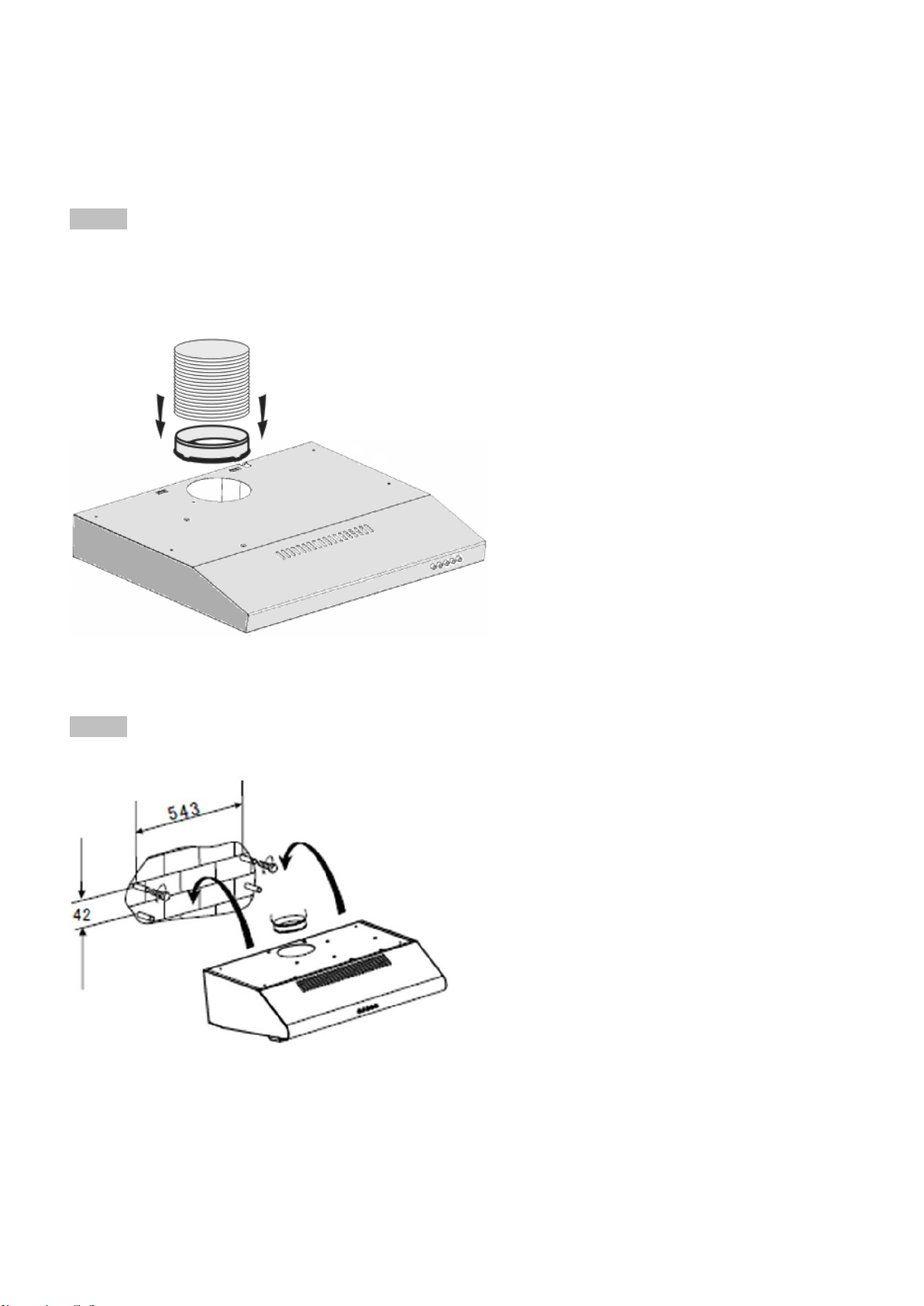

3. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the 2 holes at the top and
fasten, hang the range hood onto the two screws, screw another 2pcs Screw(ST4x30mm) into the 2 holes at
the bottom inside the range hood.
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards
Fit the outlet and flexible exhaust pipe* on top of range hood body**
Secure Flexible Exhaust Pipe to outlet with zip tie or duct tape ( Not supplied )
*Flexible exhaust pipe is not included in this packaging
** if you choose air recirculation mode, no need to install the exhaust pipe
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards
60cm range hood
This manual suits for next models
5
