Beef Eater DISCOVERY 1100S User manual

1100

Cabinet trolley

Assembly Instructions

FOR OUTDOORS USE ONLY

To suit models:

1100s

1100e

1100

2, 3, 4 or 5 Burners

Content:

Mrk Qty description

1 1 Base Panel

2 1 Right Hand Side Panel

3 1 Left Hand Side Panel

4 1 Rear Panel

5 1 Top Front Brace

6 1 Left Hand Side Door

7 1 Right Hand Side Door

8 2 Door Handle

9 1 Side Shelf

10 1 Side Burner

11 1 Wheels Axel

12 2 Wheel

13 2 Wheel Hub Cap

14 2 Castor

15 2+2 Door Hinge

16 Condiment Basket (optional)

Bolt Pack Content

Mrk Qty description

A 2 Circlips

B 29 M6 x 12 screw

C 33 M6 washer

D 4 M4 x 10 countersunk screw

E 6 M6 Nut

F 2 Rubber grommet

G 8 Fiber Washer

H 8 M6 x 25 Screw

I 4 Magnets

J 1 Gas Hose

1100Series Assembly Procedure

Step 1

2 x ‘A’

Step 2

13 x ‘B’, 13 x ‘C’, 2 x ‘F’

Turn the Base Panel upside-down, insert the Wheel Axel through the 2 holes, and

place a wheel on each side. Secure with a circlip on outside of wheel. Place Cap.

insert each castor to its place in the other 2 corners

Turn the base back upright, and attach the side and back panels.

Insert grommet in side and rear panel holes.

Step 3

4 x ‘D’

Step 4

4 x ‘B’, 4 x ‘C’

Attach the Top Brace.

Do not tighten. That will be done after fitting the doors.

If required, attach the Hinge Blocks to front of side panels. Note: the block

should be on the inside, with only the small bends protruding out.

Step 5

Step 6

4 x ‘B’, 4 x ‘C’

Hold each door at ~60° open angle, and insert through opening at door internal skin over the

hinge block pins. Ensure correct engagement in both brackets simultaneously.

Remove all loose parts from inside the Barbecue. Place the Barbecue

over the trolley and attach with screws. Ensure the lugs in the middle of

trolley side panels engage with corresponding slots in BBQ body.

Step 7

Adjust the Top Brace (from step 4) to right position, so the doors are closing straight,

and tighten the 4 screws.

Step 8

8 x ‘H’, 8 x ‘G’

Fit the shelf and Side Burner (or 2 shelves) to the side of the Barbecue.

Note: screws to go from the inside of barbecue body out.

Step 9

Make gas connections and conduct

Leak-Test.

Regulator to be connected to entry ‘A’.

Entry ‘B’ remove cap and connect Side-

Burner hose, if required.

Refer also to Barbecue book P. 4

for Leak-Test procedure.

Step 10

8 x ‘J’

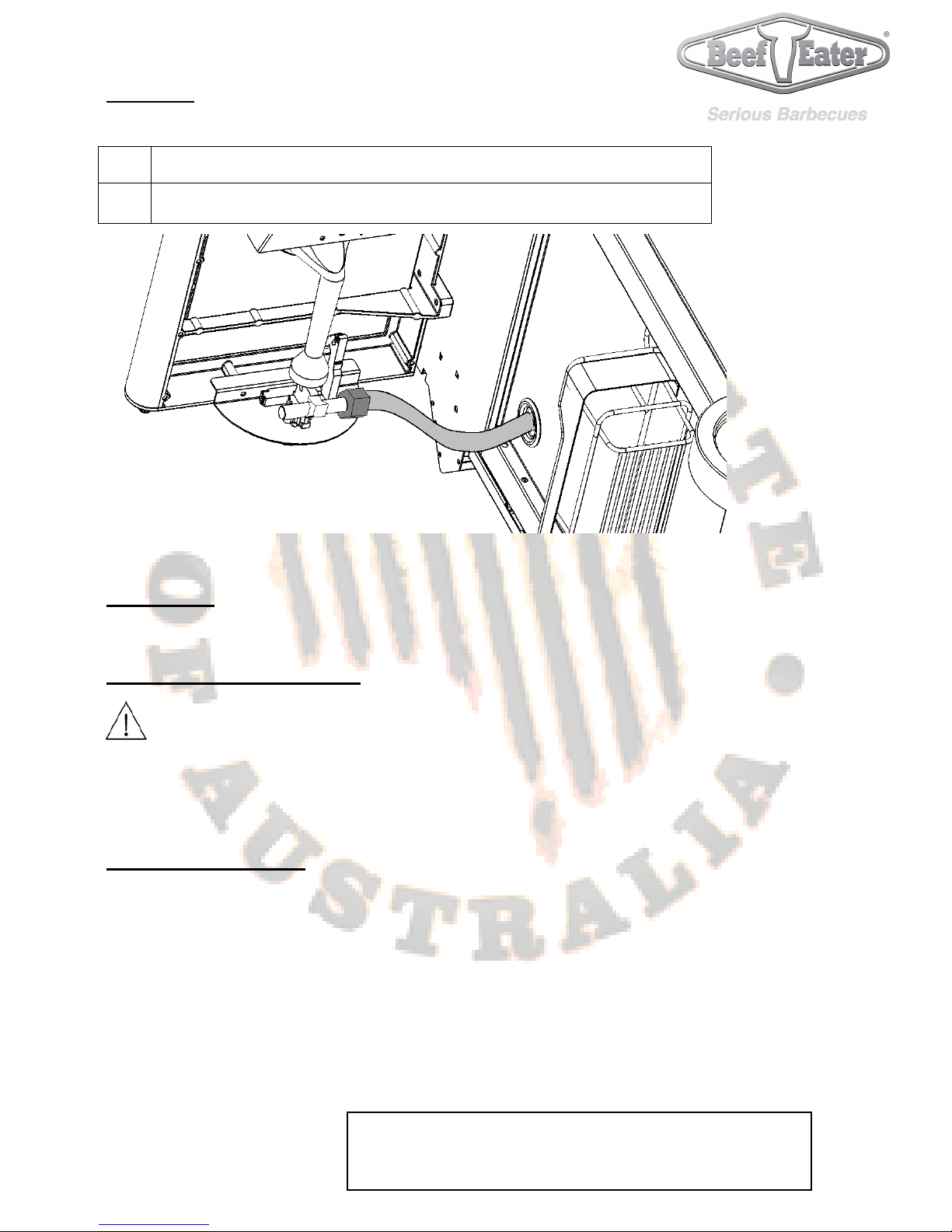

If connecting Side Burner, the hose is attached to inlet ‘B’ above, and

connected to Side Burner manifold as follows:

Warranty

Warranty terms and condition in BBQ Instructions book P. 11 apply to this trolley as well.

All parts and workmanship of this trolley are covered for a period of 1 year from date of purchase.

Technical Information

Note: Do not modify this appliance or any of its parts. Any deviation from factory

settings could result in a safety hazard.

Side Burner manifold inlet thread is 3/8 SAE male flare fitting.

Input Energy: 15Mj.

Nozzle sizes: LPG – 1.05mm, NG – 1.7mm

For your records:

Model Number: ________________________________________________________________________

Date of Purchase: ________________________________________________________________________

Place where purchased:

________________________________________________________________________

Serial Number:

_________________________________________________________________________

Images in this manual are for illustrative purposes only.

Due to constant improvement, BeefEater advises that

changes to the design, material, specifications and product

configuration may occur at any time without notice.

Spare Parts:

Woodland Home Products

3-5 Birmingham Av, Chester-

Hill, NSW, Australia, 2162

Phone: 1800 356 660

Facsimile: 02 9724 8899

E-mail: mail@beefeaterbbq.com

Website:

www.beefeaterbbq.com

1100_Trol_Inst_AU_V0
