S-L-O-W-L-Y TurnLP Cylinder ValveOne Full Turn S-L-O-W-L-YTurn RegulatorValve ON

Turn COUNTER-CLOCKWISE

to Disconnect

Turn OFF

LP Cylinder.

Close Valve Fully

Turn OFF Regulator.

Close Valve Fully

Disconnect

Regulator

THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE

HAZARDS AS YOU ASSEMBLE AND USE THIS PRODUCT.

THE PURPOSE OF THIS SAFETY ALERT SYMBOL INDICATES FAILURE TO FOLLOW WARNINGS COULD

RESULT IN FIRE OR EXPLOSION. PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!

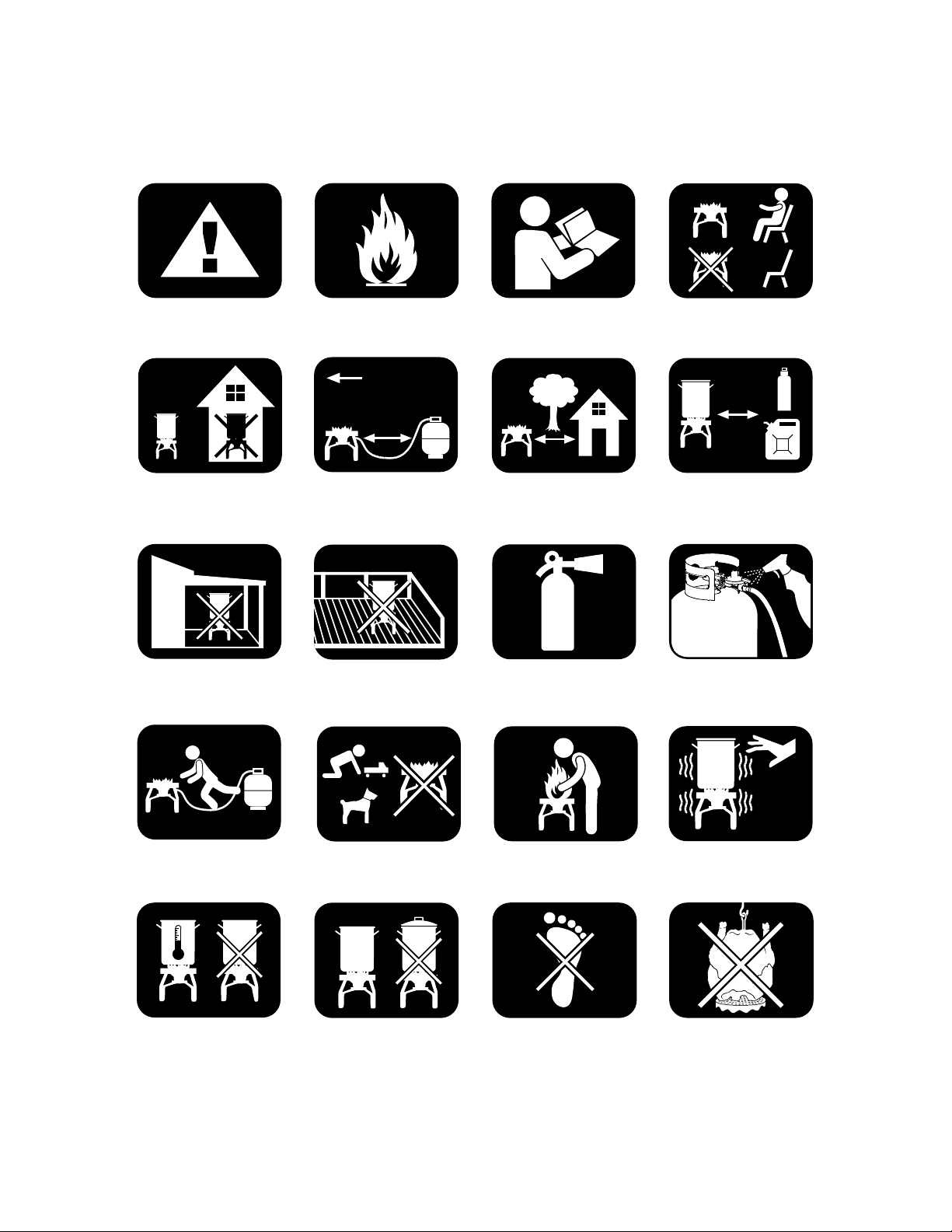

SAFETY SYMBOLS

The symbols and boxes shown below explain what each heading means. Read and follow all of the safety

warnings and instructions contained in this manual and on the cooker.

Carefully read and follow all WARNINGS, SAFETY PRECAUTIONS and OPERATING INSTRUCTIONS

contained in this manual and on the cooker.

DO NOT skip any of the warnings and instructions! SAVE THIS MANUAL FOR FUTURE REFERENCE.

WARNING

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE OR EXPLOSION WHICH COULD

CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

• This cooker is a high pressure gas appliance for OUTDOOR USE ONLY.

• This cooker does not have automatic thermostat controls so must be attended and monitored

at all times during use.

•Do not use a cooking vessel smaller than 12-inches diameter.

• This cooker is not intended to be used to fry turkeys!

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your

fire department.

• Do not store spare LP cylinder within 10 feet (3 m) of this appliance.

•

Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8 m) of this appliance.

•When cooking with oil/grease, do not allow the oil/grease to get hotter than 350˚F (177˚C).

• Do not leave oil/grease unattended.

• Never operate this appliance unattended. A sober, adult must attend and monitor this appliance

at all times during use.

• Never operate this appliance within 10 feet (3.0 m)of any str ucture, combustible material or

additional gas cylinders.

• Never allow oil or grease to get hotter than 350˚F (177˚C). If temperature exceeds 350˚F

(177˚C), turn flame down to reduce heat. If temperature continues to rise, immediately tur n

burner or gas supply off. If oil/grease begins to smoke, regardless of temperature, immediately

turn burner or gas supply off.

• Heated liquids remain at scalding temperatures longafter the cooking process. Never touch

the cooking appliance until liquids have cooled to 115˚F (45˚C) or less.

NOTE TO CONSUMER

This LP Gas Cooker is a specialized high pressure gas appliance having greater heat output than traditional kitchen

stoves. It is referred to as cooker and appliancein this manual and onwar ning tags. This cooker does not have

automatic thermostat controls so must be attended and monitored at all times during use.

This LP Gas Cooker is for OUTDOOR USE ONLY!

As with anycooking appliance, care must be taken to follow all Safety Precautions and Instructions in order to

achieve safe and satisfactory cooking results.

Restrict the use of this appliance to adults who can read, understand and follow the war nings and instructions in

this manual, and on the cooker. Safety Alerts alone cannot eliminate the hazards that they signal. Strict compliance

with these instructions, plus common sense operation, are primar y accident prevention measures.

If having any doubts or concerns about your ability to use this product contact Bayou Classic ®

Should you still have concerns about operating this product,then do not use. Contact your dealer for retur n and

refund. Remember; Think Safety and Use Common Sense!

IF OIL OR GREASE FIRE OCCURS

In the event of an oil/grease fire, do not attempt to extinguish with water . Immediately call yourlocal

Fire Department. A Type BC or ABC dry chemical fire extinguisher may in some cases contain the fire.

If a fire occurs INSIDE THE COOKING VESSEL follow these steps.

• Turn off gas supply.

• Wearing a protective glove, cover the pot with a lid. DO NOT re-open lid as the oil/grease fire could re-ignite. Allow cooking vessel to cool down to 115˚F (45˚C) before opening lid.

If a fire occurs OUTSIDE THE COOKING VESSEL follow thesesteps.

• Turn off the gas supply if possible.

• Wearing a protective glove, cover the pot with a lid if possible.

•Call the local Fire Department if property damage is possible.

•Attempt to extinguish using a chemical fire extinguisherspecified.

•Once fire is extinguished, DO NOT re-open lid as the oil/grease fire could re-ignite. Allow cooking vessel

to cool down to 115˚F (45˚C) before opening lid.

Outdoor gas appliances do not have automatic thermostat contr ols

so must be attended and monitored at all times during use.

Safety Precautions & W arnings

Remember: Think Safety and Use Common Sense!

Failure to followthese instructions could result in fire or explosion

which could cause pr operty damage, personal injur y or death!

DO NOT FRY

TURKEYS

OWNER’S MANUAL

LP GAS COOKER

For Questions and Information call us at:

1-800-864-6194 •Monday - Friday 7:30am - 4:30pm CST

KEEP THIS MANUAL FOR FUTURE REFERENCE

NOT FOR COMMERCIAL USE

Barbour International, Inc. •101 Cypress Way •Brandon, MS 39042 •www.thebayou.com

This manual is for Barbour International "Bayou Classic" products only. If you are using

another manufacturer’s product, refer to the manual supplied with that product.

READ MANUAL

BEFORE USE

GENERAL OPERA TING

•

This appliance does nothave automatic ther mostat controls so mustbe attended and monitored at all times

during use.

Even when burner is set at a low flame, never leave the cooker unattended.

•This appliance has an open flame. In sunlight or other bright light, the flame may be almost invisible.

Use extreme caution keeping hands, hair and clothing away from the cooker . Do not lean over thecooker

when lighting burner. Long hair and loose clothing can catch fire during lighting and operation.

•This is an ATTENDED appliance, DONOT leave this appliance unattended while heating oil, grease or

water, cooking food or whenhot after use. Heated liquid can remain at scalding temperatures long after

cooking has ended.

•Keep children and petsaway from the cooking area at all times. Carefully monitor all activity around cooker

to avoid burns or other injuries.

•This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot

surfaces or splatter from cooking liquids. Always wear closed toe shoes while cooking with this appliance.

•Use caution when walking or standing near cooker as splattered oil may have created a slick surface. Do

not walk between cooker and propane tank as this creates a trip hazard. T ripping over the hose could

overturn the cooker causing severe bur ns.

•Avoid bumping of or impact with the appliance to prevent spillage or splashing of hot cooking liquid which

can cause sever burns.

•DO NOT move the appliance when in use. Allow cooking vessel to cool down to 115˚F (45˚C) before

moving, cleaning or storing.

•Should the cooker flame go out during use, tur n all gas valves off. Wait 5 minutes for gas toevacuate before

re-lighting. See instructions in this manual for correct procedures.

•Never overfill a cooking vessel with oil, grease or water . Overfilled cooking vessels can boil over and cause

a fire.

•After a period of storage or nonuse, check this appliance for gas leaks and bur nerobstructions before use.

See instructions in this manual for correct procedures.

•Sober adult operation ONL Y!The use ofalcohol, prescription ornonprescription drugs may impair the ability

to properly assemble orsafely operate this appliance.

•DO NOT place an empty cooking vessel on the cooker while in operation as it could melt. Use caution when

placing anything in a cooking vessel while the appliance is in operation.

•When cooking with oil/grease, have a T ype BC or ABC fire extinguisher readily accessible.

•This appliance is not intended for and should never be used as a heater .

•Do not use this cooker for other than its intended purpose.

•Never use glassware, plastic, or ceramic cookware on this appliance.

•Only use replacement/accessor y parts manufactured by Barbour Inter national,Inc.

•Combustion by-products from the use of this product contain chemicals known to the State of California to

cause cancer, birth defects, or other reproductive har m.

•This product contains achemical(s) known to the State of Califor nia to cause cancer, birth defectsor other

reproductive harm.

COOKING WITHOIL OR GREASE

•When cooking with oilor grease, a ther mometer MUST be usedfor reasonable temperature reading.

Followinstructions forproper testing, installation and use of a ther mometer in this manual.

•Cooking oil pre-heat upto over -heat times can vary significantly with relatively small adjustments to regulator;

variable wind, ambienttemperature, altitude, star ting oil temperature, and type of cooking oil used.

•Carefully monitor temperature of cooking oil with your ther mometer and adjust regulator control valve as

needed to prevent oil/grease from overheating.

•Never allow oil or grease to exceed 350˚F (177˚C). Oil or grease can ignite and catch fire at temperatures

above 350˚F (177˚C).

•Due to varying heating and cooking times, check your ther mometer every 3 minutes to ensure cooking oil

does not exceed 350˚F(177˚C).

•High pressure cookerscan typically heat 3 quar ts of cooking oil/grease to 350˚F (175˚C) in 3 to 5 minutes.

•Even when burner is set at a low flame, never leave the cooker unattended. Cooking oil/grease will heat

up quickly.

•DO NOT use a lid whenpre-heating or cooking with oil. Using a lid when fr ying greatly increases the

potential of over-heatingthe oil to ignition and fire.

•Smoking oil is an indication that the oil is too hot and may ignite. Regardless of ther mometer reading,

if the oil/grease starts to smoke, turn OFF fuel supply to thebur ner and STOP COOKING IMMEDIA TELY.

This indicates the thermometer is not working properly .

•Never overfill the cooking vessel with oil/grease or water . Follow instructions in this manual for establishing

proper liquid levels forcooking.

•When frying with oil or grease,all food products MUST be completely thawed and towel dried to remove

excess water. Failure to completelythaw and dr y foods may cause oil or grease to over flow from cooking

vessel. If ice is present on the food, it means the thawing process is not complete and may cause a boil

over when placed intoHOT oil causing a fire and severe bur ns.

•

Never drop food or accessories into hot liquids. W ear protective gloves and S-L-O-W -L-Y lower food and

accessories into cookingoil in order to prevent splashing or over flow. Be careful when removing food from

oil. It is hot and could cause bur ns.

•In the event of rain, snow, hail, sleet or other form of precipitation while cooking with oil, cover the cooking

vessel and immediately tur n off the burner and gas supply. DO NOT MOVE cooker or cooking vessel.

PLACEMENT OFCOOKER - CONTINUED

•Keep the cooking areaclear and free of any combustible material such as household chemicals, paint,

gasoline and other flammable vapors and liquids. Do not store or use gasoline or other liquid/aerosols

with flammable vapors within 25 feet (7.5m) of this cooker .

•Prior to lighting the burner, check wind direction for placement of cooker DOWNWINDfrom upright

LP cylinder. The cooker must beDOWNWINDand at least 20" awayfrom the LP cylinder to keep heat away

from LP cylinder.

•Check that gas supplyhose does not contact sur faces that may become hot during use.

•Installation of this product must confor m with local codes or, in the absence of local codes, with the National

Fuel Gas Code. ANSI Z223.1/NFP A 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFP A

58, Natural Gas and Propane Installation Code, CSA B149.1, Propane Storage and Handling, CSA B149.2,

or the Standard for Recreational V echicles, ANSI A119,2/NFP A 1192 and the Recreational V ehicleCode,

CSA z240 RV series.

20 in.

Minimum

10 ft.

Clearance

ANY

COOKER

MODEL

9 10 111213141516

17 18 19

SAFETY ALERTS, ASSEMBLY & OPERATING INSTRUCTIONS

GENERAL MAINTENANCE & STORAGE

PLACEMENT OFCOOKER

•This cooker shall be used OUTDOORS ONL Y.DO NOT use in a building, home, garage, balcony , porch,

tent or any other enclosed area. Gas cookers shall not be used on or under apar tment, condominium

balcony or deck. DO NOT install or use in or on recreational vehicles or boats.

•DO NOT operate this Gas Cooker closer than 10 feet (3m) from any combustible materials including walls

or railing, or under overhead construction and tree branches as these materials could ignite should oil/grease

fire occur.

•The cooker must be positioned on a level, stable, noncombustible sur face such as brick, concrete or dir t.

Do not position cookeron wood, asphalt or plastic which may bur n, blister or melt.

To check your local codes, see your local LP gas dealer or natural gas company. This cooker is not intended to be connected

to a natural gas supply line.

When purchasing or exchanging a cylinder for your gas cooker, it must be constructed and marked in accordance with the

specifications for LP gas cylinders by the U.S. Department of Transportation (DOT) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods as applicable with a listed

over-filling device (OPD).

The cylinder must also be equipped with:

• A shut-off valve terminating in a Type-1 gas cylinder valve outlet.

• A Type-1 valve that prevents gas flow until a positive seal is obtained.

• An arrangement for vapor withdrawal.

• A collar to protect the cylinder shut-off valve.

• A safety relief device having direct communication

with the vapor space of the cylinder.

• A listed Over-filling Prevention Device (OPD).

• A protective cap on cylinder Type-1 Outlet.

LP GAS CYLINDER SPECIFICATIONS NOT SUPPLIED WITH THIS COOKER

A. DO NOT store a spare LP cylinder under or near a gas cooker appliance.

B. Never fill the cylinder beyond 80% full.

C. If the information in (A) and (B) are not followed exactly, a fire causing death or serious

injury may occur.

This appliance can produce carbon monoxide which has no odor.

Using it in an enclosed space can kill you.

Never use this appliance in an enclosed space such as a camper, tent,

boat, car or home.

CARBON MONOXIDE HAZARD

MODEL

#SP31/SS31

GENERAL MAINTENANCE & STORAGE

Intense heat from the cooker will burn away paint from parts of the frame, windscreen flashing, and flamespreader. This is normal and will cause a slight 'odor' for a few minutes during the initial use. The exposedsteel will rust. Occasional care must be taken to prolong the life of your cooker.

1. Before using this appliance to cook for the first time:A. Light the cooker.B. Run for 5 - 7 minutes and allow the cooker to burn away manufacturing oil and residue. It is normalto have a slight odor or smoke for a few minutes during the initial use.2. Store cooker in a dry place. Do not store outside exposed to weather. Storage of a gas cookerappliance indoors is permissible only if the cylinder is disconnected. If storing cooker indoors, detachand leave LP cylinder outdoors. LP cylinders must be stored outdoors out of the reach of children andmust NOT be stored in a building, garage or any other enclosed area.3. Occasionally spray exposed areas of steel cooker frame after it has cooled with high temperaturegrill paint.4. Spray WD-40 on the burner grid after it has cooled.5. For long term storage, cover cast iron burners, regulator hose assembly, and jet tube in a plastic bag.6. Spiders and small insects have been known to spin webs inside the burner tube. Obstructions in theburner tube interfere with the flow and mixture of air and gas through the burner. A clogged burnertube may result in a fire beneath the appliance. If this happens, clean the burner tube with a stiff,bent wire.7. Turn air control shutter to closed position after each use to reduce chance of insect intrusion.8. Do not tamper with or attempt repairs on the burners, frames, regulator valves, or LP cylinder. Allowonly qualified LP gas dealers to make repairs.

For replacement parts contact Barbour International, Inc.

Always close LP cylinder valve and regulator valve after use.

Always use and store LP cylinderin an upright position. Never store or transport LP cylinders in occupied enclosures.10. Check and tighten any loose hardware before each use.12. Inspect entire cooker including regulator hose assembly and burner assembly before each use.Replace any damaged or worn parts. Use only parts specified by Barbour International, Inc.

LIMITED WARRANTY

Barbour International, Inc. ("Vendor") warrants to the original retail purchaser of this g as fryer/cookerand no other person, that ifthis gas fryer/cooker isassembled and operated in accordance with the printed instructions accompanyingit, then for a period of one (1) year from the d ate of purchase, all partsin such gas fryer/cooker shall be free from defects in material and workmanship. Vendor may require reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should retain your sales slip or invoice. This Limited W arranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service and which Vendor shall determine in its reasonable discretionupon examination to be defective. Before returning any parts, you should contact Vendor's Customer Service Department using the contact information listed below. If Vendor confirms, afterexamination, a defect covered by this Limited Warranty in any returned part, and if Vendor approves the claim, Vendor will replace such defective par t withoutcharge. If you return defective parts, transportation charges must be prepaid by you. V endor will return replacement parts to the original retail purchaser,freight or postage prepaid.This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, improp er installationor improper maintenance or service by you or any third party, or failure to perform normal and routine maintenance onthe gas fr yer/cooker, as set out inthis owner's manual. In addition, the Limited Warranty does not cover damage to the finish, such as scratches, sur face chips and cracks, discoloration, rust or other weather damage, after purchase.This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for products that are purchased from sellers other that authorized retailers or distributors. AFTER THE PERIOD OF THE ONE (1)-YEAR EXPRESS WARRANTY, VENDOR DISCLAIMS ANY AND ALL IMPLIED W ARRANTIES,INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FURTHER, VENDORSHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT , PUNITIVE, INCIDENTAL, OR CONSEQUENTIALDAMAGES. Vendor assumes no responsibility for any defects caused by third parties. This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or limitatio n of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may apply to you. Vendor does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, i nstallation, use, removal,return, or replacement of its equipment, and no such representations are binding onV endor.

REGULATOR HOSE ASSEMBLY

High PressureWater

TROUBLE SHOOTING TIPS

Sometimes the burner does not light or has a only a meager match flame. Other times, the flame blowsout, burns yellow, or there is a flameinside the burner tube. These symptoms are common and easy toremedy. The following Trouble Shooting Tips cover most questions and problems associated with outdoorgas cooker appliances. Save this manual for future reference.

SYMPTOM #1:

Burner lights but the flame remains very small and will not increase for heat-up and cooking.

CAUSE:

Both LP cylinder and regulator couplings contain an EXCESS FLOW safety device that shuts off 90 percentof gas flow should the hose be cut ot severed. Sometimes this safety device can be activated when lightingthe burner. Opening the cylinder valve too quickly can create the rapid flow of gas that activates the excessflow safety device.

POSSIBLE SOLUTION:

Repeat Lighting Instructions steps 1 through 4 onon pages 14 - 15. Follow lighting instructions andbe certain to S-L-O-W-L-Y open cylinder valveone full turn, then S-L-O-W-L-Y open regulatorcontrol valve when lighting.

SYMPTOM #2:

Burner will not light.

CAUSE:

Blockage in burner from insects, spider webs, dirt dobber or wasp nests and debris.This is a frequent problem in the Deep South.

POSSIBLE SOLUTION:

Clean burner to remove spiders, insect nests and other debris.1. Turn gas OFF at LP cylinder valve and at regulator control knob.2. Disconnect regulator hose assembly from burner and remove air control shutter.3. Turn cooker frame upside down. Disconnect retaining nut from burner support bar, then removeburner from frame.4. Loosen and disconnect central bolt from burnerand remove flame spreader from burner cup.NOTE: Wear eye protection when cleaning burner.5. Use a narrow bottle brush or a stiff wire bent into a small hookto run through the burner tube. Push the bottle brush or bent wireback and forth through the burner tube.6. Hold the burner with the tube facing down and spray waterfrom a garden hose into the opening in the burner cup.7. It may be necessary to repeatsteps 5 & 6 until water flows freely out of the burner tube.8. Wire brush entire surface of burner to remove food residue and dirt.9. Wire brush bottom of flame spreader and side ports to be certain all grooves are free of debris.10. Re-assemble flame spreader and air shutter on burner. Reinstall burner, heat shield and locking nuton support bar inside cooker stand. Re-connect hose to burner.11. If burner is damaged, a replacement burner can be purchased.

4 6 Stiff Wirewith HookBG10Burner

HOW TO REIGNITE

Follow steps1-4 on previous page, to reignite bur ner. Use caution when re-lighting the bur ner, as hot oil fromcooking vessel

may have splattered andrun down the sides of the unit creating a slick sur face. Use caution not to touch the cooker or cooking

vessel when re-lighting thebur ner.

CONNECTINGREGULA TOR HOSE ASSEMBL Y TO COOKER

WHEN TO PERFORM A LEAK TEST

• After assembling your cooker and before lighting for the first time, even if purchased fully assembled.

• Every time the LP gas cylinder is refilled or if any of the gas components are replaced.

• Any time your cookerhas been moved.

• At least once per year or if your cooker has not been used for more than 60 days.

GAS LEAK TESTING To prevent fire or explosion hazard:

• DO NOT smoke or per mit ignition sources in the area while conducting a leak test.

• Perform test OUTDOORS onlyin a well ventilated area.

• Never perform a leak test with a match or open flame.

• Never perform a leak test while thecooker is in use or while cooker is still hot.

GAS LEAK TEST INSTRUCTIONS

Note:The gas leak test must beper formed in an area that has adequate lighting

in order to see if bubblesare developing. DO NOTuse a flashlight

to check for bubbles.

1.Create a mixture of 50% water and 50% liquid no-ammonia base dishwashing soap.

2.Turn thegas cylinder valve tothe OFF position (clockwise).

Then turn regulator control knobto OFF position

(as indicated on knob).

3.To turn ON the fuel supply, turn the cylinder valveknob one turn

in the ON direction or OPEN direction. Gas will flow through

and stop at the regulator.

4.Using a clean brush or spray bottle, apply the soap water mixture

to the following:

Cylinder Valve to Cylinder

Connection Nut to Cylinder V alve

Back side of ConnectionNut to Brass Nipple

Control Knob on Regulator

Regulator connection toGas Supply Hose

LP Cylinder Welds

Full length of Gas Supply Hose

Gas Supply Hose connection to Bur ner Assembly

5.Check each placeA - Ffor growing bubbleswhich indicates a leak.

6.Next, turn ON regulator control knob to per mitgas to pass

through the hose. Checkeach place listed for growing bubbles,

G & H, which indicates a leak.NOTE: Do not allow gas to flow

more than 5 - 10 secondswhile checking for leaks, and then

turn off gas supply at the cylinder. During this process, gaswill be

flowing out the burner into the air.

7.Turn OFF gas cylinder valve(clockwise) on LP Gas Cylinder .

8.Turn regulator control knobto OFF position.

9.Tighten any leaking connections.

10. Repeat soap water mixture test until no leaks are detected.

DO NOT use cooker if gasleaks cannot be stopped.

11. If no leaks are detected, leave the gas supply at cylinder valve

and regulator turned off untill you are ready to use product.

12. Wash off soapy residue with cold water and towel dr y.

13.Wait 5 minutes to allow all gas to evacuate the area

before lighting burner.

GAS LEAK TEST

The Regulator Hose Assembly is a pre-assembled unit.

Do not take apart. Simply connect the regulator hose

assembly to the LP gas cylinder and to the cooker . An

adjustable wrench is needed when attaching the hose to

the burner. Visually inspect the regulator hose assembly

prior to each use. If there is evidence of abrasion, wear ,

cuts or leaks, the hose must be replaced prior to the

appliance being put intooperation.

This Instruction Manual contains important information necessary for the proper

assembly and safe use of this appliance. You must carefully read and follow all warnings and

instructions in this manual before assembling and using this appliance.

ASSEMBLY INSTRUCTIONS

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULL Y BEFORE ASSEMBLING OR OPERATING

YOUR COOKER.Inspect contents in thebox to ensure all par ts are included and undamaged.

FOR MISSING PARTS OR ASSISTANCE, PLEASE CALL1-800-864-6194 M-F 7:30am - 4:30pm CST .

Proof of purchase will be required.

TOOLS REQUIRED:

Adjustable Wrench

PARTS INCLUDED:

Model #SP31/SS31

Phillips Head

Screwdriver

1- Round Frame

3- Legs

1 - Burner with

Locking Nut

1- Air Shutter

1- Spring

NOTE:BG10 Burner

may have Air Shutter attached with

screws instead of using a Spring.

3 - Long Bolts

7 - Locking Nuts

1 - Burner Support Bar

1 - Heat Shield

4 - Short Bolts

Your cooker is equipped with a Type-1 connection device

with the following features:

1. The system will not allow gas flow from the cylinderuntil a

positive connection to the cylinder valve has been made.

NOTE: The cylinder valve must be turned off (clockwise) before any

connection is made or removed.

2. A GAS FLOW LIMITING DEVICE, when activated, restricts the

flow of gas to 10 cubic feet per hour.

NOTE: the flow limiting device is a safety feature thatcan be activated

when attempting to light cooker. If this occurs, refer toTrouble Shooting

on pages 16 - 17 for proper remedy.

3. After cooking is finished and cylinder valve is turned off; turn the

Regulator Control Knob counter-clockwiseto theOFFposition.

This will reduce possibility of activating theGas Flow Limiting Devicethe next time you light thecooker .

REGULATOR HOSE ASSEMBLY

• Use only the regulator hose assembly that is supplied withthis appliance.

Clean and inspect the hose before each use of the cooker. If there is evidence

of abrasion, wear, cuts or leaks, the hose must be replaced prior to the cooker

being put into operation. Replace regulator hose assembly at least ever y two years.

This part can be purchased by contacting www.thebayou.com.

• Refer to instructions for connecting regulator hose assembly to LP gas cylinder

and burner in this manual.

•The valve on regulator hose assembly controls flame intensity only . It is not an ON/OFF valve. Use LP Cylinder V alve

to turn gas ON and OFF.

TYPE-1

Connector

Coupling Nut

Regulator

Valve

For connection to

LP Gas Cylinder

Brass Orifice

Connector

For connection

to Burner

Follow the instructions exactly.You should have already assembled hose/regulator to supply tank/cylinder and

cooker. You should have already leak checked the connections, as instructed in this manual, prior to attempting

to operate the cooker.

LIGHTING INSTRUCTIONS for BURNER COOKER

DO NOT stand with head, body or ar ms over the cooker when lighting. Loose clothing and hair can catch fire.

Look at the tank/cylinder valve knob and the top will be labeled with the direction you

need to turn it to OPEN (let gas flow) or CLOSE (shut gas flow off).

Make sure the tank/cylinder valve is in the OFF position.

Check this by rotatingthe valve in the CLOSE direction until it stops.

Look at the regulator control valve and the top will be labeled with the direction you

need to turn it to OPEN (let gas flow) or CLOSE (shut gas flow off). Make sure the

regulator control valveis in the OFF position. Check this by rotatingthe valve in the

CLOSE direction until it stops. NOTE:if the regulator control valve is left in the ON

position, the Gas FlowLimiting device may be activated when the tank/cylinder valve

is turned ON, which will limit gas flow and can prevent the cooker from lighting.

Turn on the fuel supply byS-L-O-W-L-Y rotating the tank/cylinder valve one full tur n in

the OPEN direction.HINT:Turning the tank/cylindervalve quickly causes a sudden rush

of gas that sometimes activates the Gas Flow Limiting Device. T o prevent this, always

rotate tank/cylinder valve S-L-O-W -L-Y.

NOTE:The regulator control knob controls flame intensity only .

It is not an ON/OFF valve. Practice rotating the regulator

control knob to becomefamiliar with flame adjustment.

Your burner has an air control shutter , rotate the shutter untila blue flame is

achieved.In direct sunlight, flame may appear clear . If the air shutter is tightened

and will not utrn. Turn OFF the burner and loosen screwsenough to tur n the air

shutter and it will hold its position. Once ideal flame has been established, you

can tighten the screwsfully .WARNING:never adjust a hot burner. Only adjust

when it is OFF and coolto touch.

Adjust the regulator valve for the desired flame height.

BURNER FLAMECHECK

Adjust flame height usingregulator valve. Rotate air control shutter to achieve mostly blue flame.

The air control shutter mounted on the front of bur ner helps to control the amount of air that mixes

with the LP gas. A blue flame with little or no yellow flame indicates a proper air/gas mixture

and provides the best heat. Adjust the air control shutter until the desired flame is achieved.

NOTE:Make sure the brass fitting on hose is screwed into the bur ner/air shutter and tightened

securely. Do not over-tighten as the air shutterneeds to move freely in order to adjust air intake.

Check the attachment forproper connection ever ytime propane tank is connected to cooker .

HINT: Before lighting, turn air control shutter on thebur ner to an almost closed position. This increases the gas portion of the air/gas

mixture and makes the bur ner easier to light.After lighting, tur n air control shutter to an open position to achieve a better flame.

If burner flame does NOT igniteimmediately , or is accidentally extinguished, tur n LP Gas Cylinder Valve clockwise to OFF.Then

turn regulator valve clockwiseto OFF position. W ait 5 minutes for gas to evacuate before re-lighting, then repeat steps 1 -4 to

re-light. Always use cautionwhen re-lighting as cooker frame and cooking vessel will be hot.

If the burner does not light within the first few attempts, there is a problem with the gas supply . Turn off the gas at the cylinderand

regulator.DO NOTattempt to operate the cooker until the problem is found and corrected.

Refer to Troubleshooting on Pages 16- 17.

Position fireplace matchor long lighter over the bur ner, then S-L-O-W-L-Y turn regulator control valveuntil

you hear gas HISSINGfrom the bur ner.Burner should light immediately .CAUTION:The flame may be difficult

to see in direct sunlight. Do not remove match or lighter until you are sure flame is lit.

Position hand

below burner

If flame fails to light within 3 - 5 seconds, tur n off gas flow by rotating the regulator

valve in the CLOSE direction until it stops. Allow gas to evacuate/dissipate before

attempting to relight thebur ner by repeating step 6. NOTE:If the cooker does not

light within the first fewattempts, there is a problem with the gas supply . Turn off the

gas at the tank/cylinderand regulator . DO NOT attempt tooperate the cooker until

the problem is found and corrected. Refer to troubleshooting section of this manual.

TURNING OFF COOKER AND DISCONNECTING HOSE

NOTE:Turn off LP gas cylinder valve first to prevent gas from beingleft in the regulator hose system under pressure.

1.Turn OFF the LP gas cylindervalve clockwiseuntil it stops.

2.Turn regulator valve to the OFF position, clockwiseuntil it stops.

3.To disconnect Regulator Hose Assembly , turn the large coupling nutcounter-clockwiseby hand.

FOR OTHER PRODUCTS BCA000153-000

1- 10 PSI Regulator

Hose Assembly

S-L-O-W-L-Y TurnLP Cylinder ValveOne Full Turn S-L-O-W-L-YTurn RegulatorValve ON

Turn COUNTER-CLOCKWISE

to Disconnect

Turn OFF

LP Cylinder.

Close Valve Fully

Turn OFF Regulator.

Close Valve Fully

Disconnect

Regulator

THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE

HAZARDS AS YOU ASSEMBLE AND USE THIS PRODUCT.

THE PURPOSE OF THIS SAFETY ALERT SYMBOL INDICATES FAILURE TO FOLLOW WARNINGS COULD

RESULT IN FIRE OR EXPLOSION. PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!

SAFETY SYMBOLS

The symbols and boxes shown below explain what each heading means. Read and follow all of the safety

warnings and instructions contained in this manual and on the cooker.

Carefully read and follow all WARNINGS, SAFETY PRECAUTIONS and OPERATING INSTRUCTIONS

contained in this manual and on the cooker.

DO NOT skip any of the warnings and instructions! SAVE THIS MANUAL FOR FUTURE REFERENCE.

Indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

Hazard or unsafe practices which could result in minor personal

injury, product, or property damages.

Hazard or unsafe practices which could result in severe property

damages, personal injury, or death.

WARNING

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE OR EXPLOSION WHICH COULD

CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

• This cooker is a high pressure gas appliance for OUTDOOR USE ONLY.

• This cooker does not have automatic thermostat controls so must be attended and monitored

at all times during use.

•Do not use a cooking vessel smaller than 12-inches diameter.

• This cooker is not intended to be used to fry turkeys!

DANGER

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your

fire department.

WARNING

• Do not store spare LP cylinder within 10 feet (3 m) of this appliance.

•

Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8 m) of this appliance.

•When cooking with oil/grease, do not allow the oil/grease to get hotter than 350˚F (177˚C).

• Do not leave oil/grease unattended.

• Never operate this appliance unattended. A sober, adult must attend and monitor this appliance

at all times during use.

• Never operate this appliance within 10 feet (3.0 m) of any structure, combustible material or

additional gas cylinders.

• Never allow oil or grease to get hotter than 350˚F (177˚C). If temperature exceeds 350˚F

(177˚C), turn flame down to reduce heat. If temperature continues to rise, immediately turn

burner or gas supply off. If oil/grease begins to smoke, regardless of temperature, immediately

turn burner or gas supply off.

• Heated liquids remain at scalding temperatures long after the cooking process. Never touch

the cooking appliance until liquids have cooled to 115˚F (45˚C) or less.

NOTE TO CONSUMER

This LP Gas Cooker is a specialized high pressure gas appliance having greater heat output than traditional kitchen

stoves. It is referred to as cooker and appliance in this manual and on warning tags. This cooker does not have

automatic thermostat controls so must be attended and monitored at all times during use.

This LP Gas Cooker is for OUTDOOR USE ONLY!

As with anycooking appliance, care must be taken to follow all Safety Precautions and Instructions in order to

achieve safe and satisfactory cooking results.

Restrict the use of this appliance to adults who can read, understand and follow the warnings and instructions in

this manual, and on the cooker. Safety Alerts alone cannot eliminate the hazards that they signal. Strict compliance

with these instructions, plus common sense operation, are primary accident prevention measures.

If having any doubts or concerns about your ability to use this product contact Bayou Classic®.

Should you still have concerns about operating this product, then do not use. Contact your dealer for return and

refund. Remember; Think Safety and Use Common Sense!

IF OIL OR GREASE FIRE OCCURS

In the event of an oil/grease fire, do not attempt to extinguish with water. Immediately call your local

Fire Department. A Type BC or ABC dry chemical fire extinguisher may in some cases contain the fire.

If a fire occurs INSIDE THE COOKING VESSEL follow these steps.

• Turn off gas supply.

• Wearing a protective glove, cover the pot with a lid. DO NOT re-open lid as the oil/grease fire could

re-ignite. Allow cooking vessel to cool down to 115˚F (45˚C) before opening lid.

If a fire occurs OUTSIDE THE COOKING VESSEL follow these steps.

• Turn off the gas supply if possible.

• Wearing a protective glove, cover the pot with a lid if possible.

•Call the local Fire Department if property damage is possible.

•Attempt to extinguish using a chemical fire extinguisher specified.

•Once fire is extinguished, DO NOT re-open lid as the oil/grease fire could re-ignite. Allow cookingvessel

to cool down to 115˚F (45˚C) before opening lid.

Outdoor gas appliances do not haveautomatic thermostat contr ols

so must be attended and monitored at all times during use.

Safety Precautions& W arnings

Remember: Think Safety andUse Common Sense!

Failure to follow these instructions could result in fire or explosion

which could cause property damage, personal injur y or death!
