5.2 Specifications

WARNING:

This appliance contains R600a refrigerant which is flammable.

It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland,

the authorised Service Person MUST hold a Gas WorkAuthorisation for hydrocarbon refrigerants, to carry out

Servicing or repairs where the gas system is being opened or charged.

If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

Ensure the refrigerator is placed in a well-ventilated indoor

place; the ground shall be flat, and sturdy.

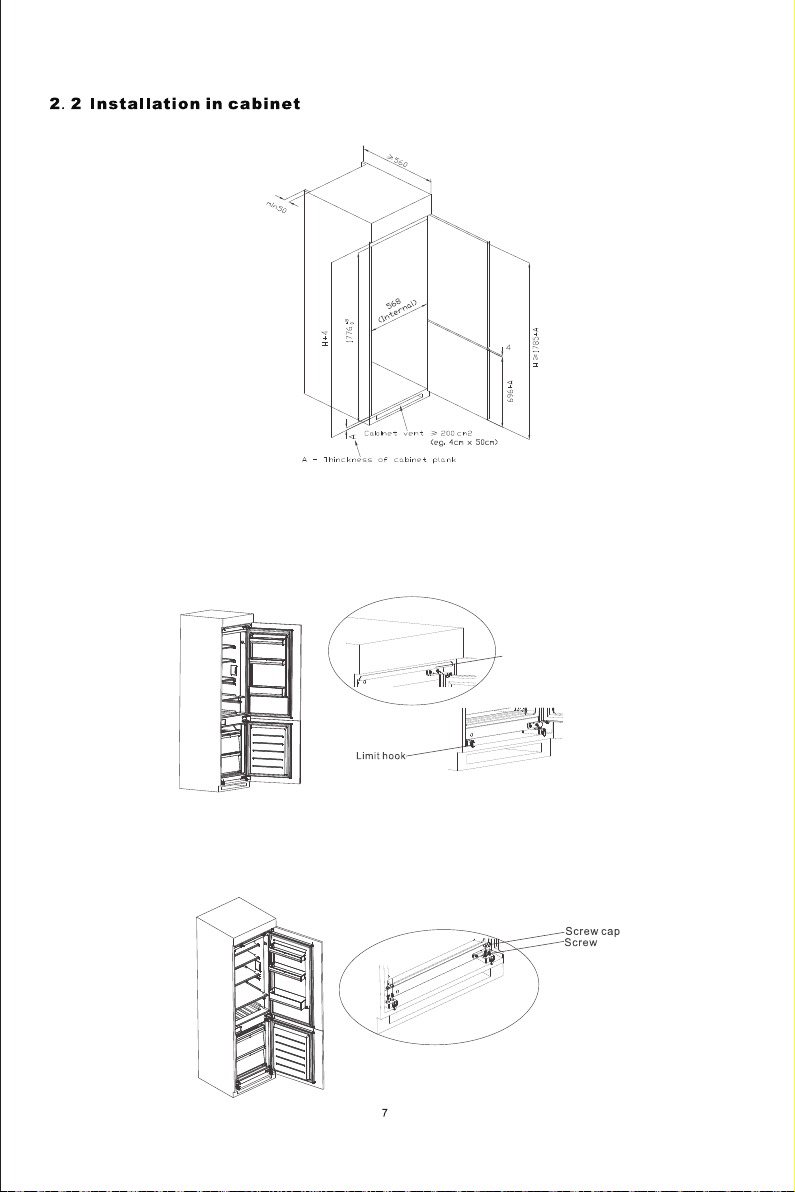

Outer Cabinet Dimensions

• Cabinet size requirements

• Push the refrigerator into the cabinet ensuring the edge fold of the top trim is hard against the top edge of

the cabinet and the limit hooks on the lower front supports are hard against the bottom edge of the cabinet.

Before fixing into place, check the gap for the sealing strip between the cabinet and the refrigerator is correct.•

•Fix the lower front supports with screws, then install the screw caps.

568

(Internal)

(eg. 4cm x 50cm)

Edge fold of top trim

• Fix the top trim to the top edge of the cabinet with screws, then install the screw caps.

• Open the lower door of the cabinet to the maximum angle and the lower door of the refrigerator to the

corresponding position.

Slide the blocks onto the door brackets and position the screw holes just past the edge of the refrigerator door.

Fix the blocks to the cabinet door with screws, then install the caps.

Fix the upper refrigerator door to the cabinet door using he same method.

•

• Press the sealing strip into the gap between the cabinet and the refrigerator. Installation is complete.
