Baumatic BRLF1759SE User manual

BRLF1759SE

Larder fridge

USER MANUAL FOR YOUR BAUMATIC

BRLF1759SE

Larder fridge

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

JW 21/09/12

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your fridge 7 – 9

Specifications 7

Dimensions of the appliance 7

Descriptionoftheappliance 8

Description of the product features 9

Using your Baumatic fridge 9 -11

Beforeswitchingon 9-10

Duringfirstuse 10

Turning on the appliance and setting the thermostat 10-11

Arranging and storing food in the fridge section 11-12

Normal operating noises 12

Saving energy when using your fridge 13

Cleaning and maintenance 14-15

Defrosting the refrigerator compartment 14-15

Replacing the light bulb 15

Installation 16-20

Electricalconnection 16

Positioning 17

Reversing the door 18-20

Troubleshooting 20-22

Baumatic consumables 23

Technicaldata 24

Contactdetails 25

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or competent

person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing maintenance work,

ensure that the appliance has been disconnected from your

mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate which

it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Baumatic Customer Care Department.

Specifications of your fridge

oEnergy efficiency class: A+

oAutomatic defrost

oAdjustable thermostat

oReversible door

oAdjustable feet

oInternal light

o5 x Adjustable safety glass shelves

oSalad crisper cover (safety glass)

o1 x Salad crisper

o1 x Egg rack

o1 x Butter/Cheese compartment

o3 x General door racks

o1 x Bottle rack

oGross / net capacity: 340 / 328 litres

Dimensions of the appliance

Height: 1750 mm

Width: 595 mm

Depth: 590 mm

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge section. You will need to open the door of

your appliance to be able to find it. The rating plate will indicate the

ambient temperature range that your appliance will function correctly

within.

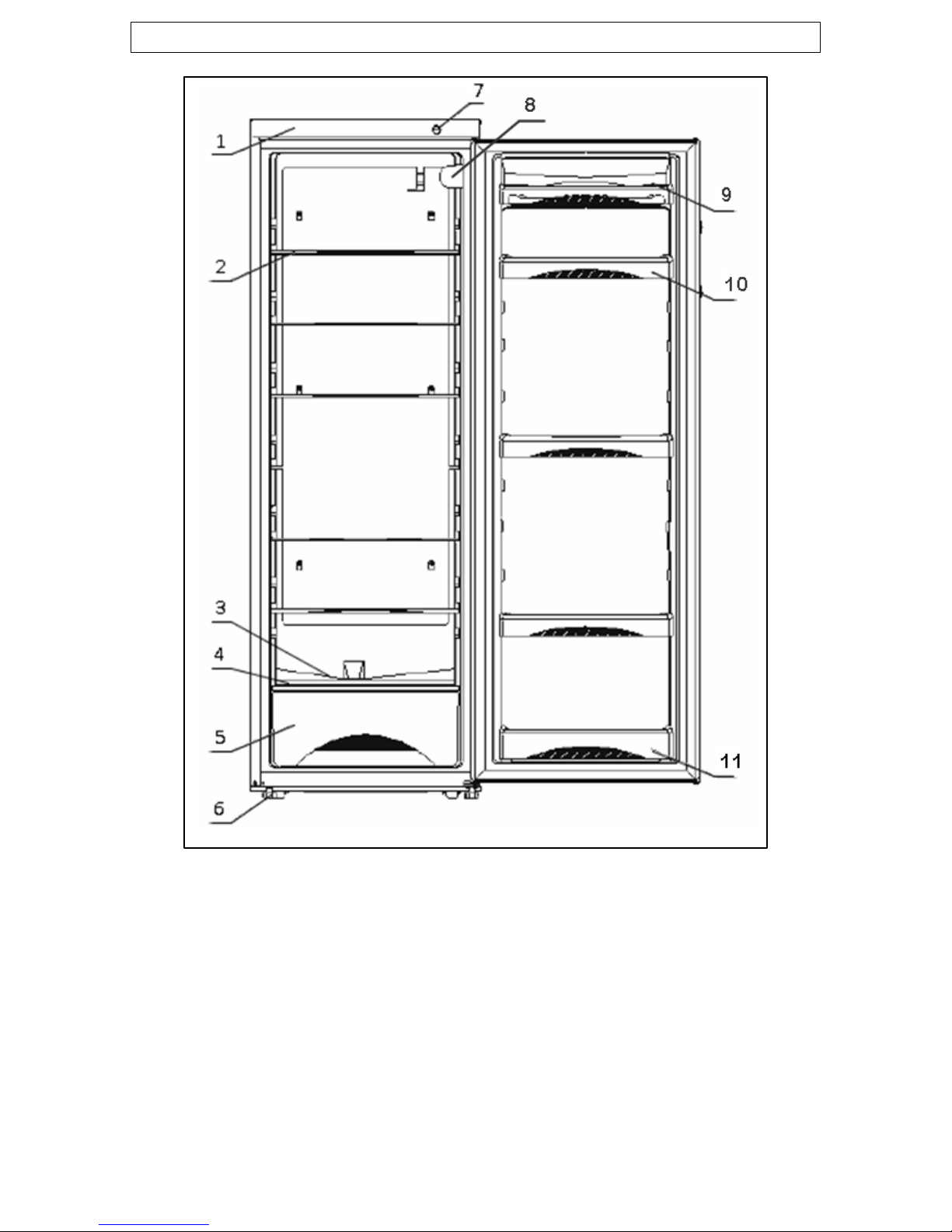

Description of the appliance

1) Top cover

2) Adjustable safety glass shelves (x5)

3) Defrost drainage channel/hole

4) Salad crisper cover (safety glass)

5) Salad crisper

6) Adjustable feet

7) Thermostat control dial

8) Interior light

9) Butter/Cheese compartment

10) General door racks (x3)

11) Bottle rack

Description of the product features

Shelves

oThe shelves may be placed in any of the guide slots within the

interior of the appliance. They are protected from sliding out.

oTo remove a shelf: Take off all of the items that are stored on

the shelf that you want to remove. Then lift the front of the shelf

and carefully pull it out of the grooves.

Crisper drawer and cover

oThe crisper drawer is in the bottom of your refrigerator and there

is a cover that goes over it.

oThe cover helps to prevent fruit and vegetables from drying out

prematurely.

General door racks

oThe door liner holds various racks, which are suitable for storing

eggs, cheese, butter and yogurt. As well as smaller packages,

tubes, cans etc.

Bottle rack

oThe lower rack should be used for storing reasonably sized

bottles.

oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE

SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS

THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.

Using your Baumatic fridge

Before switching on

oMake sure that is has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned with

a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.

During first use

oWhen you first switch on the appliance, the compressor will run

continuously for approximately 24 hours or until the fridge

reaches a cool enough temperature.

oDuring the period of time, you should try not to open the door

frequently or place a large amount of food within the appliance.

oIf the unit is switched off or unplugged, you must allow at least 5

minutes before restarting the appliance on the thermostat or

reconnecting it to your mains supply.

Turning on the appliance and setting the thermostat

You switch on your appliance by connecting it to your mains supply

and setting the thermostat. The thermostat control knob is located on

the upper right hand side of the outside of the cabinet.

oThe thermostat automatically regulates the temperature inside

the fridge, depending on what number you have turned the

thermostat control knob to.

oPosition <0FF> means that the appliance will not cool. However

the light will still function.

oPosition <MIN> will give you a higher temperature inside the

fridge.

oPosition <MAX> will give you a lower temperature inside the

fridge.
