Baumatic BGS460SS User manual

BGS460SS 46 cm

Steam oven with

grill

User Manual for your Baumatic

BGS460SS

46 cm Steam oven with

grill function

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 08/08/11

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 - 9

Product and aperture dimensions 8

Product specifications 8

Standardaccessories 9

Electricaldetails 9

Description of the oven and accessories 10-11

Oventimer 10

Timersymbols 11

Using your oven for the first time 11-16

Before first use 11-12

Switching on the appliance 12

Settingthetimeofday 12

Setting the minute minder function 12-13

Setting the duration function 13

Setting the end cook function 14

Setting the start and end time function 15-16

Cancelling a timer function 16

Adjusting the audible signal 16

Steam oven cooking function 17

Grill cooking function 18

Cookingguidelines 18

Warnings 19

Accessories 19-20

Cookingcharts 20-21

Cleaning and maintenance 21-25

Oven cavity cleaning cycle 22

Removing the side racks 23

Replacing the light bulb 24

Removing the oven door for cleaning 24-25

Installation 25-28

Electricalconnection 25-26

Installing the oven into the kitchen cabinet 27

Ventilationrequirements 28

My appliance isn’t working correctly 29-31

Errorcodeschart 29

Contact details 32

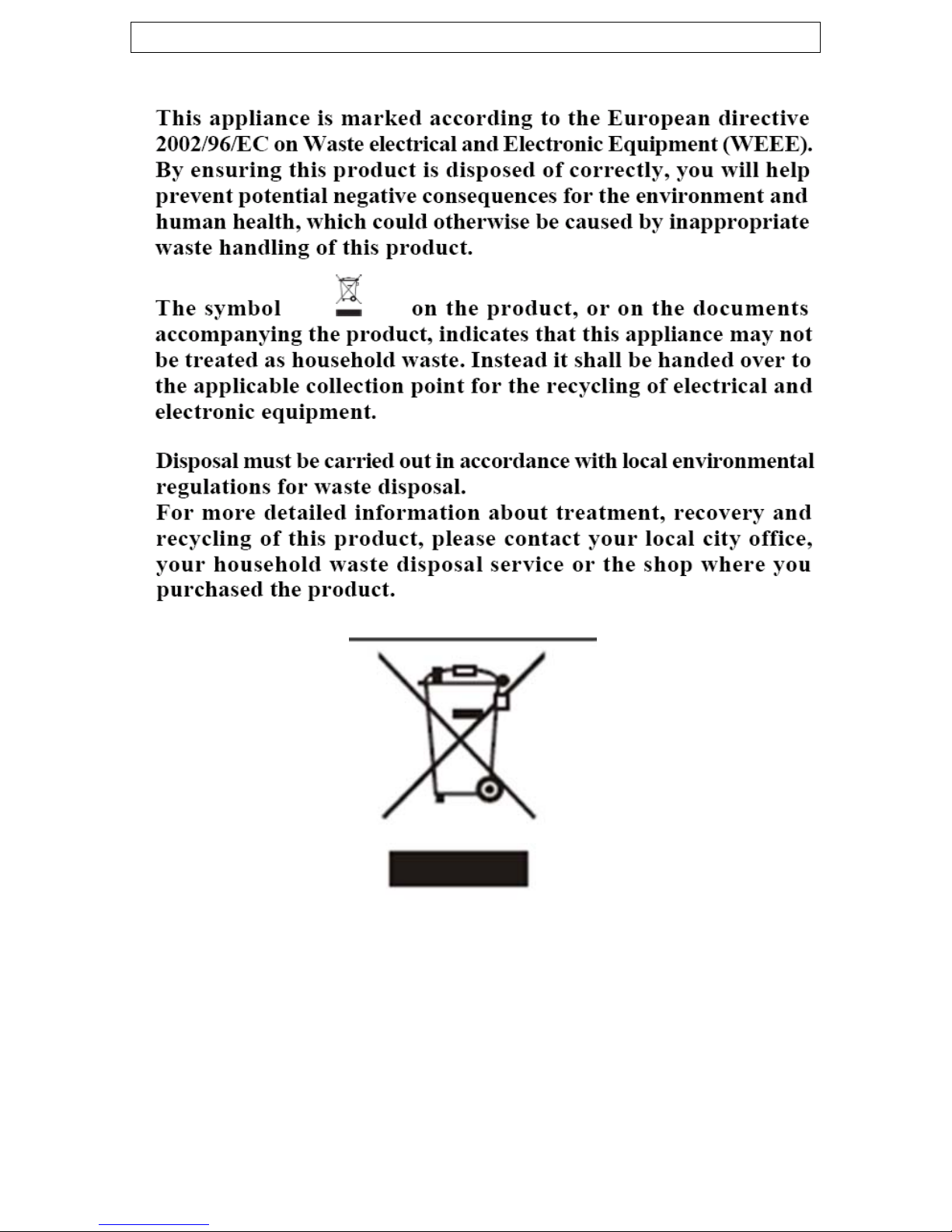

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”

-Regulation (EC) N° 1935/2004 regarding “materials in contact

with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

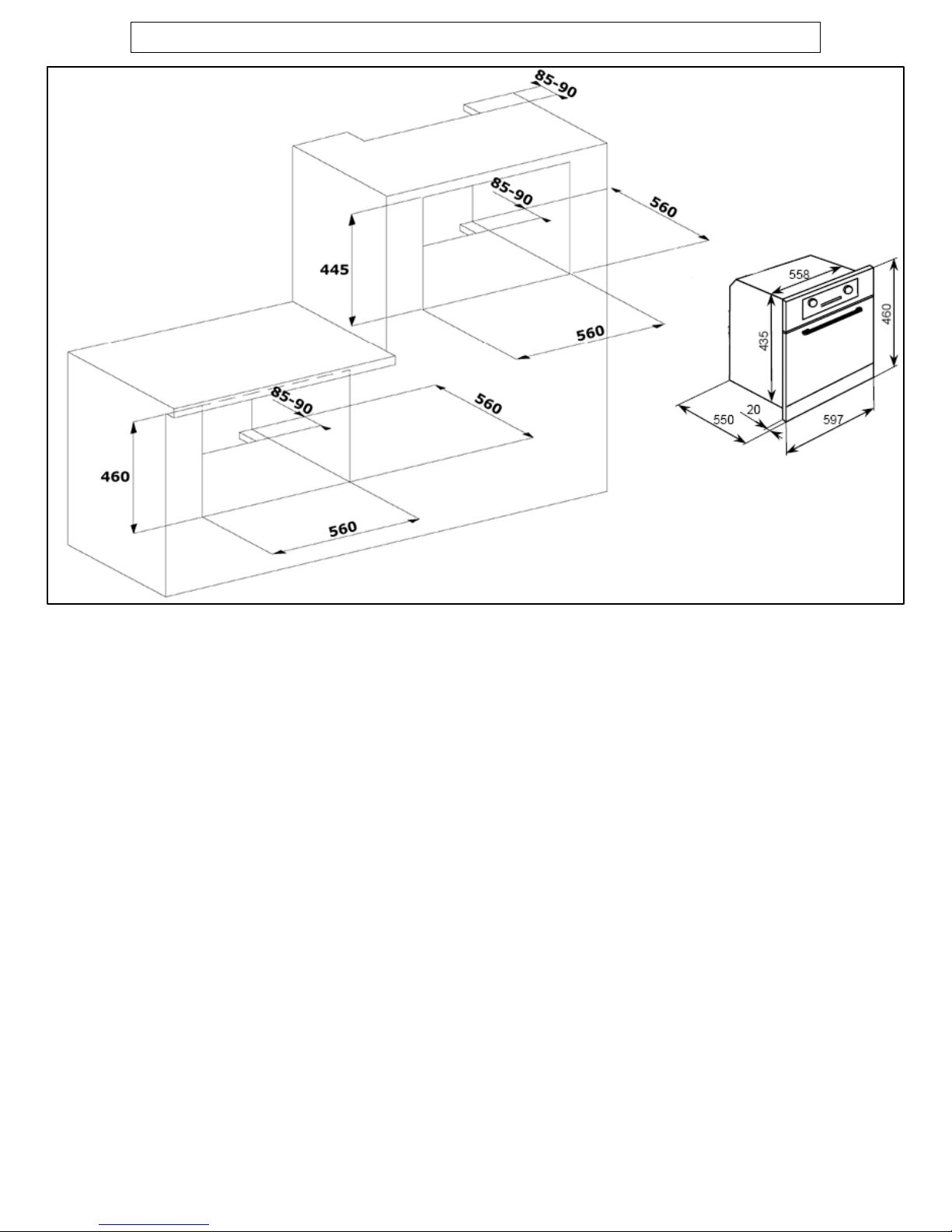

Product Dimensions

Height: 460 mm

Width: 597 mm

Depth: 550 mm (without front panel)

Aperture Dimensions:

Height: 445 mm (built-in)

460 mm (built under)

Width: 560 mm

Depth: 560 mm

Product specifications

oEnergy efficiency class: A

oGross oven capacity: 31 litres

oNet oven capacity: 27 litres

oSteam cooking function

oGrill cooking function

oTouch control / knob operation

oMechanically controllable thermostat

oThermostatically controlled grill

oLED full programmer

oSafety lock

oDouble-glazed removable door

Standard accessories

oRemovable side racks

o1 x Inox perforated deep tray

o1 x Inox baking tray

oSafety shelf

Electrical details

Rated Voltage: 220 - 240 Vac 50 - 60 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 1.30 – 1.55 kW

Mains Supply Lead: 3 x 1.2mm²

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the oven door and looking on the right hand side of

the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Description of the oven and accessories

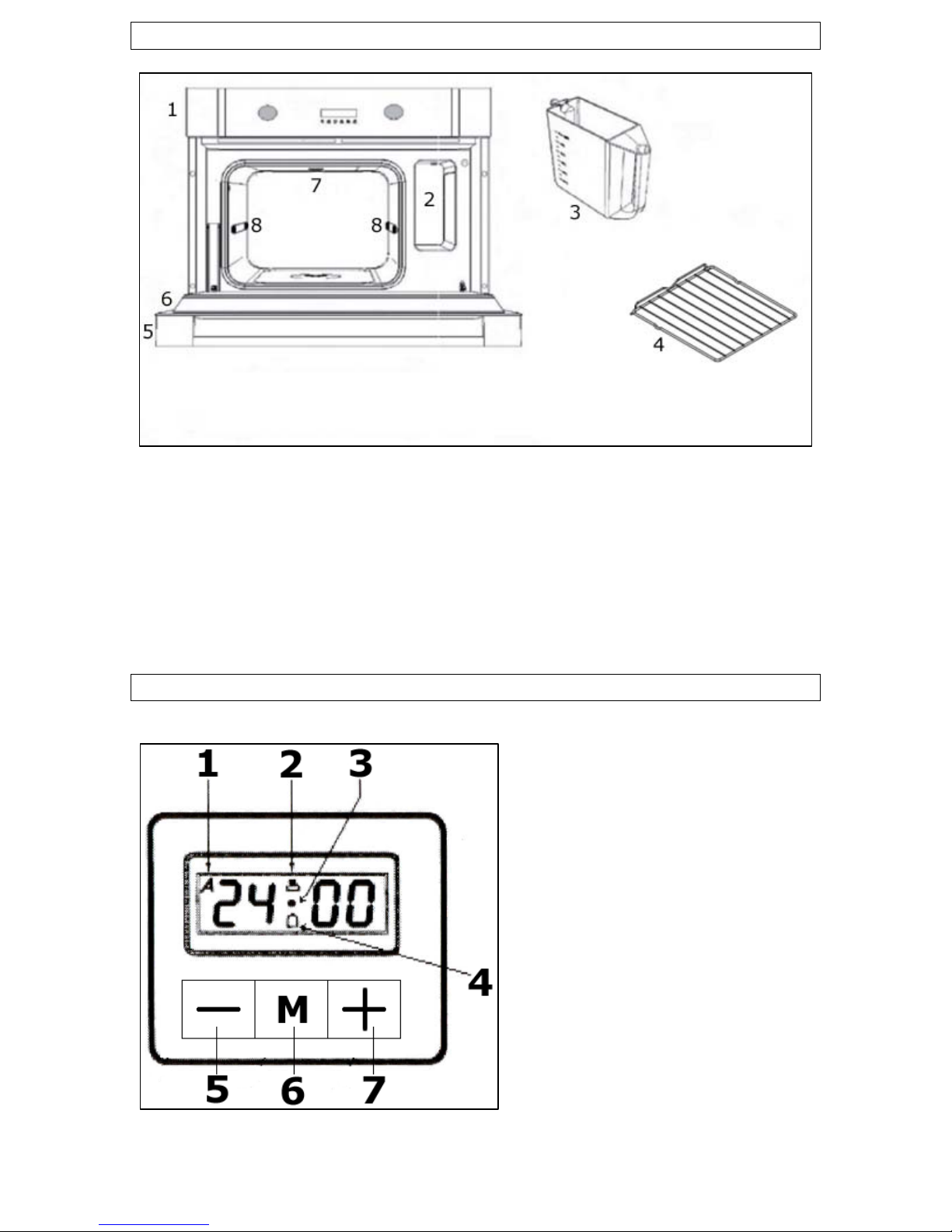

1) Control panel

2) Water jug compartment

3) Water jug

4) Safety shelf

5) Oven door

6) Oven door glass

7) Oven cavity

8) Side racks

Oven timer

1) Automatic cooking symbol

2) Oven in use symbol

3) Decimal point symbol

4) Minute minder symbol

5) Minus button

6) Programme button

7) Plus button
