Baumatic BO720SS User manual

BO720SS

60 cm Built-under

electric double

oven

User Manual for your Baumatic

BO720SS 60 cm

Built-under electric double

oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 04/08/11

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 - 11

Product and aperture dimensions 9

Product specifications 9

Standardaccessories 10

Optionalextras 10

Electricaldetails 10

Coolingfans 10

Controlpanel 11

Oven programmer/timer display 11

Initial set-up of your oven 12 – 13

Setting the time of day 12

Before first use 12 – 13

Timer functions 13-18

The minute minder function (main oven and top oven) 13

The semi-automatic cooking function (main oven only) 14

The end of cooking function (main oven only) 15

The automatic cooking function (main oven only) 16 – 17

Cancelling the semi-automatic and automatic function 17

Cancelling the minute minder function 17

Adjusting the volume of the audible signal 17

Changingthetimeofday 18

Selecting a cooking function and temperature 18 - 24

Selecting a main oven function and temperature 18

Main oven functions 19 – 20

Thermostat control knob (main oven) 20

Selecting an oven function and temperature (secondary oven) 20

Secondaryovenfunctions 21

Grill thermostat control knob 21

Oven operating lights (main and secondary oven) 21

Cooking guidelines 22 - 23

Warnings 24

Cleaning and maintenance 25 – 28

Removing the side racks 26

Replacing the oven bulb 27

Removing the oven door for cleaning 28

Installation 29 - 35

Electricalconnection 29

Connecting the mains supply cable 30

Replacing the mains supply cable 31

Installing the oven into the kitchen cabinet 32

Positioning the appliance 32

Installation between two separate cabinet units 33

Installation between two side panels and one cabinet unit 34

Ventilation requirements 35

My appliance isn’t working correctly 36 - 37

Contact details 38

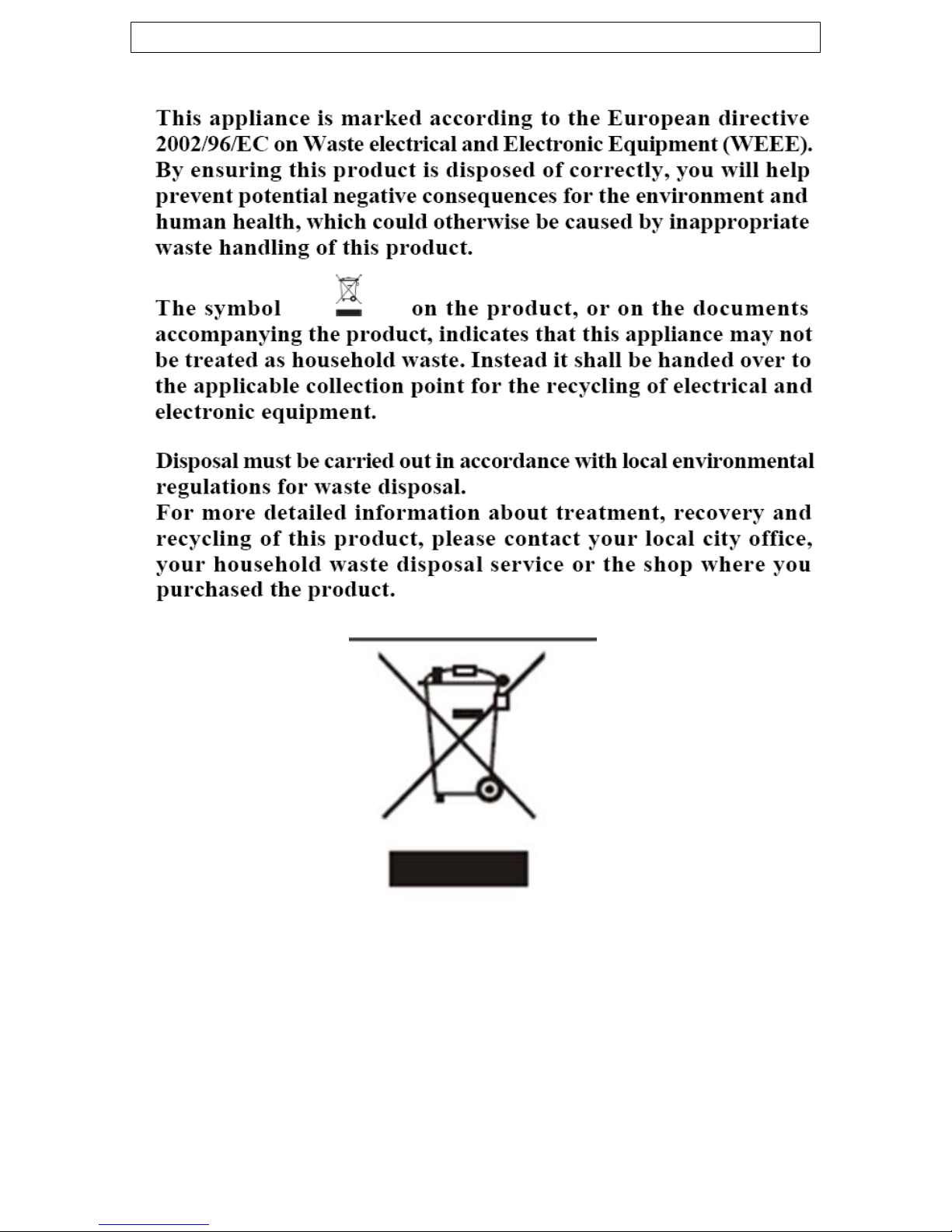

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and can

be built under a standard worktop.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oIMPORTANT: Baumatic Ltd. DO NOT recommend that this

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oMake sure that you understand the controls before using the

appliance.

oCheck that all of the controls on the appliance are switched off

after use.

oAlways stand back when opening the oven door, this will allow

heat to disperse.

oTake care when removing items from the oven, as the contents

may be hot.

oAlways keep the oven door closed when the oven is not in use.

oAlways follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

oAlways keep ventilation slots clear of obstructions.

oKeep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

oOven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct

contact with either of the burners in the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the oven.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items in the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not allow fat or oil to build up in the oven trays, enamelled

baking tray or oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

oDo not store chemicals, food stuffs, pressurised containers in or

on the oven or in cabinets immediately above or next to the

oven.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

- 2006/95/EC regarding “low voltage”

- 2004/108/EC regarding “electromagnetic disturbances”

- Regulation (EC) N° 1935/2004 regarding “materials in

contact with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product Dimensions

Height: 715 mm

Width: 595 mm

Depth: 547 mm

Aperture dimensions

Height: 717 mm

Width: 562 mm

Depth: 560 mm

Product specifications

oEnergy efficiency class: A / B

oLED full programmer

o2 x Cooling fans

oThermostatically controlled grills

oTriple-glazed removable doors

oWipeClean enamelled cavity

oSecondary oven: static oven and grill

o4 functions

oGross oven capacity: 36 litres

oNet oven capacity: 32 litres

oMain oven: multifunction oven

o9 functions

oGross oven capacity: 53 litres

oNet oven capacity: 46 litres

Standard accessories

oRemovable side racks

o3 x Safety shelves

o2 x Enamelled baking trays with handle

o2 x Trivets

oBPS2 Pizza stone

Optional extras

oSCL2.KIT Stayclean liners (main oven only)

Electrical details

Rated Voltage: 220 - 240 Vac 50 - 60 Hz

Supply Connection: 20 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 4.12 kW

Mains Supply Lead: 3 x 2.5mm²

Oven Light Bulb: 25 W/300°C screw type pigmy

Cooling fans

oTwo tangential cooling fans are fitted inside of this appliance, to

make the internal temperature of the oven stable and the

external surface temperature lower.

oAfter you have finished cooking and switched off the oven, the

cooling fan will continue to run for a period of time afterwards.

The length of time will depend on how long the oven has been

switched on for and at how high a temperature.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the main oven door and looking on the frame of

the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Table of contents

Other Baumatic Oven manuals

Baumatic

Baumatic P640SS User manual

Baumatic

Baumatic B153SS-A User manual

Baumatic

Baumatic B230CH-A User manual

Baumatic

Baumatic BO667TS-DD User manual

Baumatic

Baumatic BO988BL User manual

Baumatic

Baumatic BO460SS User manual

Baumatic

Baumatic AS13.1SS-A User manual

Baumatic

Baumatic BYO600.5SS User manual

Baumatic

Baumatic B700 Operating instructions

Baumatic

Baumatic MEGACHEF B630MC User manual

Baumatic

Baumatic B902 Operating instructions

Baumatic

Baumatic BSO624SS User manual

Baumatic

Baumatic B724SS-A User manual

Baumatic

Baumatic FI60 Quick start guide

Baumatic

Baumatic BSCS45-ANZ User manual

Baumatic

Baumatic BMEO6ETL User manual

Baumatic

Baumatic P611BS User manual

Baumatic

Baumatic B501SS User manual

Baumatic

Baumatic ELECTRIC SINGLE OVENS User manual

Baumatic

Baumatic BCS461SS User manual

Baumatic

Baumatic RMO5 User manual

Baumatic

Baumatic BO650SS User manual

Baumatic

Baumatic BOD890-SS/BL User manual

Baumatic

Baumatic AS19SS-A User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
