bar BAR4013-HJ User manual
USER MANUAL
PRESSURE CLEANERS
www.bargroup.com.au
Model Numbers: BAR4013-HJ & BAR4013-HEJ
BAR3513G-HJV & BAR3513G-HEJV
BAR3513G-HJVT & BAR3513G-HEJVT
2
Introduction
Using the Operators Manual ............................................
Pressure Cleaner...............................................................
Engine................................................................................
Safety
Safety Rules.......................................................................
Cooling Information............................................................
Hazard Symbols and Meanings.........................................
Pressure Cleaner Components
Component Charts (Various Models)..................................
Assembly
Unpack the Pressure Washer ...........................................
Attach Handle ....................................................................
Pre-Operation Checklist
Check Oils, Fuel, Water ....................................................
Connect Hose and Water Supply to Pump .......................
Starting Your Cleaner
How to Start your Pressure Cleaner..................................
Shutting Down Your Cleaner
How to Shut Down your Pressure Cleaner.......................
Electric Start Options
Component Chart ............................................................
4
5
5
6
7
8
14
17
17
18
18
19
23
24
TABLE OF CONTENTS
3
25
25
25
26
27
28
29
29
29
30
30
44
Spray Tips
How to Use Spray Tips ........................................................
Change Spray Tips ..............................................................
Usage Tips ..........................................................................
Using The Black Soap Nozzle
Applying Detergent ...............................................................
Troubleshooting
Petrol Engine Trouble Shooting Chart .................................
Pump Trouble Shooting Chart ..............................................
Storage
Winter Storage .....................................................................
Long Term Storage ..............................................................
Protect Fuel System ............................................................
Storing the Engine ...............................................................
Other Storage Tips ..............................................................
Terms And Conditions
Terms and Conditions ..........................................................
TABLE OF CONTENTS
46
Notes
Maintenance Notes ...............................................................
32
Parts List
Major Components P/N: .......................................................
Warranty Statement ............................................................. 45
4
Attention: Read through the complete
manual prior to the initial use of your
pressure washer.
INTRODUCTION
Using the Operator's manual
The operating manual is an important part of your pressure washer. It should
be read thoroughly before initial use, and referred to often to make sure
adequate safety and service concerns are being addressed.
Reading the owner's manual thoroughly will help avoid any personal injury or
damage to your machine. By knowing how best to operate this machine, you
will be better positioned to show others who may also operate the unit.
This manual was written to take you from the safety requirements to the
operating functions of your machine. You can refer back to the manual at any
machine at all times.
5
PRODUCT IDENTIFICATION
IIf you need to contact an Authorized Dealer or Customer Service line
((02 4577 2144) for information on servicing, always provide the product
You will need to locate the model and serial number for the machine
and record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Model Number:
Serial Number:
Lubrication Chart
Pump:
Engine:
Gearbox:
Universal Tractor Transmission Oil
SAE 10W30
SAE 90
6
Important Warnings
Failure to observe warnings will void warranty and/or cause injury.
1. Do not let the pressure washer overheat. Excess heat will cause severe dam-
age (see below for details).
2. Never run the unit without water. Running the pump dry will cause it to quickly
fail (NOT COVERED BY WARRANTY).
3. Do not let the unit freeze. Frozen water in the pump will cause serious damage.
4. Always wear eye protection when operating the unit.
5. High pressure spray can cause serious bodily injury of damage soft material.
Use with caution.
6. Never adjust unloader to exceed the preset pressure. Premature wear, equip-
ment failure, or injury may occur.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING - When using this product, the following precautions should
always be observed and adhered to.
1. Read all instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when a product is
used near children.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly
familiar with the controls. See page 23.
4. Stay alert - watch what you are doing.
5.
drugs.
6. Keep operating area clear of other people.
7. Do not overreach or stand on unstable support. Keep
solid footing and balance at all times.
8. .
SAFETY
7
SAFETY - COOLING INFORMATIONY
Motors are air cooled. It is important to ensure that machine is operated in a well-
ventilated area where it can draw a steady supply of fresh air. The arrows below show
an example of locations for air intake on an engine.
Most pumps are protected by a thermal valve. The thermal valve releases water if a
pump starts to run too hot. It will prevent catastrophic heat failure. However, the pump
may have suffered damage and need maintenance, repair, or replacement. If it does
not reset and continues to leak water, the thermal valve may need to be replaced.
THREADED
INTO PUMP
WITH TEFLON
TAPE
LEAKS WATER
TO PREVENT
OVERHEATING
DIRECT DRIVE GEARBOX DRIVE
Thermal valve
Pumps are water cooled. When the machine is running, ensure the trigger of the gun is pressed
to allow a constant flow of fresh water into and out of the pump. Do not let the machine run for
more than 30 seconds without pressing down on the trigger.
8
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert you
to hazards.
DANGER indicates a hazard which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazard which, if not avoided, could result in death or
serious injury.
CAUTION indicates a hazard which, if not avoided, might result in minor or
moderate injury.
NOTICE indicates a situation that could result in equipment or property damage.
Hazard Symbols and Meanings
SAVE THESE INSTRUCTIONS
Safety Rules
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
EXPLOSION
KICKBACK
FALL FLUID INJECTION MOVING PARTS READ MANUAL
HOT SURFACE FLYING OBJECTS SLIPPERY
FIRE ELECTRIC SHOCK TOXIC FUMES
SAFETY
9
WARNING
explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
When Starting Equipment
When Transporting or Repairing Equipment
•Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
•Disconnect spark plug wire.
When Storing Fuel or Equipment with Fuel in Tank
•Store away from furnaces, stoves, water heaters, clothes dryers, or other
appliances that have pilot light or other ignition source because they can
ignite fuel vapors.
SAFETY
This product can expose you to chemicals
including lead, which is known to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
•Turn pressure cleaner OFF and let it cool at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
•Fill or drain fuel tank outdoors and in accordance with the LOCAL
GOVERNMENT GUIDELINES.
•DO NOT overfill tank. Always allow space for fuel expansion.
•If fuel spills, wait until it evaporates before starting engine.
•Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition
sources.
•DO NOT light a cigarette or smoke.
•Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
•DO NOT crank engine with spark plug removed.
When Operating Equipment
•DO NOT tip engine or equipment at angle which causes fuel to spill.
•DO NOT spray flammable liquids.
10

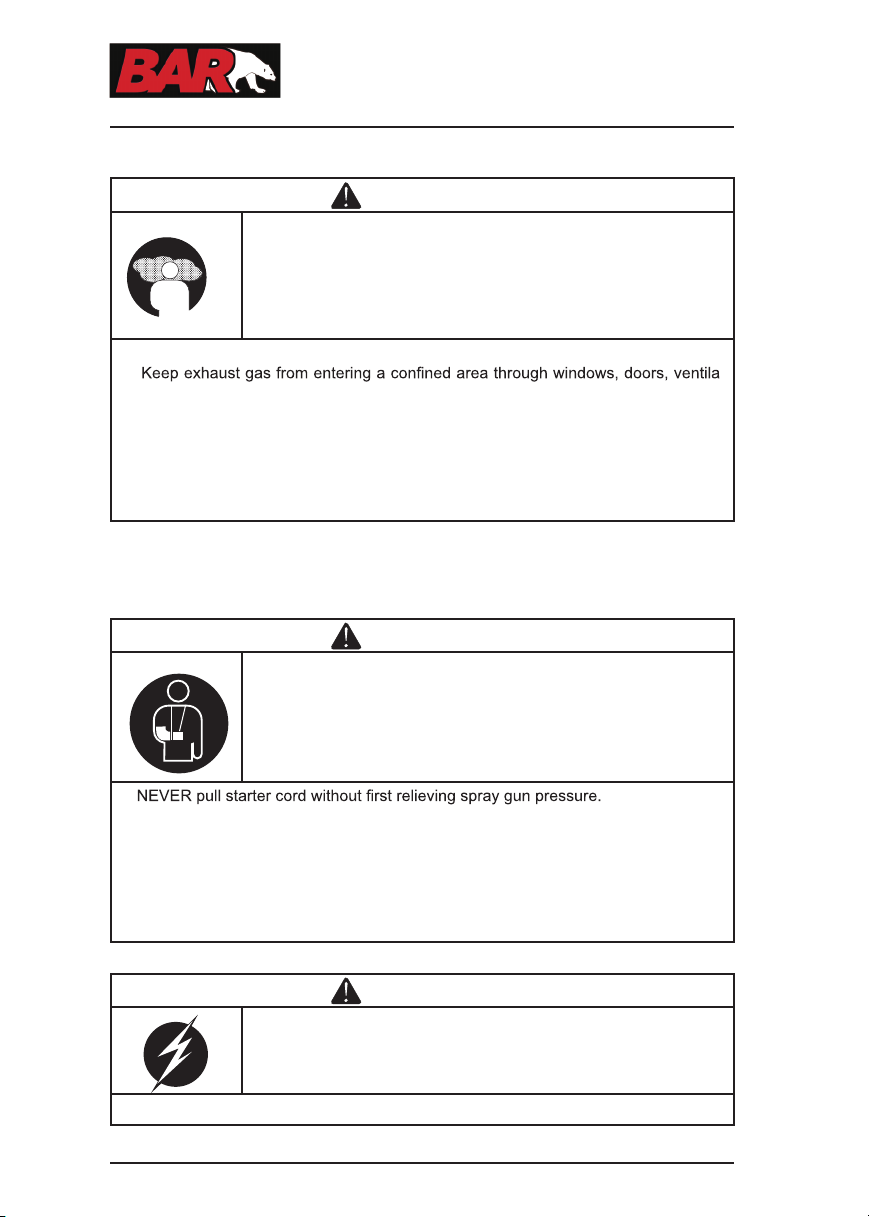

WARNING
Starter cord kickback (rapid retraction) can result in bodily injury.
Kickback will pull hand and arm toward engine faster than you can
let go.
Broken bones, fractures, bruises, or sprains could result.
••
•When starting engine, pull cord slowly until resistance is felt and then pull
rapidly to avoid kickback.
•After each starting attempt, where engine fails to run, always point spray gun
in safe direction and squeeze spray gun trigger to release pressure.
•Firmly grasp spray gun with both hands when using high pressure spray to
avoid injury when spray gun kicks back.
WARNING
A running engine gives off carbon monoxide, an odorless, colorless,
poison gas.
Breathing carbon monoxide can cause headache, fatigue, dizzi-
ness, vomiting, confusion, seizures, nausea, fainting or death.
Some chemicals or detergents may be harmful if inhaled or ingest-
ed, causing severe nausea, fainting, or poisoning.
•Operate pressure cleaner ONLY outdoors.
••-
tion intakes, or other openings.
•DO NOT start or run engine indoors or in an enclosed area, even if windows and
are open.
•Use a respirator or mask whenever there is a chance that vapors may be inhaled.
•Read all instructions with mask so you are certain the mask will provide the neces-
sary protection against harmful vapors.
SAFETYY
WARNING
Risk of electrocution.
Contact with power source can cause electric shock
or burn.
•NEVER spray near a power source.
