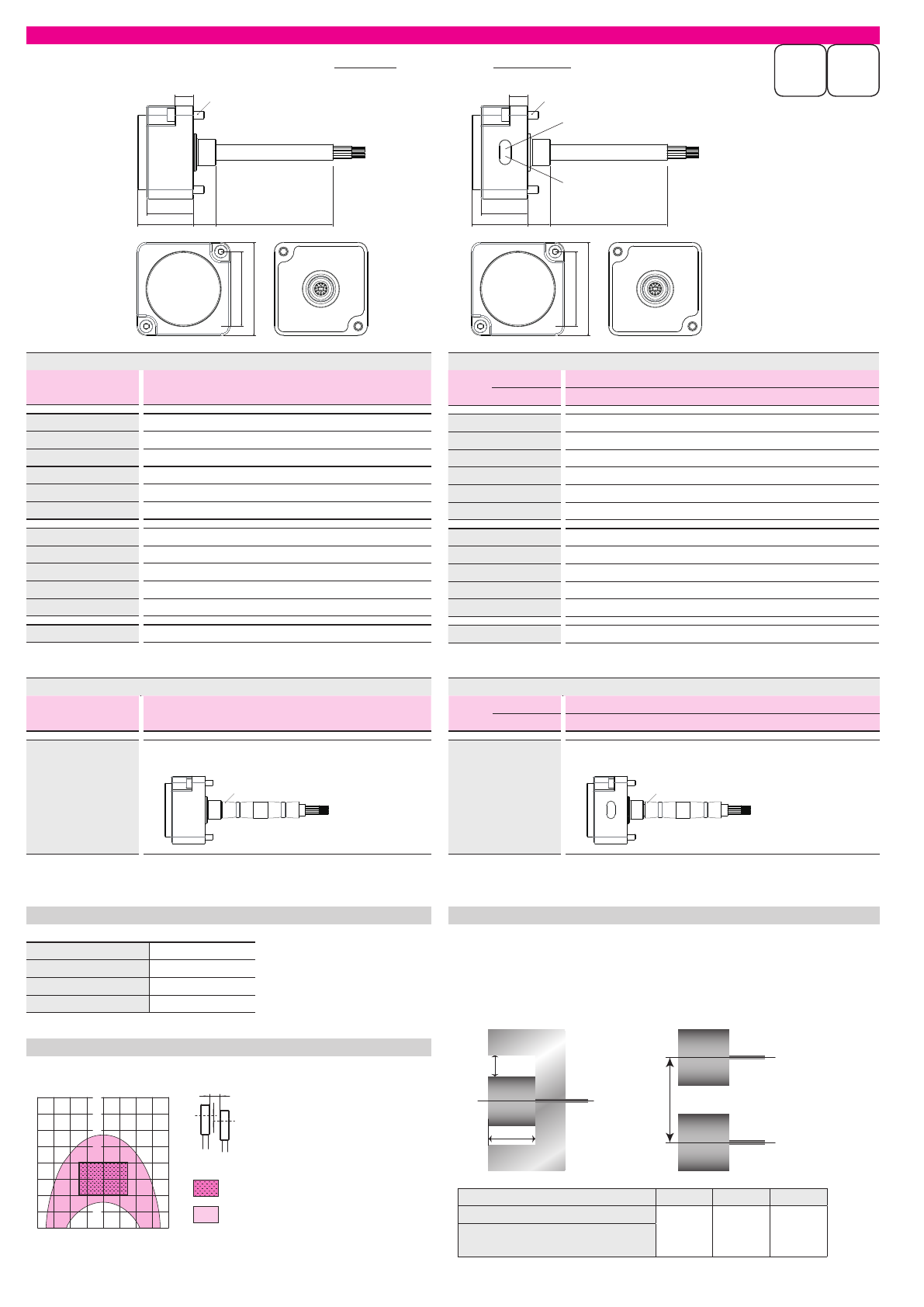

Output sensor (standard type)
Type
code
NPN output
RS12E-TF423AN-PU-02
PNP output
RS12E-TF423AP-PU-02
Power supply 24V DC ± 10％ (incl.ripple)
Current consumption
≦ 600mA
No. of output signal 12 signals + 1 signal ( Inzone )
Load current max.50mA（1 signal. ）
Frequency of operation
60Hz
LED (indication) Status LED (Green) , Output LED (Orange)
Operating temperature
0...+50℃
Protection class IP67
Cable
PUR
/ φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 262 g + Cable 105 g x 2m
Remark
Two Teon coat screw (M4x16) bundling for xation
Output sensor (Cable protection type)
Type
code
NPN output
RS12E-TF423AN-TP-02
PNP output
RS12E-TF423AP-TP-02
Cable
PUR
/ φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Transmitter (standard type)
Type
code
DC 3-wire
RS12T-TF423A-PU-01
Drive voltage 12V ± 1.5V DC
Drive current ≦ 230 mA
No. of Input signals 12 signals
Operating distance 2...4mm
Center oset ± 3mm
Drive current 230 mA
Operating temperature
0...+50℃
Protection class IP67
Cable
PUR
/ φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 262 g + Cable 105 g x 1m
Remark
Two Teon coat screw (M4x16) bundling for xation
Transmitter (Cable protection type)
Type
code
DC 3-wire
RS12T-TF423A-TP-01
Cable
PUR
/ φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Typical diagram (ex: Power Supply voltage 24V Time/Metal non implantation)
RS12T-TF423_-PU / RS12E-TF423_ _-PU
Ｘ：Axis gap (mm)
Y:Operating distance (mm)
X
Y
Installation notes
Type code A B C
RS12T-TF423-PU
30 23 250
RS12E-TF423N_-PU
RS12E-TF423P_-PU
To avoid inuence with the neighborhood metal and the mutual interference
between the product,
Please make sure to have an open distance shown on the list below.
■ Surround Metal ■ Parallel Setting
Supply voltage 12V DC
Total current consumption
less than 230 mA
Residual voltage less than 3.5V
Load current ---
Applicable sensor
Please sure to use applicable detec-
tor switch according to the specifi-
cation on left.
*Total current consumption of all
connected sensor.
Transmitter Output sensor
Cable back type
Operating
distance
2...4mm
Size
50 x 50
Y
X
mm
8
7
6
5
4
3
2
1
Operating area
Drive current ≦ 230mA
C
A
B
(mm)
* Possible that only one side, the metal contacts.

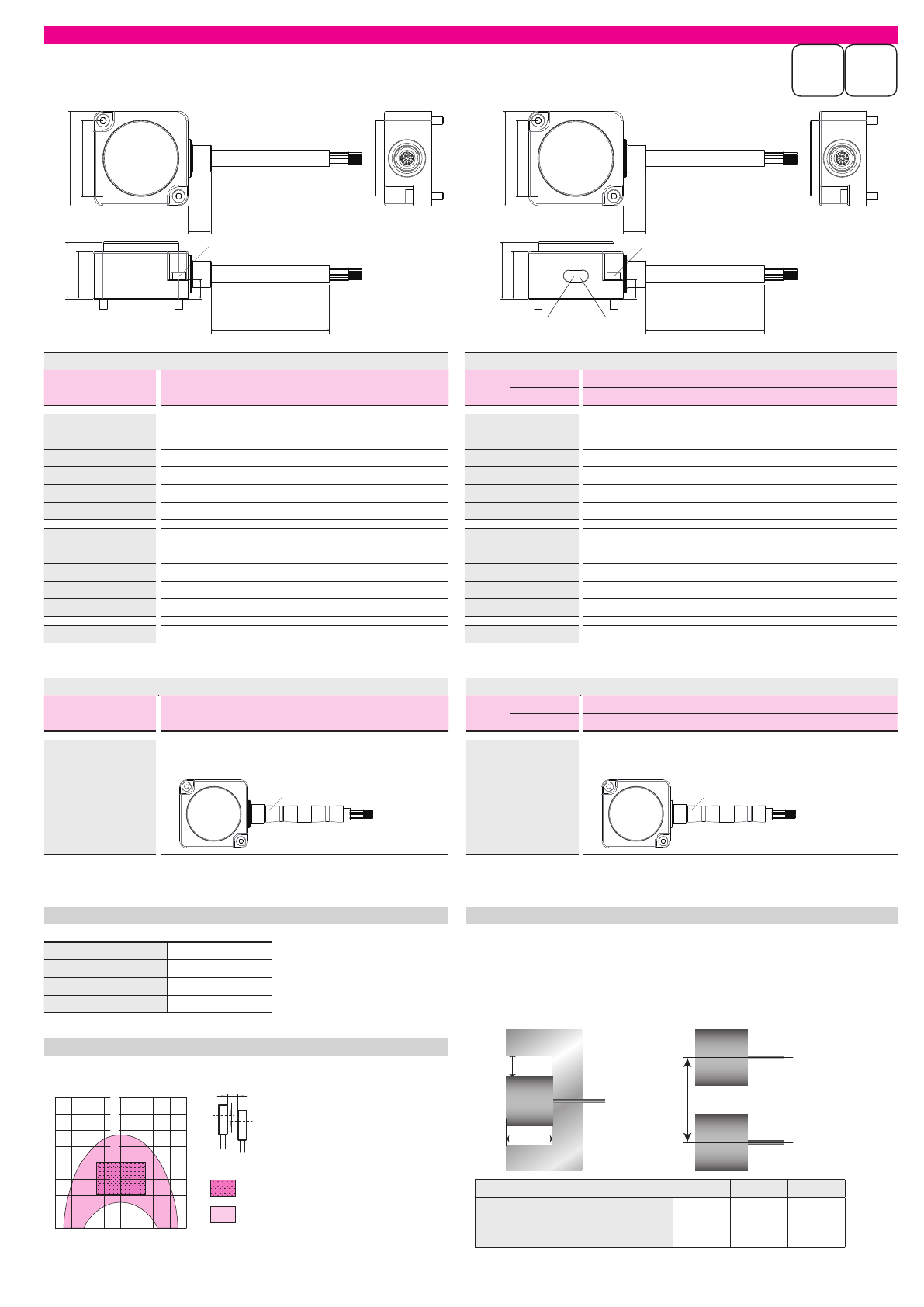

RS12E-TF423AN-PU01
RS12E-TF423AP-PU01
RS12E-TF423AN-TP01
RS12E-TF423AP-TP01
10 M4x16（テフロンコート）付属
25
30 12 (2000)
耐熱ガラス網組チューブ
※その他、寸法等は上記と同じ
□40
□50
RS12T-TF423A-PU01
RS12T-TF423A-TP01
10 M4x16（テフロンコート）付属
25
30 12 (1000)
耐熱ガラス網組チューブ
※その他、寸法等は上記と同じ
□40
□50
RS12T-TF423A-PU01
RS12T-TF423A-TP01
10 M4x16（テフロンコート）付属
25
30 12 (1000)
耐熱ガラス 網組チューブ
RS12E-TF423AN-PU01
RS12E-TF423AP-PU01
RS12E-TF423AN-TP01
RS12E-TF423AP-TP01
10 M4x16（テフロンコート）付属
25
30 12 (2000)
耐熱ガラス 網組チューブ
Status LED (Green)
Output LED (orange)
Teon coat screw (M4x16) bundling Teon coat screw (M4x16) bundling
Heat-resisting glass tubeHeat-resisting glass tube
Dimensions, such as head sameDimensions, such as head same
