Azur 851N Network Player
Manual Generated: 26/08/2022 - 09:42
2
目录
Azur 851N Network Player 3 ................................................................................................................................................................................................................
Introduction 4 .......................................................................................................................................................................................................................................
What's included with the 851N? 5 .......................................................................................................................................................................................................
Front Panel 6 .........................................................................................................................................................................................................................................
Rear Panel Connections 8 ....................................................................................................................................................................................................................
Remote Control 10 ...............................................................................................................................................................................................................................
Getting Connected 11 ...........................................................................................................................................................................................................................
Connecting to WiFi 16 ..........................................................................................................................................................................................................................
StreamMagic app 19 .............................................................................................................................................................................................................................
Built-in Streaming Services 20 .............................................................................................................................................................................................................
AirPlay 2 22 ...........................................................................................................................................................................................................................................
Internet Radio 23 ..................................................................................................................................................................................................................................
USB Audio 25 ........................................................................................................................................................................................................................................
USB Media 30 ........................................................................................................................................................................................................................................
Streaming Your Local Digital Music Collection 31 ...............................................................................................................................................................................
Settings 32 ............................................................................................................................................................................................................................................
Technical Specification 35 ....................................................................................................................................................................................................................
Source Quality Matrix 36 ......................................................................................................................................................................................................................
Troubleshooting 37 ..............................................................................................................................................................................................................................
3
Azur 851N Network Player
Last updated: 八月 3, 2022 04:44. Revision #5589
Users Manual
4
Introduction
Last updated: 八月 9, 2022 02:50. Revision #5672
This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy
at the time of publishing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are subject to change
without prior notice.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks are
the property of their respective owners.
StreamMagic is a trademark of Audio Partnership Plc and is registered in the European Community and other countries.
This product contains software licensed under version 2 of the GNU Public License and version 2.1 of the GNU Lesser Public License. The source code for
this software is available from: http://gpl.stream-magic.com/
This product includes technology owned by Microsoft Corporation and under a licence from Microsoft Licensing GP. Use or distribution of such technology
outside of this product is prohibited without a license from Microsoft Corporation and/or Microsoft Licensing, GP as applicable.
The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses.
This product support AirPlay 2 and requires iOS 11.4 or later.
Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has
been certified by the developer to meet Apple performance standards.
Android, Google Play and the Chromecast built-in logo are trademarks of Google Inc.
TIDAL and TIDAL logo are registered trademark of Aspiro AB in the European Union and other countries.
© Copyright Cambridge Audio Ltd 2022
For upcoming news on future products, software updates and exclusive offers, make sure you register your product
at http://www.cambridgeaudio.com/register
5
What's included with the 851N?
Last updated: 八月 9, 2022 02:50. Revision #5673
1) 851N Network Player
2) Safety Guide
3) Quick Start Guide
4) 3 x AAA Batteries
5) Remote Control
6) Control Bus Cable
7) Wi-Fi Dongle
8) Power Cable
6
Front Panel
Last updated: 八月 9, 2022 02:50. Revision #5674
1. USB
For use with USB storage devices. 1A maximum current consumption.
2. Standby/On
Switches the unit between Standby Mode (indicated by dim power LED) and On (indicated by bright power LED). Standby Mode is a low power mode (0.5
Watts) – This can only be achieved when using Eco mode. The unit should be left in Standby Mode when not in use.
3. Info
During playback, pressing this button will cycle through ‘Now Playing’ screens. Press and hold to display the product info.
4. Home
Press to navigate to Home menu.
5. Filter
Press to toggle through three alternative digital filter characteristics: Linear Phase, Minimum Phase or Steep.
Alternative digital filters can offer subtly different sound quality characteristics. The currently selected filter is displayed by the indicators just above the
button.
Phase
Press and hold the Filter/Phase select button for approximately two seconds to select normal or inverted phase output. When the LED lights up, the phase
is inverted by the 851N.
Detailed information on the 851N Filter Settings can be found here.
Note: If you suspect that your source material or amplifier, etc., is inverting the phase of the musical signal, you can use this function to re-invert the
audio and regain absolute positive phase
6. Infrared Sensor
7
IR sensor that receives IR commands from the remote control.
7. (More)
When playing from UPnP sources, this button displays queued tracks and options.
8. Display
9. Play/Pause
Play or Pause current track.
10. Stop/Delete
Press during playback to stop or delete items in various menus.
11. Skip
Skip to next track during playback.
12. Navigation/Select (Rotary Dial)
Rotate to scroll and navigate around the menus. Press to accept the item/function shown on the display.
13. Return
Press to return to the previous menu.
8
Rear Panel Connections
Last updated: 八月 9, 2022 02:50. Revision #5675
1. Power On/Off
Switches the 851N on and off.
2. Mains Voltage Selector Switch (CU Version)
Switches the mains voltage between 100V and 115V.
Note: For use by Cambridge Audio service personnel only.
3. AC Power Socket
Once you have completed all connections to the amplifier, plug the AC power cable into an appropriate mains socket then switch on.
4. USB Sockets
Pre-fitted Wi-Fi dongle and connection for USB HD/flash disk or optional BT100 Bluetooth audio receiver.
The USB ports are not intended for connection to Apple mobile devices, no functionality, charging or otherwise, is supported.
The Wi-Fi dongle is pre-fitted. Your unit will default to an Ethernet connection if one is made, however it is advised to remove the Wi-Fi dongle if using an
Ethernet connection.
If you are using this 851N with Wi-Fi please make sure your unit is positioned within range of your wireless router.
Important Note: Do not connect/disconnect the Wi-Fi dongle when the unit is on.
5. Ethernet
Use to connect the 851N directly to a router.
6. Digital Inputs (D1, D2, D3 and D4)
TOSLINK Optical and S/P DIF coaxial digital inputs.
Coaxial – Use a high quality 75 ohm digital RCA Phono interconnect cable (This is different from an analogue audio phono interconnect). This input is
suitable for 16-24 bit content up to 192kHz.
TOSLINK Optical – Use a high quality TOSLINK fibre optic interconnect cable designed specifically for audio use. This input is suitable for 16-24 bit content
9
up to 96kHz (TOSLINK is not recommended at 192kHz sampling rates).
Note: To obtain the best results from your system we recommend using only high-quality Cambridge Audio interconnects. This will ensure that you hear
your system as we designed it. Please ask your dealer for details.
7. Digital Outputs
TOSLINK Optical and S/P DIF coaxial digital outputs.
8. USB Audio In
A USB B type socket to enable the playback of audio from a computer running either Microsoft Windows or Apple Mac OS X operating systems. Some
builds of Linux may also be supported but due to the open-source nature of the Linux operating system cannot be guaranteed.
Notes:
Always use a high-quality USB connection cable certified as USB Hi-Speed. USB cable connections longer than 3m may result in inconsistent audio
performance.
Always turn the volume to minimum, switch to another input or turn the 851N off before plugging/unplugging cables to the USB input or whilst
booting up/shutting down your PC/Mac.
The use of USB hubs is not recommended for this input.
9. RS232C Interface
The RS232C interface enables external serial control of the 851N in custom installation applications, as well as for use by Cambridge Audio service
personnel for software updates.
10. IR In
Allows modulated IR commands from an IR repeater or custom install systems to be received by the amplifier.
Commands received by the IR In socket are not looped out of the Control Bus.
Note: The IR input doesn’t provide any power, so any device connected to this input will need to have its own power source.
11. Control Bus
RCA sockets used to send and receive power and volume commands from other connected 851 Series products. For more information on the Control Bus,
see Control Bus section.
12. AES/EBU Balanced
In – For sources with a balanced (AES/EBU) digital output. This input is suitable for 16-24 bit content up to 192kHz.
Out – For external devices incorporating a fixed (AES/EBU) digital input.
13. Line Output
Line Output (fixed or variable) used to provide a signal to an amplifier or a recording device.
14. Balanced Audio Output
For use with balanced XLR connections. The balanced connection is the higher quality option and can reject noise and interference in the cable when used
with other equipment that supports this function.
Note: XLR connectors should be wired as follows: Pin 1: Ground, Pin 2: Hot (in-phase) and Pin 3: Cold (phase-inverted).
10
Remote Control
Last updated: 八月 9, 2022 02:50. Revision #5677

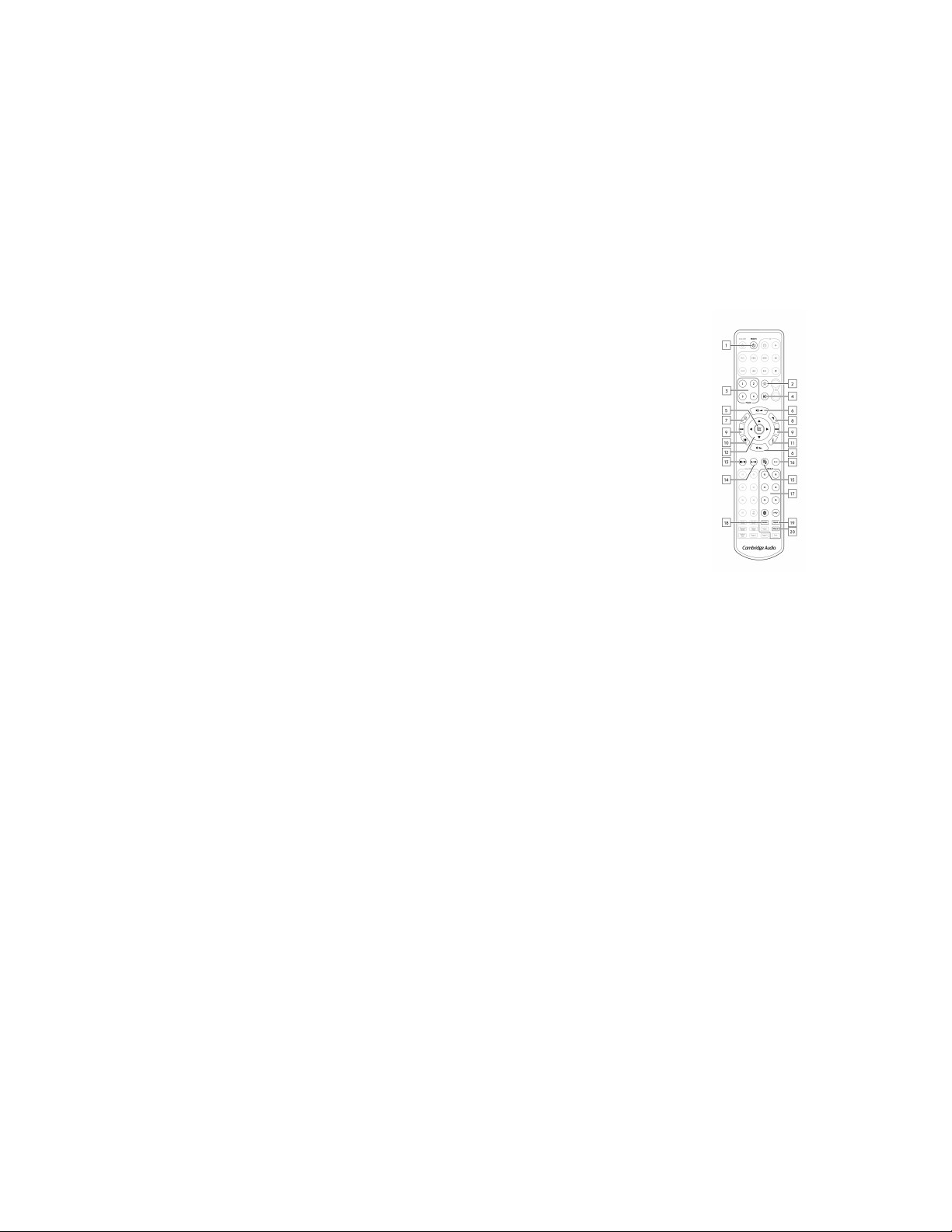

The 851N remote control handset duplicates some of the front panel control functions and is also able to control other Azur 851 series products. The
supplied AAA batteries must be fitted before the remote control can be used. The handset buttons function as described below:
1. Standby/On
Switches the 851N between On and Standby mode.
2. Brightness
Alters the brightness of the 851N display. There are two brightness levels and an option to switch off the backlight.
Note: When the 851N display lights are selected to be off, selecting any of the functions will briefly switch on the lights to show the
change.
3. Presets
Recalls stored 1 – 4 presets. Holding a button will save current station as preset.
4. Mute
Press to mute or unmute output.
5. Enter/Mode
Enter or select.
6. Volume
Volume level adjust.
7. Home Menu
Returns front panel display to Home menu option.
8. Return
Return or back.
9. Skip
Skips between previous and next tracks.
10. Backlight Button
Illuminates the buttons.
11. Info
Toggles between display information.
12. Navigation
To navigate between menus.
13. Stop/Delete
Stop current track or delete from queue.
14. Play/Pause
Play or Pause current track.
15. Queue
View media playback queue.
16. (More)
When playing Internet Radio, the More button displays related options to the currently selected station, such as alternative stream
types, content types or similar stations. When playing from UPnP sources, this button displays queued tracks and options.
17. Digital Inputs
Shortcut to D1 Digital Input.
18. Random
Play random track within queue.
19. Repeat
Repeat all tracks in queue.
20. Filter
Press to toggle through the three digital filter options.
Other manuals for 851N
