Aztech DSL600EWR Product information sheet

ADSL Wireless LAN 4-

Port Ethernet Router

Easy Start

Version 0.1

Contents

Introduction............................................................. 3

Minimum System Requirements ................................ 3

ADSL Router Package............................................... 3

ADSL Router Overview ............................................. 4

Typical ADSL Router Connection................................ 6

Step 1: Connecting the ADSL Router to Your

Computer/Notebook ...................................... 7

Step 2: Configuring Your Ethernet Network Card ....... 10

Step 3: Configuring Your Internet Browser................. 12

Step 4: Connecting to the Internet............................ 13

• Product warranty does not apply to damage caused by lightning, power surges or

wrong voltage usage.

• This product is for use only in UL Listed computers.

Easy Start

Declaration of Conformity

Marking by the above symbol indicates compliance with the Essential Requirements of the

R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following

conformance standards:

EN300 328, EN301 489-17, EN60950

Countries of Operation and Conditions of Use in the European

Community

This device is intends to be operated in all countries of the European Community.

Requirement is for indoors vs. outdoors operation, license requirements and allowed

channels of operation apply in some countries as described in this document.

Note: The user must use the configuration utility provided with this product to check

the current channel of operation and confirm that the devices operating in

conformance with the spectrum usage rules for the European Community countries as

described below.

If operation is occurring outside of the allowable channels as indicated in this guide, then the

user must cease operating the product and consult with the local technical support staff

responsible for the wireless network.

This device may be operated indoors or outdoors in all countries of the European

Community using the 2.4GHz band: Channels 1 – 13, except where noted below:

·In Italy the end-user must apply for a license from the national spectrum authority to

operate this device outdoors.

·In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels

1 – 7.

1 of 13

Easy Start

Radio Frequency Interference Warnings &

Instructions

(FCC ID: I38-DSL600EWR)

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following methods:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an electrical outlet on a circuit different from that which the radio

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

Modifications made to the product, unless expressly approved by the party responsible, could

void the user’s right to operate the equipment.

RF Exposure

To comply with FCC RF exposure compliance requirements, the antenna used for this

transmitter must be installed to provide a separation distance of at least 20cm from all

persons and must not be co-located or operating in conjunction with any other antenna

or transmitter.

2 of 13

Easy Start

Introduction

Thank you on your purchase of the ADSL Wireless LAN 4-Port Ethernet Router! The Wireless

4-Port Router allows you to share high-speed broadband connection with multiple PC using a

single device wired or wireless.

The Wireless Broadband 4-Port Router can be connected to any computer/notebook with a

10/100 Base-T Ethernet card for wired connection or an IEEE 802.11g Wireless adapter. The

Ethernet ports have Auto MDI/MDIX feature which can allows both cross or straight UTP

cable to be utilized. The Wireless 4-port Ethernet Router has an in-built IEEE802.11g

Wireless LAN Access Point for wireless connectivity.

This documentation assumes that you have already installed an Ethernet card or a wireless

adapter on your computer/notebook

Minimum System Requirements

• Pentium®MMX 233MHz

• Ethernet card installed with TCP/IP Protocol (Required only if you are connecting to

the ETHERNET port of your ADSL Router)

• IEEE 802.11b Wireless adapter (Required if you are connecting to the Wireless

Access Point of the router)

• OS independent for Ethernet

• Web Browser support:

Microsoft Internet Explorer 4.0 (or later versions)

Netscape® Navigator 3.02 (or later versions)

ADSL Router Package

For any missing items, please contact your dealer immediately.

ADSL Ethernet Wireless Router Easy Start Telephone extension cable

Power adapter (DC 12V) CAT-5 UTP Straight Ethernet Network cable (RJ-45)

POTS-Splitter1(optional)

1 Depending on your country of purchase, your package may or may not come with a

POTS Splitter. The POTS Splitter is required if you are connecting a Telephone Set to the

Ethernet Modem. Please refer to Step 1.2 - Connecting to the ADSL Line for details.

POTS-Splitter can also be purchased from your dealer.

3 of 13

Easy Start

ADSL Router Overview

Front Indicators



POWER

Lights up when power is supplied to the ADSL Router.

mETHERNET (E1 ~ E4)

Lights up when the Ethernet cable is properly connected from your ADSL Router to the

Ethernet Card.

Flickers when the ADSL is transmitting/receiving data.

nWIRELESS

Lights up when the Wireless LAN connection is established.

oDSL

Lights up when the DSL connection is established.

Flickers when the ADSL Router is trying to establish a connection with the ADSL Service

Provider.

pInternet

Lights up when the PPP connection is established.

4 of 13

Easy Start

Back Panel

lDSL

Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).

mRESET

To reset your ADSL Router to factory default settings.(All customised settings that you

have saved will be lost!)Please refer to the below footer2on how to activate the reset

function.

nETHERNET

10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet Network card or

Ethernet Hub / Switch.

oDC IN

To connect to the Power Adapter that comes with your package.

pPOWER SWITCH

To power on or off the modem.

I - indicates ON position

O - indicates OFF position.

qRF Antenna

180°2.4Ghz Wireless Antenna.

2To activate the reset function:

- Ensure that your ADSL Router is powered on.

- Use a paper clip or a pencil tip to depress the reset button and release. At

this point, the DSL indicator light will go off, followed by the ETHERNET indicators.

The reset is in progress.

- When the DSL indicator starts blinking, it means that the reset process is

completed. The default settings are now restored.

- ADSL line is established once the DSL indicator lights up.

5 of 13

Easy Start

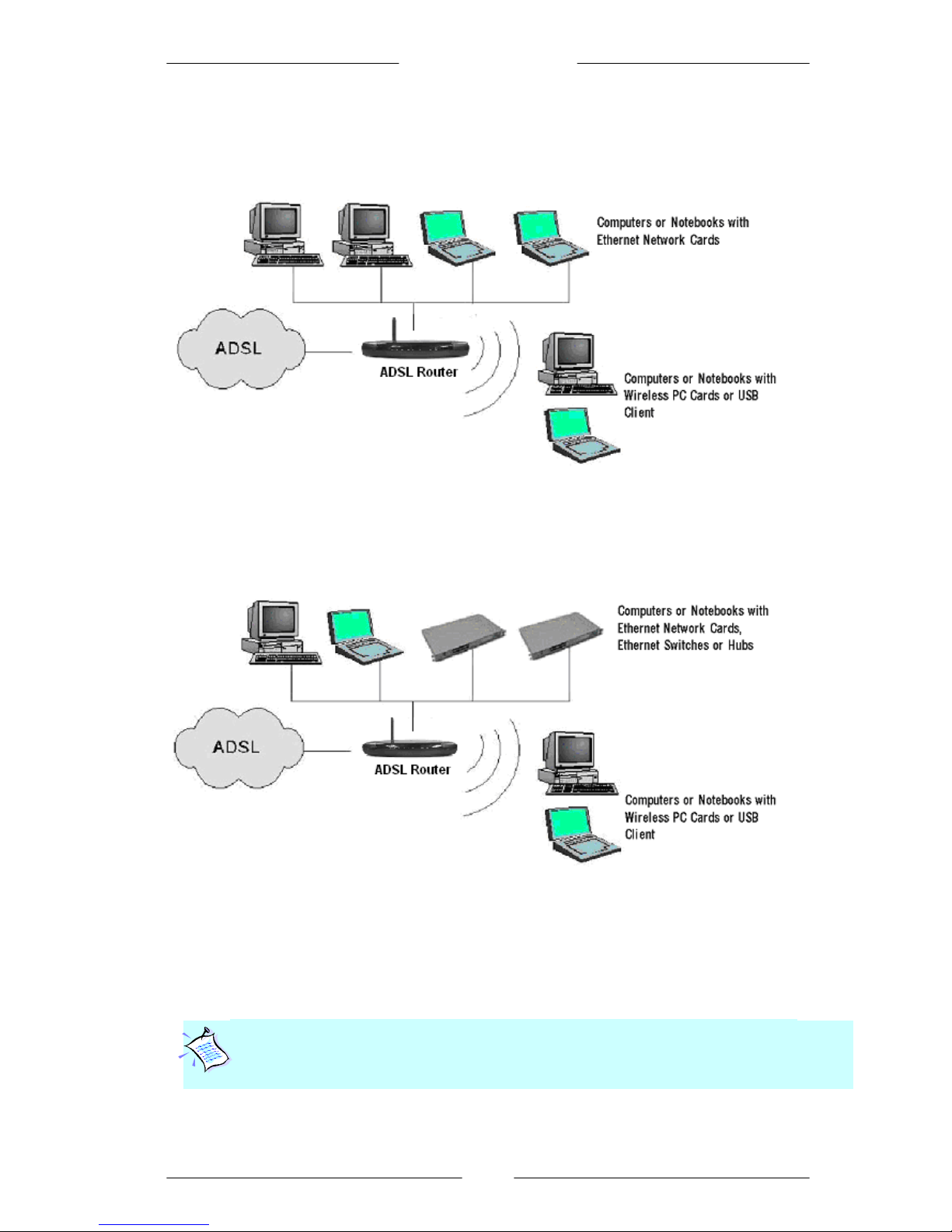

Typical ADSL Router Connections

Up to 4 PCs Connections

For More than 4 PCs Connections

To connect to more than 4 computers/notebooks, you may further expand one of the Ethernet

Ports via an Ethernet Hub/Switch. For details on how to connect to the Ethernet Switch/Hub,

please refer to the documentation that comes with the unit.

With the Auto MDI/MDIX feature, both cross and straight UTP cable can be utilized

6 of 13

Easy Start

Step 1: Connecting the ADSL Router to Your

Computer/Notebook

Power off your Computer/Notebook or/and any connected devices before

connecting to the ADSL Router!

1.1 Connecting to the Ethernet

Connect your computer(s)/notebook(s) to the ADSL 4 Port Router as illustrated. The following

illustration shows the connection of a single computer.

NOT SURE HOW THE ETHERNET PORT LOOKS LIKE?

The following are some tips to help you locate your Ethernet Ports on you

Computer/Notebook. Alternatively, you may refer to the documentation that comes

with your Computer/Notebook.

Locating the Ethernet Port on your Computer/Notebook

Most Computers/Notebooks have labels describing the Ports. For Ethernet Port,

you will see either ETHERNET, ETH or RJ45 labelled near the Port.

If your Computer/Notebook does not have such descriptions, try the following.

- Picture A gives the illustration of an Ethernet Port. All Ethernet Ports have

8 conductors on it. Do not mistaken with the LINE Port (Picture B) that has only 6

conductors.

- The Ethernet Port is slightly bigger than the LINE Port.

A. ETHERNET B. LINE

7 of 13

Easy Start

1.2 Connecting to the ADSL Line

To connect the ADSL Ethernet Modem to the ADSL line, carried out Step 1.2(a).

To connect the ADSL Ethernet Modem to the ADSL line and a Telephone Set, carried out

Step 1.2(b).

(a) To connect to the ADSL line

(b) To connect to the ADSL line and Telephone Set

The POTS Splitter(with built-in Microfilter) is a device that allows you to connect both your

Telephone cable and Telephone Set to the same Telephone Wall Socket. The device at the

same time helps to eliminate background noise on the telephone line, ensuring the best

possible phone performance.

8 of 13

Easy Start

1.3 Checking Your Connections

Please check your connections before proceeding.

1.4 Connecting to the Power Outlet

1.5 Powering On

Power on the Power Outlet that is connected to your ADSL Router.

Power on your Computer(s)/Notebook(s).

Please proceed to Step 2

9 of 13
