Aztech HW550-3G

Wireless N 3G Router

IMPORTANT NOTE FOR SINGAPORE CA LE

MODEM USER

Please follow the Step by Step Guide

1. Make sure that both the cable modem and the HW550 3G are switched off.

2. Connect the device shown in the diagram.

3. Using an Ethernet cable connect your Cable Modem to the Aztech HW550 3G’s WAN port.

4. Connect the power adapters on both cable modem and the Aztech HW550 3G.

5. At the back of your computer look for the ethernet port, connect an ethernet cable to your

computer’s ethernet port then connect the other end of the cable to the Aztech HW550 3G’s

LAN port.

6. Switch ON the Aztech HW550 3G.

7. On your computer launch your Internet browser then type 192.168.2.1.

F r e q u e n t l y A s k e d Q u e s t i o n Page 2 of 5

P R O D U C T E N G I N E E R I N G A N D S U P P O R T

S i n g a p o r e

A Z T E C H T E C H N O L O G I E S P T E L T D

8. Authentication page will pop up, type admin for the username and admin for the password

then click OK.

9. This will launch the HW550 3G’s Web User Interface, Go to Wizard to setup your router.

10. Under Wizard Page click Next to proceed with the setup.

11. Select the Time Zone from the drop down box then click Next.

F r e q u e n t l y A s k e d Q u e s t i o n Page 3 of 5

P R O D U C T E N G I N E E R I N G A N D S U P P O R T

S i n g a p o r e

A Z T E C H T E C H N O L O G I E S P T E L T D

12. Under Internet Connection Type page, select Ethernet WAN then click Next.

13. Under WAN, set the Connection Method to DHCP, Host name and other fields are optional. Click

Next to proceed to the next step.

F r e q u e n t l y A s k e d Q u e s t i o n Page 4 of 5

P R O D U C T E N G I N E E R I N G A N D S U P P O R T

S i n g a p o r e

A Z T E C H T E C H N O L O G I E S P T E L T D

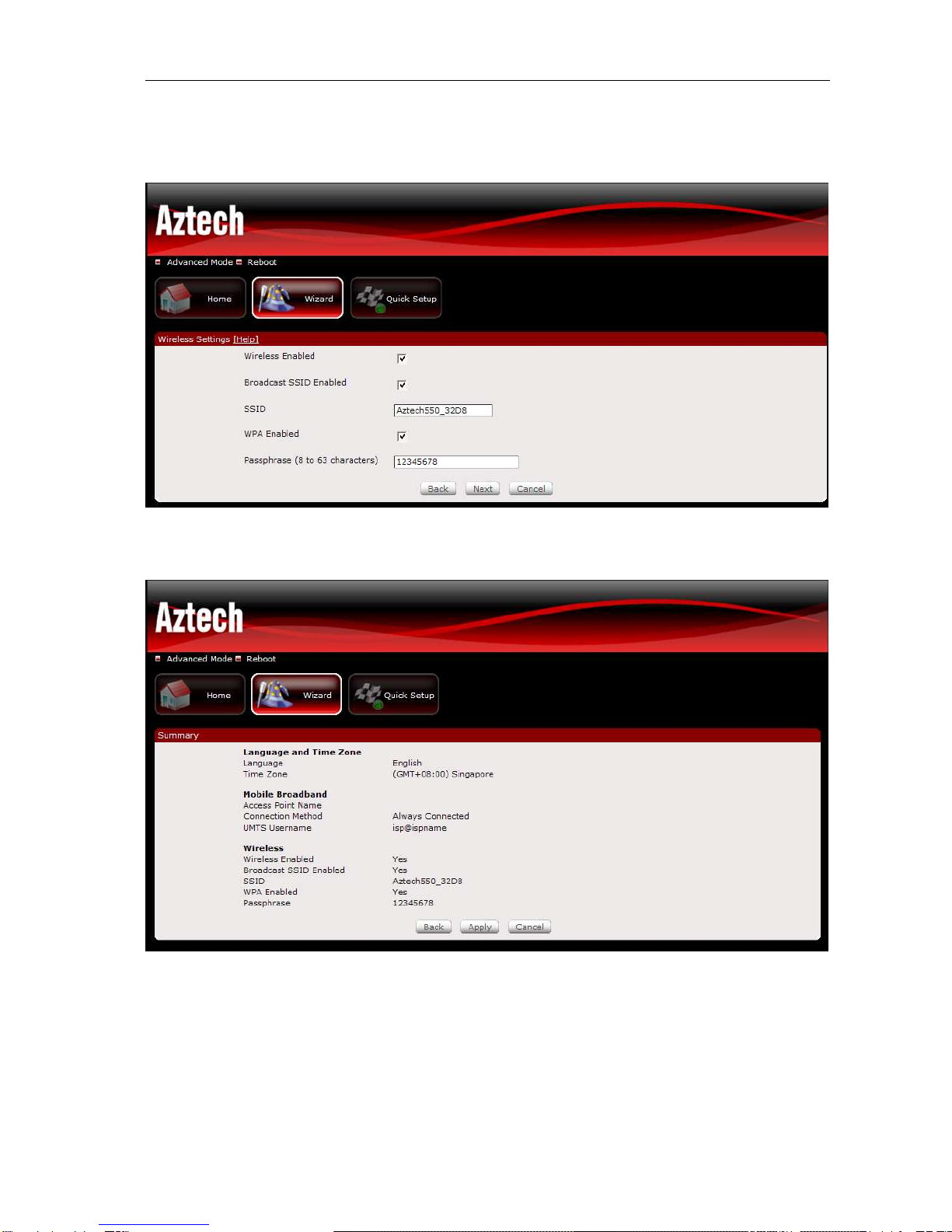

14. Under Wireless Setting, tick Wireless Enabled, Broadcast SSID Enabled. Enter the Wireless

Name of your Router into the SSID field. Tick WPA Enabled to secure your Wireless network

then enter the password that you would like to use.

15. Under Summary page confirm all the settings that will be loaded into the router. If the

information are correct click Apply for the settings to take effect.

F r e q u e n t l y A s k e d Q u e s t i o n Page 5 of 5

P R O D U C T E N G I N E E R I N G A N D S U P P O R T

S i n g a p o r e

A Z T E C H T E C H N O L O G I E S P T E L T D

16. Switch ON the cable modem and wait for the Online LED to become steady.

17. Go to your Aztech HW550 3G Web User Interface, under Home tab the Connection Status

should be connected to Internet before accessing the Internet.

Note: If Connection Status does NOT change to Connected to Internet, Switch OFF both the cable

modem and the HW550 3G for 30 seconds. Switch ON the cable modem and wait until the Online LED

to be ON then switch ON the HW550 3G

.
