Aztech DSL905E Series User manual
DSL905E Series
User ManualUser Manual
User ManualUser Manual
User Manual
Version 1.1
2
User ManualUser Manual
User ManualUser Manual
User Manual
Safety Guidelines
Adhere to the following safety guidelines when using your unit to reduce the risk of fire,
electric shock and injury.
Understand all instructions in the manual. Follow all instruction labels found on the
unit.
Except for the power adapter supplied, the unit should not be connected to other
adapters/power supplies.
Never spill liquid of any kind on the unit.
Do not place the unit on an unstable stand or table. The unit may drop and become
damaged.
Do not expose the unit to direct sunlight.
Do not put any hot devices close to the unit as it may degrade or cause damage to
it.
Do not put any heavy object on top of the unit
Do not use liquid cleaners or aerosol cleaners. Use a soft, dry cloth for cleaning.
!
!
!
!
!
!
!
!
1. Product warranty does not apply to damage caused by lightning, power surges or wrong
voltage usage.
2. This product is for use only in UL Listed computers.
1
2
3
4
A
B
Contents
Safety Guidelines ........................................................................... 2
Introducing DSL905E ................................................................... 5
1.1 Documentation ............................................................................... 6
1.2 Minimum System Requirements ....................................................... 7
1.3 Network Connections ...................................................................... 7
1.3.1 Single PC Configuration .................................................. 7
1.3.2 More than 1 PC Connections ........................................... 7
Before You Begin ..........................................................................8
2.1 Package......................................................................................... 8
2.2 Overview for DSL905E.................................................................... 9
2.2.1 Front View ..................................................................... 9
2.2.2 Rear View ...................................................................... 10
Connecting DSL905E ................................................................... 11
3.1 Connecting DSL905E(R1M) and DSL905E(R2M) .............................. 12
3.2 Connecting DSL905E(R1) and DSL905E(R2) .................................... 13
3.3 Verifying the Setup Connections ....................................................... 14
Configuring Your Ethernet Card ...................................................15
Running DSLTEST ......................................................................17
Frequently Asked Questions ......................................................... 19
Troubleshooting Guide .................................................................23
5
5
Introducing DSL905E
This section gives a brief introduction of DSL905E features and its
specifications.
Congratulations on your purchase of DSL905E !
ADSL, which stands for Asymmetric Digital Subscriber Line, is the latest communication
technology that offers faster and uninterrupted Internet access.
DSL905E is an embedded solution that is OS independent. It can be connected to any
computer with an Ethernet card or to a Hub/Switch. It has an Ethernet connection that
allows direct interface to any existing IEEE 802.3 LAN network, providing instant broadband
Internet access to LAN networks with minimum hassle.
To ensure the broadest customer reach, DSL905E features multiple data encapsulation
formats for DSL transport over ATM PVCs, including the widely supported ADSL protocols
RFC 1483 (MPoA), RFC 1577 (IPoA) and RFC 2364 (PPPoA).
It supports multimode - fully compliant with ANSI T1.143 Issue 2, ITU-T G.992.1 (G.dmt)
and G.992.2 (G.Lite) featuring Discrete Multi-tone (DMT) line encoding used by major ADSL
manufacturers, further guarantees interoperability with network providers worldwide.
Chapter1
6
User ManualUser Manual
User ManualUser Manual
User Manual
1.1 Documentation
DSL905E Series User Manual (READ THIS MANUAL FIRST!)
This user manual is a printed guide that comes with your ADSL package. Please refer to
this manual for setting up and connecting your router. It also contains the sections on
Frequently Asked Questions and Troubleshooting Guide.
DSL Router Commander Software Manual 1
The software manual is a softcopy guide that contains information on DSL Router Commander,
a User Interface (UI) that provides a simple way of configuring your router. A Glossary
section is also included to describe the terms used in the manual.
For queries or problems encountered, you may refer to the Frequently Asked Questions and
Troubleshooting Guide found in the User Manual.
DSL905E Series Technical Manual 1
The technical manual is a softcopy guide that contains console commands and advanced
router configurations that are mostly intended for experienced users.
For queries or problems encountered, you may refer to the Frequently Asked Questions and
Troubleshooting Guide found in the User Manual.
ATMOS Console Commands Reference Manual 1
The reference manual is a softcopy guide that contains the details of console commands and
its functions. For any advance configurations, you may refer to it for their descriptions.
1 These manuals are found on your DSL905E Series CD-ROM that comes with your ADSL package.
7
User ManualUser Manual
User ManualUser Manual
User Manual
1.2 Minimum System Requirements
Pentium®MMX 233MHz (or above) with Ethernet card (installed with TCP/IP Protocol)
A Serial Port (DSUB-9)
A CD-ROM Drive
For Single PC Connection
- Cross UTP CAT-5 Ethernet cable (direct connection to DSL905E's 10 Base-T Jack)
For more than 1 PC connections
Expand using Ethernet Hub or Switch
- To connect to the MDI port of your Ethernet Hub/Switch, please use Cross UTP
CAT-5 Ethernet cable.
- To connect to the MDIX port of your Ethernet Hub/Switch, please use Straight UTP
CAT-5 Ethernet cable.

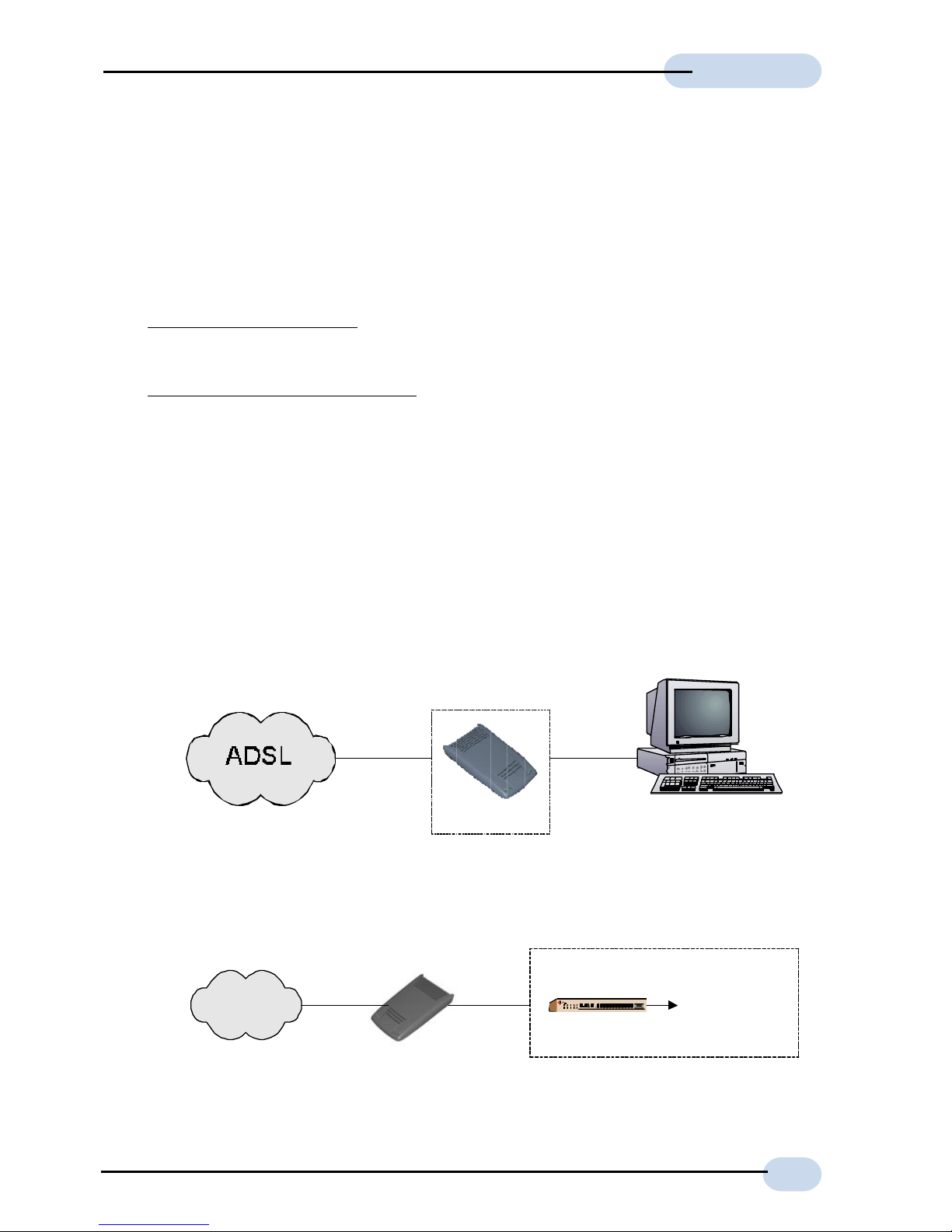

1.3 Network Connections
1.3.1 Single PC Configuration
1.3.2 More than 1 PC Connections
PC with Ethernet Card
Ethernet
DSL905E
ADSL
DSL905E
Hub/Switch
multiple PCs with
Ethernet Cards
8
Before You Begin
This chapter contains information that you need to know before setting up
DSL905E. It is important that you go through them.

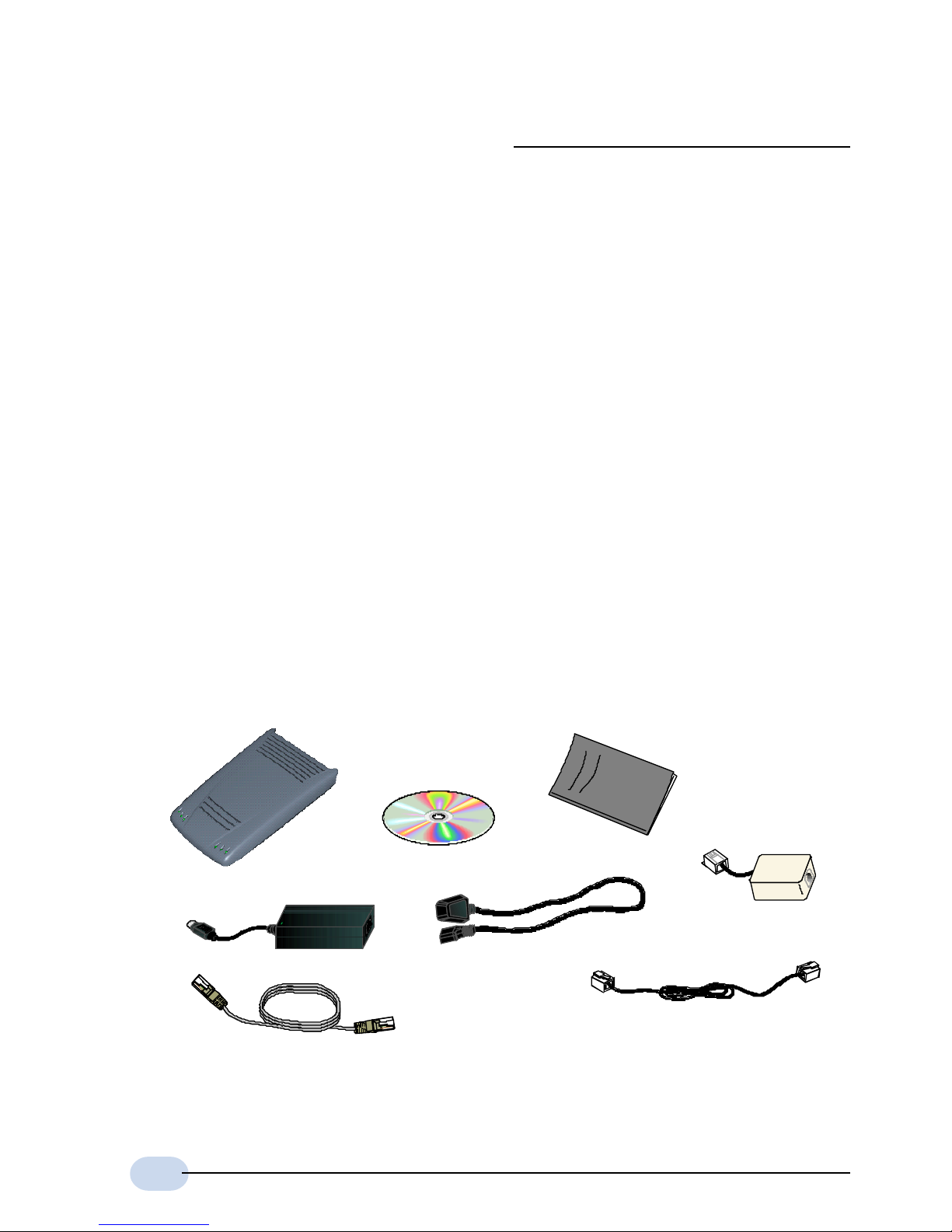

2.1 Package
Ensure that you have the following items in your router package. For any missing items,
please contact your dealer immediately.
Power cable
Telephone cable (RJ-11) 3
Chapter2
Power adapter (DC 5V)
DSL905E Series
CD-ROM
2The Micro-Filter can be purchased separately from your dealer. Not required for DSL905E(R1) and
DSL905E(R2).
3The telephone extension cable used for this router is a UL Listed Communication Circuit Accessory,
minimum 26AWG.
DSL905E
Micro-Filter (optional) 2
Straight CAT-5 UTP
Ethernet cable (RJ-45)
DSL905E Series
User Manual
9
User ManualUser Manual
User ManualUser Manual
User Manual
®
¯
±
¬
°
2.2 Overview for DSL905E

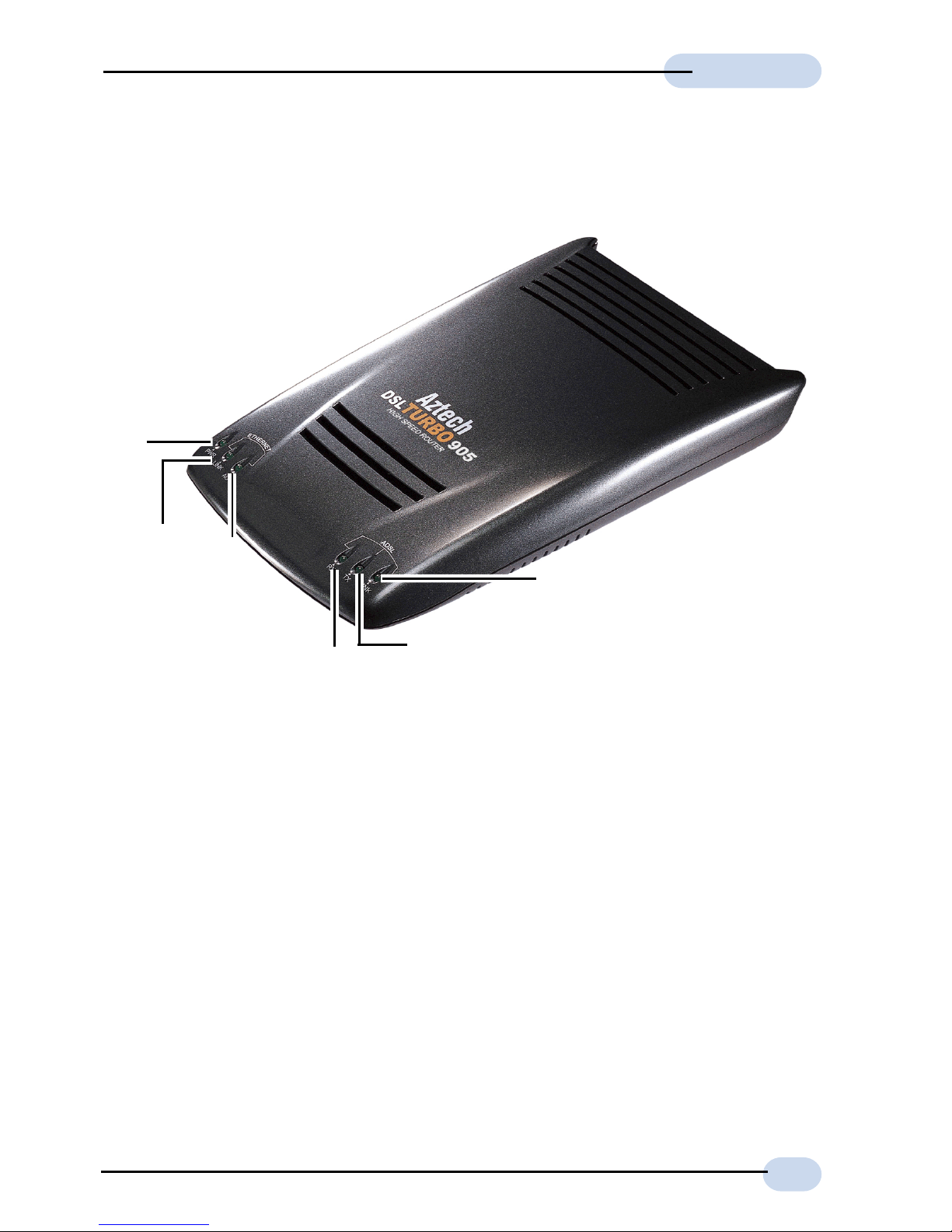

2.2.1 Front View
¬Power LED
Lights up when Power switch (at the rear) is pressed ON.
Ethernet Link
Lights up when the Ethernet cable is connected from your router to the Ethernet Card.
®Ethernet ACT
Ethernet Activity: Lights up when the Ethernet is transmitting/receiving data.
¯ADSL Receive LED
Lights up when the ADSL Line is receiving data.
°ADSL Transmit LED
Lights up when the ADSL Line is transmitting data.
±ADSL Link LED
Lights up when the telephone cable is connected from your router to the telephone
wall socket.
10
User ManualUser Manual
User ManualUser Manual
User Manual

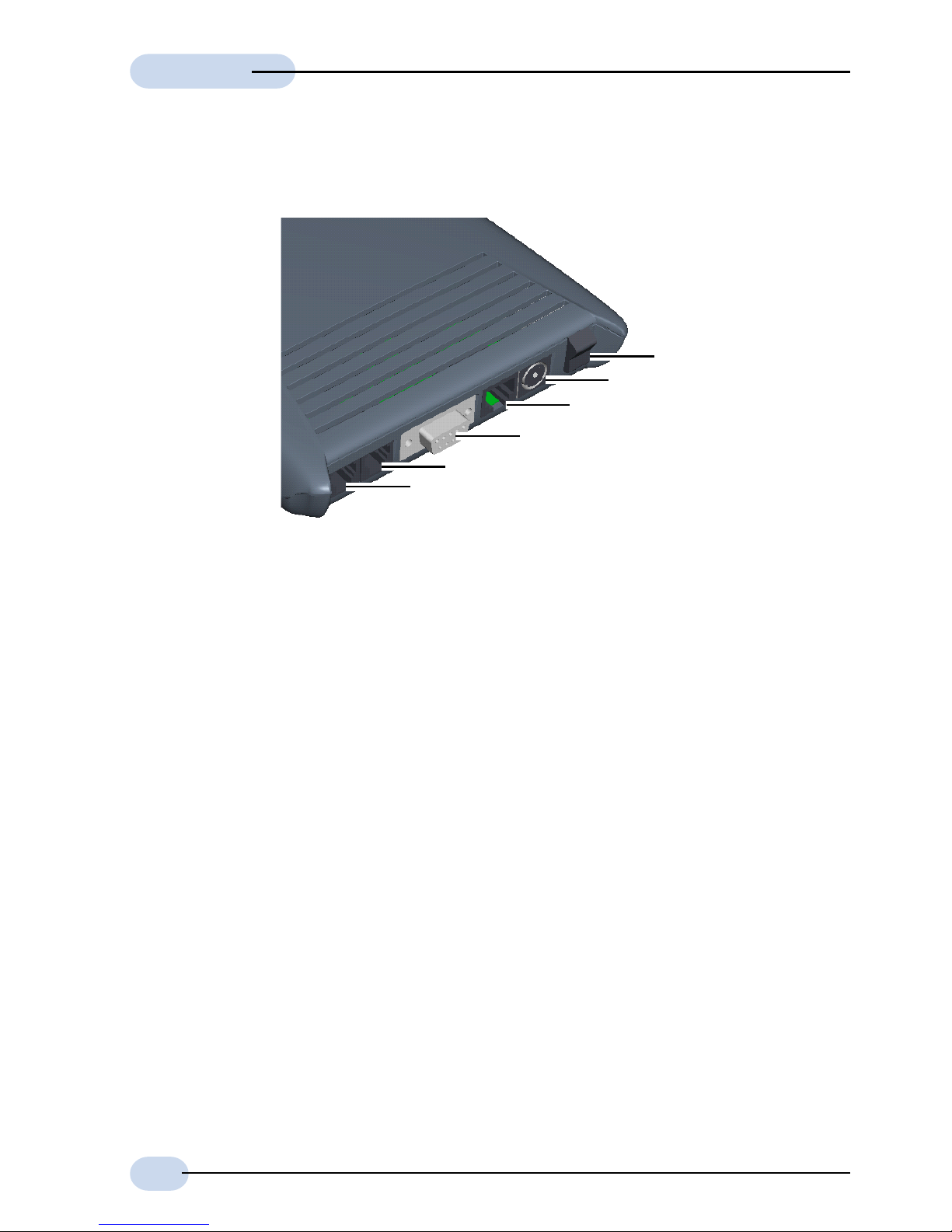

2.2.2 Rear View
¬TEL
Telephone jack (RJ-11) to connect to the Telephone Handset.
LINE
Telephone jack (RJ-11) to connect to the telephone wall socket (ADSL Line).
®CONSOLE
9-pin serial port for local network management.
¯10 BASE-T
10 Base-T Ethernet jack (RJ-45) to connect to your Ethernet card or Hub/Switch.
°DC5V
To connect to the Power Adapter that comes with your package.
±Switch
To power on or off the router.
O- indicates OFF position
I- indicates ON position
¬
®
¯
°
±
