AXIOMTEK AX93291 User manual

4 94193291000E

Version A1 April 2015

Printed in Taiwan

Jumper Settings

Before applying power to AX93291, please make sure all jumper(s) are in

factory default positions.

Jumper Description Setting

CN1 Pin 1: DCD 3-5 Close

JP1 COM1 Data/Power Selection

Default: RS-232 Data CN1 Pin 8: RI 4-6 Close

COM1 Data/Power Selection (JP1)

The COM1 port (CN1) has +5V level power capability on DCD and +12V

level on RI by setting this jumper.

Assembly Drawing

Gently insert ZIO module into CPU board’s ZIO connector, see figure above.

Align assembly holes and use screws to firmly secure ZIO module to CPU

board. Be careful not to over-tighten the screws.

Description Setting

Power: Set CN1 pin 1 to +5V level 1-3 close

Data: Set CN1 pin 1 to DCD (Default) 3-5 close

Power: Set CN1 pin 8 to +12V level 2-4 close

Data: Set CN1 pin 8 to RI (Default) 4-6 close

AX93291

AX93291 Quick Installation Guide

94193291000E 1

Version A1 April 2015

Printed in Taiwan

Checklist

I/O board x1 Screw pack x1

Quick installation guide x1 Com cable x2

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the module if there is any damaged component.

Dimension and Fixing Holes

Module Layout

AX93291 ZIO Module

2 94193291000E

Version A1 April 2015

Printed in Taiwan

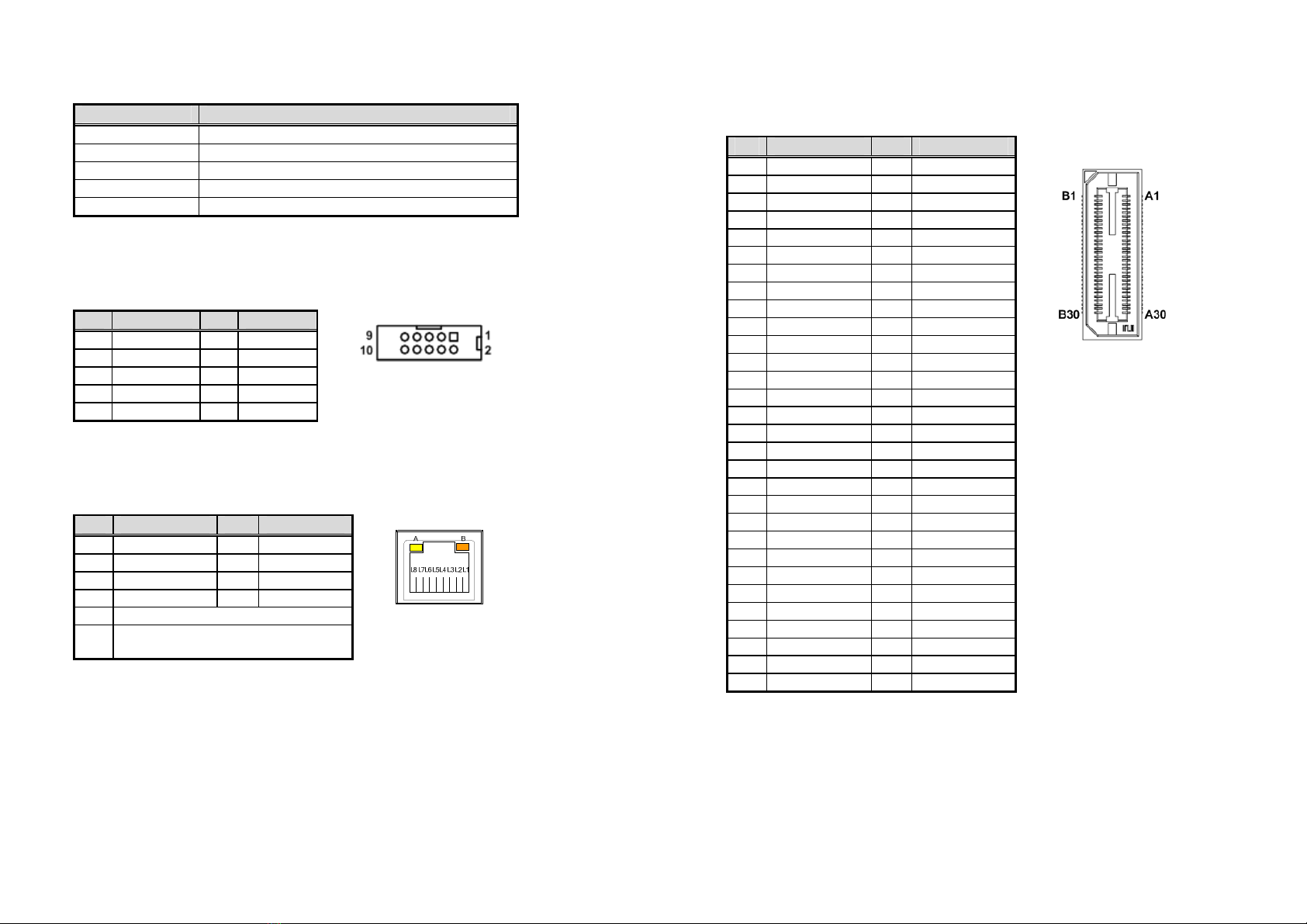

Connectors

Connector Description

CN1 COM1 Connector

CN2 COM2 Connector

CN3 Ethernet Port 1

CN4 Ethernet Port 2

CN5 ZIO Expansion Connector

COM Connectors (CN1 and CN2)

This module comes with two Molex 78046-1020, 2x5-pin p=2.00mm box

headers; CN1 (for COM1) and CN2 (for COM2). Only CN1 is equipped with

power capability on DCD and RI pins by setting JP1.

Ethernet Ports (CN3 and CN4)

This module has two RJ-45 connectors: CN3 and CN4. Ethernet connection

can be established by plugging one end of the Ethernet cable into this RJ-

45 connector and the other end (phone jack) to a 1000/100/10-Base-T hub.

Pin Signal Pin Signal

1 DCD 2 DSR

3 RXD 4 RTS

5 TXD 6 CTS

7 DTR 8 RI

9 GND 10 N.C.

Pin Signal Pin Signal

L1 MDI0+ L5 MDI2+

L2 MDI0- L6 MDI2-

L3 MDI1+ L7 MDI3+

L4 MDI1- L8 MDI3-

A Active LED (Yellow)

B 1000 LAN LED (Orange) / 100 LAN

LED (Green)

94193291000E 3

Version A1 April 2015

Printed in Taiwan

ZIO Expansion Connector (CN5)

The CN5 is for connecting ZIO expansion module to CPU board such as

CAPA840.

Pin Signal Pin Signal

A1 +12V B1 GND

A2 +5VSB B2 GND

A3 +5VSB B3 GND

A4 +3.3VSB B4 GND

A5 +3.3VSB B5 RSVD

A6 RSVD B6 RSVD

A7 RSVD B7 RSVD

A8 SMB_CLK B8 RSVD

A9 SMB_DATA B9 GND

A10 GND B10 PCI-E TXP4

A11 PCI-E RXP4 B11 PCI-E TXN4

A12 PCI-E RXN4 B12 WAKE_N

A13 RSVD B13 PCI-E CLKP

A14 RSVD B14 PCI-E CLKN

A15 RSVD B15 GND

A16 No Use B16 CLK_33M

A17 No Use B17 SERIRQ

A18 GND B18 LAD0

A19 No Use B19 LAD1

A20 No Use B20 LAD2

A21 PLTRST_N B21 LAD3

A22 No Use B22 L_FRAME

A23 No Use B23 GND

A24 GND B24 No Use

A25 No Use B25 No Use

A26 No Use B26 No Use

A27 No Use B27 No Use

A28 No Use B28 GND

A29 GND B29 No Use

A30 No Use B30 No Use
