Avidsen 127006 User manual
ON/OFF WIFI SMART
PLUG
HomePlug
EN Ref 127006/127008
www.avidsen.com
V2
CONTENTS
A - SAFETY INSTRUCTIONS 05
1 - OPERATING PRECAUTIONS 05
2 - MAINTENANCE AND CLEANING 05
3 - RECYCLING 05
B - PRODUCT DESCRIPTION 06
1 - KIT CONTENTS 06
2 - HOMEPLUG SMART PLUG 06
3 - MEANING OF THE WARNING LIGHT 06
C - INSTALLATION 07
1 - OPERATION 07
2 - CONNECT THE SMART PLUG TO AN ELECTRICAL SOCKET 07
3 - INSTALLING THE MOBILE APPLICATION AND CREATING AN ACCOUNT 07
4 - PAIRING THE SMART PLUG 09
5 - RESETTING THE SMART PLUG 10
D - USING THE PRODUCT 11
1 - USING THE HOMEPLUG SMART PLUG 11
1.1 USING THE COUNTDOWN FEATURE 12
2 - BENEFIT AND USE OF PARTS IN THE AVIDSEN HOME APPLICATION
12
2.1 CREATING A FAMILY 12
3 - USING THE PRODUCT WITH GOOGLE HOME 13
EN33EN
3.1 IF YOU HAVE AN ANDROID SMARTPHONE WITH GOOGLE ASSISTANT 13
3.2 IF YOU HAVE AN ANDROID SMARTPHONE WITHOUT GOOGLE ASSISTANT
OR AN IPHONE 14
4 - USING THE PRODUCT WITH AMAZON ALEXA 15
5 - SCENARIO AND AUTOMATION 15
5.1 TRIGGERING A SET OF ACTIONS (SCENARIO) 15
5.1.1 PROGRAMMING THE “I’M GOING” SCENARIO 16
5.2 - CREATING AN AUTOMATION 18
5.2.1 PROGRAMMING THE “LIVING ROOM LIGHTING” AUTOMATION 20
E - TECHNICAL AND LEGAL INFORMATION 24
1 - TECHNICAL CHARACTERISTICS 24
2 - RADIO CHARACTERISTICS 24
3 - WARRANTY 25
4 - HELP AND ADVICE 25
5 - PRODUCT RETURNS - AFTER SALES SERVICE 25
6 - EC DECLARATION OF CONFORMITY 25
EN 4
EN5
A - SAFETY INSTRUCTIONS
1 - OPERATING PRECAUTIONS
• Do not allow children to operate the product.
• This product is designed exclusively for indoor
use.
• This product is designed to work with a
smartphone with WiFi.
2 - MAINTENANCE AND CLEANING
• Always unplug the product from the mains
before carrying out any maintenance.
• Your product does not require any specific
maintenance.
• Use a soft, slightly damp cloth to clean your
product.
• Do not use abrasive or corrosive substances.
• Do not spray any products directly onto the unit.
3 - RECYCLING
This logo denotes that devices no longer
in use should not be disposed of as
household waste. They are likely to
contain hazardous substances that are
dangerous to both health and the
environment. Return the equipment to
your local distributor or use the recycling collection
service provided by your local council.
Pour en savoir plus :
www.quefairedemesdechets.fr
EN 6
B - PRODUCT DESCRIPTION
1 - CONTENTS OF THE KIT
2 - HOMEPLUG SMART PLUG
3 - MEANING OF THE WARNING LIGHT
The LED located on the smart plug gives the following indications:
- LED lit up green:the plug is switched on but not delivering any current.
-LED lit up red:The plug is delivering current.
- LED flashes
green
:the plug is in pairing mode.
-LED off: plug not powered, or outside the wifi network
1HomePlug Smart Plug
2Quickstart
1RESET button and ON/OFF status change button - Warning light
1x 1 2x 1
1
EN7
C - INSTALLATION
1 - OPERATION
When connected to a standard electrical socket,
this smart plug will allow you to control any device
connected to it remotely from your smartphone.
2 - CONNECT THE SMART PLUG TO AN
ELECTRICAL SOCKET
3 - INSTALLING THE MOBILE APP AND
CREATING AN ACCOUNT
Once your plug is connected, follow the instructions
below to pair it.
Download the Avidsen Home app from the Android
Play Store or Apple App Store.
Launch the app and log in if you already have an
account. If not, press CRÉER UN NOUVEAU
COMPTE (CREATE A NEW ACCOUNT) and let
the application guide you.
After accepting the privacy policy, you can create
an account with an email address or with a
phone number. Choose the method that suits
you; however, we recommend that you create your
account with an email address.
Procedure by email
Procedure by phone
EN 8
C - INSTALLATION
In both cases, choose your country and then, after
entering your email address or phone number, select
Obtenir le code de vérification (Get verification
code).
In a few seconds, you will receive a validation code
in your email inbox or by SMS. Enter this code to
finalise registration.
Note that this email may go into your spam folder.
If you do not receive a code before the countdown
has ended, press renvoyer (return) and check the
email address or telephone number entered.
To complete your registration, set a password
between 6 and 20 characters long with letters and
numbers only, then press Terminé (Finished).
The application will redirect you directly to your
account home page where you can start pairing
your devices.
4 - PAIRING THE SMART PLUG
EN9
C - INSTALLATION
If you have more than one item to pair (plugs,
cameras, other bulbs) switch on only one item at
a time.
The following information may vary depending on
the app updates.
As soon as it is switched on, the plug will be in
pairing mode by default. The indicator light will then
flash until the pairing procedure is completed.
To start the pairing, press AJOUTER (ADD).
Make sure your phone is connected to your router’s
2.4 GHz WiFi network.
Select the product you want to pair, select the
HomePlug FR smart plug for reference 127006 or
HomePlug EU smart plug for reference 127008
Check that the plug is correctly plugged in and
that it is flashing. If not, refer to the resetting
the smart plug chapter. Then press VOYANT
DE CONFIRMATION DANS LE FLASH
(CONFIRMATION LIGHT FLASHES).
EN 10
C - INSTALLATION

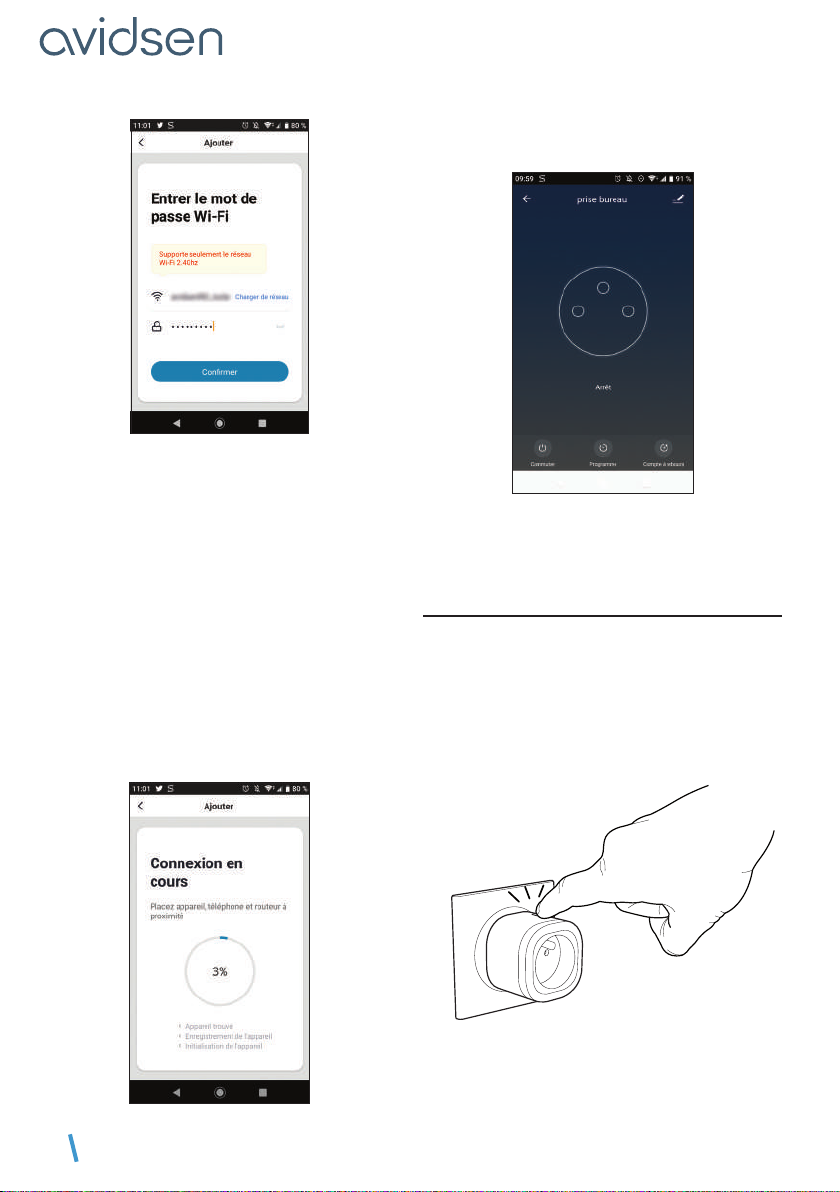

Select your 2.4 GHz WiFi network (N.B. your
smartphone must be connected to the WiFi
network to which the plug will be connected), enter
your network password and press CONFIRMER
(CONFIRM).
IMPORTANT: if a location authorisation request
message appears, you need to accept it for your
Android or iOS device to receive your WiFi.
IMPORTANT: This device is compatible with 2.4
GHz - WPA/WPA2 networks. Not compatible with 5
GHz WiFi or with WEP encryption. Please check the
WiFi settings of your router or contact your Internet
service provider if you experience connection
difficulties.
Please wait while the pairing procedure takes place.
This stage can last several minutes.
Your plug is now operational and will appear in your
app. You can now control your Avidsen HomePlug
smart plug from your smartphone.
5 - RESETTING THE SMART PLUG
The following instructions may help you if
you have any problems during the pairing
procedure:
A long press (more than 15s) on the button above the
plug enables you to reset the plug. The indicator light
will flash to confirm the reset.
The smart plug will automatically be removed from
the Avidsen Home app. If not, tap the pencil on the
