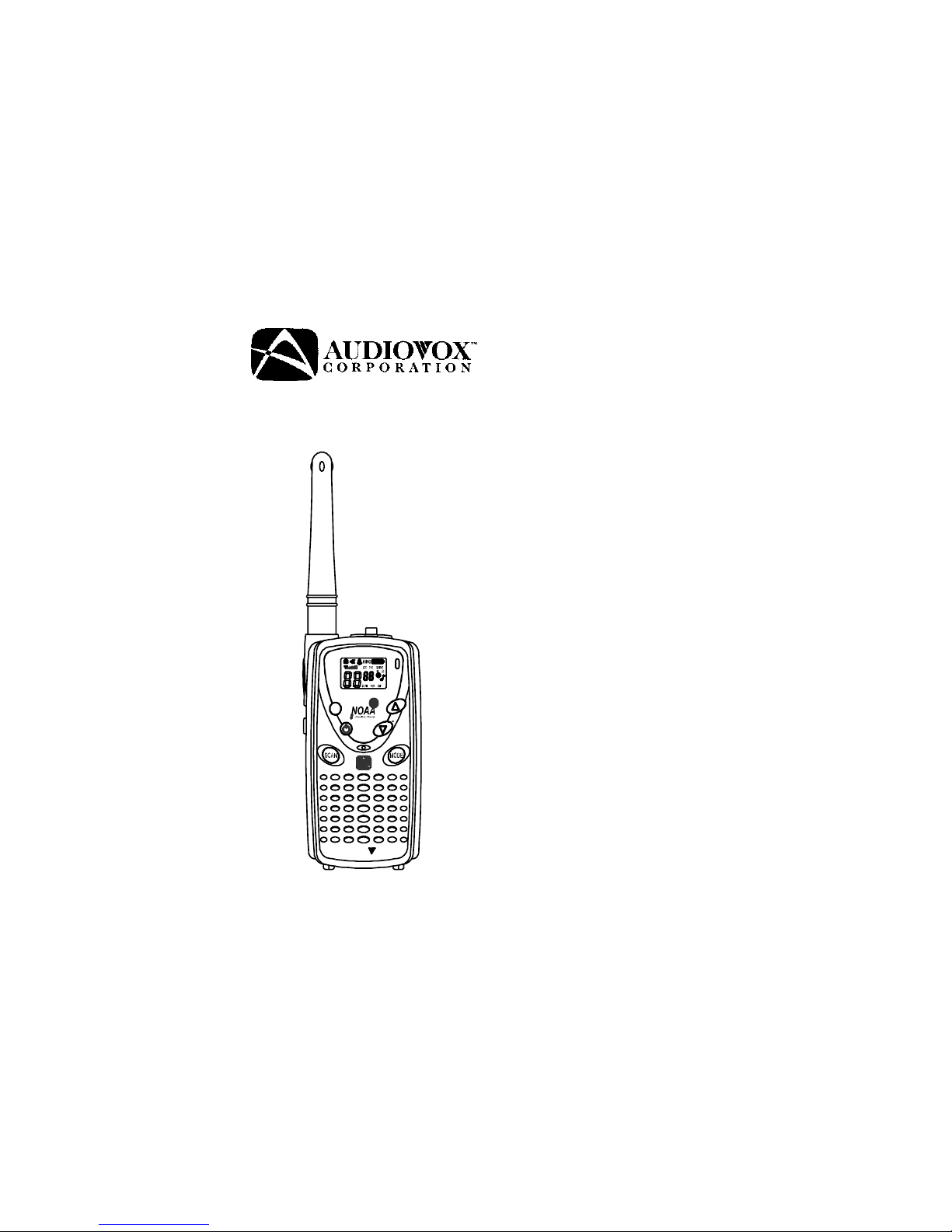

Audiovox GMRS-1535 User manual

General Mobile Radio Service (GMRS)

Model :GMRS-1535

Owner’s Manual

CustomerService

1-800-290-6650

AUDIO OX

EMG

GMRSLICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN

FCCGMRSLICENSE. ANINDIVIDUAL18YEARSOFAGEOROLDER,

WHOISNOT A REPRESENTATAIVEOF A FOREIGNGOVERNMENT,

ISELIGIBLETOAPPLYFORA GMRS SYSTEM LICENSE. YOUWILL

NEED TWO FORMS FROM THE FCC; FCC FORM 159 AND FCC

FORM 605 MAIN FORM AND SCHEDULE F. YOU CAN FIND THE

FORMSONLINEAT: HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR

CALL 1-800-418-3676.

NEVER ATTEMPT TO CHARGE ALKALINE OR DRY CELL BATTER-

IES. WHEN RECHARGING, USE ONLY AUDIOVOX APPROVED

RECHARGEABLE BATTERIES AND CHARGER. USE OF THE

CHARGER WITH OTHER BATTERIES WILL CAUSE DAMAGE TO

YOUR GMRS-1535 RADIO TRANSCEIVER. OTHER TYPES OF

BATTERIESMAYBURSTCAUSING PERSONAL INJURY.

AVOID PLACING THE GMRS-1535 RADIO TRANSCEIVER FOR

PROLONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR

TEMPERATURES BELOW-4° F(-20° C) OR ABOVE140 °F(60°C).

KEEPTHEANTENNA AT1INCH(2.5 cm)AWAY FROM YOUR HEAD

ANDBODY. DONOTUSEYOURGMRS-1535RADIOTRANSCEIVER

WITHADAMAGEDANTENNA.

PLACE THE RUBBER COVERS ON JACKS WHEN NOT IN USE.

CAUTIONS

1. BatteryDoor

2. Monitor/BacklightButton

3. DetachableBelt Clip

4. Push-To-Talk(PTT) Button

5. Antenna

6. ExternalSpeaker(SPK)/Micro-

phone(MIC)Jacks

7. Built-inSpeaker

8. LiquidCrystal Display(LCD)

9. Built-inMicrophone

10. UpChannel/VolumeButton

Model GMRS-1535 (FCC License Required)

11. DownChannel/Volume

Button

12. MODEButton

13. SCAN/LockButton

14. Emergency(EMG) Call

Button

15. PowerOn/Offand Function

SetControl

16. CombinationTransmit Indi-

cator(Red)/Receive and

Monitor Indicator(Green)

AUDIO OX

EMG

(REF)

14 16

Model GMRS-1535 DISPLAY

1. Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

2. Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down and MODE.

3. Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

4 . Signal Strength Indicator: Iconappearswhen asignalis beingreceived.

The icon consists of five bars to indicate the received signal level. The

icon also represents transmit signal power during transmission.

5. Coded Tone Controlled Squelch System (CTC) Indicator: Icon

appearswhen the CTCSS tonefunctionisactive.

6. Large Segment Display: Indicates the channel number in use.

7. Scan Indicator: This function allows the user to scan a channel and/or a

tonecodeevery.5secondtosearchforavalidsignal.

8. Emergency Indicator: EMGIconappearswhentheEMGbuttonispressed.

(ThefrequencyisNOTmonitored by authorities).

9. Battery Level Indicator: Icon indicates the battery charge level.

10.Hi/LO Indicators: Appropriate icon appears when the transmit power

is set to desired output power.

11.Weather Mode Indicator: Icon will be on steady when in the weather

band mode. The icon will blink when in the GMRS mode with the alert

active.

12.RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

13.Small Segment Display: Displays the CTCSS tone option in the

channel from (00-38).

14.Dual Watch Mode Indicator: Icon appears when dual watch mode is

active.

15.Voice Activated Transmission (VOX) Indicator: This function allows

hands free conversation. The icon appears when the VOX mode is

activated.

Powering the transceiver:

Your GMRS-1535radiotransceiveroperates on fourAAAbatteries. Alkaline

batteries will provide slightly better performance than rechargeable

batteries. OnlyAudiovoxapproved rechargeablebatteries can berecharged

in the radio transceiver using the optional charging stand.

Installing the batteries:

Battery installation is made more convenient when the belt clip is removed.

To do this, release the spring clip securing the belt clip to radio and slide

the belt clip downward and away from the radio body. Next, press down

with the thumb at the arrow, slide the battery cover down and lift off the

battery cover. Insert four AAA batteries (alternate positive ends (+) toward

the bottom of the transceiver, (starting left-to-right).

The following guidelines will improve performance and provide longer

operating times for the GMRS-1535:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the longest

operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable

batteries.

4. If the unit is not to be used for an extended period of time, remove the

batteries. Old or leaking batteries can cause damage to the unit and

will void the warranty.

SPRING

CLIP

BATTERY

COVER

BELT CLIP

COVER

ARROW

+ +

POSITIVE

TERMINALS

2. Slide the cover

down and then lift

cover at bottom to

open.Remove

cover.

3. Insert four AAA batteries

(positive (+) end toward

the bottom begining at

left side and alternating

positive terminals as

shown),or insert the

rechargeable batteries.

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down to

open.

NOTE:

To switch between GMRS and Weather Band modes, press and hold the

Mode button for 2 seconds. To differentiate between operating modes, look

for HI or LO indication below the battery power level indicator when in GMRS

mode. In Weather Band mode, these indications are not present. Refer to

the appropriate section of this manual for detailed operating instruc-

tions for each mode. When in GMRS standby mode, the transmit/receive

indicator will flash once every 5 seconds as the unit checks for

transmissions.

GMRS-1535 OPERATIONAL MODES

CHANNEL

SELECT

BUTTON

BEEP

WEATHERBAND

ALERT

CALL

SELECT

GMRSBAND

WEATHERBAND

BUTTON

BEEP

ROGER

BEEP

DUAL

WATCH

VOX

SELECT

POWER

SELECT

CTCSS

SELECT

CHANNEL

SELECT

Controls:

Power On/Off (15) Button

Press and hold the power on/off button ( ) for at least 2 seconds. You will

hear a confirming melody to indicate the unit is on. To turn the unit off, press

andholdthebuttonforatleast2seconds.

AdjustingtheVolume

With the unit powered on, press the Up Channel/Volume button ( ) to

increase volume and the Down Channel/Volume button ( ) to decrease

volume. The display will indicate the current volume level by the small

number in the icon ( ).

Monitor/Display Backlight Button (2)

This button is used to to check activity on the current frequency before

transmitting. Check activity by pressing the Monitor (M) Button longer

than 2 seconds; the icon will apppear on the display and you will

hearstaticif frequencyisclear.

Do not transmit if you hear conversation.

Hold down the Monitor Button again longer than 2 seconds and the

icon will disapppear from the display.

The monitor function will temporarily bypass the squelch setting and play

all signals on a given channel. This feature is useful when communicating

with other parties at extreme range.

By pressing the monitor button momentarily, the LCD backlight is turned

on; the LCD backlight will turn off automatically in about 5 seconds, or

when the monitor button is pressed momentarily once again.

Push To Talk (PTT) Button (4)

Pressing and holding this button will allow you to speak to any transceiver

that is set to the same channel and privacy code setting as yours. Hold the

transceiver approximately 1 to 2 inches from your face as you speak into

the built in microphone (9). After you have finished speaking, release the

PTT Button to allow reception of incoming signals. It is not possible to

transmit and receive at the same time. The Transmit/Monitor LED at the

upper right corner of the LCD Panel (8) will light

red

while the PTT Button is

pressed and the signal indicator will display the relative strength of the

transmitted signal.

Releasing the button allows the unit to revert to standby mode. When

receiving an incoming signal, the Transmit/Monitor LED indicator will light

green

and the received signal strength indicator ( ) will display

the relative strenth of the signal.

The PTT Button can also be used as a two-way call ringer. Pressing the

buttontwicequickly will callanotherpartyon the samechannel. TheTransmit

LED will light

red

for approximately 3 seconds and then go out.

Up Channel/Volume Button (10)

In the standby mode, pressing this button will increment the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings.

Down Channel/Volume Button (11)

In the standby mode, pressing this button will decrement the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings.

Mode Button (12)

Thisbuttonisusedtoselectvariousfeature settings in the GMRS or weather

band mode. Holding the MODE button longer than 2 seconds will toggle

between the GMRS and weather band modes.

Emergency (EMG) Call Button Button (14)

This radio has a quick access button (EMG) to the Emergency and

Assistance Channel. This channel is not monitored by local authorities.

When using this channel,

EMG

appears on the display. Pressing this

button will set the transceiver to the channel 10, 462.6750 MHz).

External Speaker (SPK)/Microphone (MIC) Jacks (6)

This set of jacks accepts an Audiovox headset/microphone connector.

Scan/Lock Button (13)

Press this Button momentarily to enable or disable the scan mode. Press

and hold Button for more than 1 second to lock or unlock the key pad,

except PTT and Monitor (M). When the keypad the ( ) icon will display in

the top right corner.

Operating Modes and Features

GRMS Operation

- From GMRS standby mode, press and hold the ( ) button for 2

seconds to turn on power.

- Press the MODE button so the Channel number flashes.

- Select the desired channel with the Up (10) and Down (11) Buttons.

When receiving a call, the signal strength meter appears to indicate

incoming received signal strength and the Monitor section of the

Transmit/Monitor LED (16) lights

green

- Press and hold the PTT button (4) to transmit, then speak into the

microphone clearly and slowly. The Transmit section of the Trans-

mit/Monitor LED (16) lights

red

- Release PTT Button (4) to receive.

- Communication can only be accomplished when the channel and

CTCSS tone frequency of at least two parties are the same.

- The CTC icon will be displayed on the LCD panel if the CTCSS tone

frequency function is enabled.

Other manuals for GMRS-1535

Table of contents

Other Audiovox Radio manuals

Audiovox

Audiovox CommanderMT 128-7902A User manual

Audiovox

Audiovox GMRS1882CH User manual

Audiovox

Audiovox Sirius SIR-PNP2 User manual

Audiovox

Audiovox SIR-CK3 User manual

Audiovox

Audiovox GMRS2VMK User manual

Audiovox

Audiovox GMRS6000-2CH User manual

Audiovox

Audiovox GMRS862CH User manual

Audiovox

Audiovox GMRS762CH User manual

Audiovox

Audiovox XAPH1 User manual

Audiovox

Audiovox GMRS7001CH User manual

Audiovox

Audiovox XM CNP-1000C User manual

Audiovox

Audiovox GMRS7001-2CH User manual

Audiovox

Audiovox GMRS121-2 User manual

Audiovox

Audiovox SIRIUS SRSIR-001 User manual

Audiovox

Audiovox XMCK20P - XPRESSR XM Radio Tuner User manual

Audiovox

Audiovox GMRS500SLK User manual

Audiovox

Audiovox GMRS862 User manual

Audiovox

Audiovox GMRS100 User manual

Audiovox

Audiovox VR202 User manual

Audiovox

Audiovox GMRS120 User manual

Audiovox

Audiovox GMRS-7000 User manual

Audiovox

Audiovox GMRS122-2CH - 5 Mile GMRS Radio User manual

Audiovox

Audiovox XM XpressRCi XDRC2 User manual

Audiovox

Audiovox GMRS2572CH User manual

Popular Radio manuals by other brands

EisSound

EisSound KBSound iSelect user manual

Midland

Midland 1001LWX owner's manual

Konig

Konig HAV-SR41 manual

Roberts

Roberts exprssion manual

VDigi

VDigi DD3.0 Operation manual

Radio Shack

Radio Shack 21-1863 owner's manual

Roberts

Roberts Stream 207 instruction manual

Sony

Sony Walkman SRF-M97 Service manual

Stanley

Stanley FatMax FMC770 manual

auna

auna DAB-Radio 10026947 manual

SOUNDMASTER

SOUNDMASTER UR190 instruction manual

HYT

HYT TC-320 user manual

auna multimedia

auna multimedia Yellowstone 10026851 instructions

B-Tech

B-Tech GMRS-V2 manual

Weierwei

Weierwei VEV-V8 user manual

SOUNDMASTER

SOUNDMASTER DAB750 instruction manual

Telefunken

Telefunken TF-1505 instruction manual

Makita

Makita LXRM03 instruction manual
