Audiovox VBP3900 User manual

VBP3900

VIDEOINABAGSYSTEMWITH

5"LCD MONITOR&DVDPLAYER

Notice:

ThisProductincorporatescopyrightprotection technologythatispro-

tected bymethod claimsofcertainU.S.Patentsand otherintellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsowners.

Useofthiscopyrightprotection technologymustbe authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ingusesonlyunlessotherwiseauthorizedbyMacrovisionCorporation.

Reverseengineeringordisassemblyisprohibited.

SAFETYPRECAUTION

Forsafetyreasons,when changing video media,itisrecommended

thatthe vehicleisnotinmotion,and thatyou do notallowchildren to

unfasten seat-beltstochange video mediaormakeanyadjustments

tothe system.Enjoyyourentertainmentsystembutalways remem-

ber-safetyofall passengersremainsthe numberone priority.

IMPORTANTNOTICE

It isunlawfulinmostjurisdictionsforaperson todriveamotorvehicle

whichisequipped withatelevision viewerorscreen thatislocated in

the motorvehicleatanypointforwardofthe back ofthe driver’s seat, or

thatisvisible,directlyorindirectly,tothe driverwhileoperating the ve-

hicle.Inthe interestofsafety,thissystemshouldneverbe installed

whereitwill be visible,directlyorindirectly,bythe operatorofthe motor

vehicle.

A.Introduction

Thankyou forselecting the VBP3900 “Video inaBag”System.The

system'smainfeaturesinclude a5"LiquidCrystalDisplay(LCD)

monitorand aDVDplayer.The systemutilizesthe lateststateofthe

artelectronics and isdesigned foruseinvehicles,hotels,officesor

yourhome.The VBP3900 Video inaBag isconstructed toprovide

yearsofreliable,trouble-free service.The systemiscompactso

thatyou can takeitwithyou anywhereand isdesigned forquick and

easy installation.One additionalmonitor*can be purchased and

added tothe systemsetup allowing you toutilizetwomonitorsat

once.The connection ofthe additionalmonitorisplug and play.

Pleaseread the entireinstruction manualsupplied withthisproduct

priortooperation.The documentation will assistyou ininstalling the

systemproperlytoobtainthe bestequipmentperformance.All

manualsshouldbe stored forlateruse.

*NOTE:The ACpowersupplythatcomeswiththe VBP3900 can only

suplythe mainunit. If an additionalmonitorisused,you must

usethe powersupplythatissupplied withit.

B. Cautions and Warnings

1. Placement

Topreventfireorelectricshock,do notexposethisapplianceto

rainormoisture.Donotplacethe seton an unstablecart, stand,

tripod,bracketortabletopreventitfromfalling.Keep the unitaway

fromstrong magnets,heatsources,directsunlight, excessivedust.

If the unitisbroughtdirectlyfromacoldtoawarm location,mois-

turemaycondenseinside the unit. When you moveitfromacold

toawarm location,waitforaboutone hourbeforeoperating the

unit, orremovethe disc and leavethe unitturned on until the mois-

tureevaporates.

2. Installation

Ensurethatthe LCD Monitor,DVDPlayer,Bag areinstalled in

accordancewiththe instructionsand illustrationsprovided inthis

manual.When the mainunitisinthe bag,ensurethe latchofthe

bag arefastened topreventthe unitfromfalling.The “S”hooks and

all strapsmustbe fastened correctlytosecurethe systeminthe

vehicleinthe eventofan accident. Operatethe “Video inaBag”

Systemwiththe bag open toensureproperventilation ofthe moni-

torand the DVDplayer.The systemisintended tobe mounted for

rearseatviewing only.Donotusethe systeminthe frontseat

whileoperating yourvehicle.

3.Power

ThissystemMUSTbe powered fromthe type ofswitched (Acces-

sory)powerindicated on the marking label(i.e.notdirectlyfrom

the carbattery).Powershouldbe applied tothe unitwhen the

ignition keyisinthe Run and/orAccessorypositions.Toprevent

batterydischarge,disconnectthe “Video inaBag”Systemjack

fromthe cigarettelightersocketwhen the unitisnotinuse.Use

onlythe supplied powercablematching thissettoavoidelectric

hazards.Always disconnectthe powersourcefirstand then the

jack fromthe system.

4.Objectand Liquid

Donotpushobjectsofanykind intothe systemthrough openings;

do notspill orsprayliquidofanykind on orinthe system(thismay

resultinafireorelectricshock).Donotplaceanything heavy on

the unit. Toensureproperventilation and properoperation,never

coverorblock the slotsand openingswithaclothorothermaterial.

5.Disassemble

Donotattempttodisassemblethe cabinet. Thereisarisk ofelec-

tricshock and/orexposuretoLaserRadiation.Contactqualified

servicepersonnelifyoursystemisinneed ofrepair.

6.Cleaning Unit

Whencleaning,makesurethesystemisunplugged fromthepower

source.Donotuseliquidcleanersoraerosolcleaners.Usea

clothlightlydampened withwaterforcleaning the exteriorofthe

systemonly.

7.Disc

Donotuseirregularlyshaped discs suchasheartorstar-shaped

discs astheymaycausethe unittomalfunction.Donotstick paper,

tape orglue on the disc.Donotexposethe disc todirectsunlight

orheatsourcessuchashotairducts.Donottouchthe surfaceof

disc.Handlethe disc byitsedge.Clean the disc bywiping the disc

fromthe centeroutwithacleaning cloth.Removethe disc from

the unitand storeitinitscaseafterplaying.Someplayback opera-

tionsofdiscs maybe intentionallyfixed bysoftwareproducers.

Sincethisunitplays discs according tothe disc contentsthe soft-

wareproducersdesigned,someplayback featuresmaynotbe

available.Alsorefertothe instructionssupplied withthe discs.

C. Contents

1.1xMonitor&DVDPlayerCombo

2.1xACtoDCAdapter

3.1xCigaretteLighterAdapter

4.1xRemoteControl

5.1xMounting Bag with4Straps

6.1xStorage bag

7.1xInstruction Manual

D.PowerSource

1.Powering thesystemindoors(RefertoFigure1)

Figure1

Unzipthe lowercompartmentofthe bag and takeouttheACtoDC

adapter.Plug one end ofthe ACtoDC adapterintothe DC 12V

jack on the left side ofthe mainunit, then plug the otherend into

the 110VACpowerreceptacle.

2.Powering thesysteminthevehicle(RefertoFigure2)

Figure2

Unzipthe lowercompartmentofthe bag and takethe cigarette

lighteradapter.Plug one end intothe DC 12Vjack on the left side

ofthe mainunit, then plug the otherend intothe cigarettelighter

socket.

E.Installation

1.Installing thesystemontotheseatback inacar

(RefertoFigure3)

Figure3

1)Unfasten the velcrostrap on the rearofthe bag.Foldthe strap

intothe shape ofatriangleand fasten ittothe bag.

2)Takeone ofthe supplied strapsfromthe lowercompartment.

Connectthe latchtoone ofthe uppermetalringson the mounting

bag.Connectthe “S”hooktothe otheruppermetalring and place

the loop overthe headrest. Adjustthe strap until the bag isfirmly

secured.

3)Takeone ofthe supplied strapsfromthe lowercompartmentof

the bag,and connectthe latchtothe lowermetalring on the left

side ofthe bag.Attachthe "S"hooktothe samering afterlooping

the strap around the seatrail.Repeatthisprocess forthe right

side.Insomevehicles,itmaybe necessarytoattachthe "S"

connectortotherail directly,asitmaynotbe long enough toreach

back tothe ring.

4)Adjustthe strapstightlysothatthe bag issecured.

2.Installingthesystembetweenthedriver/passengerseat

(RefertoFigure4)

Figure4

1)Takeone ofthe supplied strapsfromthe lowercompartmentof

the bag,and connectthe latchtothe upperside metalring on the

left side ofthe bag.Attachthe "S"hooktothe samering after

looping the strap around the headrestofthe driver'sseat.Repeat

thisprocess forthe rightside (PassengerSeat).

2)Takeanotherstrap and connectthe latchtolowermetalring on

the left side ofthe bag.Attachthe "S"hooktothe samering after

looping the strap around the driver'sseatrail.Repeatthispro-

cess forthe rightside.Insomevehicles,itmaybe necessaryto

attachthe "S"connectortothe rail directly,asitmaynotbe long

enough toreachback tothe ring.

3)Adjustthe strapstightlysothatthe bag issecured.

4)Unzipthebagandflipdownthefrontflap.Ensuretheretaining

Velcrostrap ofthe bag isfastened topreventthe unitfrom

falling out. Swing the monitorupwardsand adjustthe screen

forthe desired viewing angle.

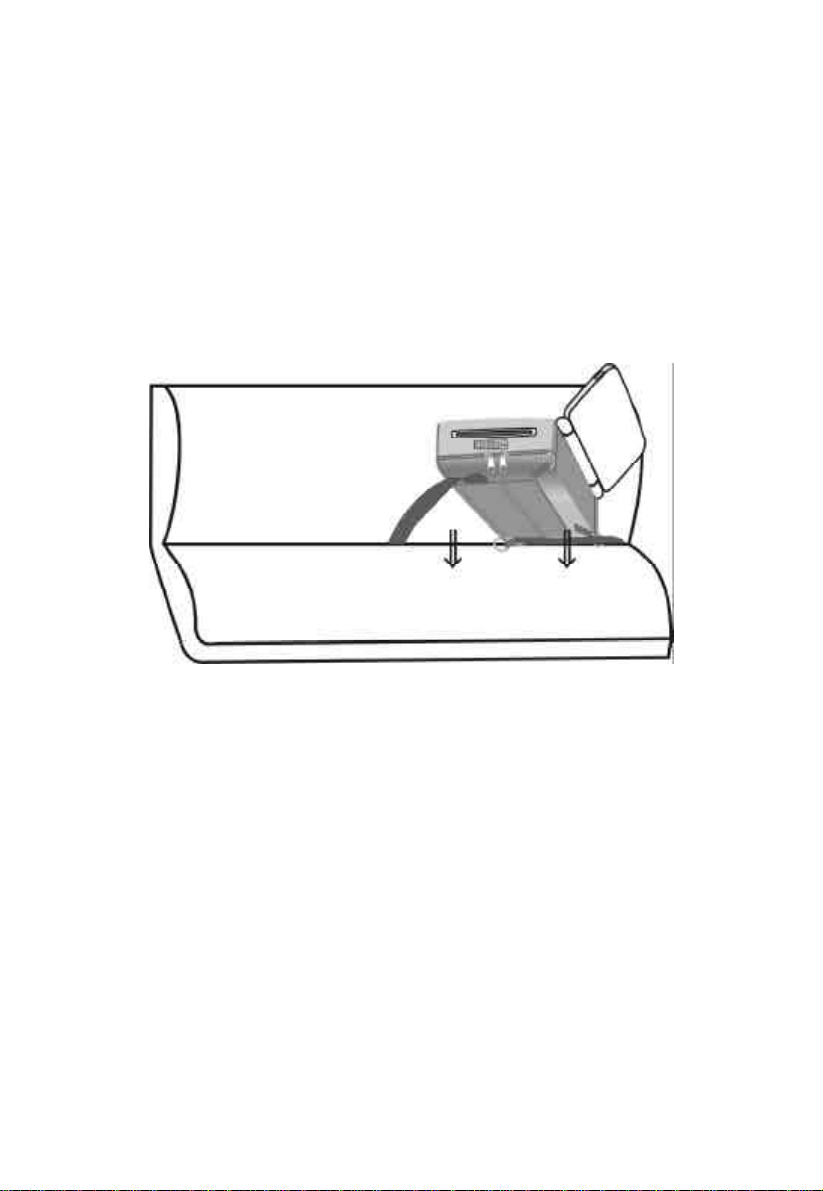

3.Installing thesystemontheback seatinacar

(RefertoFigure5)

Thereisno need toremovethe fourstrapsfromthe bag asthey

arenotused inthisinstallation.

Figure5

Ensurethe rearstrap ofthe bag isattached tothe upperVelcro

stripon the back ofthe bag.Carefullyplacethe system(frontfac-

ing up)on the back seat. Guide the vehicle’s safetybeltthrough the

rearpieceofthe bag.Then secureand adjustthe safetybeltso

thatthe systemisnotfree tomovearound.Swing the monitor

upwardand adjustthe screen forthe desired viewing angle.En-

surethe retaining strap ofthe bag isfastened topreventthe unit

fromfalling out.
