Audiovox FPE2000 User manual

Operating Instructions

__________________________________________________

Model No.: FPE2000

20” LCD TV with computer support

For assistance, please call: 1-800-619-3848

Or visit us at http://www.audiovox.com

128-7135a

Contents Index

Congratulations on your purchase of this LCD TV.

We recommend that you read this manual thoroughly before use to fully enjoy the

many functions and excellent features of this unit.

Keep this manual in an easily accessible location for future reference.

Note:Screen displays and illustrations in this manual may differ from the actual

model.

Overview 3

Important safety information 4

Important safety cautions 5

Accessories 7

Identification of controls 8

Control buttons 8

Back 9

Remote control 10

Installation 12

Basic operations 20

Main on-screen-display (OSD) introduction 21

Operations 22

Picture adjustment 22

System setting 23

Audio setting 28

Channel setting 30

Selecting channel 32

OSD setting 33

Timer setting 34

Operations in VGA/YbPr mode 35

TV troubleshooting 37

Notices 41

Maintenance/repair 42

Specifications 43

Overview

General Description

This Audiovox product is a Color Active Matrix liquid Crystal Display (LCD) with an integral

Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a Thin Film

Transistor (TFT) as the active element. This TFT-LCD has a 20.1 inch diagonally measured

active display area with a native 800x600 pixel resolution. Each pixel is divided into red,

blue, and green sub-pixels which are arranged in vertical stripes. The color palette is

capable of more then 16.7 million colors.

This Audiovox product incorporates a tilt stand that can be removed for easy wall mounting.

The wall mounting compatibility of this product is completed by incorporating a VESA 100

wall mount standard bolt configuration. A separate VESA 100 compatible wall mount kit will

be required to properly secure the unit to the wall.

This units has a great viewing angle allowing the unit to be seen at almost any viewing angle

with minimal loss in picture quality. The high brightness and contrast ratio will make this tv a

pleasure to watch. The internal VGA ability allows you to switch between watching tv and

your personal computer with just the switch of the source.

The lightning flash with the arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated “DANGEROUS

VOLTAGE” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The Exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (Servicing instructions in

the literature accompanying the product).

This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications If this equipment does cause or receive interference, which can be determined by

turning equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

 Reorient or relocate the TV antenna

 Increase the separation between TV and other equipment.

 Connect TV into separate outlet from equipment.

Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment

Federal Communication Commission

Important Safety Information

Important Safety Cautions

When any unusual situation occurs, turn off the power supply at once and remove

the plug from the wall outlet. Contact a qualified service department in your local

area.

Do not expose this unit in the rain or spatter by liquid. Do not use this product near

water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, and the like. Do not use immediately after

moving from a low temperature to high temperature environment, as this causes

condensation, which may result in fire, electric shock, or other hazards.

Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves

and other heat generating products (including amplifiers).

Requirement of environment temperature:

o o o o

0 C~50 C for storage; 5 C~40 C for working

The vents and other openings in the cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause

overheating and/or shorten the life of the product.

Do not place the product on a bed, sofa, rug or other similar surface, since they can

block ventilation openings.

This product is not designed for built-in installation; do not place the product in an

enclosed place such as a bookcase or rack, unless proper ventilation is provided

or the manufacturer's instructions are followed.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for cleaning.

Do not place the product on an unstable trolley, stand, tripod or table. Placing the

product on an unstable base can cause the product to fall, resulting in

serious personal injuries as well as damage to the product. Use only a trolley,

stand, tripod, and bracket or table recommended by the manufacturer or sold with

the product.

When relocating the product placed on a trolley, it must be moved with the utmost

care. Sudden stops, excessive force and uneven floor surfaces can cause the

product to fall from the trolley.

The power cords must be routed properly to prevent people from stepping on them

or objects from resting on them. Check the cords at the plugs and product. Power-

supply cords should be routed so that they are not likely to be walked on or

snagged by items placed upon or against them. Pay particular attention to cords at

doors, plugs, receptacles, and the point where they exit from the product.

If the power cord or the plug is damaged contact a qualified service department for

service.

High Voltage exists in this TV set. Do not remove the cover.

In case the product needs replacement parts, make sure that the service person

uses replacement parts specified by the manufacturer, or those with the same

characteristics and performance as the original parts. Use of unauthorized parts

can result in fire, electric shock and/or other danger.

For added protection for this television equipment during a lightning storm, or

when it is left unattended and unused for long periods of time, unplug it from the

wall outlet and disconnect the antenna. This will prevent damage to the equipment

due to lightning and power-line surges.

The LCD panel used in this product is made of glass. Therefore, it can break when

the product is dropped or impacted upon by other objects. Be careful not to be

injured by broken glass pieces in case the LCD panel breaks.

Don't try to push anything into the cabinet or place any vessel with water on the TV

set.

Do not overload wall outlets, extension cords, or convenience receptacles on other

equipment as this can result in a risk of fire or electric shock.

Important Safety Cautions

Important Information Regarding use of

Video Games, Computer, captions or other

fixed images displays

The extended use of a fixed image program material can cause permanent “Shadow Image” on

the LCD panel. The background image is viewable on normal programs in the form of stationary

fixed images. This type of irreversible LCD panel deterioration can be limited by observing the

following steps:

* Reduce the Brightness and Contrast settings to a minimum viewing level

* DO NOT display the fixed image for extended periods of time

* Turn the power OFF when not in actual use

Recycling

This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of

mercury. Disposal of these materials may be regulated in your community due to environmental

considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance Environment at: http://www.eiae.org/

Accessories

1.. FPE2000 TV unit

2.. Power adaptor (AC/DC)

3.. AC Power cord

4.. Remote Control (Model Specific)

5.. Batteries

6.. VGA Cable (15 pin D-Sub)

7.. Audio/Video cable (RCA)

8.. 2ch Audio Cable (3.5mm - 3.5mm)

Identification of controls

Control buttons

Power On/

Standby

Control Panel

Power Indicator

Remote Sensor

Speaker

Select Input Signal

Volume Down/Up

Channel Down/Up

Speaker

SOURCE MENU CHCH VOL VOL

Note:

1. SOURCE

To access the SOURCE select menu

2. MENU

Press this button to access the MENU main page.

3. CH +/-

Change the TV channel.

In OSD Menu, press these buttons to choose the OSD items.

4. VOL +/-

Increase or decrease the sound volume level.

In OSD Menu, press these buttons to adjust the value or setting of each item

5. POWER ( )

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to

STANDBY.

SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the

corresponding buttons on the remote control.

This operation manual provides a description based on operating functions with the remote control.

The Power Indicator light will glow

yellow when the set is turned on,

and glows red when the set is in

the standby mode.

Back

1235678

1. DC POWER input

Connect to the DC output of the Power Adapter.

2. VGA input / PC- Audio in

Connect to the VGA/audio output 3.5mm jacks on your PC.

3. HDTV input (Y, Pb, Pr, Audio L, R)

Connect to the Y/Pb/Pr (or Y/Cb/Cr) and audio output jacks of a Set-Top Box or DVD player.

4. Headphone 3.5mm jack

5. AV outputs (Video, Audio L, R)

Connect to the VCR input jacks to record programs.

DC 12V VGA -

PC AUDIO PHONE -

S VIDEO

LRY P

rL LR R

AUDIOAUDIO AUDIO

AV OUT AV INHDTV IN

VIDE O VIDEO

7. S-Video input

Receive a S-Video signal from external source such as VCR or DVD player.

6. AV inputs (Video, Audio L, R)

Receive video/audio signals from external sources such as VCR or DVD player.

8.Coaxial cable & Antenna input

Identification of controls (continued)

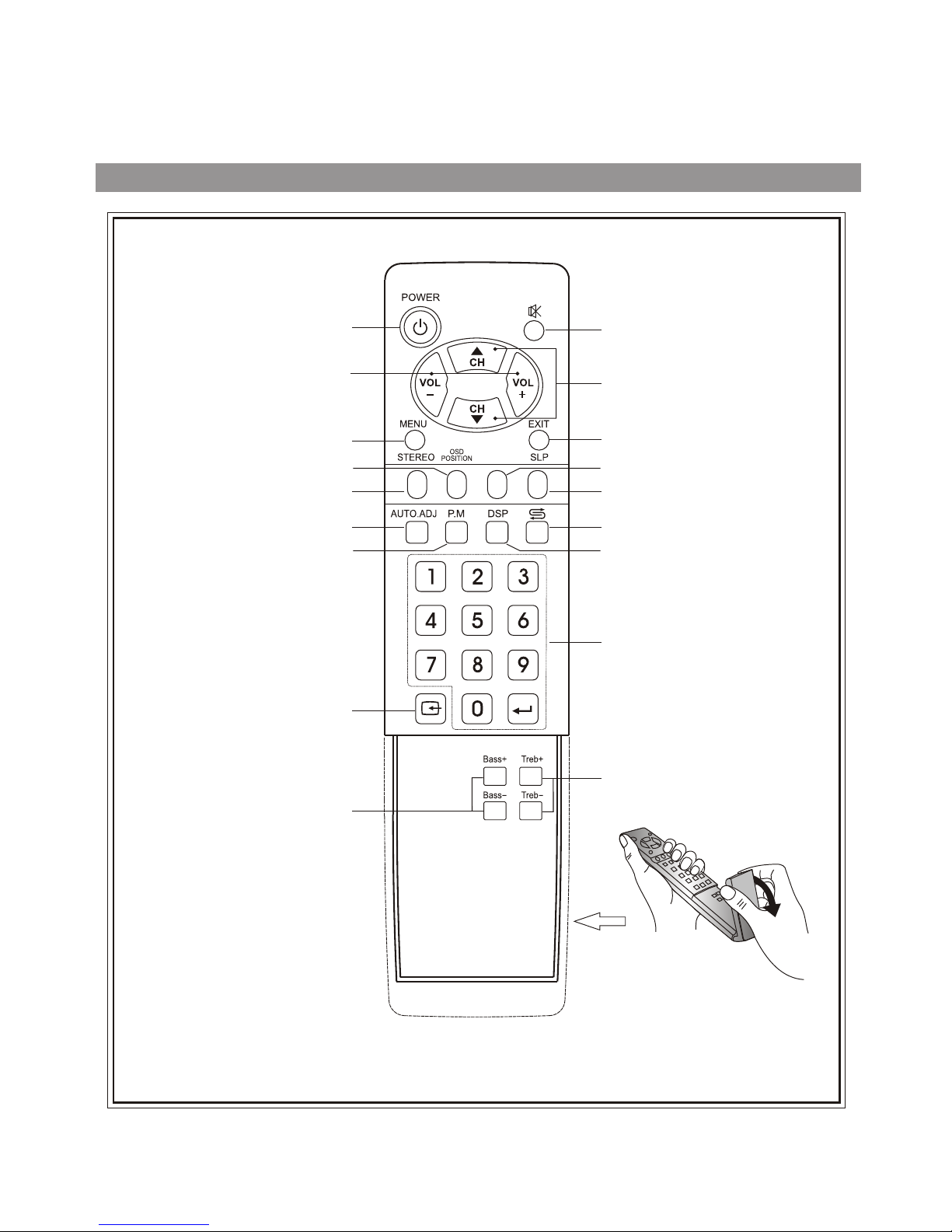

Remote Control

Display the current state

Mute

Previous channel

Auto correct picture

Channel up/down selector.

In menu operations, used

to select item.

Power on/standby

Direct channel selector

Select the input signal source

Setting sleep timer

Exit the menu

Sound preset mode selector

Change audio to mono, stereo or SAP

Volume up/down selector;

In the menu operation,

adjust the selected item

Access the menu

Select OSD menu position

Adjust the bass

Adjust the treble

Flip the cover open in

the arrow direction.

Select picture mode between

Bright, Nature, Soft & User

S.M

Other manuals for FPE2000

This manual suits for next models

Other Audiovox LCD TV manuals

Audiovox

Audiovox CTV-5040 User manual

Audiovox

Audiovox FPE4216P User manual

Audiovox

Audiovox D1210 User manual

Audiovox

Audiovox FPE3205 - 32" LCD TV User manual

Audiovox

Audiovox FPE1909DVDC User manual

Audiovox

Audiovox FPE4207HR - 42" LCD TV User manual

Audiovox

Audiovox TFT5000 User manual

Audiovox

Audiovox FPE2006 User manual

Audiovox

Audiovox FPE3207 - 32" LCD TV User manual

Audiovox

Audiovox D1210 User manual

Audiovox

Audiovox FPE2705 User manual

Audiovox

Audiovox FPE4707HR - 47" LCD TV User manual

Audiovox

Audiovox FPE2000 User manual

Audiovox

Audiovox FPE2006DV - 20" LCD TV User manual

Audiovox

Audiovox FPE2306 - 23" LCD TV User manual

Audiovox

Audiovox FP1500 - annexe 1 User manual

Audiovox

Audiovox FPE1506 User manual

Audiovox

Audiovox FPE3706 - 37" LCD TV User manual

Audiovox

Audiovox FPE1708DV - 17" LCD TV User manual

Audiovox

Audiovox FPE2607 - 26" LCD TV User manual

Audiovox

Audiovox LCM0681TV User manual

Audiovox

Audiovox FPE3206 - 32" LCD TV User manual

Audiovox

Audiovox LC17H2 User manual

Audiovox

Audiovox FPE1705 User manual

Popular LCD TV manuals by other brands

LG 32LC4R* Service manual

ViewSonic

ViewSonic N4200w-1 VS10945-1M Service manual

Salora

Salora 22LED1600 user manual

Samsung

Samsung LA32E420 E-manual

Dell

Dell W1900 19 Setting up

Samsung

Samsung LN40C670M1F user manual

Samsung

Samsung Series 4+ user manual

Samsung

Samsung 5 Series user manual

Grundig

Grundig 40 VLE 8230 BP manual

Philips

Philips 43PFL4901/F7 Service manual

Sony

Sony Bravia XBR-43X830C Service manual

LG 32LS350 owner's manual

VIORE

VIORE LED32VF60 Specifications

Toshiba

Toshiba Regza 42HL167 owner's manual

JVC

JVC LT-32A220 instructions

Philips

Philips 20TA1000/93 user manual

Philips

Philips 32PFL3158T/12 quick start guide

Sony

Sony Bravia KDL-V32XBR2 Specifications
