Audiovox FPE1705 User manual

Before connecting, operating or adjusting this product, please read the manual completely.

LCD TV

Operating Manual

FPE1705

FOR ASSISTANCE CALL 1-800-619-3848

OR VISIT US AT WWW.AUDIOVOX.COM

1287353

Contents Index

Congratulations on your purchase of this LCD TV.

We recommend that you read this manual thoroughly before use to fully enjoy the

many functions and excellent features of this unit.

Keep this manual in an easily accessible location for future reference.

Note:Screen displays and illustrations in this manual may differ from the actual

model.

Important safety information 3

Important safety cautions 4

Identification of controls 6

Control buttons 6

Back 7

Remote control 8

Installation 10

Basic operations 18

Main on-screen-display (OSD) introduction 19

Operations 20

Picture adjustment 20

System setting 21

Audio setting 26

Channel setting 28

Selecting channel 30

OSD setting 31

Timer setting 32

Operations in VGA/YbPr mode 33

TV troubleshooting 35

Specifications 36

The lightning flash with the arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated “DANGEROUS

VOLTAGE” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The Exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (Servicing instructions in

the literature accompanying the product).

This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications If this equipment does cause or receive interference, which can be determined by

turning equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

?? Reorient or relocate the TV antenna

?? Increase the separation between TV and other equipment.

?? Connect TV into separate outlet from equipment.

? ?Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment

Federal Communication Commission

Information (FCC)

Important Safety Information

Important Safety Cautions

When any unusual situation occurs, turn off the power supply at once and remove

the plug from the wall outlet. Contact a qualified service department in your local

area.

Do not expose this unit in the rain or spatter by liquid. Do not use this product near

water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, and the like. Do not use immediately after

moving from a low temperature to high temperature environment, as this causes

condensation, which may result in fire, electric shock, or other hazards.

Heat sources-Keep the product away from heat sources such as radiators,

heaters, stoves and other heat generating products (including amplifiers).

Requirement of environment temperature:

o o o o

0 C~50 C for storage; 5 C~40 C for working

The vents and other openings in the cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause

overheating and/or shorten the life of the product.

Do not place the product on a bed, sofa, rug or other similar surface, since they can

block ventilation openings.

This product is not designed for built-in installation; do not place the product in an

enclosed place such as a bookcase or rack, unless proper ventilation is provided

or the manufacturer's instructions are followed.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for cleaning.

Do not place the product on an unstable trolley, stand, tripod or table. Placing the

product on an unstable base can cause the product to fall, resulting in

serious personal injuries as well as damage to the product. Use only a trolley,

stand, tripod, and bracket or table recommended by the manufacturer or sold with

the product.

Important Safety Cautions

Important Information Regarding use of

Video Games, Computer, captions or other

fixed images displays

The extended use of a fixed image program material can cause permanent “Shadow Image” on

the LCD panel. The background image is viewable on normal programs in the form of stationary

fixed images. This type of irreversible LCD panel deterioration can be limited by observing the

following steps:

* Reduce the Brightness and Contrast settings to a minimum viewing level

* DO NOT display the fixed image for extended periods of time

* Turn the power OFF when not in actual use

Recycling

This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of

mercury. Disposal of these materials may be regulated in your community due to environmental

considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance Environment at: http://www.eiae.org/

Identification of controls

Control buttons

Note:

1. SOURCE

To access the SOURCE select menu

2. MENU

Press this button to access the MENU main page.

3. CH +/-

Change the TV channel.

In OSD Menu, press these buttons to choose the OSD items.

4. VOL +/-

Increase or decrease the sound volume level.

In OSD Menu, press these buttons to adjust the value or setting of each item

5. POWER ( )

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to

STANDBY.

SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the

corresponding buttons on the remote control.

This operation manual provides a description based on operating functions with the remote control.

The Power Indicator light will glow

yellow when the set is turned on,

and glows red when the set is in

the standby mode.

Speaker

Power On/

Standby

Control Panel

Select Input Signal

Volume Down/Up

Channel Down/Up

SOURCE MENU CHCH VOL VOL

Speaker

Remote sensor

Power Indicator

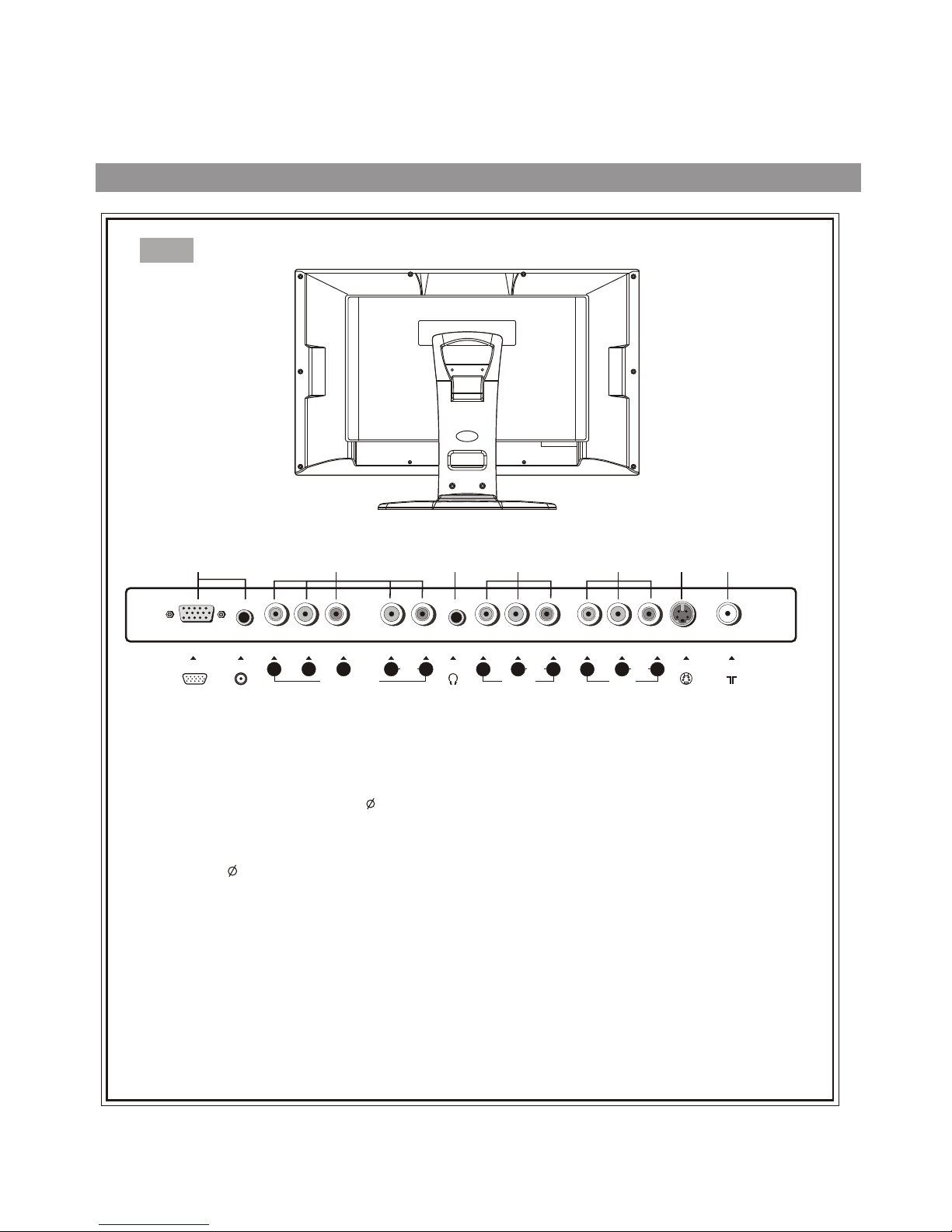

Back

123567

1. VGA input / PC- Audio in

Connect to the VGA/audio output 3.5mm jacks on your PC.

2. HDTV input (Y, Pb, Pr, Audio L, R)

Connect to the Y/Pb/Pr (or Y/Cb/Cr) and audio output jacks of a Set-Top Box or DVD player.

3. Headphone 3.5mm jack

4. AV outputs (Video, Audio L, R)

Connect to the VCR input jacks to record programs.

VGA -

PC AUDIO PHONE -

S VIDEO

LRY P

rL LR R

AUDIOAUDIO AUDIO

AV OUT AV INHDTV IN

VIDE O VIDEO

6. S-Video input

Receive a S-Video signal from external source such as VCR or DVD player.

5. AV inputs (Video, Audio L, R)

Receive video/audio signals from external sources such as VCR or DVD player.

7.Coaxial cable & Antenna input

Identification of controls (continued)

Remote Control

Display the current state

Mute

Previous channel

Auto correct picture

Channel up/down selector.

In menu operations, used

to select item.

Power on/standby

Direct channel selector

Select the input signal source

Setting sleep timer

Exit the menu

Sound preset mode selector

Change audio to mono, stereo or SAP

Volume up/down selector;

In the menu operation,

adjust the selected item

Access the menu

Select OSD menu position

Adjust the bass

Adjust the treble

Flip the cover open in

the arrow direction.

Select picture mode between

Bright, Nature, Soft & User

S.M

Please install the batteries before using the remote control.

Effective range of the remote control

Notes:

1.When the remote control will not be used for a

long period of time or when the batteries are

worn out, remove the batteries.

2.Do not drop or dampen the remote control.

3.Do not disassemble the remote control.

4.There should be no obstacle between the TV

and the transmitter.

5.Use the remote control within the effective

range as shown in the figure on the left.

6.If the remote control does not work, please

check whether the batteries are exhausted or

if they have been installed properly.

7.When direct sunlight, and incandescent

lighting, fluorescent lamp or any other strong

light shines on the remote sensor of the TV,

the remote operation can be come erratic.

8.Do not mix different types of batteries in the

remote.

Batteries for the Remote Control

If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.

<(Slide the cover while

pressing down.)

<(Place the batteries with their

terminals corresponding to the (+)

and (-) indications in the battery

compartment.)

Open the battery cover.

1Insert two size-AAA batteries.

Replace the cover and slide

in reverse until the lock

snaps.

Preparing the Remote Control

Installation

Install the unit in a room where direct light will not fall upon the screen.

Total darkness or a reflection on the picture screen may cause

eyestrain. Soft and indirect lighting is recommended for comfortable

viewing.

Antenna connections

OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)

Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see

the next page.

Combination VHF/UHF

Antenna (Single 75 Ohm cable

or 300 Ohm twin-lead wire)

Connect the 75 Ohm cable from

combination VHF/UHF antenna

to the antenna jack.

If your combination antenna has

a 300 Ohm twin-lead wire, use a

300-75 Ohm matching

transformer (NOT SUPPLIED).

Connect the UHF twin-lead wire

to a combiner (NOT SUPPLIED).

Connect the VHF twin-lead to a

300-75 Ohm matching

transformer (NOT SUPPLIED).

Attach the transformer to the

combiner. Attach the combiner to

the antenna jack.

Connect the 75 Ohm cable from

the VHF antenna and the UHF

antenna twin-lead wire to a

combiner (NOT SUPPLIED).

Attach the combiner to the

antenna jack.

NOTE: If your VHF antenna has

a twin-lead wire use a 300-75

Ohm matching transformer, then

connect the transformer to the

Combination VHF/UHF

Antenna (Separate VHF and

UHF 300 Ohm twin-leads)

VHF 300

Ohm VHF 75 Ohm

Combiner

UHF 300 Ohm UHF 300 Ohm

VHF/UHF

75 OHM

Ohm

This manual suits for next models

Other Audiovox LCD TV manuals

Audiovox

Audiovox FPE2000 User manual

Audiovox

Audiovox FPE2705 User manual

Audiovox

Audiovox FPE3205 - 32" LCD TV User manual

Audiovox

Audiovox CTV-5040 User manual

Audiovox

Audiovox LC17H2 User manual

Audiovox

Audiovox D1210 User manual

Audiovox

Audiovox FPE2000 User manual

Audiovox

Audiovox FPE4216P User manual

Audiovox

Audiovox FPE5016P User manual

Audiovox

Audiovox FPE1506 User manual

Audiovox

Audiovox FPE2607 - 26" LCD TV User manual

Audiovox

Audiovox FPE3207 - 32" LCD TV User manual

Audiovox

Audiovox FPE2305 - 23" LCD TV User manual

Audiovox

Audiovox FP2000 User manual

Audiovox

Audiovox FPE4707HR - 47" LCD TV User manual

Audiovox

Audiovox FPE3707HR - 37" LCD TV User manual

Audiovox

Audiovox FP1500 - annexe 1 User manual

Audiovox

Audiovox FPE3705 - 37" LCD TV User manual

Audiovox

Audiovox LCD1900 B User manual

Audiovox

Audiovox FPE2006 User manual

Audiovox

Audiovox FPE3000 User manual

Audiovox

Audiovox FPE1906DV - 19" LCD TV User manual

Audiovox

Audiovox FPE1708 - 17" LCD TV User manual

Audiovox

Audiovox D1210 User manual

Popular LCD TV manuals by other brands

LG 32LC4R* Service manual

ViewSonic

ViewSonic N4200w-1 VS10945-1M Service manual

Salora

Salora 22LED1600 user manual

Samsung

Samsung LA32E420 E-manual

Dell

Dell W1900 19 Setting up

Samsung

Samsung LN40C670M1F user manual

Samsung

Samsung Series 4+ user manual

Samsung

Samsung 5 Series user manual

Grundig

Grundig 40 VLE 8230 BP manual

Philips

Philips 43PFL4901/F7 Service manual

Sony

Sony Bravia XBR-43X830C Service manual

LG 32LS350 owner's manual

VIORE

VIORE LED32VF60 Specifications

Toshiba

Toshiba Regza 42HL167 owner's manual

JVC

JVC LT-32A220 instructions

Philips

Philips 20TA1000/93 user manual

Philips

Philips 32PFL3158T/12 quick start guide

Sony

Sony Bravia KDL-V32XBR2 Specifications
