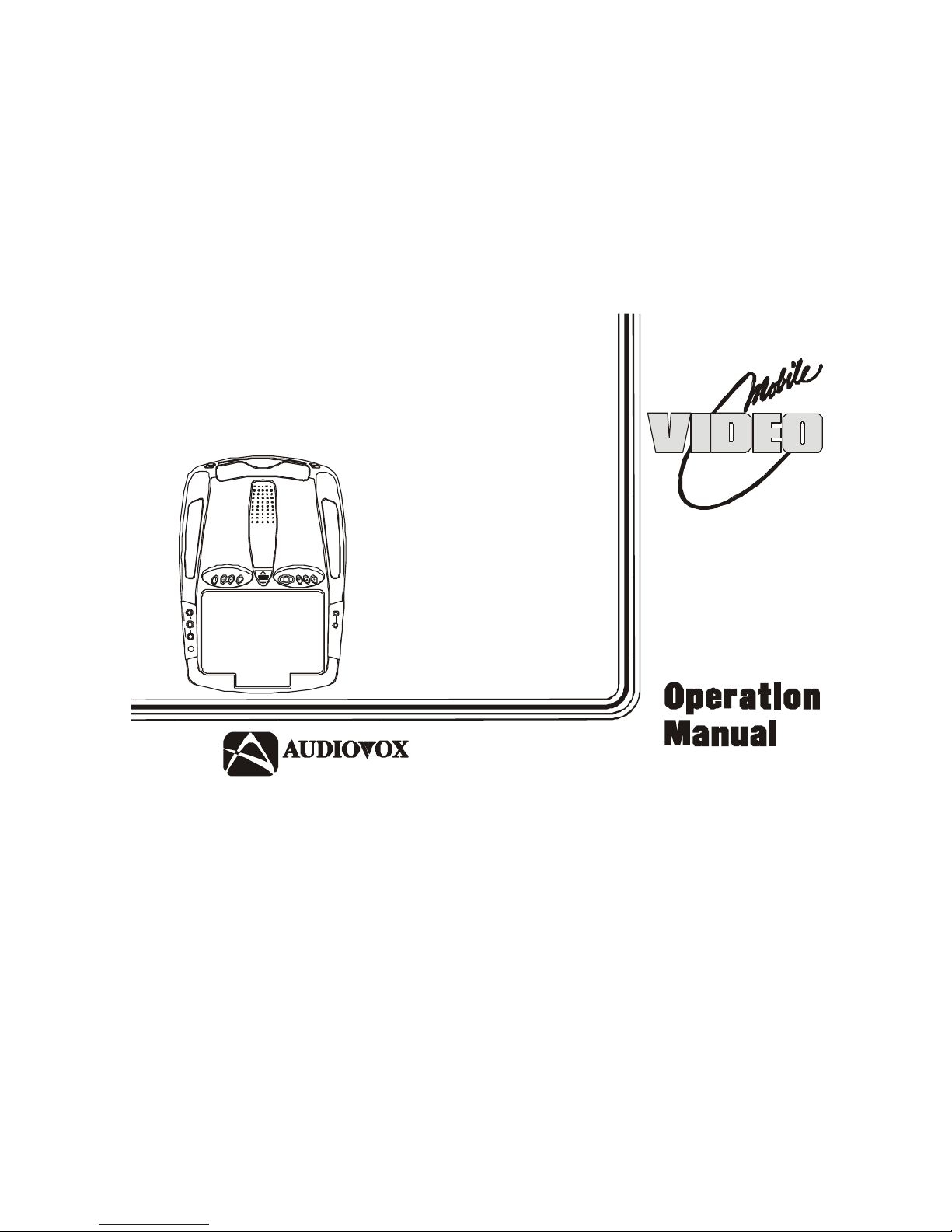

Audiovox PROV715 User manual

VOD705

ELECTRONICS CORP .

PROV715/

PROV715S/

PROV715P

DVD PLAYER

WITH

DROP-DOWN

VIDEO MONITOR

128-6809

REV FWD SOURCE VOLUME FM

SELECT

ON OFF AUTO

PAUSE

INPUT

AUDIO

VIDEO

-2-

Important Notice

It is unlawful in most jurisdictions for a person to drive a motor

vehicle which is equipped with a screen that is located in the

motor vehicle at any point forward of the back of the driver’s

seat, or that is visible, directly or indirectly, to the driver while

operating the vehicle. In the interest of safety, the PROV715 /

PROV715S/ PROV715P should never be installed where it will

be visible, directly or indirectly, by the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the

video monitor.

Do not use any abrasive cleaners, they may scratch the screen.

Use only a lightly dampened lint free cloth to wipe the screen if it

is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting

to the lowest position.

Remember to leave the dome light switch in the off or auto

positions when the vehicle is unattended, as the dome lights, if

left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it

may become dirty or damaged.

-3-

Congratulations on your purchase of the Audiovox

PROV715 /PROV715S/ PROV715P DVD Player with

Drop-Down Video Monitor. The PROV715 /

PROV715S/ PROV715P has been designed to give

you and your family many years of video entertainment

in the mobile environment. Please read the directions

that follow to familiarize yourself with the product and

to ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

•7 Inch TFT (Thin Film Transistor) Active Matrix

LCD (Liquid Crystal Display) Monitor

•OSD (On Screen Display) for Control of Picture

Quality and Functions

•Full Function Remote Control

•Six Frequency FM Modulator with remote

control and OSD

•Dual Channel Infrared Transmitter for IR

Wireless Headphones (Satellite Radio Ready)

•Two Audio / Video Inputs

•Headphone / Speaker Amplifier

•Two Headphone Jacks

•Forward and Side Remote Sensor

•Dome Lights with Switch

•Backlit Controls for Low Light Operation

•Last Position Memory for DVD

-4-

Controls and Indicators Diagram

NOTE : Screen Mode Button

Located on inside with

screen in the closed position.

REV FWD SOURCE VOLUME FM

SELECT

ON OFF AUTO

PAUSE

INPUT

AUDIO

VIDEO

POWER

EJECT

PLAY

STOP

-5-

Main Function Descriptions

1. DVD Disc insertion slot – For loading Disc.

2. POWER Button – Bright red when system is on dim when

off.

3. EJECT ( ) Button – For ejecting discs from the disc

compartment.

4. PLAY ( ) Button – This button is used to enter the play

mode.

5. STOP ( ) Button – To stop playing.

6. Infrared Transmitter and Sensor – Use to transmit audio

to wireless headphones. Also allows the remote control to

operate the PROV715 /PROV715S/ PROV715P and to

control other accessories in the system.

7. PRO715 / PRO715S / PRO715P Ventilation Opening.

8. Dome Lights – Provide additional interior illumination.

9. SOURCE Select – Used to select one of the three sources

(AV1, AUX, DVD).

10. REV ( ) Button – Allows the user to search in a backwards

direction at 2x, 4x, 6x and 8x times the normal speed.

11. PAUSE ( ) Button – Allows the user to pause the playback.

12. FWD ( ) Button – Allows the user to search in a forward

direction at 2x, 4x, 6x and 8x times the normal speed.

13. Auxiliary Audio Right Input.

14. Auxiliary Audio Left Input.

15. Auxiliary Video Input.

16. Side Remote Sensor Eye – Allows the remote control to

operate the PROV715 /PROV715S/ PROV715P , control

volume to wired headphone jacks and control the other

accessories.

17. Screen Mode Button – Allows the user to change the

screen format (Aspect Ratio, 4:3 or 16:9)

18. Drop Down LCD Panel.

19. Headphone Jack – Allow the use of wired headphones

with a 1/8” plug for listening to video program audio.

20. Screen release – Moves in direction of the arrow to release

the drop down screen.

21. VOLUME ( ) Button – Use this button to raise the volume

level of the headphone jacks. It is also used to make picture

adjustments in picture select mode. Note : Audiovox

recommends the use of the Audiovox HP275 Headphones

when using wired headphones.

-6-

22. FM Select Button – Each time this button is pressed will

switched FMM cycles through (FM OFF – POD AUDIO –

SAT AUDIO) and the frequency of the modulator will remain

same.

23. VOLUME ( ) Button – Use this button to decrease the

volume level of the headphone jacks. It is also used to

make picture adjustments in picture select mode.

Note : These buttons will not affect the volume of wireless

headphones or the wired RF modulator. When using these

devices the volume must be adjusted with the wireless

headphone volume control or with your radio’s volume control

(see page 15, Wireless Headphones, or page 16, Wired

FM Modulator).

24. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunction with the vehicle’s interior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

-7-

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the PROV715 /

PROV715S/ PROV715P and most Audiovox VCP’s.

It is not a universal remote control and will not control

equipment from other manufacturers.

If a universal remote control is to be used with the

PROV715 /PROV715S/ PROV715P , choose the

remote encoding scheme for Audiovox Televisions when

programming the remote control.

POWER

SOURCE

RETURN

SETUP

PIX

Enter

ERASE/

WRITE

SKIP/

AUTO

MEMORY

VOL

–+

MUTE

REPEAT

EJECT

-8-

DVD Function Descriptions

*Function control is available on the unit and the remote control.

** Function not available on this model.

1. POWER Button*

Press this button to turn the PROV715 /PROV715S/ PROV715P on. Press the button again to turn the PROV715/

PROV715S/ PROV715P off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,

AV1 and AUX.

3. AUTO MEMORY Button**

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signals of sufficent levels are automatically stored.

4. SKIP/SEARCH Button**

This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP

mode is disable, the TV will stop on all active channels.

5. ERASE/WRITE Button**

While tuned to a channel, pressing this button will store or erase the channel from memory. The stored channel

numbers are displayed in “GREEN” on the LCD display screen, and the non-stored channel numbers are in

“RED”.

-9-

6. Channel Up ( ) Button**

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores sound to the previously set level.

8. ENTER Button

Used to implement setting selected.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to return to the menu while PBC on.

Note: This function only present on VCD2.0.

12. TV Mode Select Button**

Switches certain function keys on the remote control for TV functions.

-10-

13. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times Display current AUDIO language & channel

4 times Display current ANGLE

5 times Display A-B current status

6 times Display REPEAT current status

7 times Display is turn off

For Title & Chapter, use cursor buttons to do title/chapter selection, then press Enter button to implement the selection.

For Subtitle, Audio, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options may vary

from disc to disc.

14. PAUSE ( ) Button*

Allows the user to pause the playback.

15. PREVIOUS ( ) Button

Allows the user to return to the previous chapter or track.

16. NEXT ( ) Button

Allows the user to skip to the next chapter or track.
