Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used

for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle

is in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the

parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the

operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain

the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television reception in a moving

vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary

vehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent with

home TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, be

snowy, or cause some color loss.

128-7297

3 of 20

-3-

Congratulations on your purchase of the Audiovox VOH8512

Drop-Down Video /Monitor. The VOH8512 has been designed

to give you and your family many years of video entertainment in

the mobile environment. Please read the directions that follow

to familiarize yourself with the product and to ensure that you

obtain the best results from your equipment.

Please note: Installation options vary, see the individual owner’s

manuals for each component in your system to obtain a full

understanding of each component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and that you do

not allow children to unfasten seat-belts to change video media

or make any adjustments to the system. System adjustments

can be accomplished using the remote control, while seat-

belts remain fastened. Enjoy your Audiovox entertainment

system but remember the safety of all passengers remains the

number one priority.

Features

– 8.5” TFT Active Matrix Color LCD Monitor

– OSD (On Screen Display) For Control of Picture

Quality, Display of Source Selection

– Three Source Selection (AV1/AV2/AUX)

– Video Display ON/OFF Control (when LCD Panel

is Opened and Closed)

– Forward and Rear IR Sensor

– Infrared Transmitter for IR Wireless Headphones

– Dome Lights with Built-in Three Position Switch

– TV Tuner (Optional)*

– Backlit controls for Low Light operation

– Five Frequency Wireless FM Modulater

– Full Function Remote Control

* Part Number PODTVT

128-7297

4 of 20

-4-

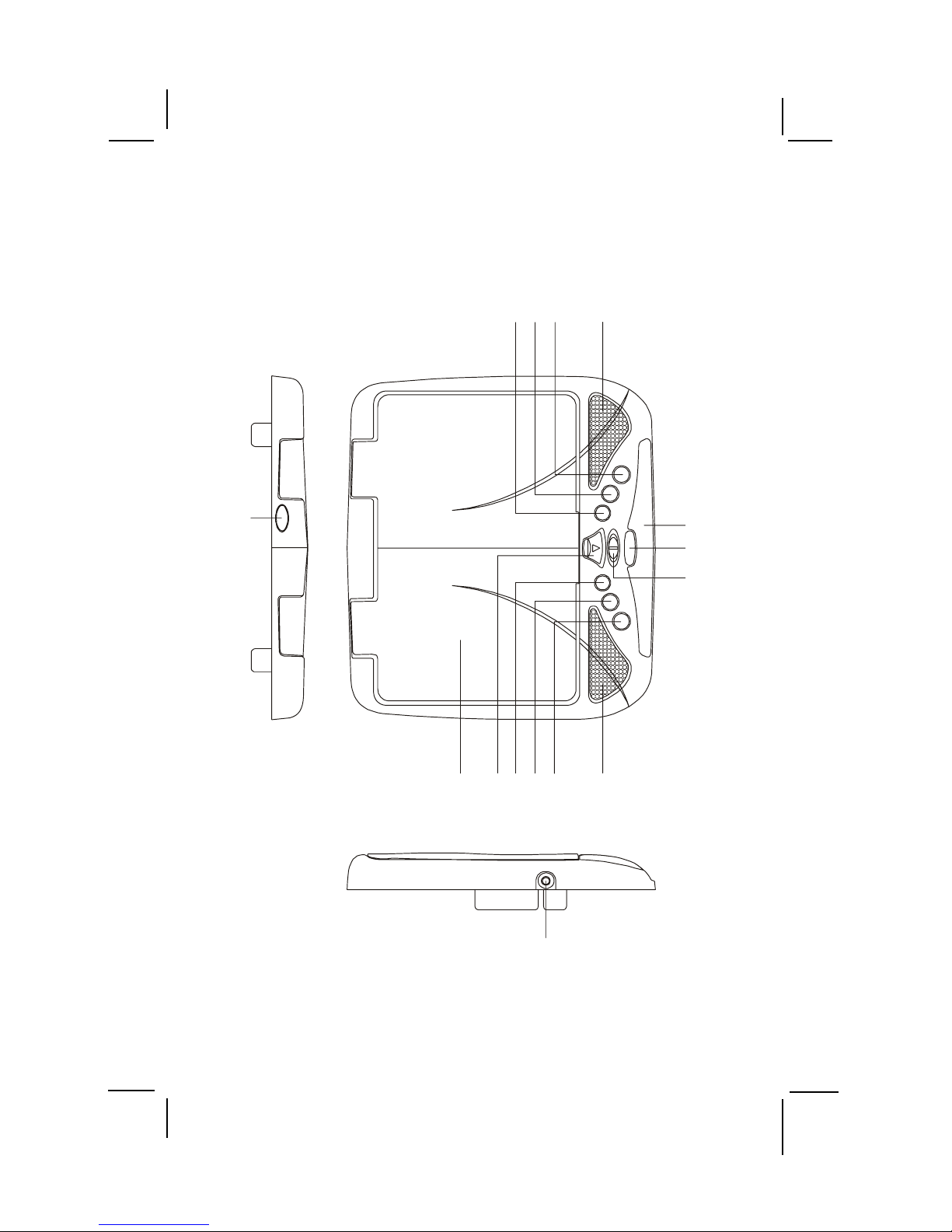

Controls and Indicators Diagram

123

128-7297

5 of 20

-5-

Control Function Descriptions

1. Infrared Transmitter and Sensor – Use to transmit audio

to the wireless headphones. Also allows the remote control

to operate the VOH8512 and to control other accessories in

the system.

2. POWER Button – Used to turn the system ON/OFF. Bright

red when system is on, dim when off.

3. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunction with the vehicle’s interior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

4. Dome Lights – Provide additional interior illumination.

5. ( – ) Button – Picture quality adjustment (decrease).

6. ( + ) Button – Picture quality adjustment (increase).

7. PICTURE SELECT Button – Display picture adjustment

mode (Brightness, Contrast, Color & Tint)

8. Screen Release – Moves in direction of the arrow to release

the drop down screen.

9. Drop Down LCD Panel

10. IRT ON/OFF – Turn Infrared Transmitter power On/Off.

11. FM Select Button – When this button is pressed it will turn

on the wireless FM Modulator and then cycle through FM

frequencies (FM Off, Channel 1, 88.3MHz; Channel 2,

88.7MHz; Channel 3, 89.1MHz; Channel 4, 89.5MHz;

Channel 5, 89.9MHz).

12. SOURCE Select – Used to select one of the three sources

(AV1, AV2 ,AUX)

13. AUX – AUX input jack.

14. REAR Remote Sensor Eye – Allows the remote control to

operate the VOH8512, and control other accessories,

connected to the system.

128-7297

6 of 20

-6-

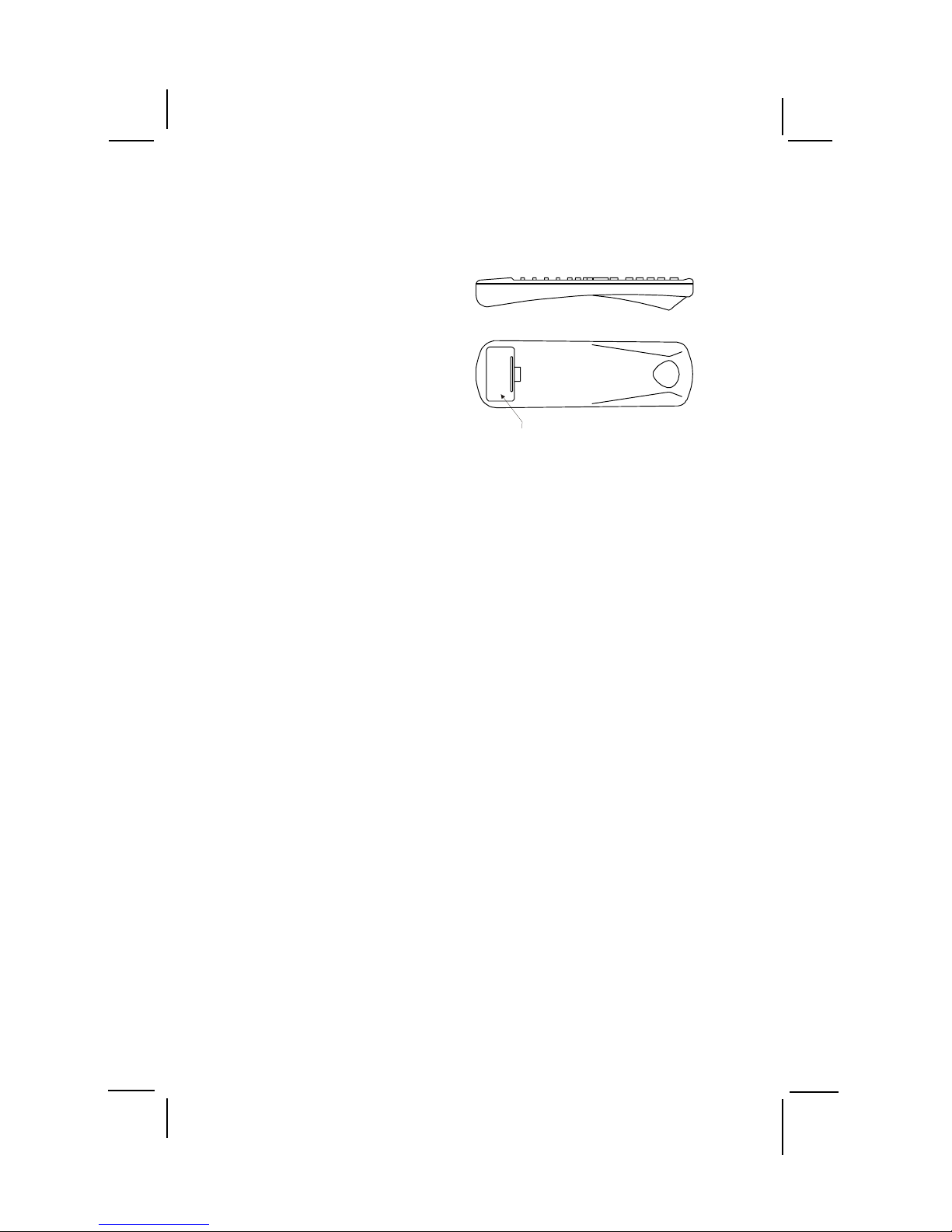

Battery Installation

Before attempting to operate your Remote Control, install the

batteries as described below.

1) Turn the Remote Control face down. Using a fingernail,

lift the battery cover off.

2) Install two “AAA” batteries as shown. Make sure that

proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control and press

down until the cover clicks.

The remote control will operate the VOH8512 and most Audiovox

VCP’s. It is not a universal remote control and will not control

equipment from other manufacturers.

Remote Control Operation

BATTERY COVER

128-7297

7 of 20

-7-

Remote Control Function Descriptions

*Function control is available on the unit and the remote control.

** Not used in this model

*** Function only available if optional TV Tuner is installed.

1. POWER Button*

Press this button to turn the VOH8512 on. Press the button again to turn the VOH8512 off.

2. SOURCE Button*

Each time the button is pressed, the audio / video source will change: AV1, AV2, AUX.

3. AUTO MEMORY Button (AUTO PROGRAM Button)***

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of

sufficent levels are automatically stored.

4. SKIP/SEARCH Button***

This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on channels that are

programmed into memory the when CHANNEL UP/DOWN buttons are used. When the SKIP mode is disabled, the TV will

stop on all active channels.

5. ERASE/WRITE Button***

While tuned to a channel, pressing this button will store or erase the channel from memory. The stored channel numbers are

displayed in “GREEN” and the erased channel numbers are displayed in “RED”.

6. Channel Up ( ) Button***

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

128-7297

8 of 20

-8-

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores the sound to the previously set level.

8. ENTER Button**

Used to implement a selected setting or menu option.

9. LEFT ( ) Button**

Allows the user to shift left in the menu options.

10. MENU Button**

Allows the user to access the main menu.

11. RETURN Button**

Allows the user to return to the menu while PBC on.

Note : This function only present on VCD 2.0.

12. TV Mode Select Button

Switches certain function keys on the remote control for TV functions.

13. DVD Mode Select button**

Switches certain function keys on the remote control for DVD functions.

128-7297

9 of 20

-9-

14. DISPLAY Button**

Press to display DVD Disc current information.

Press DISPLAYbutton DVD Player Perform

Once Display current TITLE , CHAPTER & elapsed time

Twice Display current SUBTITLE

3 times Display current AUDIO language & channel

4 times Display current surround mode

5 times Display current ANGLE

6 times Display A-B current status

7 times Display REPEAT current status

8 times Display off

15. FM TRANSMITTER ON/OFF Button

Turns the FM Modulator ON/OFF.

16. AUDIO Button**

Press this button to display and select the desired AUDIO language. Each time the button is pressed, the language or track

changes. NOTE: The languages & tracks you can select are vary from disc to disc.

128-7297

10 of 20

-10-

17. ZOOM Button – Press this button to zoom the picture. **

Press ZOOM button OSD DVD Player Perform

Once 2X ZOOM picture 2 times

Twice 3X ZOOM picture 3 times

3 times 4X ZOOM picture 4 times

4 times 1/2 Reduces picture to 1/2 normal size

5 times 1/3 Reduces picture to 1/3 normal size

6 times 1/4 Reduces picture to 1/4 normal size

7 times OFF Returns to normal size

18. PAUSE ( ) Button**

Allows the user to pause the playback.

19. STOP (!!

!) Button**

Disc playback will be stopped.

20. PREVIOUS ( ) Button**

Allows the user to return to the previous chapter or track.

21. NEXT ( ) Button**

Allows the user to skip to the next chapter or track.

22. REV ( ) Button**

Allows the user to search in a backward direction at 2, 4, 8, 16 and 32 times the normal speed.
