Mediant™ 800 Gateway and E-SBC

Quick Setup Guide

Welcome

Congratulations on purchasing your AudioCodes Mediant 800 Gateway and Enterprise Session Border

Controller (E-SBC),hereafter, referred to as the device! This Quick Guide applies to hardware revisions Band C.

This document is intended to provide basic setup instructions for initial access to the device and for connecting

it to your network. For advanced configuration and cabling, refer to the User's Manual and Hardware Manual

respectively, which can be downloaded from AudioCodes website at

https://www.audiocodes.com/library/technical-documents.

Before you begin, please read the Safety Precautions on page 9.

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)

are shipped with your device:

4 x anti-slide bumpers for desktop mounting

2 x mounting brackets for 19-inch rack mounting

1 x AC power cable

1 x AC/DC power adaptor (supplied only when DC power is ordered, which is applicable only to Rev. C)

Regulatory Information document

2 |Page

Physical Description of Front Panel

Mediant 800 Rev. B

Mediant 800 Rev. C

[The number and type of port interfaces depend on your ordered hardware configuration.]

POWER (Rev. B)

AC PWR (Rev. C)

LED indicating AC power status:

Green On

AC power is received by device.

Off

No power.

DC PWR (Rev. C)

LED indicating DC power status:

Green On

DC power is received by device.

Off

No power.

STATUS

LED indicating operating status:

Green On

Device is operational (and in Standalone mode for High-

Availability / HA systems).

Green Fast-Flashing

Initial rebooting stage or software upgrade (.cmp file) in

process (supported only from Version 7.2).

Green Slow-Flash

Device is in HA mode (active device).

Green Slow-Fast Flash

Device is in HA mode (redundant device).

Red On

Boot failure.

Off

Advanced rebooting stage.

FXS,FXO,BRI &

PRI

Telephony port interfaces, which can include any one or a combination of FXS (RJ-

11), FXO (RJ-11), ISDN BRI (RJ-45), and ISDN PRI (RJ-48) interfaces.

3 |Page

FXS port status LED:

Green On

Phone is in off-hook position.

Green Flashing

Phone is ringing.

Red On



Malfunction in line or out of service due to Serial

Peripheral Interface (SPI) failure.



Port is disabled.

Off

Phone is in on-hook position or no power.

FXO port status LED:

Green On

FXO line with PBX is in off-hook position.

Green Flashing

Ringing is detected from PBX.

Red On

Malfunction in line or out of service due to SPI

failure.



Port is disabled.

Off

FXO line is in on-hook position or no power.

BRI port status LED

Green On

Physical Layer 1 is synchronized (normal operation).

Red On

Physical Layer 1 is not synchronized.

Off

BRI trunk is not active.

PRI (E1/T1) port status LED:

Green On

Trunk is synchronized (normal operation).

Red On

Loss due to any of the following signals:

LOS (Loss of Signal)

LOF (Loss of Frame)

AIS (Alarm Indication Signal - Blue Alarm)



RAI (Remote Alarm Indication - Yellow Alarm)

Off

Failure or disruption in the power supply or power is

currently not being supplied to the device through the

power supply entry.

Up to four Gigabit Ethernet (10/100/1000Base-T) ports (RJ-45) for connecting IP

phones, computers, or switches. The ports support 1+1 Ethernet port redundancy

(active-standby), half- and full-duplex modes, auto-negotiation, and straight-

through or crossover cable detection.

Green On

Ethernet link established.

Green Flashing

Data is being received or transmitted.

Off

No Ethernet link.

Eight Fast Ethernet (10/100Base-TX) ports (RJ-45). For a description, see the GE

ports (above).

Reset pinhole button for resetting the device or restoring it to factory defaults

(press and hold down the button for at least 12 seconds, but no more than 25

seconds).

CONSOLE

RS-232 serial interface port (RJ-45).

USB/WWAN

USB ports, which can be used for various functionalities such as saving debug

captures to a USB storage device.

4 |Page

Physical Description of Rear Panel

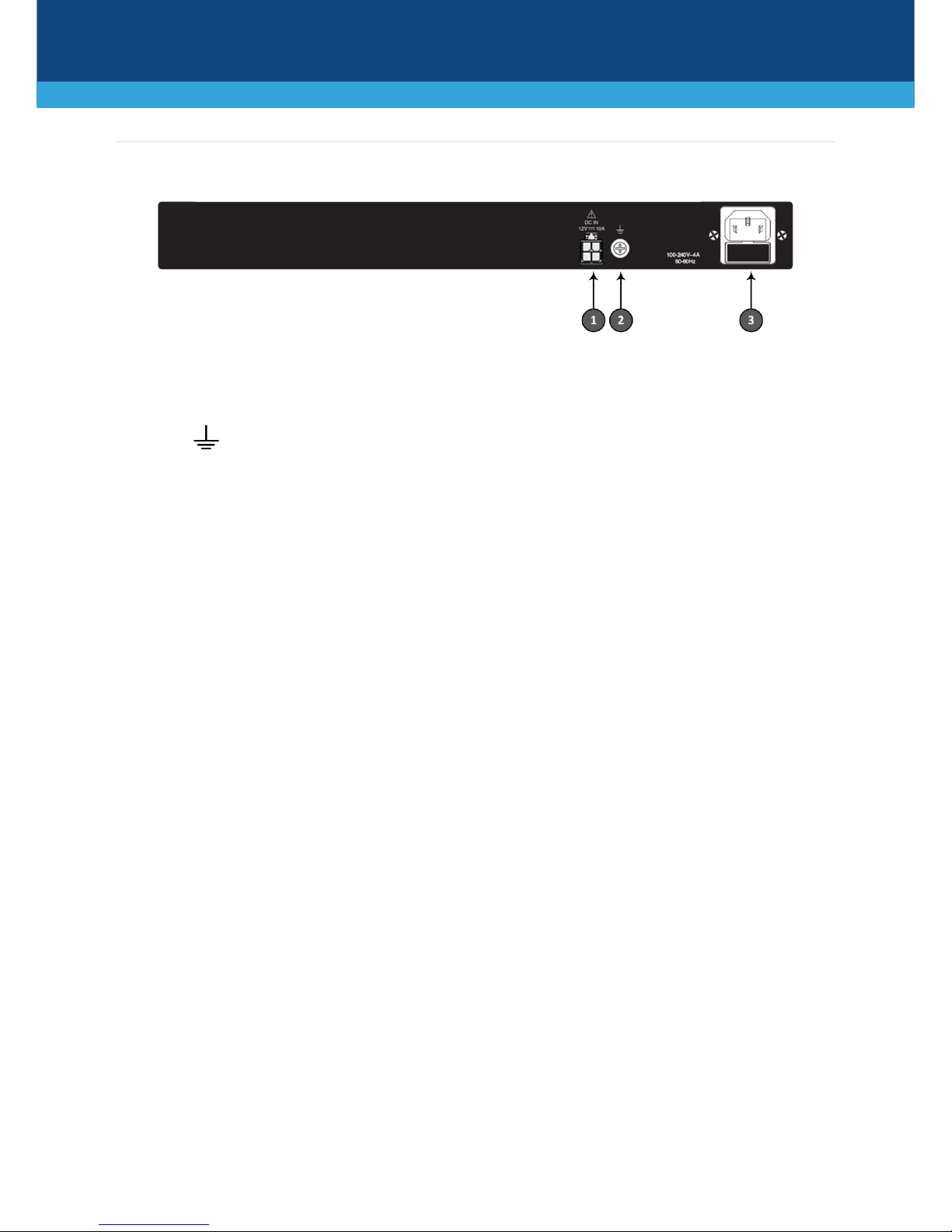

[The number and type of port interfaces depend on your ordered hardware configuration.]

DC IN (Rev. C)

DC power inlet for accepting a DC terminal block plug.

Note: DC power is a separate orderable item and applicable only to Rev. C.

2 Protective earthing screw for grounding the device.

AC IN

AC power supply entry.

5 |Page

Mounting the Device

You can mount the device on a desktop using the four anti-slide bumpers (supplied), which you need to stick on

the grooves located on the underside of the device.

Alternatively, you can mount the device in a standard 19-inch rack. Rack mounting involves placing the device

on a pre-installed rack shelf (separate orderable item), and then securing the device to the rack frame using the

mounting brackets (supplied), shown attached in the figure below.

Cabling the Device to Power

1. GROUNDING: Ground (earth) the device by connecting an electrically earthed strap of 16-AWG

(minimum) wire to the device's grounding screw located on the rear panel, using the supplied washer.

Fasten the wire securely using a 6-32 UNC screw. Connect the other end of the strap to protective

earthing. This should be in accordance with regulations enforced in the country of installation.

2. Connect the device to the power source:

AC POWER: Connect the line socket of the AC power cord (supplied) to the device's AC power inlet

located on the rear panel. Connect the plug at the other end of the AC power cord to a standard

electrical outlet.

6 |Page

DC Power: Insert the male DC plug into the DC inlet (DC 12V) connector located on the device's

rear panel. Make sure that the latch faces up (see figure below) and that it snaps into the inlet.

Plug the female connector located on one end of the AC power cord (supplied) into the AC/DC

power adaptor. Connect the plug at other end of the AC power cord to a standard electrical wall

outlet.

Note:DC power is a separate orderable item and applicable only to Rev. C.

7 |Page

Assigning an IP Address to the Device

Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 192.168.0.1) to initially access

the device's Web-based management interface and then change it to suit your networking addressing scheme

for subsequent connectivity.

1. Using a CAT-5e/6 straight-through RJ-45 Ethernet cable, connect the device's Ethernet port GE 1 (front

panel) to the LAN port on a computer.

2. Change the IP address of your computer to correspond with the device's default IP address and subnet

mask.

3. On your computer, open a standard Web browser (for example, Google Chrome), and then in the URL

field, enter the device's default IP address; the Web Login screen appears:

4. Type in the default username (Admin) and password (Admin), and then click Log In.

5. Open the IP Interfaces table (Setup menu > IP Network tab > Core Entities folder > IP Interfaces).

8 |Page

6. Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in

the dialog box, modify the device's OAMP interface.

7. Click Apply to submit your changes.

8. On the toolbar, click Reset to access the Maintenance Actions page.

9. On the Maintenance Actions page, click Reset to save your new settings to flash memory with a device

reset.

10. Disconnect the device's Ethernet cable from the computer and connect it to your network.

11. Access the device's management interface using the newly assigned IP address.

9 |Page

Safety Precautions

This device is an indoor unit and therefore, must not be installed outdoors. Ethernet cabling must be

routed only indoors and must not exit the building.

The device must be installed and serviced only by qualified service personnel.

Do not open or dismantle the device.

Do not expose the device to water or moisture.

Make sure the device is installed in a well-ventilated location to avoid over heating of internal

components and subsequent damage.

Do not place any object on top of the device and make sure that sufficient clearance from the top and

sides are maintained to ensure proper airflow to avoid over heating of internal components.

Operate the device in an ambient temperature (Tma) that does not exceed 40°C (104°F).

The device must be installed only in restricted access locations.

For AC power, use only the supplied AC power cord for connection to the power source.

The device must be connected to an electrical socket-outlet providing a protective earthing connection.

Operate the device only from the type of power source indicated on the chassis.

For DC power, use only the AC/DC power adaptor that is supplied by AudioCodes.

Installation of the device must be in accordance with national wiring codes and conform to local

regulations.

The device must be installed only in telecommunication sites in compliance with ETS 300-253

requirements "Earthing and Bonding of Telecommunication Equipment in Telecommunication

Centers".

Prior to installation, earth loop impedance test must be performed by a certified electrician to ensure

grounding suitability at the power outlet intended to feed the device. It is essential that impedance is

kept below 0.5 ohms.

10 |Page
