AudioCodes MediaPack 114 User manual

RingCentral®Datasheet | AudioCodes Gateway Configuration Guide

AudioCodes Gateway

Configuration Guide

Provisioning

The Emergency Survivability Failover Configuration is available with AudioCodes’ analog gateways

MediaPack 114 and 118. AudioCodes offers these models with the FXO port necessary for connecting the

analog POTS line.

The AudioCodes analog gateway MediaPack 114 or 118 connects to the POTS line from the telco provider on

its FXO port. The gateway is deployed in the customer LAN granting access to the Polycom VVX phones that

will be using the gateway for emergency survivability. The AudioCodes gateway must be configured either

using a configuration file or using the gateway’s element manager.

The details of the AudioCodes MediaPack gateways are available here.

Gateway configuration

The gateway must be configured manually by loading a prepared configuration file on the gateway’s element

manager or configured directly using the element manager GUI.

These are the steps for configuring the MediaPack 114 Gateway using the element manager GUI. Similar

steps are applicable for MediaPack 118.

RingCentral®Datasheet | AudioCodes Gateway Configuration Guide

Data required

• Inside IP address for mp114—mp114.ip.addr

• Phone number for external FXO line

• Inside IP addresses of all phones involved—phone.ip.addr

NOTE: IP address of the Polycom VVX phones should be static so that the gateways can be congured with the phone IP address for

the connections.

Configure AudioCodes MP114

• Browse to http://mp114.ip.addr and login as Admin with password Admin.

• Select “Full.”

• Navigate to System / Management / Web User Accounts and modify the Admin and User passwords.

RingCentral®Datasheet | AudioCodes Gateway Configuration Guide

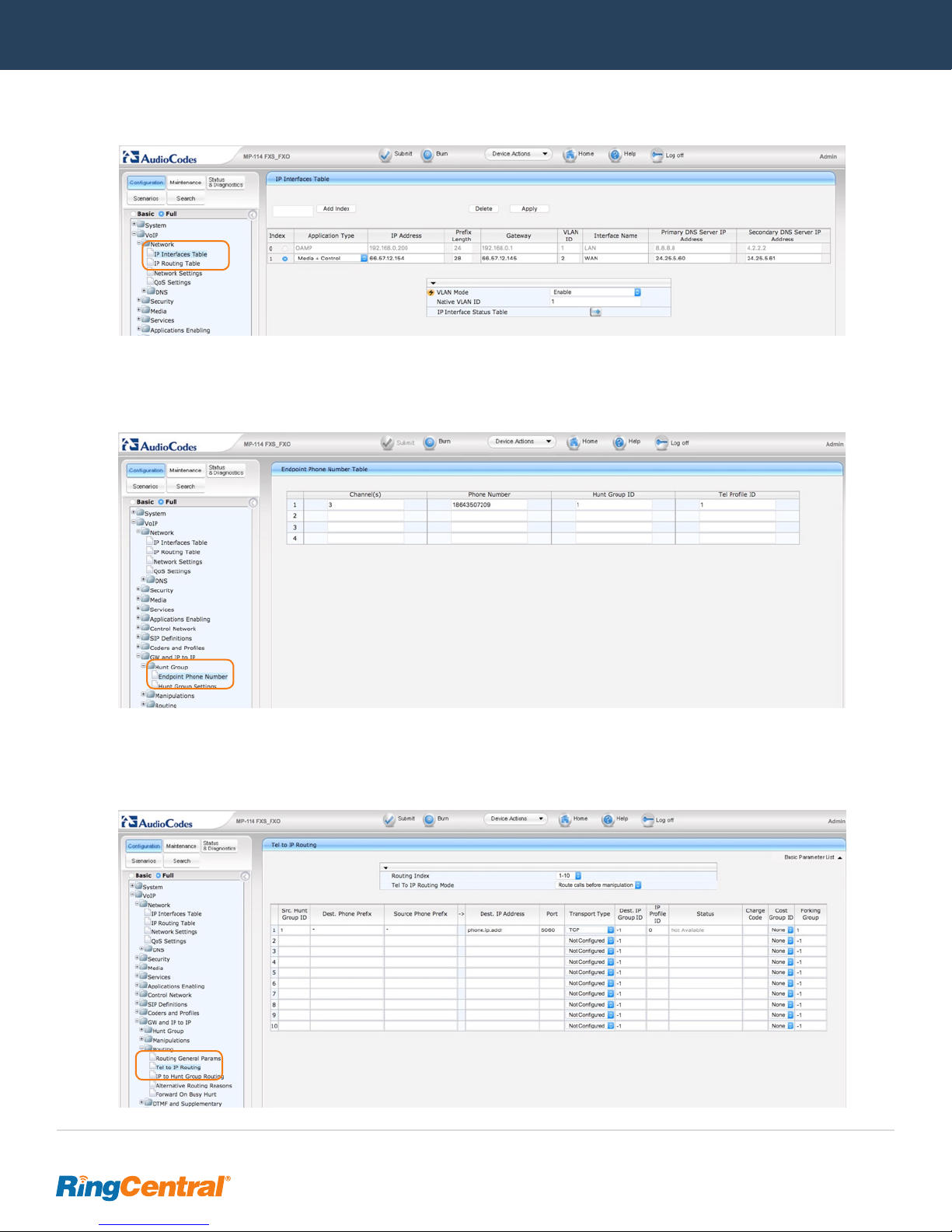

• Navigate to VoIP / Network / IP Interfaces Table and set Index 0 to inside interface addressing; there is no need for an outside interface.

• Navigate to VoIP / GW and IP to IP / Hunt Group / Endpoint Phone Number to set phone number of FXO line and the channel

assignment of the FXO port on the back of the device.

• Navigate to VoIP / GW and IP to IP / Routing / Tel to IP Routing and set up one row for each phone that should ring for incoming calls on

the FXO line (transport type should be TCP and port number should match local SIP port). Be sure to enter the forking group “1” for each

entry so that all phones will ring simultaneously for 911 callback.

»***For this MP114, there are 2 FXS ports (1, 2) and 2 FXO ports (3, 4)***

RingCentral®Datasheet | AudioCodes Gateway Configuration Guide

• Navigate to VoIP / GW and IP to IP / Routing / IP to Hunt Group Routing and set up row 1 as shown. You can restrict outbound to FXO

to only allow 911 by replacing “*” in the Dest. Phone Prefix table to 911 or any variation of patterns you want to allow versus “*” for all

destinations, depending on your needs.

• Navigate to VoIP / GW and IP to IP / Analog Gateway / Automatic Dialing and set port 3 as show below. “CO_Line” is just a marker to

allow for automatic dialing to occur when the FXO port receives an incoming call.

RingCentral®Datasheet | AudioCodes Gateway Configuration Guide

• Navigate to VoIP / SAS / Stand Alone Survivability and set as shown. It is important that you use ports 5070 for SAS.

KID-9694 08/17

RingCentral, Inc. 20 Davis Drive, Belmont, CA 94002. ringcentral.com

RingCentral logo are trademarks of RingCentral, Inc. Other third-party marks and logos displayed in this

document are the trademarks of their respective owners.

For assistance with gateway deployment, installation, and/or configuration, please contact AudioCodes directly.

Email: [email protected]

North America: +1-732-652-1085, +1-800-735-4588

This manual suits for next models
