Asus RT-N56U User manual

®

Quick Start Guide

RT-N56U

Extreme Performance in Style

Dual-band Wireless-N Gigabit Router

NA7823 / Second Edition / November 2012

English...............................................................................................................................................4

繁體中文 ..........................................................................................................................................16

Français .............................................................................................................................................28

Español..............................................................................................................................................40

NOTE / <

注意

> / <REMARQUE> / <NOTA>

• For more details, refer to the user manual included in the support CD.

• 󰆸󰆸󰙉󰀟

• Pour plus de détails, consultez le manuel de l'utilisateur contenu dans le CD de

support.

• Para obtener más detalles, consulte el manual del usuario incluido en el CD de

soporte.

4

English

Package contents

NOTES:

• If any of the items is damaged or missing, contact ASUS for technical inquiries and

support. Refer to the ASUS Support Hotline list at the back of this guide.

• Keep the original packaging material in case you would need future warranty

services such as repair or replacement.

RT-N56U Wireless Router Network cable

Power adapter Quick Start Guide

Support CD (User Manual/utility software) Warranty card

Hardware features

1) USB LED 5) 2.4GHz LED 9) LAN 1 ~ 4 ports*

2) LAN LED 6) Power LED 10) WAN (Internet) port*

3) WAN LED 7) USB 2.0 ports 11) Power (DC-In) port

4) 5GHz LED 8) Reset button 12) WPS button

5

English

NOTES:

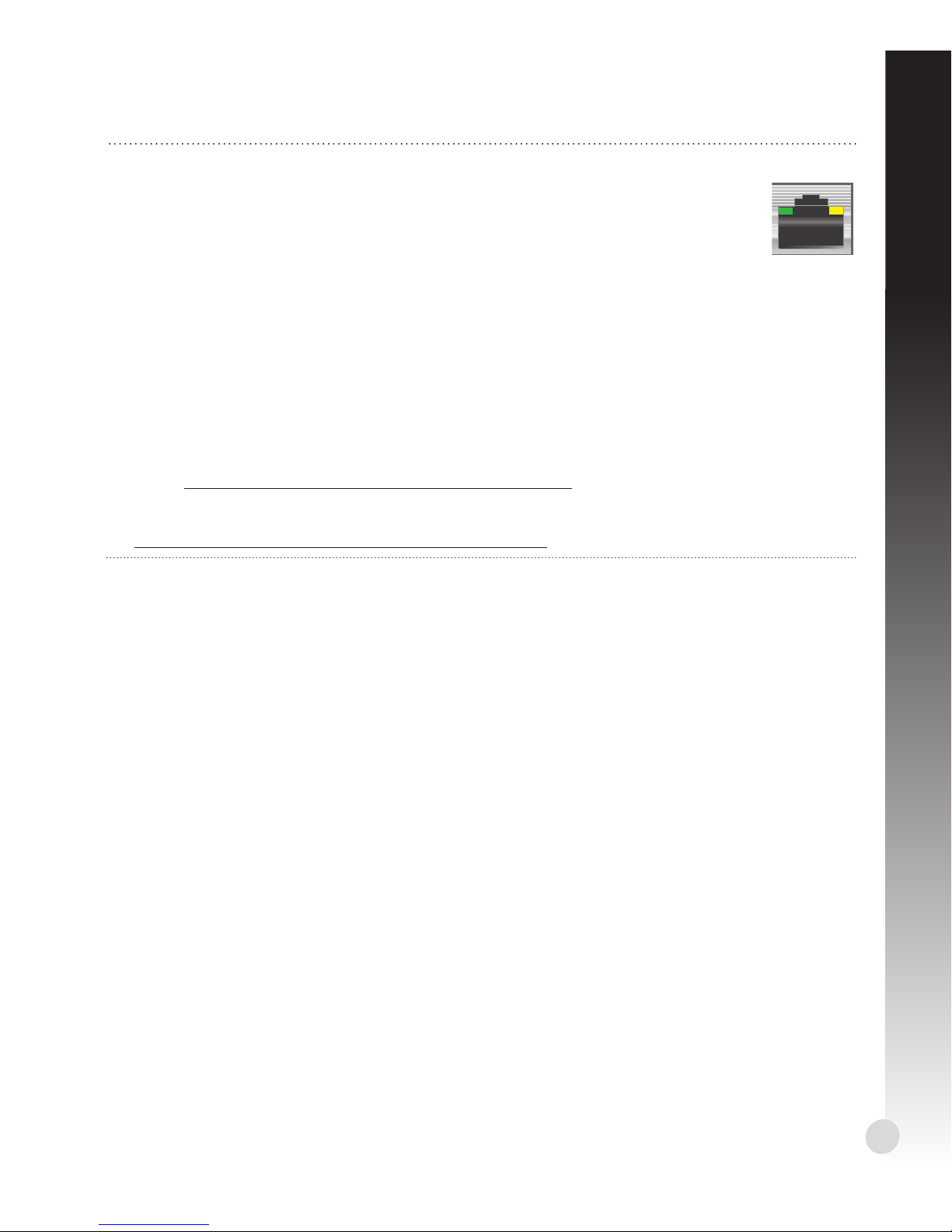

• *There are two LEDs in the WAN and LAN ports. Yellow LED means

Gigabit connection. Green LED means 10/100Mb connection.

• USB External HDD/Flash disk:

• The wireless router works with most USB HDDs/Flash disks up to 2TB and supports

read-write access for FAT16, FAT32, EXT2, EXT3 and NTFS.

• To safely remove the USB disk, launch the web GUI (http://192.168.1.1), then in

the Network Map page > External USB disk status > Safely Remove disk eld, click

Remove.

• Incorrect removal of the USB disk may cause data corruption.

• For the list of le system and hard disk partitions that the wireless router supports,

visit http://event.asus.com/networks/disksupport

• For the list of printers that the wireless router supports, visit

http://event.asus.com/networks/printersupport

6

English

Positioning your wireless router

For the best wireless signal transmission between the wireless router and the network

devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the

network devices.

• Keep the device away from metal obstructions and away from direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer

peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors,

uorescent lights, microwave ovens, refrigerators, and other industrial equipment to

prevent signal interference or loss.

• For the best front-to-rear coverage, place the wireless router in an upright position.

• For the best up-and-down coverage, place the wireless router in an inclined position.

• Always update to the latest rmware. Visit the ASUS website at

http://www.asus.com to get the latest rmware updates.

7

English

Before you proceed

1. Unplug and disconnect the wires/cables from your existing modem setup.

WARNING! Ensure that your cable/ADSL modem has been turned o for at least two

minutes.

a: Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL

modem.

b: Disconnect the network cable from your cable/ADSL modem.

2. Set up your wireless environment.

a: Insert your wireless router’s AC adapter to the DC-In port and plug it to a power outlet.

b: Using the network cable, connect your computer to your wireless router’s LAN port.

IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.

Modem

ab

Modem

a

b

c

d

8

English

c: Using another network cable, connect your modem to your wireless router’s WAN

port.

d: Insert your modem’s AC adapter to the DC-In port and plug it to a power outlet.

3. Disable some settings on your computer.

A. Disable the proxy server, if enabled.

B. Set the TCP/IP settings to automatically obtain an IP address.

C. Disable the dial-up connection, if enabled.

NOTE: For more details on disabling your computer settings, refer to Frequently

Asked Questions (FAQs).

9

English

1. Congure your wireless settings via the wireless router’s web graphics user inter-

face (web GUI).

a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome, or

Safari.

Getting started

NOTE: If QIS does not launch automatically, follow these steps to manually launch

QIS:

• On your web browser, key in http://192.168.1.1 and run the Quick Internet Setup

(QIS) Wizard again.

• Disable the proxy settings, dial-up connection, and set your TCP/IP settings to

automatically obtain an IP address. For more details, refer to the FAQs section or

use the Setup Wizard in the support CD for auto-diagnosis.

b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects if your

ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP. Key in the

necessary information for your connection type.

IMPORTANT! Obtain the necessary information about your Internet connection type

from your Internet Service Provider (ISP).

NOTE: The auto-detection of your ISP connection type takes place when you

congure the wireless router for the rst time or when your wireless router is reset to

its default settings.

ab

10

English

NOTE: You can assign a network name with up to 32 characters.

c: Assign the network name (SSID) and

security key for your 2.4GHz and 5GHz

wireless connection. Click Apply when

done.

d: Your Internet and wireless settings are

displayed. Click Next to continue.

e: Read the wireless network connection

tutorial. When done, click Finish.

Frequently Asked Questions (FAQs)

After following the steps, I still cannot access the wireless router’s web graphics user interface

(web GUI) to congure the wireless router settings.

A. Disable the proxy server, if enabled.

Windows® 7

1. Click Start > Internet Explorer to launch the web

browser.

2. Click Tools > Internet options > Connections tab > LAN

settings.

Other manuals for RT-N56U
