Quick Start Guide2

English

ASUS Orion Pro

English

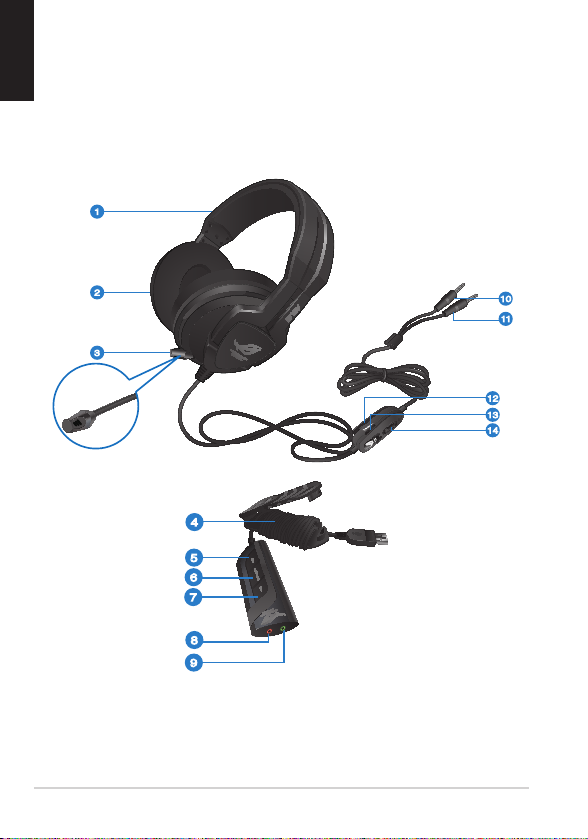

Getting to know your headset

1. Adjustable headband

Allows you to adjust the headset for a snug t.

2. Ear cups

Provides you with an enhanced audio experience.

3. Microphone

Storable and adjustable microphone for two-way communication.

4. Cable management system

Allows you to easily fold and secure the cable for tangle-free storage.

5. Gaming/FPS button

Press the Gaming/FPS button to enable/disable the FPS EQ mode.

6. Surround button

Press the Surround button to enable/disable the surround sound.

7. Amp button

Press the Amp button to enable/disable the headphone amplier.

8. Microphone jack (Red)

Insert a microphone plug to this port.

9. Headphone jack (Green)

Insert a headphone plug to this port.

10. Headphone plug

Allows you to connect to the headphone port of your computer or the

USB dongle.

11. Microphone plug

Allows you to connect to the microphone port of your computer or the

USB dongle.

12.In-line clip

Allows you to clip the in-line volume control to your clothes.

13.Volume control

Allows you to increase/decrease the volume.

14. Mute control

Allows you to put the microphone on mute mode.

Package contents

• 1 x ROG Orion headset • 1 x cable organizer

• 1 x ROG Spitre • 1 x Quick Start Guide

U7567_Orion_pro.indb 2 6/09/12 16:31:55

Quick Start Guide

English

ASUS Orion Pro 3

English

Getting to know your headset

1. Adjustable headband

Allows you to adjust the headset for a snug t.

2. Ear cups

Provides you with an enhanced audio experience.

3. Microphone

Storable and adjustable microphone for two-way communication.

4. Cable management system

Allows you to easily fold and secure the cable for tangle-free storage.

5. Gaming/FPS button

Press the Gaming/FPS button to enable/disable the FPS EQ mode.

6. Surround button

Press the Surround button to enable/disable the surround sound.

7. Amp button

Press the Amp button to enable/disable the headphone amplier.

8. Microphone jack (Red)

Insert a microphone plug to this port.

9. Headphone jack (Green)

Insert a headphone plug to this port.

10. Headphone plug

Allows you to connect to the headphone port of your computer or the

USB dongle.

11. Microphone plug

Allows you to connect to the microphone port of your computer or the

USB dongle.

12.In-line clip

Allows you to clip the in-line volume control to your clothes.

13.Volume control

Allows you to increase/decrease the volume.

14. Mute control

Allows you to put the microphone on mute mode.

Package contents

• 1 x ROG Orion headset • 1 x cable organizer

• 1 x ROG Spitre • 1 x Quick Start Guide

U7567_Orion_pro.indb 3 6/09/12 16:31:57

Quick Start Guide4

English

Using the Orion headset and its microphone

Connect the microphone and headphone plugs into the respective ports of

your computer or to the ROG Spitre. Extend the microphone and position

it close to your mouth when in use.

• Adjust the headband so it ts snugly on your head.

• Adjust the ear cups so it ts comfortably around your ears.

• Move the volume control to increase/decrease the volume.

Wearing your headset

There are L and R markings on the ear cups.

Specications

Driver dimensions: 50mm with neodymium magnet

Ear Cup Diameter: 100mm

Impedance: 32 ohms+15%

Frequency response: 20~20 k Hz

PNC (Passive noise

cancellation) performance:

Maximum >30dB

Dimension (mm): 189.85mm (W) x 187.87mm (H) x

103.82mm(D)

Weight (without cables): 268g

Using your headset with the USB dongle

1. Plug the headset’s microphone and output cable to their respective jacks

on the USB dongle.

2. Plug the USB dongle into your computer’s USB port. Driver installation is

not required.

3. Go to the Control Panel and audio settings to change the default input /

recording device.

Using Gaming / Surround / Amp modes on the USB

dongle

Press the Gaming / Surround / Amp button on the USB dongle to enable/

disable each audio mode.

U7567_Orion_pro.indb 4 6/09/12 16:31:58
