Asus HS-W1 User manual
HS-W1
USB Wireless Headset
U7446 / Second Edition / May 2012
Quick Start Guide
English...........................................2
Français .........................................6
Deutsch.........................................10
Italiano ..........................................14
Русский.........................................18
Čeština...........................................22
Dansk.............................................26
Nederlands ..................................30
Suomi.............................................34
Ελληνικά........................................38
Magyar ..........................................42
Norwegian ...................................46
Polski..............................................50
Português.....................................54
Română.........................................58
Slovenščina..................................62
Español..........................................66
Svenska .........................................70
Українська...................................74
Türkçe ............................................78
2
Package contents
• 1 x HS-W1 USB Wireless Headset
• 1 x USB wireless dongle
Getting to know your headset
• 1 x Mini-USB charging cable
• 1 x Quick Start Guide
English
1. Adjustable headband
Allows you to adjust the headset for a snug t on your head.
2. Ear cups
Provides you with an enhanced audio experience.
3. Microphone
Use the microphone for a two-way communication.
4. Mini-USB port
Use this port to connect the bundled mini-USB cable to your computer’s
USB port to charge your wireless headset’s battery.
5. Volume up (+)
Press (+) to increase the volume.
6. Status indicators
• Solid red light: Battery is charging. The red light is o when the
battery is fully charged.
• Solid green light: Devices are in the pairing mode.
• Fast ashing green light: Devices are waiting to be paired.
• Slow ashing green light: Devices are not paired.
2
1
3
4
6
5
7
8
Quick Start Guide
3
English
Charging the battery
1
2
NOTES:
• Charge the battery for six hours before using your wireless
headset for the rst time.
• If the battery is completely used up, charge it for approximately
three hours.
• The battery power will slowly be depleted even if you do not use
the wireless headset.
To charge the battery:
1. Connect the mini-USB cable in the wireless headset’s mini-USB port.
2. Connect the other end of the mini-USB cable into your computer’s USB
port.
WARNING: DO NOT attempt to repair the wireless headset or
replace the rechargeable battery. The rechargeable battery should
be replaced only by an authorized service personnel. Please contact
the ASUS Service Center for service information.
7. Power button
Press this button to turn your wireless headset on/o or to pair it with
your computer.
8. Volume down (-)
Press (-) to decrease the volume.
ASUS HS-W1 USB Wireless Headset
4
English

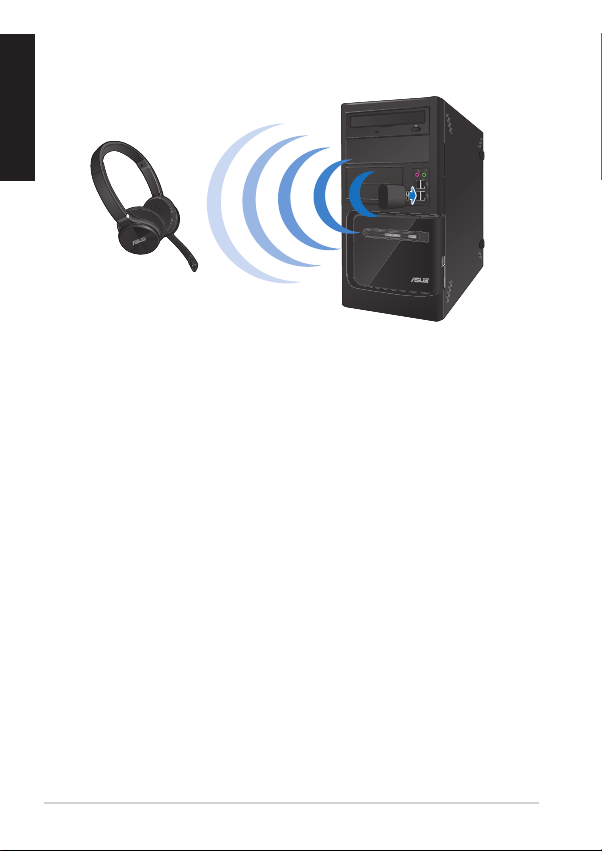

Pairing the wireless headset and the USB wireless
dongle
To pair the wireless headset and the USB wireless dongle:
1. Connect the bundled USB wireless dongle to your computer’s USB port
for a wireless transmission up to 15 meters.
2. Press the power button for a few seconds until the status indicator turns
green. You can now start using your wireless headset to listen to music or
chat with friends.
Turning the microphone on/o
To turn the microphone on
• Rotate the microphone down until you will hear a clicking sound.
To turn the microphone o
• Rotate the microphone up until you will hear a clicking sound.
Quick Start Guide
5
Specications
Wireless technology
Wi-Fi 2.4G advanced 2-way digital
transmission
Distance of use
Up to 15 meters
Headset speaker
40mm ultra high performance
Headset microphone
Noise cancellation clarity
Audio quality
Uncompressed audio for music (CD-
quality) and voice (extra clarity)
Frequency response
20Hz ~ 20kHz
Listening time
Up to 8 hours
Charging time (full charge)
Approximately 3 hours
Battery type
Lithium polymer
Dimension
180 x 175 x 65 mm
Weight
170g
English
ASUS HS-W1 USB Wireless Headset
