Asus 3600 - VENTO Mid Tower User manual

E2844

VENTO 3600

Installing the power supply unit (PSU)

B

1

2

3

2

2

4

5

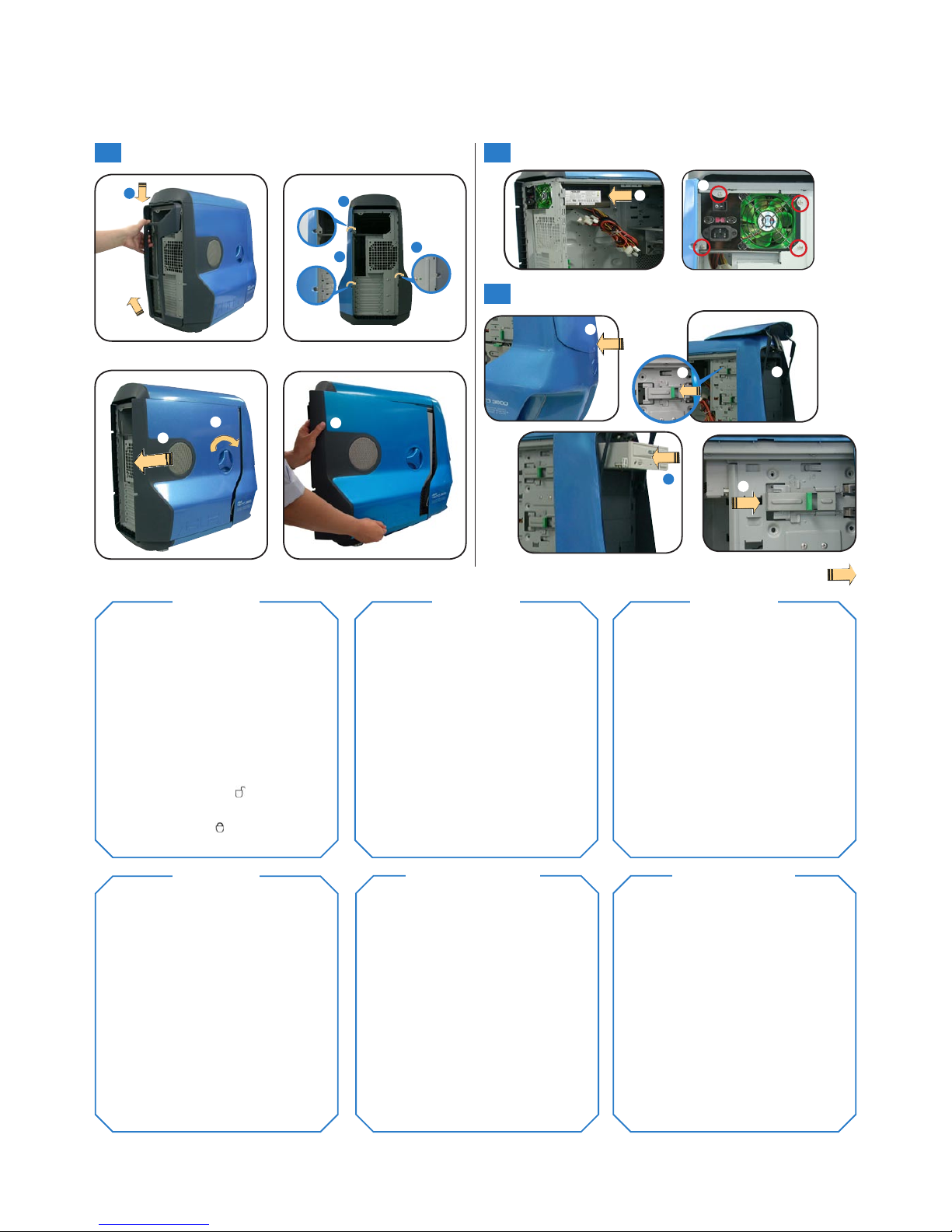

Removing the side cover

A

Installing an optical disk drive (ODD)

C

3

1

5

4

English

A1. Push down to release the top tabs of the cable

management kit, then pull up the cable management kit

to release it from the bottom tabs.

2. Remove three screws on the rear panel.

3. Turn the swivel 45º clockwise to release the side cover.

4. Push the side cover to the direction of the rear panel.

5. Tilt the side cover and slide it out of the chassis.

B 1. SlidethePSUintotheslotuntilitsnuglytsthemetal

rail.

2. Secure with screws.

3. Set the voltage selector according to the voltage in

your area.

C1. Push the marked portion of the Magic Mask

®

to open.

2. Remove the drive bay cover.

3. Slide the bay lock toward the sign.

4. Insert the ODD into the bay.

5. Align the ODD holes with the bay holes, then slide

the bay lock toward the sign to secure the drive in

place.

6. Connect cables.

Continued at the back

German French

Traditional Chinese Simplied Chinese

1

2

2

Spanish

Installing an expansion card

E

Installing a hard disk drive (HDD)

D

Reinstalling the side cover

G

English

D1. Press down the HDD cage lock, then pull the cage out

of the chassis.

2. Insert the HDD into the upper bay of the cage. Secure

with screws.

3. Reinstall the HDD cage to the chassis.

4. Connect cables.

E1. Push out the green lock tab.

2. Remove the metal cover opposite the slot you want to

use.

3. Install the card.

4. Secure the card with the lock tab you removed earlier.

F1. Remove the drive bay cover and the knock-down metal

cover, then slide the bay lock toward the sign.

2. Insert the FDD into the bay.

3. Align the FDD holes with the bay holes, then slide the

bay lock toward the sign to secure the drive.

4. Connect cables.

G1. Match the side cover hooks to the chassis rail edge,

thentthesidecovertothechassis.

2. Slide the cover toward the front.

3. Replace the cable management kit.

VENTO 3600 (continued)

Installing a oppy disk drive (FDD)

F

Screw holes

2

3

4

2

1

3

1

2

3

4

Chassis side rail

Side panel hooks

1

2

3

1

German French

Spanish Traditional Chinese Simplied Chinese

P/N:
