Asus P505 User manual
Doc. No:
Date: DEC.02, 2004
Revision: 1
ASUSTeK COMPUTER
INC. P505 SERVICE GUIDE
Page: Grade:
Authorize
by
Review
by
Originator
by
Rev. Modification Modify description Issue
div.
Originator
FIRST RELEASE RMA-TC P.P_PAM
Form No : D2-001-11 Rev.01
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:1
DISASSEMBLE TOOL:
P505X1 SCREWDRIVERX1
ASUS P505 DISASSEMBLE PROCEDURE-
STEPS 1:push the battery lock to right
STEPS 2:pull down the bolt and pick up battery
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:2
STEPS 3:unload the screw in back cover and the
Top of P505
STEPS 4:To pull open the plastics case by tool
Notice: do not scrape the lacquer
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:3
STEPS 5:From another side to open by tool
STEPS 6:1.Remove the lines of BT then make button case
and MAIN_BD separate.
2.Unload the 3 screws from SD_BD and pull up.
3.Then take camera module from SD_BD.
Pull up
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:4
Steps7: Unload the screw from MAIN_BD and remove LCD_
FPC.
Steps 8:1.Pull up MICROPHONE connector.
2.Separate keypad FPC connector and receiver
connector.
3.Unload the SD_FPC connect to the MAIN_BD.
Microphone
connecto
r
Keypad FPC
connector
Unload
the screw
Unload
the
screw
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:5
Steps 9:Pick up cursor key
Steps 10:1.Unload 2 screws from LCD and push forward then
pull LCD up.
2.Take apart TFT BRACKET.
Receiver
Connector
Connect to
SD_BD FPC
connector
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:6
Steps 12:1.Pull up receiver and unload 2 screws from
APKEY HOLDER.
2.Take up APKEY HOLDER and unload 2 screws.
Push down
Push forward
then pull up
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:7
Steps 13:Unload the APKEY_BD and MICROPHONE
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:8
Steps 14:1.Press HING down by tweezers and push out by
left thumb.
2.Remove the cotton then make KEYPAD_FPC
separate with C-PART_ASSY
HING
Doc. No:
ASUSTeK COMPUTER INC.
P505 SERVICE GUIDE Date: DEC.02, 2004
Rev.: Page:9

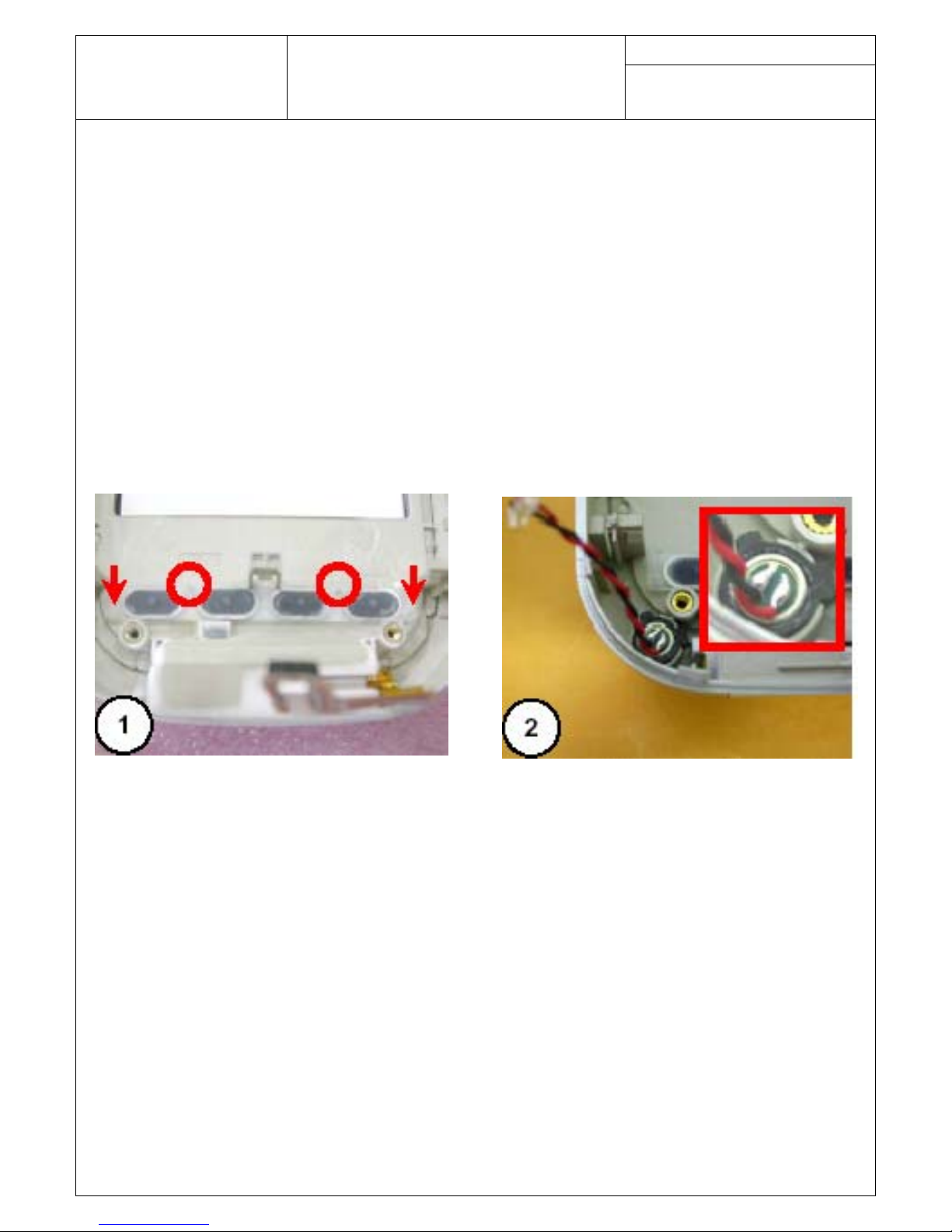

ASUS P505 FABRICATE PROCEDURE-
Steps 1:1.Enter the position hole between AP KEY 1,2 and
3,4 KEY
2.Put MICROPNONE into C-PART_ASSY position
Notice: there are 2 position of raised on MICROPHONE
RUBBER .it need locate in trough of 2 open
holes
Steps 2:1.Put APKEY_BD into APKEY HOLDER.
2.Fixed 2 SCREWS on AKEY_BD.
3.Paste 2 PCB ESD GASKET-1 on APKEY.
HOLDER.
4.Ress down whole APKEY HOLDER. Make 3 bolts
lock APKEY HOLDER.
5.Keep the KEYPAD_FPC of KEYPAD_ASSY on APKEY
HOLDER.
