5000 series strike

Installation Instructions

4019006.001 rev F

©HES 2005

An ASSA ABLOY Group company

Raising the Standards

What do I have?

What do I need?

1 5000 series strike body

1 Trim enhancer

2 Trim enhancer screws

5-11 Blue wire connectors

quantity description item

What tools would you recommend I use?

quantity description item

1 5000 series faceplate

2 Faceplate screws

2 Mounting screws

1 Pig tail connector

You will need 1 faceplate option kit (not included, see page 3) which contains:

*tool may differ for different applications

#4-40 x 1/8

#8-32 x 5/8

#12-24 x 1/2

What item are you looking for?

5000 series strike body

Faceplate option kit

Trim enhancer

Mounting screws

Faceplate screws

Trim enhancer screws

Caution

Before connecting electric strike at the installation site verify input

voltage using a multimeter. Any input voltage exceeding 10% of the

solenoid rating may cause severe damage to the unit.

(sold separately)

(sold with faceplate option kit)

Raising the Standards

An ASSA ABLOY Group company

Electrical ratings for the 5000:

What faceplate will you be using?

501

501A

503

502

504

501B

503B

metal

flat aluminum

flat aluminum/wood

wood

aluminum door

501

501A

503 502

504

501B

503B

option door/frame

pg 24 pg 24

pg 18

pg 26

pg 21

pg 16 pg 14

Step 1

Step 2

Minimum Wire

Gauge Requirements

Solenoid Voltage

12V - 16V 24V

200 feet or less 18 gauge 20 gauge

200 to 300 feet 16 gauge 18 gauge

300 to 400 feet 14 gauge 16 gauge

Refer to pages 13-26 for faceplate dimensions.

strike wiring

configuration

continuous duty

intermittent duty

12V - 16V 24V

resistance 50 Ohms 200 Ohms

10.8 VDC - 17.6 VDC

12 VAC - 17.6 VAC

10% max duty cycle. (2 minute max on time).

10.8VDC - 13.2VDC

.22 Amps - .27 Amps

.22 Amps - .35 Amps

24 VAC - 26.4 VAC

.12 Amps - .13 Amps

21.6 VDC - 26.4 VDC

.1 Amps - .13 Amps

21.6 VDC - 26.4 VDC

.1 Amps - .13 Amps

.24 Amps - .35 Amps

Installer Hint

The wires do not need to be stripped, insert wires into the blue wire

connector, crimp with pliers, and you are finished.

Is your frame already prepared?

If the answer is yes continue to step 4.

If the answer is no see frame prep example pages 11-12.

Is a pigtail already attached?

Step 3

Step 4

If the answer is yes continue to step 5.

If the answer is no please follow the instructions below.

Retrieve wires from inside the frame.

Connect the pigtail to the wires inside the frame by using the

blue wire connectors.

Crimp connectors with pliers.

Raising the Standards

An ASSA ABLOY Group company

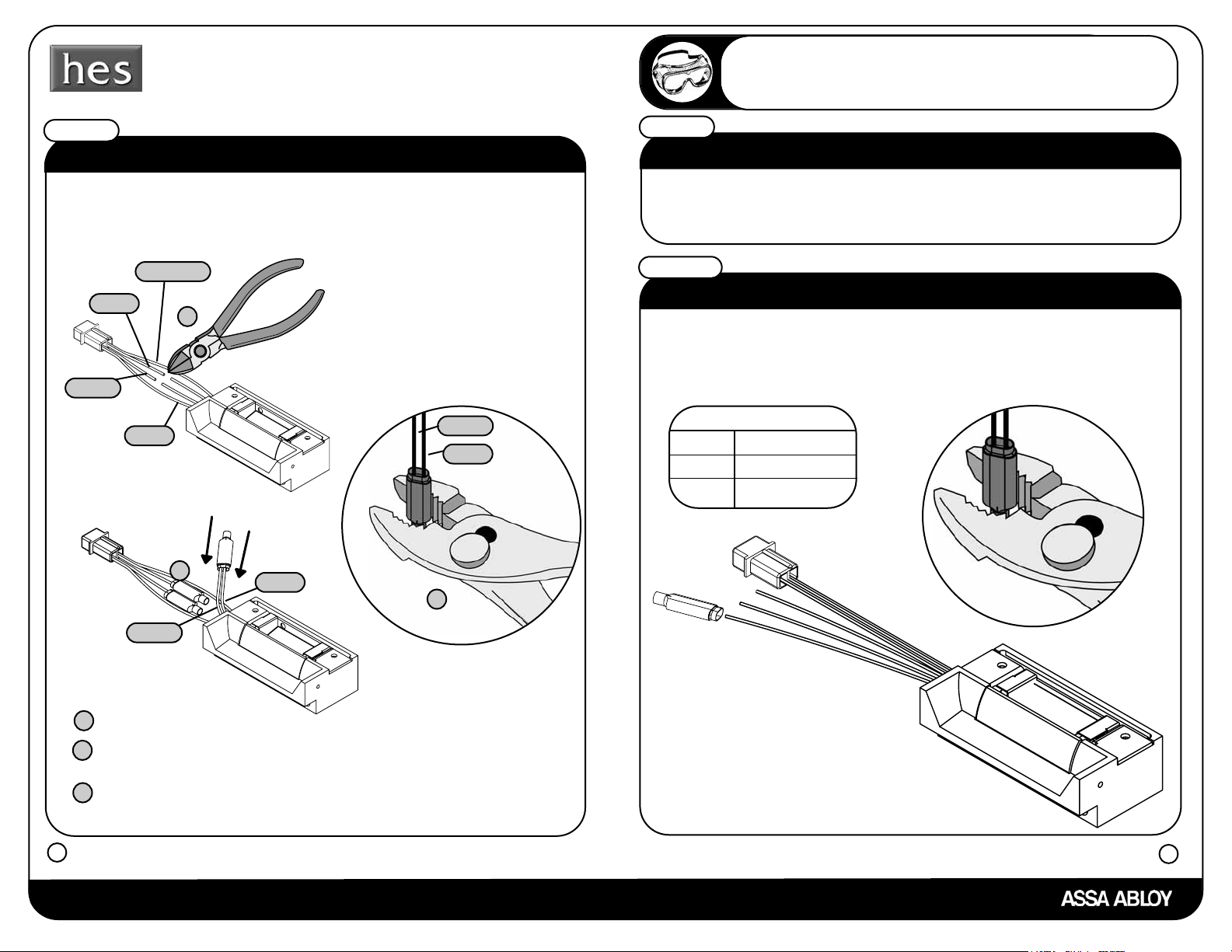

If the answer is 12 - 16* Volt continue to step 6.

If the answer is 24 Volt please follow the instructions below.

Step 5

Cut the violet and black wires.

Insert violet and black wires coming from the strike into one

blue wire connector, crimp with pliers.

crimp one blue wire connector on each black and violet wire coming

from the connector to prevent a short circuit.

black

violet

black

violet

red/green

red

violet

black

*For 16 Volt AC/DC operations,

maintain the solenoid wiring

configured for 12 - 16 V. Be advised

that with a 16 Volt source, the Model

5000 is capable of a 10% Intermittent

Duty Cycle (e.g. “On” for 2 seconds

followed by “Off” for 20 seconds)

with an “On” time not to exceed

2 minutes continuous.

16 Volt AC/DC Capable

(10% Intermittent Duty Cycle)

What does the strike wiring configuration need to be?

Installer Hint

When adjusting the screws for field selectability, veteran

installers suggest adding a drop of Loctite to the screws before

tightening them into their final position for added durability.

Do you use Standard or LBM?

If the answer is standard continue to step 7.

If the answer is LBM follow the instructions below.

What is LBM?

Step 6

Step 6a

LBM stands for Latch Bolt Monitoring. The LBM option detects that

the Latch is captured in the Strike.

white

orange

green

common

normally open

normally closed

wiring diagram

LBM

Raising the Standards

An ASSA ABLOY Group company

Do you need fail secure or fail safe?

If the answer is fail secure follow the instructions under step 7a.

If the answer is fail safe follow the instructions under step 7b.

What is fail safe?

Step 7

Step 7b

Fail safe means if the strike loses power it remains unlocked.

If you need to convert the strike to fail safe

What is fail secure?

Step 7a

Move screws into fail safe position

as shown.

Tighten screws.

Move screws into fail secure position as shown.

Tighten screws.

Fail secure means if the strike loses power it remains locked.

All HES strikes come standard as fail secure.

If you need to convert the strike to fail secure

Loosen screws, but do not remove them. b

Installer Hint

When using the trim enhancer you will need to make the cutout

slightly larger than the actual dimensions given for the strike. This

will allow space for the trim enhancer.

Do you want to use a trim enhancer?

If the answer is no continue to step 10.

If the answer is yes please follow the instructions below.

Step 9

Place trim enhancer on

electric strike body.

The trim enhancer allows the installer to cover up a rough or

incorrect sized frame cut.

How do I attach the faceplate?

Step 8

Place faceplate on electric strike body.

Attach the faceplate to electric

strike body using the faceplate

screws provided with the

faceplate option kit.

Attach the trim enhancer to electric

strike body using the provided

trim enhancer screws .

Raising the Standards

An ASSA ABLOY Group company

What are the final steps?

Step 10

Connect the electric strike to the pigtail.

Insert strike into frame.

Tighten both mounting screws securely.

Installer Hint

When using a combination of lip extensions always stack the smallest size

to the outside.

Do you require a stackable lip extension?

Accessory

Stackable lip extensions are press fit and can easily be

combined to meet the needs of any jamb width, while retaining

the security and finish appearance of the electric strike. To order

stackable lip extensions please contact our customer support

department at 800.626.7590

1/2” - Part Number: 5104-1/2

1” - Part Number: 5104-1

1-1/4” - Part Number: 5104-1-1/4

3” - Part Number: 5104-3

An ASSA ABLOY Group company

Raising the Standards

Frame preparation example*

Want to simplify the process?

bMask off the section of the frame

to be cut by using masking tape.

Find the cutout dimensions on

pages 13-26. Draw your guide

lines on the masking tape to

show where you will make the

needed cuts.

Remove the exisiting strike plate from

the frame by removing the screws.

*Note: Frame example with ANSI 4 7/8” x 1 1/4” strike preparation

HES offers a universal Metal Template Kit to simplify

the installation procedure. Order the model 154-MTK

by calling customer support at 800.626.7590.

Installer Hint

ALWAYS use eye and ear protection.

Veteran Installers recommend cutting inside the lines and

finishing the cutout with a metal file.

eFile the frame to remove rough edges

and ensure the strike fits properly.

Using your guide lines cut the frame to

the dimensions you have measured.

Frame preparation example*

*Note: Frame example with ANSI 4 7/8” x 1 1/4” strike preparation

return to page 4 and

continue with Step 4

Raising the Standards

13 14

An ASSA ABLOY Group company

Installer Hint

To obtain the best results, always cut well inside the lines and

use a metal file to finish off the cutout.

3 3/8"

85.7

1 1/4"

31.8

4 7/8"

124

11/16"

17.5

[2.3]

3/32"

What should the cutout be?

Cut frame according to the dimensions in the drawing.

501 faceplate option

What are the faceplate dimensions?

501 faceplate option

[mm]

Inches [mm]

Inches

An ASSA ABLOY Group company

Raising the Standards

1 1/4"

31.8

4 7/8"

124

3 3/8"

85.7

3/32"

[2.3]

11/16"

17.5

What should the cutout be?

Cut frame according to the dimensions in the drawing.

Install the mounting tabs to the frame, but do not fully tighten mounting

tab screws.*

After you install the strike, securely tighten the mounting tab screws.

501A faceplate option

*Note: To make it easier to mark the locations for the

mounting tabs, attach the mounting tabs to the faceplate,

turn the faceplate backwards and insert it into the cutout.

Mark the hole locations using the template. Remove the

assembly and drill holes.

[mm]

Inches

Installer Hint

It is often beneficial to first put masking tape on the door frame where

you will be installing the electric strike. The masking tape protects the

frame surface from being scratched during the installation process.

What are the faceplate dimensions?

501A faceplate option

[mm]

Inches

An ASSA ABLOY Group company

Raising the Standards

3 3/8"

85.7

4 7/8"

124

1 1/4"

31.8

11/16"

17.5

What should the cutout be?

Cut frame according to the dimensions in the drawing.

beveled aluminum door

Install the mounting tabs to the frame, but do not fully tighten mounting

tab screws.*

After you install the strike, securely tighten the mounting tab screws.

501B faceplate option

*Note: To make it easier to mark the

locations for the mounting tabs, attach

the mounting tabs to the faceplate, turn

the faceplate backwards and insert it

into the cutout. Mark the hole locations

using the template. Remove the

assembly and drill holes.

[mm]

Inches

Installer Hint

Veteran installers suggest removing all dust and debris before final

installation of the electric strike.

What are the faceplate dimensions?

501B faceplate option

[mm]

Inches

Other manuals for HES 5000 Series

Table of contents

Other Assa Abloy Lock manuals

Assa Abloy

Assa Abloy 8037...UL-91E91 Series User manual

Assa Abloy

Assa Abloy 3090 User manual

Assa Abloy

Assa Abloy Corbin Russwin IN100 User manual

Assa Abloy

Assa Abloy Sargent 8200 Series User manual

Assa Abloy

Assa Abloy Yale 5300 Series User manual

Assa Abloy

Assa Abloy 840C-50 User manual

Assa Abloy

Assa Abloy Yale Real Living Assure Lock YRD426 User manual

Assa Abloy

Assa Abloy Yale Real Living B1L Z-Wave Technical specifications

Assa Abloy

Assa Abloy Assa compact 3000 Series User manual

Assa Abloy

Assa Abloy Yale Real Living Assure Lock SL YRD256 Technical specifications

Assa Abloy

Assa Abloy OneSystem 819N User manual

Assa Abloy

Assa Abloy Sargent 8200 Series User manual

Assa Abloy

Assa Abloy SARGENT FM7300 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin CL3100 Series User manual

Assa Abloy

Assa Abloy EL580 User manual

Assa Abloy

Assa Abloy OneSystem 819N Installation guide

Assa Abloy

Assa Abloy hes 8000 Series User manual

Assa Abloy

Assa Abloy Securitron TJ-38 TOP JAM KIT User manual

Assa Abloy

Assa Abloy Corbin Russwin SE LP10 ML20600 User manual

Assa Abloy

Assa Abloy INTERLOCK P84166 User manual

Assa Abloy

Assa Abloy Sargent IN100 User manual

Assa Abloy

Assa Abloy Corbin Russwin SE LP10 MP9800 Series User manual

Assa Abloy

Assa Abloy Securitron Magnalock Series User manual

Assa Abloy

Assa Abloy Door Lock User manual

Popular Lock manuals by other brands

Magic

Magic 105 manual

Gantner

Gantner GAT NET.Lock 7020 System Installation, configuration & operation

Wittkopp

Wittkopp Insys 7202 manual

Dorma

Dorma Studio Classic Installation instruction

Securam

Securam ECSL-601 quick start guide

Sudhaus

Sudhaus 3003 operating manual

Safety 1st

Safety 1st 48517 user guide

Pado

Pado FDS-10 user manual

Esco

Esco systeQ Series installation instructions

COMPX

COMPX National D8951 instruction sheet

secureo

secureo Key Box instruction manual

Stock Loks

Stock Loks C8713 instruction sheet

COMPX

COMPX 1T-058 Information

Auslock

Auslock T11 user manual

ELCOM

ELCOM 7205 Operating instruction

Stealth SAFES

Stealth SAFES ShadowVault Instructions & Troubleshooting

Knox

Knox KeySecure 5 Admin & user guide

Kwikset

Kwikset 48334/01 Quick installation guide
