Assa Abloy Yale Essential Series User manual

Essential Series - YDME 80

YDME 80 - Essential Series

Important Tips

scanner clean after using to ensure the normal use.

2. Please do not use the corrosive cleaner liquid on the lock surface. Clean

it with furniture spray wax.

3. Please adjust the door strike plate when the door deformed causing unable

to open the door or mortise unable to stretch out and draw back.

4. When adding new users, please keep the user No. for future use.

5. Power supply: 8 1.5V battery 5 Emergency battery:9V.

to open the door and keep them in a reachable place.

7. For those locks with electronic deadbolt function, if locked inside, only the

master code or override key can open the door and after it was opened, no

matter inside or outside, the deadbolt function lost. But you can still use the

deadbolt function inside the door by hand.

The right way of using

Wrong way of using

Tips:

Keep your ﬁnger clean and make sure to let it touch the metal frame of the scanner.

incorrect incorrect incorrect incorrect incorrect

correctcorrect correct correct

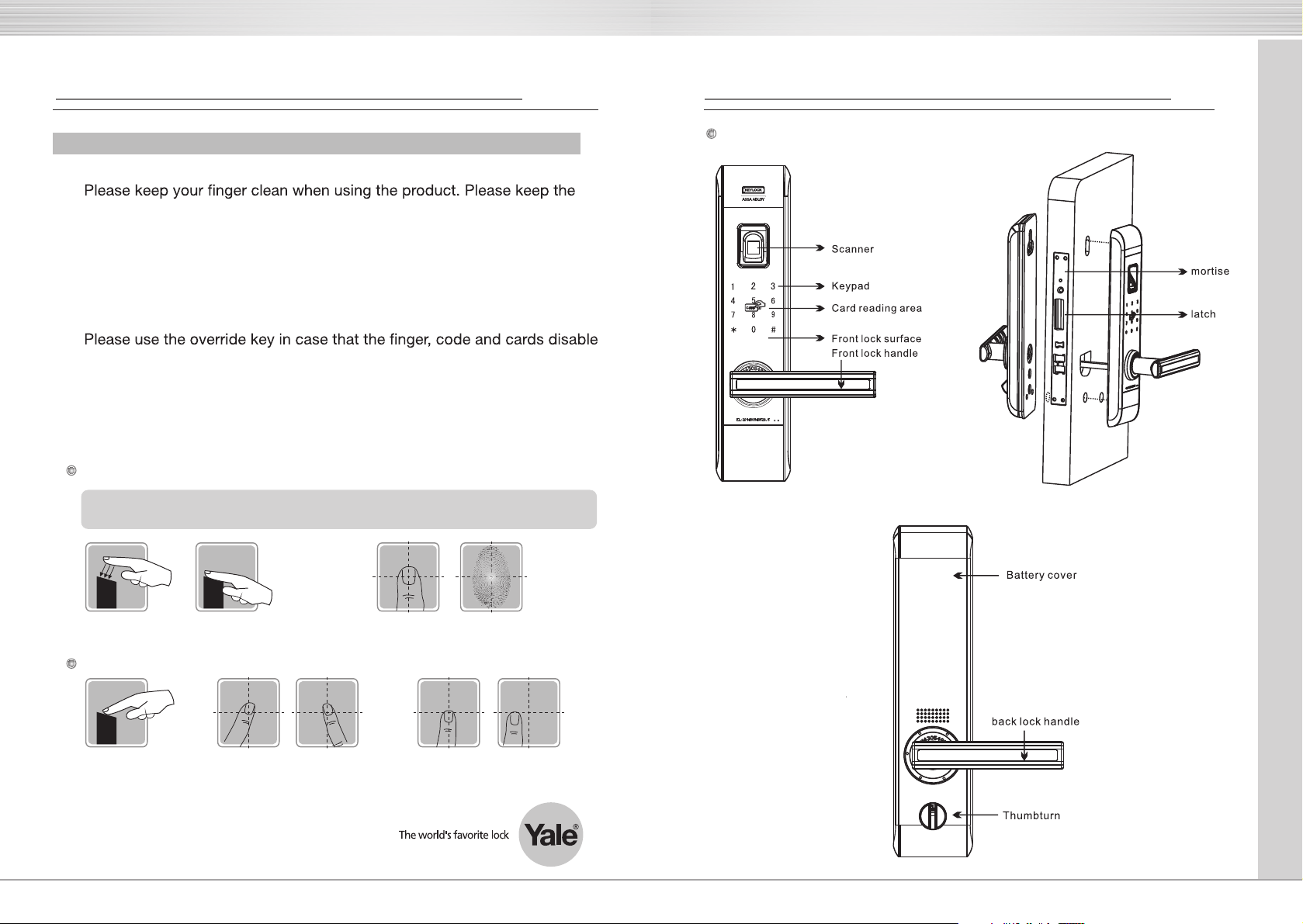

Name for the locks parts

YDME 80 - Essential Series

CONTENTS

Essential Series YDME 80

Operation Guidance

Starter Sets

Change the Master Code

Adding user 5

Delete User

Door open operation

Use of the override key

Use of the external 9V battery

Change Battery

Operation Guidance

◎

Keypad Instruction

Touch the screen for electricity with sound "welcome to use".

Pressing "#" at the menu situation means conﬁrm.

Voice indication

Each pressing of the keypad with a "Beep" sound.

Voice with "Please input again" for the incorrect operation.

Voice with "please change the battery" when low battery.

The keypad was lock for one minute if incorrect input for 3 times with the

sound"3

times of incorrect password, the keypad was lock".

When low battery, the voice indication will be lock automatically. With long

"Beep" for successfully operation, "Beep, Beep, Beep" for incorrect operation,

" Beep, Beep,

Beep, Beep" for low battery and " Beep, Beep" for other cases.

◎

Factory Settings

The factory default master code is “111111”. please change the master code on

the initial use. After changing, all the existing useres are deleted automatically.

Reset

keep the battery on and press the “Reset ” button, when hearing the sound”

Successfully operation", means the lock was reseted successfully and the

master

code was back to "111111", all the users added before were deleted.

Changing the master code

Operation

Touch the screen Touch the screen, the blue light on, sound with

"Welcome to use”

Input "#+6-digit

master code

Voice with "0,#,change the master code,1,#,

add user,2,#,delete user".

Operation note

Press "0","#" button

Input a new code(6 digits)

Input the new code again

voice with" Change the master code”

Voice with" Please input a new 6 digits code”

Voice with" please input the new code again."

Voice with " Successfully operation”

Successfully operation

The factory default master code is “111111”. Please change the master code on the

initial use. After the master code is changed, all the exist users are deleted automatically.

5 6

Essential Series YDME 80 Essential Series YDME 80

Adding user

Operation

touch the screen Touch the screen, the blue light on, sound with

"Welcome to use”

Voice with "0,#,change the master code,1,#,

add user,2,#,delete user".

Input "#+6-digit

master code

Press "1","#" button

Enroll new code

Enroll

Successfully operation

Voice with " please input a new 6-digit code",

then " please input the new code again".

When hearing voice with" Card please", please

put the card at the card reading area.

Voice with " Successfully operation”

Attention: " 111111" can not be set as your new code. voice with "Beep, Beep, Beep",

when you new code was the same as your old ones. 32 users can be added.

Operation note

voice with" Adding user”

When hearing voice with" please press your

hearing • Please,take off your nger".Please

repeatthis for 4 times

Operation

Delete User

Operation note

touch the screen

Input "#+6-digit

master code

Successfully operation Voice with " Successfully operation”

Touch the screen, the blue light on, sound with

"Welcome to use”

Voice with "0,#,change the master code,1,#,

add user,2,#,delete user".

Input the User ID

Press "2","#" button

voice with " please input the user ID”

voice with " please input the user ID again”

voice with" Delete user”

Enroll card

Operation Guidance

Door open operation

Touch the screen, the blue light on, sound with

"Welcome to use”

Operation

touch the screen

Use code or card

to open the door

Ways of opening:

Input the valid code ( has been enrolled)

Put the card ( had been enrolled) at the card

reading area.

If no incorrect operation, there will be a sound

"Beep" then you can press the handle to open

the door. If operate incorrectly, there will be a

sound " Please try again".

(1)

(2)

Turn the handle and

open the door

Operation note

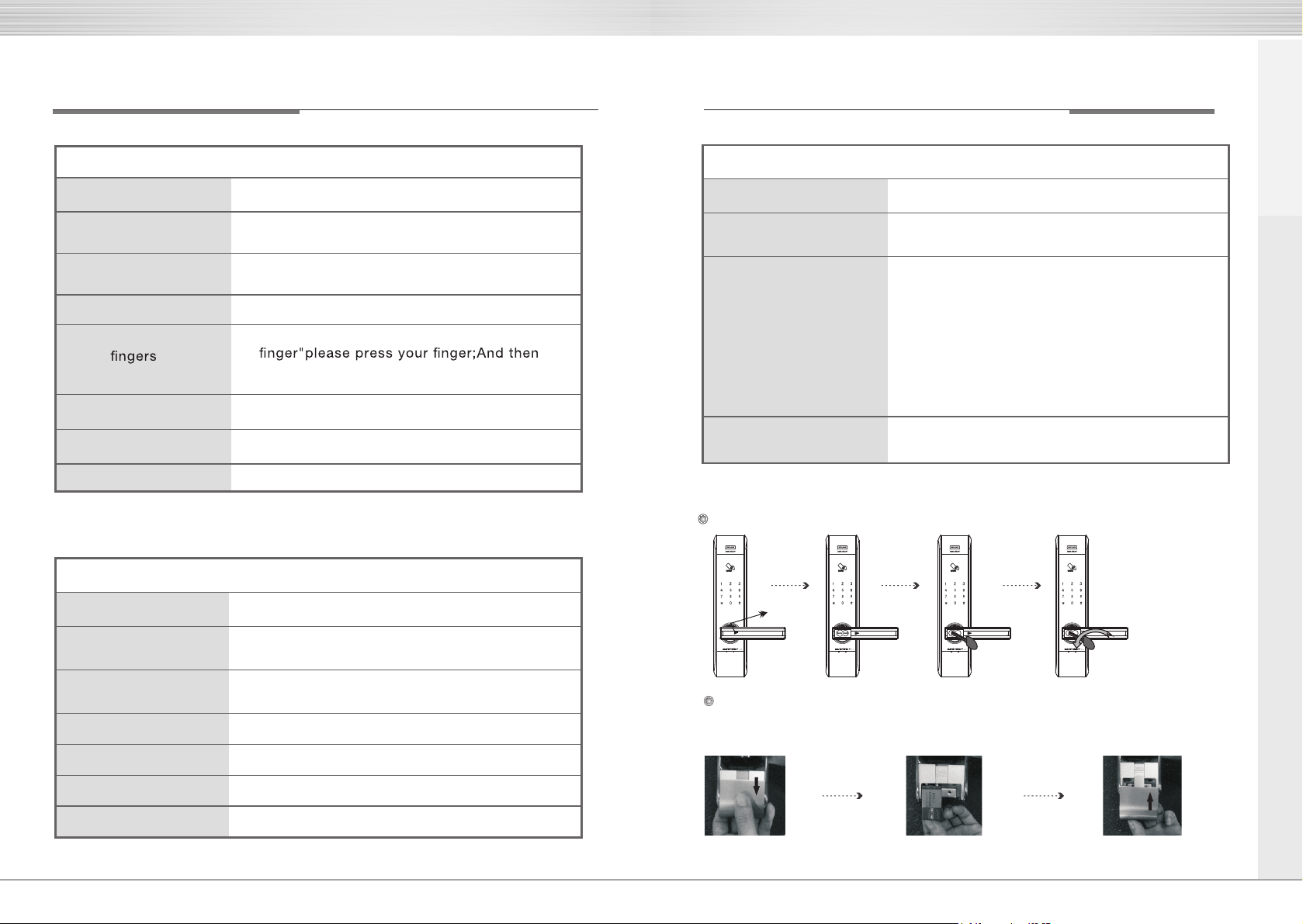

Use of the override key

Press and push

to the right.

Use of the external 9V battery

For Low working voltage, or low battery and not able to change the new

battery, you can use the external 9 V battery to open the door.

Pull the panel cover Connect the external 9 V battery

according to their electrode.

Install back the panel cover

after door open.

Essential Series YDME 80

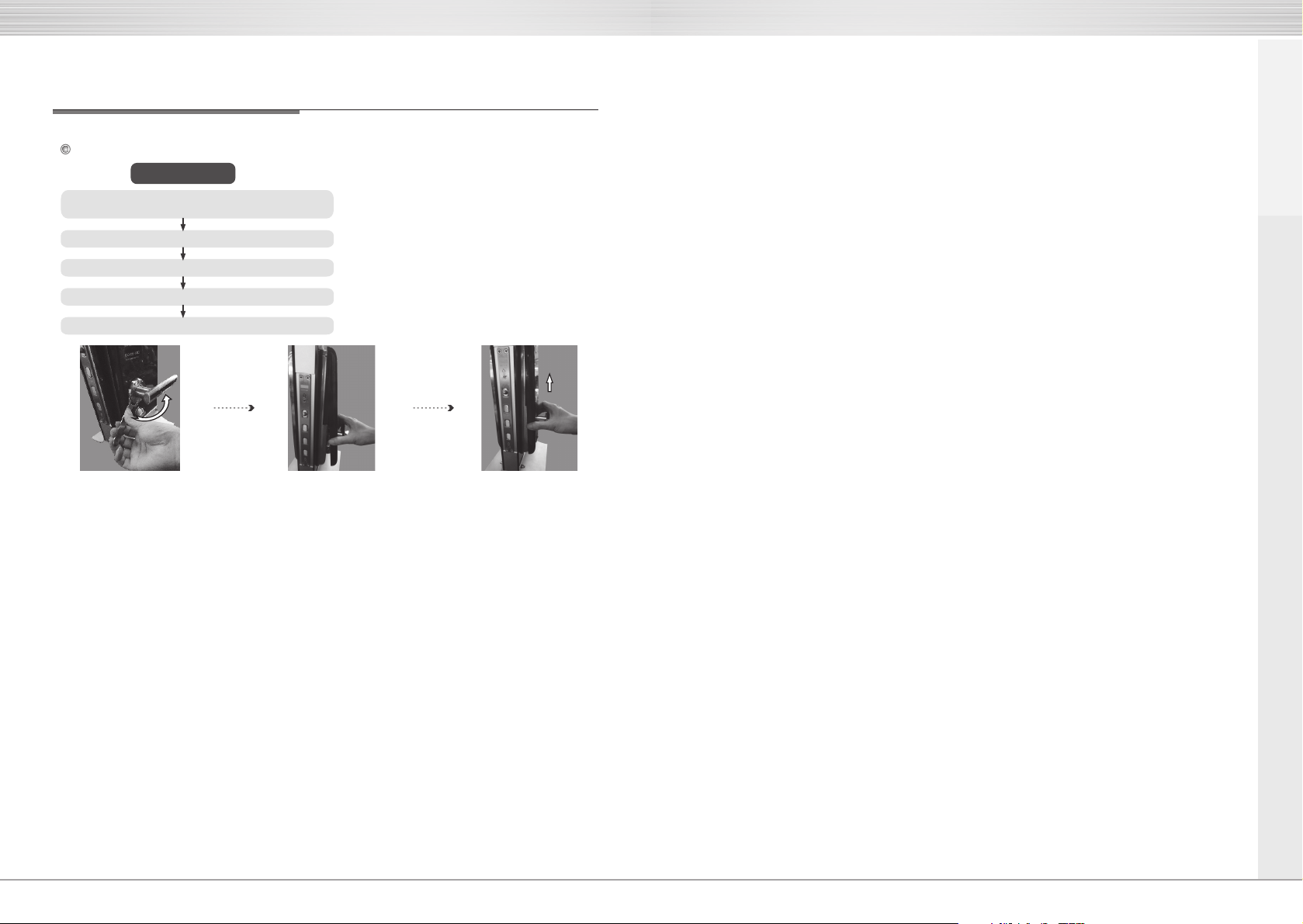

Change Battery

Steps

Use the socket screw wrench to loosen and take

off the copper loop. (Picture 1 Bellow)

Take off the battery cover. ( picture2, 3)

Take off the all old batteries

install with new ones

Place back the battery cove and tighten the copper loop.

1 Pay attention to the electrode when installing

the new batteries.

2.Do not mix the old ones with the new ones.

3.Please put the old batteries at the recycle

place to keep good environment.

loosen and take off the copper loop.

Use the socket screw wrench to 2.

and the back lock cover.

Slightly pull the copper loop 3.

and the back lock cover.

Take off the copper loop

Remark:

This manual suits for next models
