Heat / Cool
temperature controller
1/4DIN - 96 x 96
Q1 line cc
Q1
123
SP
PV
AT
S2
S1
REM
45.80
45.80
SCI
RUN
UL
CUS
LISTED
Q1 UK-ed3 3-08-2007 9:56 Pagina 1
cc
NOTES
ON ELECTRIC
SAFETY AND
ELECTROMAGNETIC
COMPATIBILITY
2
Information
Please, read carefully these instructions before proceeding with the installation of the
controller.
Class II instrument, real panel mounting.
This controller has been designed with compliance to:
Regulations on electrical apparatus (appliance, systems and installations) according to
the European Community directive 73/23/EEC amended by the European Comunity direc-
tive 93/68/EEC and the Regulations on the essential protection requirements in electrical
apparatus EN61010-1 : 93 + A2:95.
Regulations on Electromagnetic Compatibility according to the European Community
directive n089/336/EEC, amended by the European Community directive n° 92/31/EEC,
93/68/EEC, 98/13/EEC and the following regulations:
Regulations on RF emissions:
EN61000-6-3: 2001 residential environments
EN61000-6-4: 2001 industrial environments
Regulation on RF immunity
EN61000-6-2: 2001 industrial equipment and system
It is important to understand that it’s responsibility of the installer to ensure the compliance
of the regulations on safety requirements and EMC.
The device has no user serviceable parts and requires special equipment and specialised
engineers. Therefore, a repair can be hardly carried on directly by the user. For this purpose,
the manufacturer provides technical assistance and the repair service for its Customers.
Please, contact your nearest Agent for further information.
All the information and warnings about safety and electromagnetic compatibility are
marked with the Bsign, at the side of the note.
Q1 UK-ed3 3-08-2007 9:56 Pagina 2
3
Table of contents
TABLE OF CONTENTS
1INSTALLATION ...................................................Page 4
2ELECTRICAL CONNECTIONS .............Page 8
3PRODUCT CODING ......................................Page 16
4OPERATIONS ......................................................Page 21
5DISPLAYS...............................................................Page 47
6COMMANDS........................................................Page 48
7TECHNICAL SPECIFICATIONS ...........Page 52

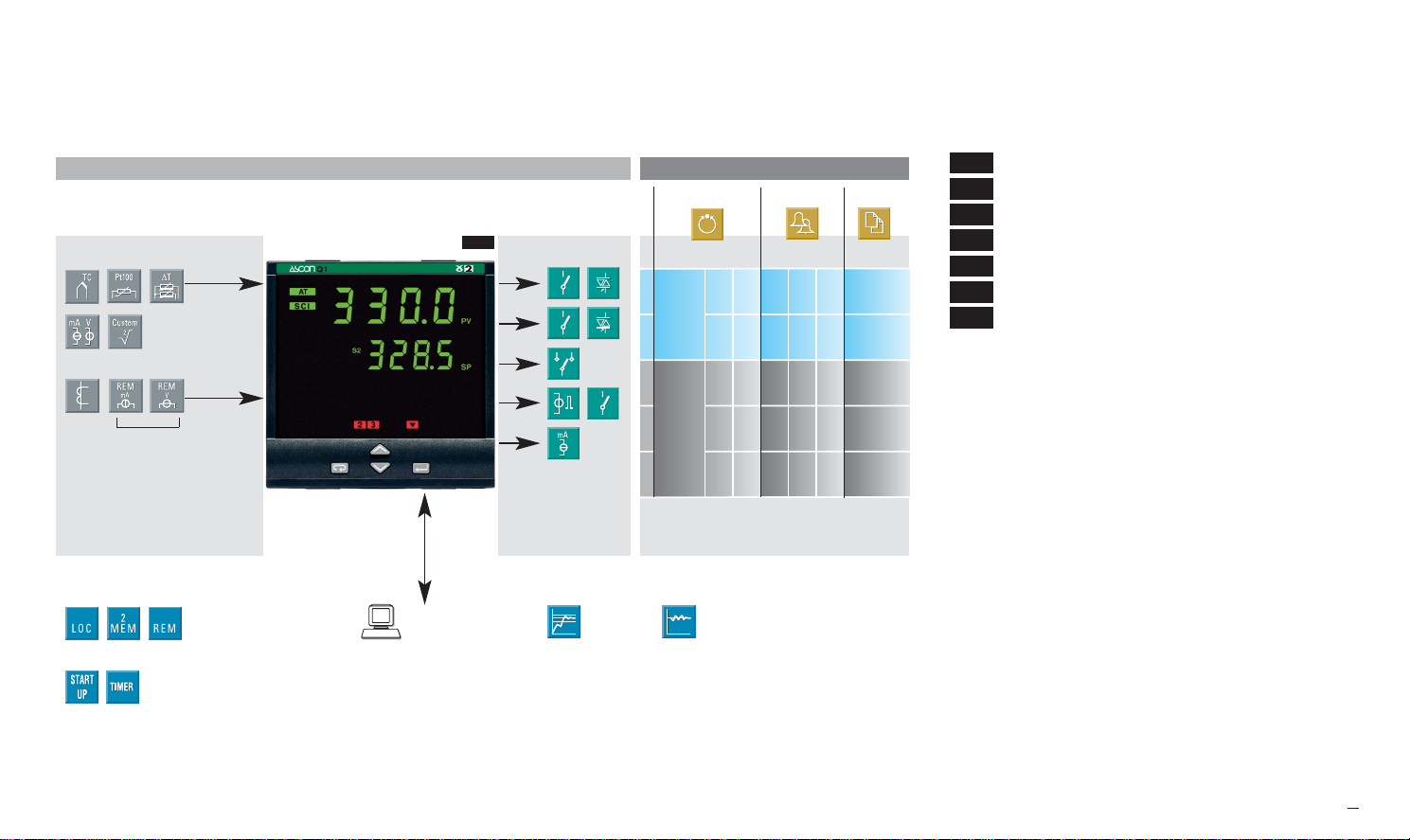

Main universal input
Control Alarms
Retransmission
Resources
PV
AUX
Modbus RS485
Parameterisation
Supervision
(option)
Q1
Setpoint Fuzzy tuning with automatic selection
One shot
Auto tuning
One shot
Natural Frequency
Operating mode
12
12
Auxiliary input
Special functions (option)
PV / SP
1 OP1 OP2 OP3 OP5
Single
2action OP4 OP1 OP2 OP3 OP5
3 OP1 OP2 OP3 OP5
4Double OP1 OP4 OP2 OP3 OP5
action
5 OP4 OP2 OP1 OP3 OP5
OP1
OP2
OP3
OP4
OP5
(option)
(option)
Q1 UK-ed3 3-08-2007 9:56 Pagina 3
4
1 - Installation
1INSTALLATION
Installation must only be carried out by
qualified personnel.
Before proceeding with the installation of
this controller, follow the instructions illus-
trated in this manual and, particularly the
installation precautions marked with the
Bsymbol, related to the European
Community directive on electrical protection
and electromagnetic compatibility.
B
To prevent hands or metal touching parts
that may be electrically live, the controllers
must be installed in an enclosure and/or
in a cubicle.
IP 20 Terminal Block
EN61010 - 1 (IEC1010 - 1)
Product code label
Sealing front panel gasket
Mounting clamps
Front panel
IP65 protection
EN 650529 (IEC 529)
Panel
surface
1.1 GENERAL DESCRIPTION
Q1 UK-ed3 3-08-2007 9:56 Pagina 4
5
1 - Installation
1.2 DIMENSIONS 1.3 PANEL CUT-OUT
96 mm
3.78 in
110 mm
4.33 in
10 mm max.
0.39 in max.
10 mm max.
0.39 in max.
96 mm
3.78 in
92+0.8 mm
3.62+0.031 in
113 mm min.
4.45 in min.
92+0.8 mm
3.62+0.031 in
103 mm min.
4.05 in min.
Q1 UK-ed3 3-08-2007 9:56 Pagina 5
6
1 - Installation
Operating conditions
MAltitude up to 2,000 m
TTemperature 0…50°C
%Rh Relative humidity 5…95 % non-condensing
1.4 ENVIRONMENTAL RATINGS B
Special conditions
MAltitude > 2,000 m
TTemperature >50°C
%Rh Humidity > 95 %
PConducting atmosphere Use filter
Warm up
Use forced air ventilation
Use 24Vac supply version
Suggestions
Forbidden Conditions D
CCorrosive atmosphere
EExplosive atmosphere
Q1 UK-ed3 3-08-2007 9:56 Pagina 6
7
1 - Installation
1.5.1 INSERT
THE INSTRUMENT
1Prepare panel cut-out;
2Check front panel gasket
position;
3Insert the instrument through
the cut-out.
1.5.2 INSTALLATION
SECURING
1Fit the mounting clamps;
2Push the mounting clamps
towards the panel surface to
secure the instrument.
1
3
2
1.5.3 CLAMPS
REMOVING
1Insert the screwdriver in the
clips of the clamps;
2Rotate the screwdriver.
2
1
1.5.4 INSTRUMENT
UNPLUGGING B
1Push and
2pull to remove the instrument.
Electrostatic discharges can
damage the instrument.
Before removing the instrument
the operator must discharge
himself to ground.
12
1
2
1.5 PANEL MOUNTING [1]
2
1
1
UL note
[1] For Use on a Flat Surface of a Type 2 and Type 3
‘raintight’ Enclosure.
1MΩ
Q1 UK-ed3 3-08-2007 9:56 Pagina 7
28
27
30
29
26
25
19 31
820 32
933
10 34
11 23 35
12 24 36
0,5
Nm
5.7 mm
0.22 in
Rear terminal cover
Cable size
1 mm2 [2]
3
2
1
8
2 - Electrical connections
2ELECTRICAL
CONNECTIONS
UL note
[1] Use 60/70 °C copper (Cu) conductor only.
[2] Wire size 1mm2(18 AWG Solid/Stranded)
24 screw terminals M3
Option terminals
Tightening torque 0.5 Nm
Positive screw-driver PH1
Negative screw-driver
0.8 x 4 mm
Terminals
Pin connector
q1.4 mm 0.055 in max.
Ø
Fork-shape AMP 165004
Ø5.5 mm - 0.21 in
L
Stripped wire
L 5.5 mm - 0.21 in
N
L
RS485
1
2
3
8
9
10
11
12
19
20
23
24
25
26
27
28
29
30
31
32
33
34
35
36
TA
TC
mV
NC
C
NO
OP3
NO
C
NO
OP1
OP2
OP4
C
REM
OP5
24V—
OUT
A
b
B
RTD
13
14
15
16
17
18
21
22
7
4
5
6
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C NO
C
2.1 TERMINAL BLOCK [1] B
Q1 UK-ed3 3-08-2007 9:56 Pagina 8
28
27
30
29
26
25
19 31
820 32
933
10 34
11 23 35
12 24 36
28
27
30
29
26
25
19 31
820 32
933
10 34
11 23 35
12 24 36
A B
E C C
3
2
1
A B
E C C
3
2
1
9
2 - Electrical connections
PRECAUTIONS B
Despite the fact that the instru-
ment has been designed to work
in an harsh and noisy environ-
mental (level IV of the industrial
standard IEC 801-4), it is recom-
mended to follow the following
suggestions.
A
All the wiring must comply with
the local regulations.
The supply wiring should be rout-
ed away from the power cables.
Avoid to use electromagnetic
contactors, power Relays and
high power motors nearby.
Avoid power units nearby, espe-
cially if controlled in phase angle.
Keep the low level sensor input
wires away from the power lines
and the output cables.
If this is not achievable, use
shielded cables on the sensor
input, with the shield connected
to earth.
Conduit for supply and output cables
Conduit for low level sensor cables
2.2 SUGGESTED WIRES ROUTING B
A= Supply
B= Outputs
C= Analog inputs
D= Analogue output
E=
Digital input/output Serial Comm.s
Q1 UK-ed3 3-08-2007 9:56 Pagina 9
