Aruba Networks AP-AC-MLX User manual

AP-AC-MLX AC Connector Kit

Installation Guide

0512244-03 | February 2022 1

Package Contents

Housing x1

Crimp terminals x 6

M25 cable gland x 1

AP-AC-MLX installation guide

Customer Supplied Equipment

UV-resistant, outdoor-rated three-wire AC cable (18 AWG) with outside cable diameter of 6-12mm

and inside wire diameter no more than 3.1mm

Wire stripper

Crimp tool

Extraction tool (for removing terminals from housing)

Assembling AC Power Cable

1. Use a wire stripper to peel 20 mm length of the outer sheath of the AC cable and then peel 3-3.3 mm length

of inner insulation off each wire of the AC cable. See Figure 1.

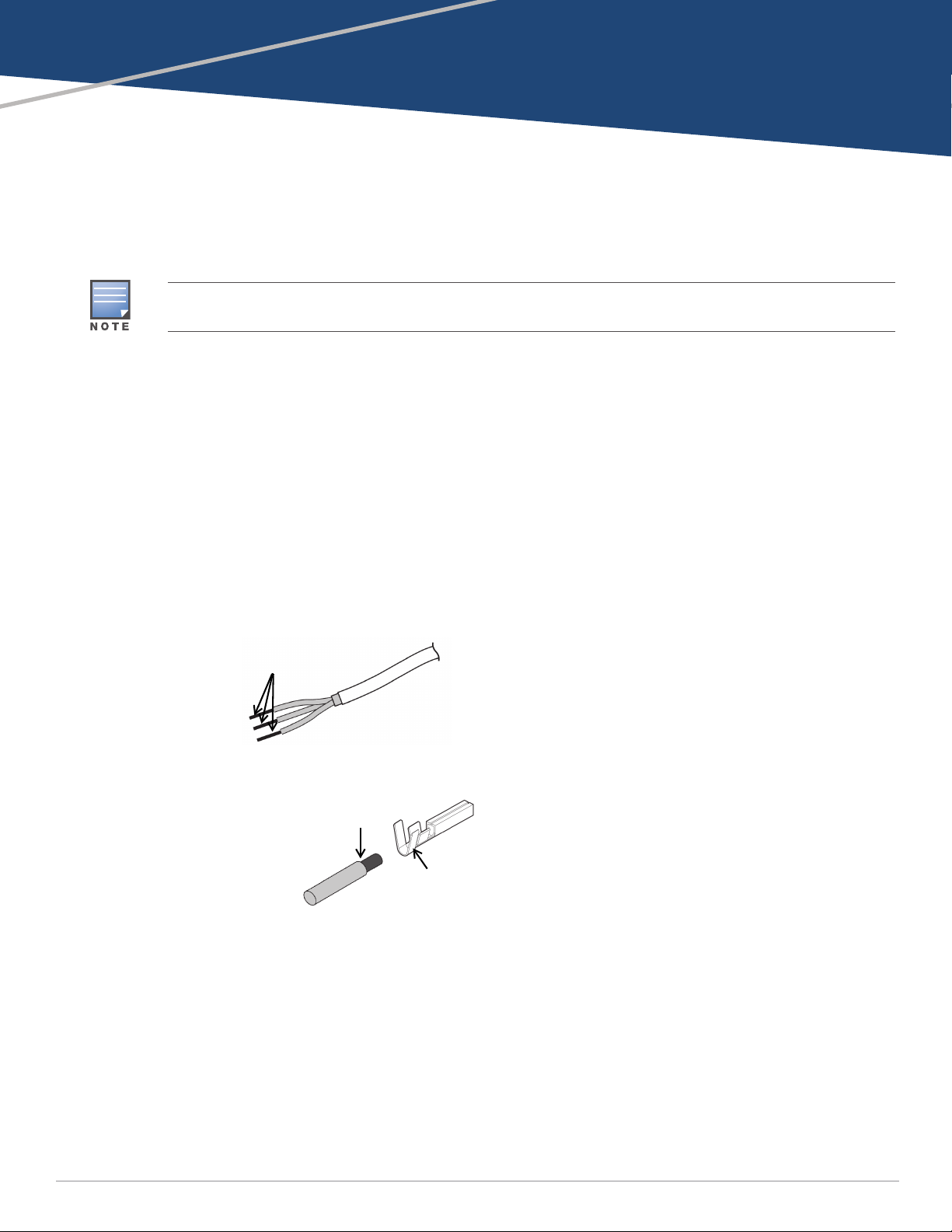

Figure 1 Stripping the AC Cable

2. Use a crimp tool to crimp the bare part of the AC wire to the opening end of the crimp terminal. See Figure 2.

Figure 2 Crimping the AC Wire to the Terminal

3. Insert the three terminals into the housing. The AC wires are color-coded, the terminals (connected with the

AC wires) must be inserted into the appropriate housing. See Figure 3.

Only three crimp terminals are needed to assemble the AC connector. We include 6 crimp terminals in the

package in case the crimp terminals are damaged during assembly.

AC Wires

AC Wire

Terminal

2AP-AC-MLX AC Connector Kit | Installation Guide

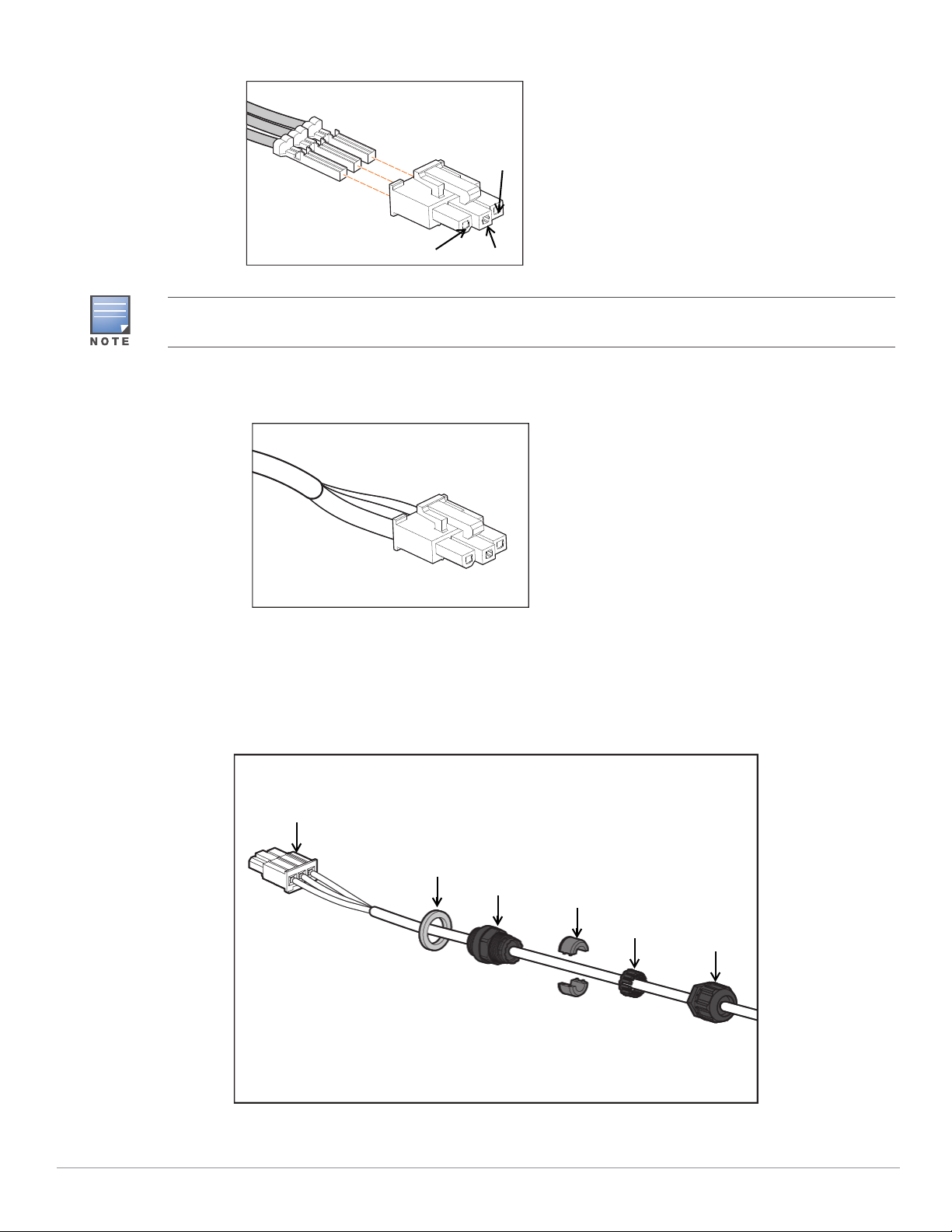

Figure 3 Inserting the Terminals to the Housing

4. The AC power cable assemble is completed. See Figure 4.

Figure 4 AC Cable

Connecting AC Power Cable

1. Remove the cap on the AC power port.

2. Slide the sealing nut, clip, gland body and O-ring over the cable. See Figure 5.

Figure 5 AC Power Cable and M25 Cable Gland

3. Insert the power cable connector into the AC power interface and ensure it clips into place.

Neutral

Line

Ground

If a terminal is damaged during assembly or is inserted into the wrong housing, you can remove the terminal

from the housing by following the instructions in “Removing Terminals from Housing” on page3.

AC Cable

O-ring

Gland Body Seals

Clip Sealing Nut

AP-AC-MLX AC Connector Kit | Installation Guide 3

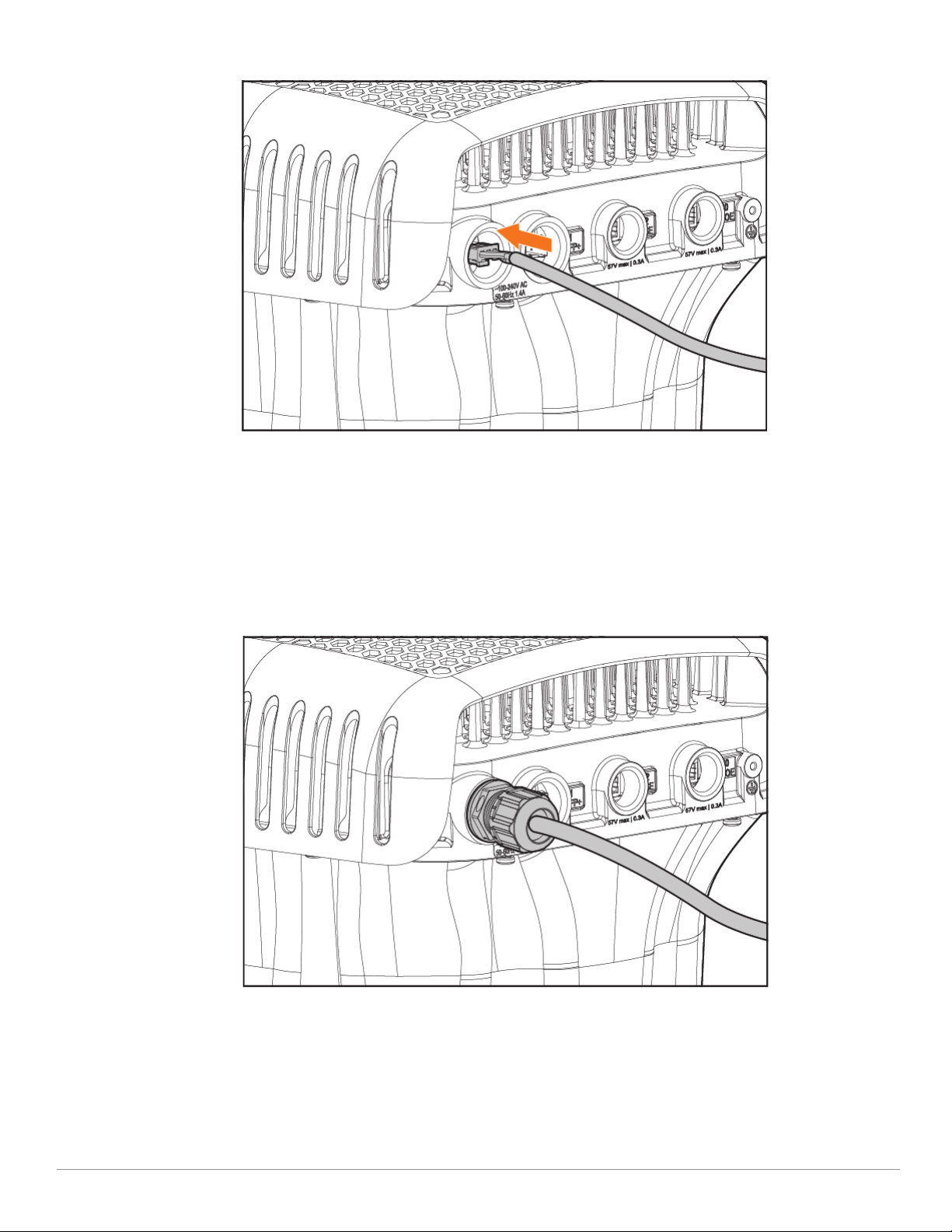

Figure 6 Inserting AC Cable Connector into AC Interface on AP

4. Place the O-ring on the gland body, and ensure it is in place.

5. Thread the gland body into the AC power port and tighten to a torque of 10.6 in/lbs (1.2 Nm).

6. Combine the two split seals over the cable, and push towards the gland body until located at the recess of the

gland body.

7. Move the clip towards the gland body, passing over the seals, until the wavy end of the clip properly fits into

the wavy end of the gland body.

8. Tighten the sealing nut onto the gland body to a torque of 10.6 in/lbs (1.2 Nm).

Figure 7 AC Power Cable and M25 Cable Gland installed to AP

Removing Terminals from Housing

1. Insert the extraction tool(4) into the housing(2). See Figure 8.

2. Use the slots(3) located on the inside of the housing to guide the extraction tool blades into the housing until

contact is made with terminals(1).

3. Continue to insert the tool, always checking to see that the blades of extraction tool are on the outside of the

contact. See Figure 9.

4AP-AC-MLX AC Connector Kit | Installation Guide

4. Continue to insert extraction tool into housing until the locking tabs have snapped out of their locked

position. If the locking tabs are still not totally depressed, hold on tight to the wire and push it toward the

extraction tool. This will completely depress the locking tabs. See Figure 9.

5. Grasp the terminal by the wire, and gently pull it out from the housing.

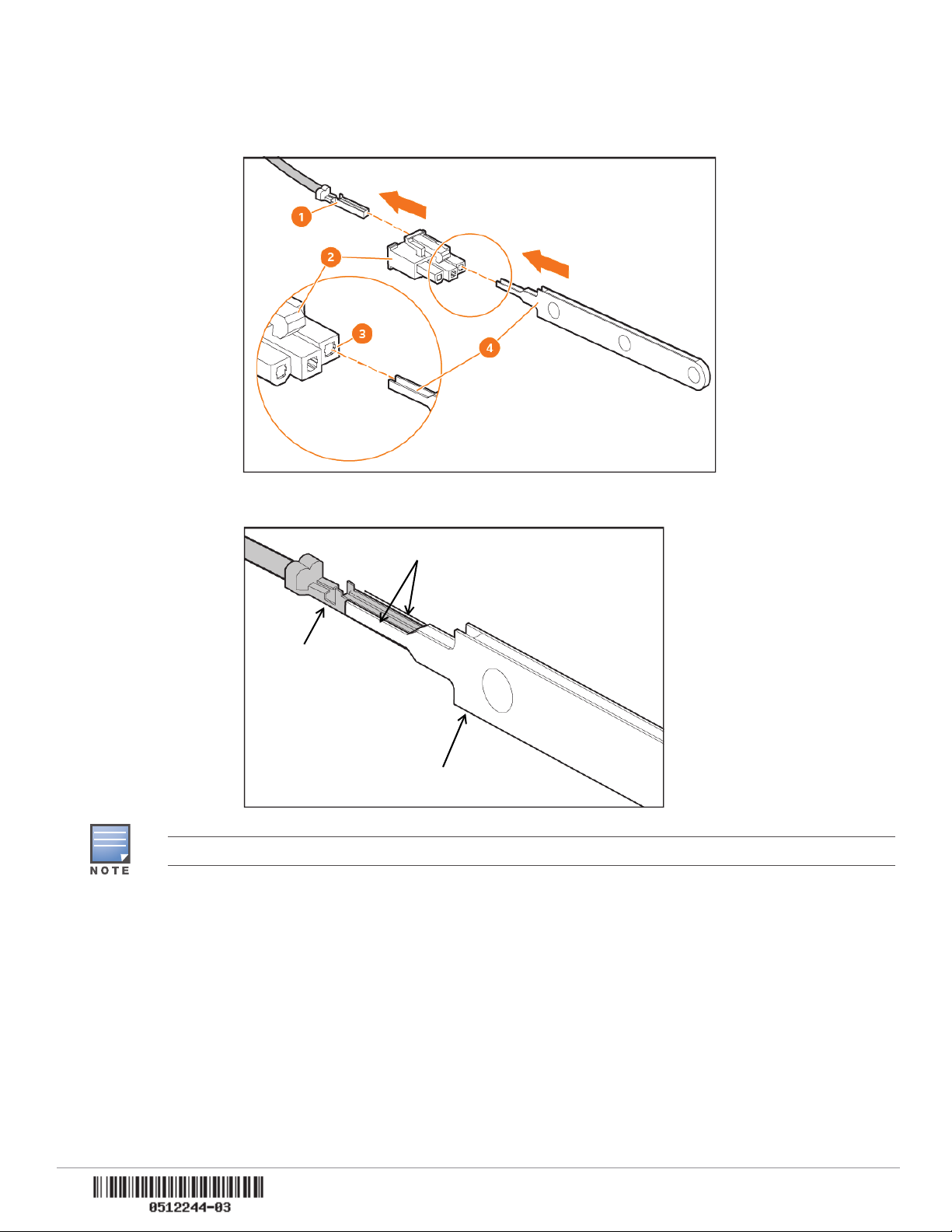

Figure 8 Removing Terminals

Figure 9 Removing Terminal from Housing (Housing Removed)

Extraction Tool

Terminal

Locking Tabs Repressed

When a terminal is removed in this manner the locking tabs are damaged and the terminal is not reusable.
