Apricorn Xtreme Upgrade User manual

User’s Guide

HIGH PERFORMANCE NOTEBOOK HARD DRIVE UPGRADE KIT

Attention:

If your Xtreme Upgrade shipped with a previous

version of EZ Gig II, you can download the new

EZ Gig III from Apricorn’s website at:

http://www.apricorn.com/ezgig

Review the most current Xtreme Upgrade FAQ’s

at: http://www.apricorn.com/support.php

Xtreme Upgrade

TABLE OF CONTENTS

Getting to know your Xtreme Upgrade 4

Introduction 4

The Package Contains 4

System Requirements 5

Connecting your Xtreme Upgrade 6

Hard Drive Installation 6

For SATAhard drives: 6

For PATA/IDE hard drives: 7

Before Running the Software 8

Before running EZ Gig III we recommend 8

EZ Gig III instructions for Windows 7 & Vista 9

Changing the default “Power Options” 9

Upgrade Suite (CD-ROM boot) 10

To start EZ Gig III directly from the CD-ROM 10

Connecting Your Hard Drive 11

EZ Gig III Start Up Options 11

Creating a Bootable EZ Gig III CD 12

Cloning your hard drive with EZ Gig III 13

Selecting the Source Drive 14

Selecting the Destination Drive 15

Speed Test 15

Drive Verication 16

Advanced Options 17

Verify Copy 17

Copy Free Areas 17

SmartCopy 17

Media Direct (Dell) 17

More Advanced Options 18

FastCopy 18

SafeRescue 18

CachedMemory 18

SharedMemory 18

Animation 18

HotCopy / LiveImage 19

Avoid exclusive read access 19

Partitions 20

Resizing your partitions manually 21

Start Clone 22

Interupting the Cloning Process 23

Aborting the Cloning Process 23

Interupting the Verication process 23

Congratulations your Clone is Complete 24

SuperDuper! Backup Software for Mac 25

After the Clone 26

Using the Xtreme Upgrade as a external backup drive 26

Device Removal (Windows) 27

Xtreme Upgrade FAQs 28

EZ Gig III FAQs 31

Load errors 31

Error #5002 and ‘Disk error’ 31

Keyboard and mouse 31

General problems 32

Slowed down system 32

Read, write and verication errors 32

IDE/ATA/SATA 32

Hard disk not recognized 32

IDE controller not found 33

Source & Destination Size Differences 33

Equal Size 33

Small to large 33

Large to small 34

Automatic troubleshooting 34

Intensive reading/writing 34

Read errors 34

Write errors 34

Verication errors 35

Contacting Technical Support 36

RMA Policy 36

Warranty Conditions 37

4www.apricorn.com

Getting to know your Xtreme Upgrade

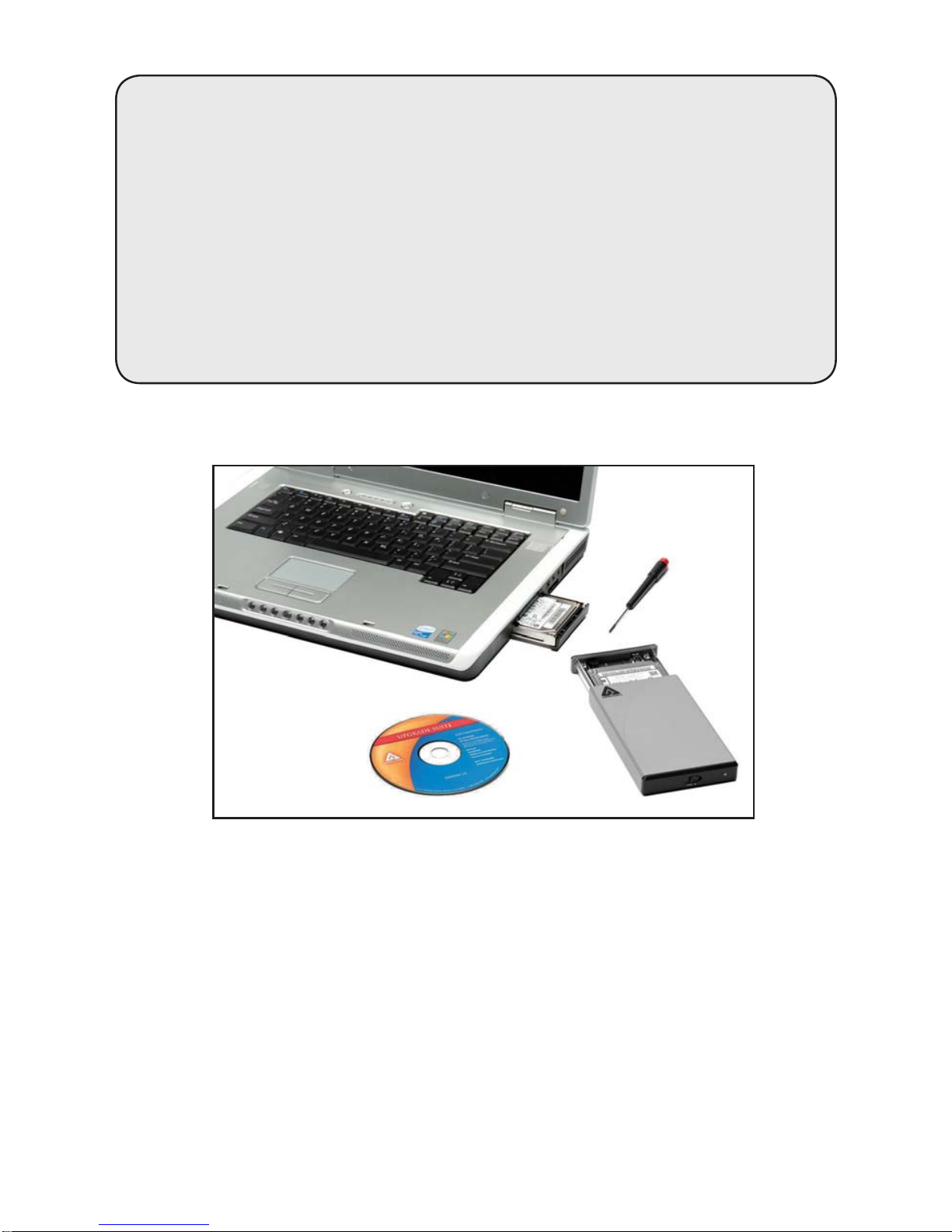

Introduction

Want to increase your notebook’s

performance? Apricorn’s Xtreme

Upgrade is a complete hardware and

software solution that makes upgrading

notebook hard drives fast and easy. This

kit includes everything you will need to



applications and the operating system

from the hard drive in your notebook

to a new SATA hard drive whether

you have a Windows or Mac operating

system.

Apricorn’s 7200 RPM Xtreme Drive is the fastest available hard drive for notebook

computers. Xtreme Drives have a 70% faster spindle speed and a 400% larger

cache over 4200 RPM drives. This drive can improve overall system performance







backup solution.

The Package Contains

Xtreme Upgrade Aluminum Enclosure for SATA & PATA/IDE Hard Drives

High Performance 2.5 inch 7200 RPM SATA Hard Drive

USB Cable

AC Adapter

Upgrade Suite CD

• Apricorn EZ Gig III

• ShirtPocket SuperDuper! Lite

Quick Start Guide

www.apricorn.com

System Requirements

Hardware: Pentium CPU II or Apple G3 or later

128MBs RAM

Available USB Port

CD ROM or CD-RW drive

Supported Operating systems:

Microsoft: Windows 7, Vista, XP and 2000

Mac: OS 9.2 or later

OS X 10.2 or later

6www.apricorn.com

Hard Drive Installation

Follow these steps to install the Hard Disk into the Xtreme Upgrade Enclosure:

Step 1 Hold the EZ UP enclosure with both hands. Locate the OPEN switch

(diagram 1) and with one hand over the opposite end of the drive slide

the OPEN switch in the direction of the arrow to release the hard drive

tray. The hard drive tray will slide out of the enclosure into your other

hand. (diagram 2)

Step 2 Instructions for inserting the hard drive. (diagram 3)

For SATA hard drives:

Hold the hard drive tray in one hand with the SATA connector (the

connector that is closest to the plastic end cap where you connect the

cables) away from your body. Now, with the label side up grab the sides

of the hard drive with the other hand and set the hard drive into the tray

with the SATA blade connector away from your body. Carefully slide

the hard drive by placing your thumb on the back edge and pushing it

towards the black socket facing away from your body until it is completely

seated. The sidewalls of the hard drive tray will act as a guide, properly

aligning the SATA blade connector.

SATA

PATA

SATA

PATA

USB

Mini

Port Power

Port

Connecting your Xtreme Upgrade

www.apricorn.com

For PATA/IDE hard drives:

Hold the hard drive tray in one hand with the PATA/IDE connector (the

connector that is furthest from the plastic end cap where you connect the

cables) away from your body. Now, with the label side up grab the sides

of the hard drive with the other hand set drive into the tray with the PATA/

IDE gold pins away from your body. Carefully slide the hard drive by

placing your thumb on the back edge and pushing it towards the aligning

the gold pins with the black connector facing away from your body until

it is completely seated. The sidewalls of the hard drive tray will act as a

guide, properly aligning the gold pins (PATA/IDE) with the black socket

and ensuring a proper connection. On PATA/IDE hard drives, if parts of

the pins are still visible, the drive is not completely seated.

For Upgrades Proceed to Step 4. To permanently mount your old hard

drive proceed to Step 3.

Step 3 Turn over the hard drive tray and secure the hard drive with the four

screws.

Step 4 Once the drive is secured, slide it back into the tray. Make sure the

Apricorn logo is facing up and the hard drive tray slides into the

enclosure with the label side of the hard drive facing up. When the tray

completely slides in you will hear the latch snap shut as the hard drive

tray locks into place.

Step 5 Connect the USB Mini end into the open port on the Xtreme Upgrade

and then connect the other side of the cable into an open USB port

on your computer. For additional power use the AC power adapter.

(diagram 4)

Once your hard drive is

connected

Now you can upgrade your notebook

drive using the Upgrade Suite CD.

InstructionsforupgradingyourMicrosoft

computer are provided on the following

pages. If you are upgrading your Mac,

please refer to page 25.

8www.apricorn.com

After many years of use, hard drives can become cluttered with unusable

le fragments and other le-system errors. Most le system errors are not

immediately obvious to the user, but can be identied and repaired with a

few simple steps. Although the steps below are not absolutely necessary to

run EZ Gig, it’s best to try and clean-up disk errors BEFORE they are copied

over to the new drive.

Before running EZ Gig III we recommend

1) Clean up any le-system errors by running Windows

ScanDisk (or a similar disk cleanup utility) on your internal

hard drive.

2) Defragment your hard drive using the Windows Disk-

Defragment Utility (or a similar disk defragment utility) on

your internal hard drive.

3) Backup any critical les or data.

4) Attach theAC adapter to your laptop, and make sure it is not

running on battery power.

5) Attach the USB cable from your computer to the DriveWire.

6) If you plan on running EZ Gig III from the Bootable CD-ROM:

You may need to change your laptop’s BIOS boot order. You

will nd these options inside the laptop’s BIOS Boot Option

Menu. The BIOS Boot Options menu allows the user to

select the preferred boot device when the laptop starts up.

EZ Gig III can boot directly from the CD-ROM but you must

check the BIOS Boot settings to make sure that “CD-ROM”

is higher in the boot order than the C: drive.

Before Running the Software

www.apricorn.com

EZ Gig III instructions for Windows 7 & Vista

Windows 7 and Vista UserAccount Control helps stop unauthorized

changes to your computer. The UserAccount Control window pops up in

Administrator Approval Mode whenever a program tries to run on your

Windows system.

When the User Account Control window pops up there will be a warning

symbol and message that reads, “A program needs your permission to

continue.” The instructions will read “If you started this program, Continue.”

Please click the Continue button and proceed to the EZ Gig III Start-Up

screen.

Changing the default “Power Options”

Be default the Windows 7 operating system will “Turn display off” after 20

minutes and “Put the computer to sleep” after 1 hour of keyboard or mouse

inactivity. It will take more than 20 minutes to clone most of today’s larger

hard drives. If the system goes into display is turned off or the computer

goes to sleep during the clone, your clone may fail. This will not damage

your original hard drive in any way but you will have to restart the cloning

process. To avoid this issue change the default “Power Options” before

starting the backup on Windows 7 Systems.

From your Window Start menu type “Power Options” in the “Start Search

bar” and the “Power Options” program will be listed in the results window.

Alternately you can go to Start Menu – Control Panel – Power Options.

Click on “Power Options” to launch the program. On the left window click

on “Choose when to turn off display” and make the changes as listed

below.

Turn Display Off Never

Put computer to sleep Never

Once you have completed the clone go to “Power Options” and restore the

default settings.

10 www.apricorn.com

Upgrade Suite CD is a bootable disk with EZ Gig III data transfer utility that

can copy hard drives without booting to the Windows operating system. To

use Upgrade Suite as a stand-alone utility, your Computer must be able

to boot from a CD-ROM, and the CD-ROM must be set as the rst boot

device in your computer’s System BIOS.

NOTE: The System BIOS controls basic hardware functions in computer,

and is the rst screen that appears when booting your computer (i.e. before

the Windows Startup Logo appears on screen). Consult your Computer’s

User Manual for instructions on how to enter the System BIOS and change

the boot order.

To start EZ Gig III directly from the CD-ROM

1) Insert the Upgrade Suite CD into your CD-ROM Drive.

2) Turn on the Computer and go immediately into the system

BIOS screen.

3) Set the CD-ROM as the First Boot device. Save your changes

and Exit the BIOS to reboot the computer.

Helpful tip:

Some newer computers display a “Boot Options” message during

startup. Pressing the boot options key allows the user to temporarily

change the boot-order of the system. Use this option to boot from

the CD-ROM without changing the BIOS settings. The actual keys to

activate this option will depend upon the manufacturer (some BIOS

use the <F12> key, others use the <ESC> key), and the boot option

is only available for a few seconds at startup before the BIOS falls

back into the normal boot order.

4) Once the BIOS is set correctly, the CD-ROM should boot-up the

computer and start the EZ Gig III software.

Upgrade Suite (CD-ROM boot)

Other manuals for Xtreme Upgrade

Table of contents

Other Apricorn Storage manuals

Apricorn

Apricorn Aegis Secure Key User manual

Apricorn

Apricorn Aegis Portable A25-USB 500GB User manual

Apricorn

Apricorn Aegis Padlock DT User manual

Apricorn

Apricorn Aegis Secure Key 3z User manual

Apricorn

Apricorn Aegis Padlock A25-PL128 640GB User manual

Apricorn

Apricorn ADT 500GB User manual

Apricorn

Apricorn Aegis Fortress User manual

Apricorn

Apricorn Aegis Secure Key User manual

Apricorn

Apricorn Aegis Portable A25-USB 500GB User manual

Apricorn

Apricorn Aegis Padlock 3.0 User manual

Apricorn

Apricorn EZ Storage User manual

Apricorn

Apricorn Aegis Padlock DT User manual

Apricorn

Apricorn Aegis Mini A18-USB 100GB User manual

Apricorn

Apricorn Aegis Padlock DT User manual

Apricorn

Apricorn Aegis Mini A18-FW 120GB User manual

Apricorn

Apricorn Upgrade Kit for iPod User manual

Apricorn

Apricorn Aegis Padlock Fortress User manual

Apricorn

Apricorn Aegis Padlock DT FIPS User manual

Apricorn

Apricorn Xtreme Upgrade User manual

Apricorn

Apricorn Aegis Secure Key 3z User manual

Apricorn

Apricorn EZ Gig User manual

Apricorn

Apricorn Aegis Portable User manual

Apricorn

Apricorn Aegis Secure Key User manual

Apricorn

Apricorn Aegis Secure Key 3z User manual

Popular Storage manuals by other brands

QNAP

QNAP TS 32PXU Series user guide

LaCie

LaCie RUGGED RAID user manual

Freecom

Freecom CLS DOCK Quick install guide

PNY

PNY Attache P-FD64MBATT3 install guide

HP StorageWorks MSL2024 Getting started

OLT

OLT 6x6 Maximizer Assembly manual

Transcend

Transcend JetFlash 160 Specifications

LaCie

LaCie RUGGED MINI user manual

Thunderbolt

Thunderbolt 600 user manual

Panasonic

Panasonic LB-DH8 series Operator's guide

Intel

Intel RAID High Availability user guide

LaCie

LaCie 12big Thunderbolt 3 Quick install guide

Spectra Logic

Spectra Logic T-Series Spectra T50e quick start guide

Panasonic

Panasonic LKM-F931-1 instruction manual

Tabernus

Tabernus Enterprise Erase E2400 user guide

Rocstor

Rocstor COMMANDER 3F series user manual

HP P9000 user guide

Western Digital

Western Digital Ultrastar Data60 installation guide
