Andreani Group Cartridge Kit User guide
pic 1 pic 2
pic 3 pic 4
Mounting instruction of the Andreani Cartridge Kit.
RACE USE ONLY
Screw off the upper cap of the fork (Pic 1)
Take off completely the oil you have inside, take off the
springs and the spacer (Pic 2)
Screw off the lower screw that tights the outertube to the
cartridge cone (Pic 3)
Remove the cone and stroke limiter. (Pic 4)

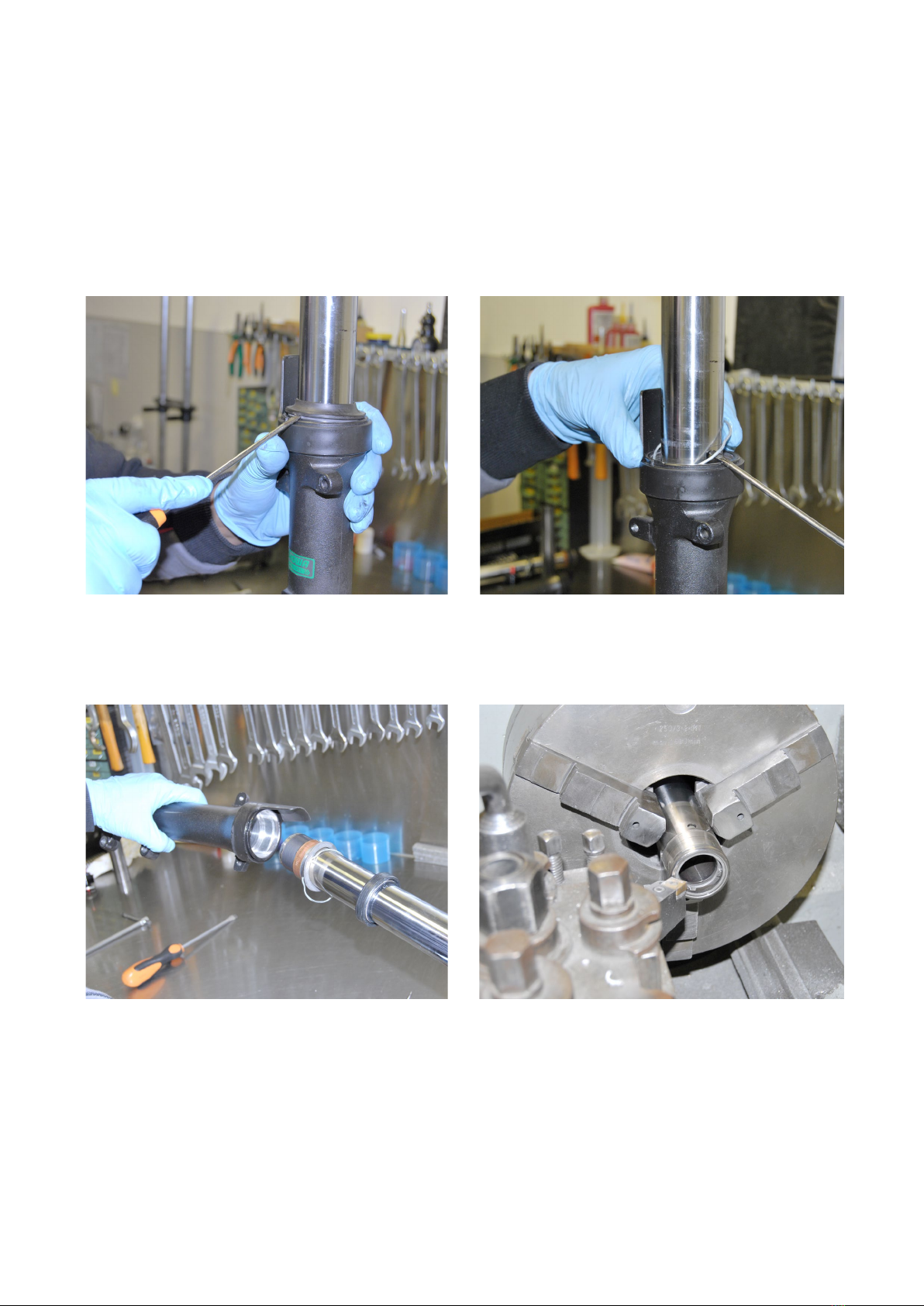

Take off the Dust cap from the outertube (Pic 5)
Remove the stop ring from the outertube (Pic 6)
Disassemblare lo stelo dal fodero (foto 7).
Throw out, with a lathe machine, the reduction bush of the
innertube (Pic 8)
pic 5 pic 6
pic 7 pic 8

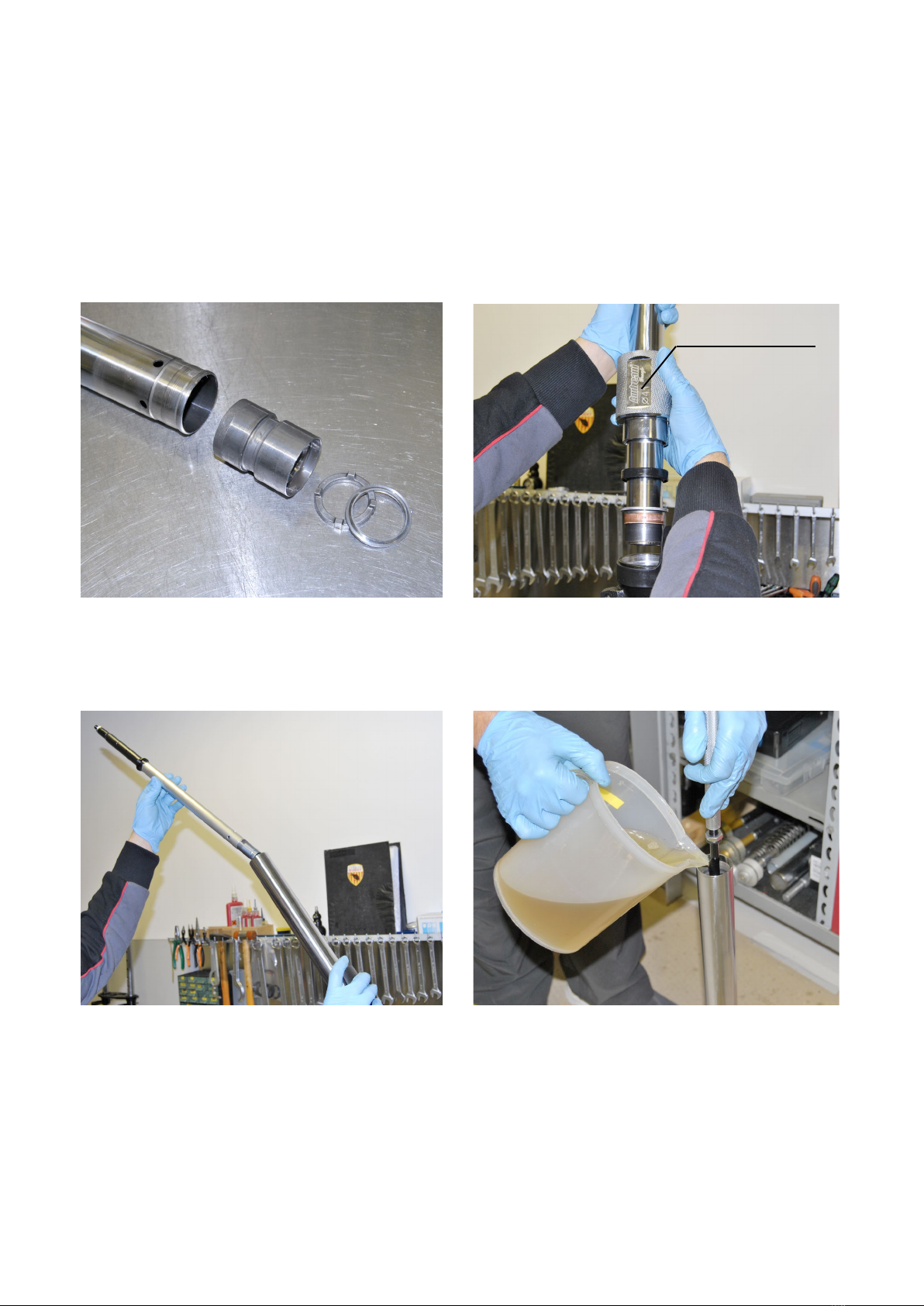

Remove the bush (Pic 9)
Reinsert the innertube into the outertube (Pic 10)
Insert the Andreani Cartridge into the fork (Pic 11)
Fill the innertube with Öhlins oil 01309-01 (Pic 12)
pic 9 pic 10
pic 11 pic 12
cod. 1213

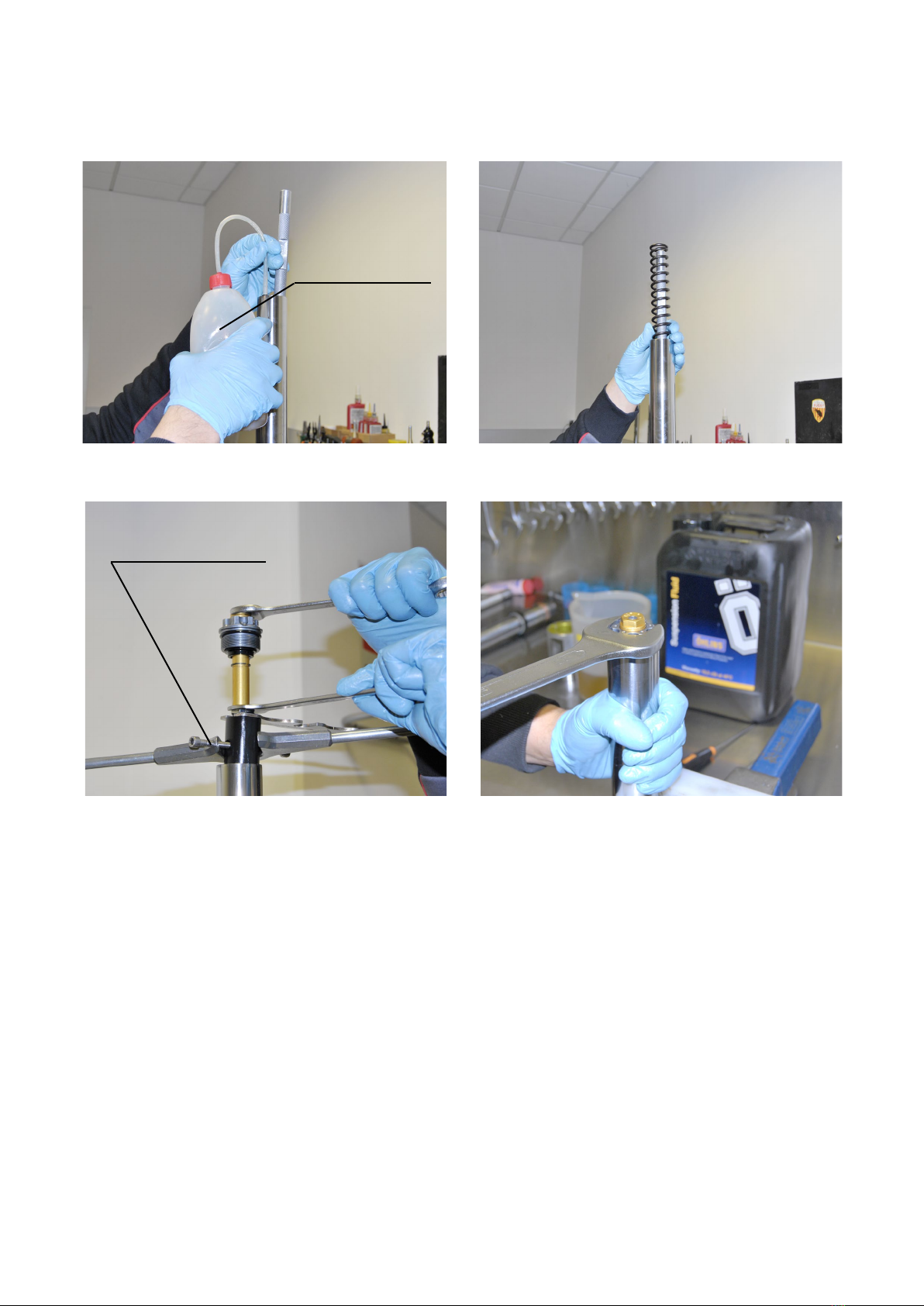

Make the oil level with tool cod. 1115 respecting the air-chamber
values given in the last page of this manual (Pic 13).
Insert spring and spacer into the fork (Pic 14).
Mount the Cap, with the shaft completely down into the cartridge
and making a Phase* of 4 turns (Pic 15). Close the upper cap of
the fork.(Pic 16)
pic 13 pic 14
pic 15 pic 16
cod. 1115
cod. 1219
*Phase: With the cap still not inserted into the fork, open completely the
hydraulic adjuster and then turn it 4 times clockwise. This way when you insert
the cap into the cartridge it’ll stop in the right position. Tighten it onto the car-
tridge and continue the procedure of installation
Base Setup
Compression 2 turns (from fully closed to open)
Rebound 2 turns (from fully closed to open)
Spring preload 4 turns (from fully open to close)
