BASIC INFORMATION

From today, washing will be easier than ever before. The Amica washing machine combines

exceptional ease of use with excellent effectiveness. Once you have read the instructions,

operating the washing machine will not be a problem.

Before being packed and leaving the factory, the safety and functions of this washing machine

were carefully tested. These tests may have resulted in some damp or traces of water being

left inside the machine.

We ask you to read the User Manual carefully before switching on the appliance. Following

the directions in this manual will protect you from any misuse.

Keep this User Manual and store it near at hand. The instructions should be followed carefully

to avoid any unfortunate accidents.

Important!

This washing machine is intended for purely domestic use to wash textiles and clothes

which are designed to be machine washed in a detergent bath.

Before plugging the washing machine into the mains, remove the safety packaging and

ensure the machine is level.

The manufacturer reserves the right to introduce changes which do not affect the operation

of the appliance.

Use

lThe machine should only be used after the instructions below have been read carefully.

lNever use the machine outdoors or anywhere the temperature may fall below freezing.

lThe machine should not be operated by children or anyone who has not read the instruc-

tions.

Important! Temperatures below 0°C can damage the washing machine! In the event of the

machine being stored or transported in sub-zero temperatures, it should be left to acclimatise

in a temperature above zero for 8 hours before being used.

Manufacturer’s Declaration

The manufacturer hereby declares that this product meets the requirements of the follo-

wing European directives:

lLow Voltage Directive 2014/35/UE,

lElectromagnetic Compatibility (EMC) Directive 2014/30/UE,

lErP Directive 2009/125/EC,

lRoHS Directive 2011/65/UE,

and has thus been marked with the symbol and been issued with a declaration of com-

pliance made available to market regulators.

NOTES ON SAFETY

lDetergents

lLoading

the Machine

lControl

Panel

Use only those detergents and additives which

are designed for automatic washing machines,

especially when using the TOWELS

programme. Do not use any agents containing

solvents, as these may damage certain parts of

the machine, or cause them to emit poisonous

gases. There may also be a risk of ignition and

explosion.

Ensure no unwanted objects are put inside the

appliance. Completely empty all pockets in the

clothing to be washed and fasten buttons and

zips. Place small, loose objects in a washing

bag, or inside a pillow case, as they may be

destroyed or else damage the drum or internal

tank. Do not exceed the recommended maxi-

mum load of washing.

Protect the control panel from water spillage.

Do not put washed clothes on top of the ma-

chine!

lTransport

lData Plate

lBurns

NOTES ON SAFETY

Unplug the machine before preparing the

machine for transport. Do not transport the

washing machine if drum locking bolts are not

in place. See the chapter INSTALLING THE

MACHINE. Keep the appliance in upright po-

sition when transported.

Data plate indicating basic information about

the washing machine is located at the top part

of the rear casing.

The door glass of your washing machine is hot

during operation. Do not allow children in the

vicinity of the appliance.

Checking stability

Once the washing machine is in position and levelled, it must

be checked to ensure it rests rmly on all four legs.

In order to check this, press down each corner of the ap-

pliance in turn to see if it moves. Safe, long-term and relia-

ble operation of the washing machine depends on it being

correctly positioned and level.

Important! Level the appliance, remove the drum loc-

king bolts and wait 3 hours before using the appliance

for the rst time.

Important! Incorrect levelling, especially instability,

may cause the washing machine to move around du-

ring operation.

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the ha-

zards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by chil-

dren without supervision.

Children of less than 3 years should be kept away unless

continuously supervised.

DISPOSAL OF THE APPLIANCE

To ensure safety, the washing machine must be rendered

unsuitable for use once its useful life comes to an end. First

unplug it and then cut off the power lead. Scrap the appliance

in line with local waste disposal legislation.

NOTES ON SAFETY

INSTALLING THE MACHINE

I. Remove the protection used for transporting the appliance (keep the locking bolts

for future use, e.g. when moving house).

lUnscrew the 4 locking bolts with a spanner.

lRemove the rubber and plastic transport

brackets from the sockets along with the wa-

shers and bolts.

The locking bolts MUST be removed before the washing machine is used!

lStop up the holes with the stoppers

enclosed in the accessories bag.

lDo not place the washing machine on a carpet!

lThe oor surface should not be either concave or sloping!

lAttention should be paid to the shape of the surface of the oor, so that the

entire weight of the appliance rests on its legs (not its body)!

II. Positioning and levelling the machine

After positioning and levelling the machine,

check that it is stable by pressing down each

corner and ensuring it does not move!

lPlace the washing machine on a solid, even surface.

lLoosen the plastic washer (2)

lLock with washers (2)

lLevel the machine by adjusting the legs (1)

The drain hose is at the back of the

machine. Fix the drain hose so that it

does not move while the machine is

in operation (use the elbow as shown

below). Do not place the hose too deep

into the outlet pipe!

max 100 cm

min 60 cm

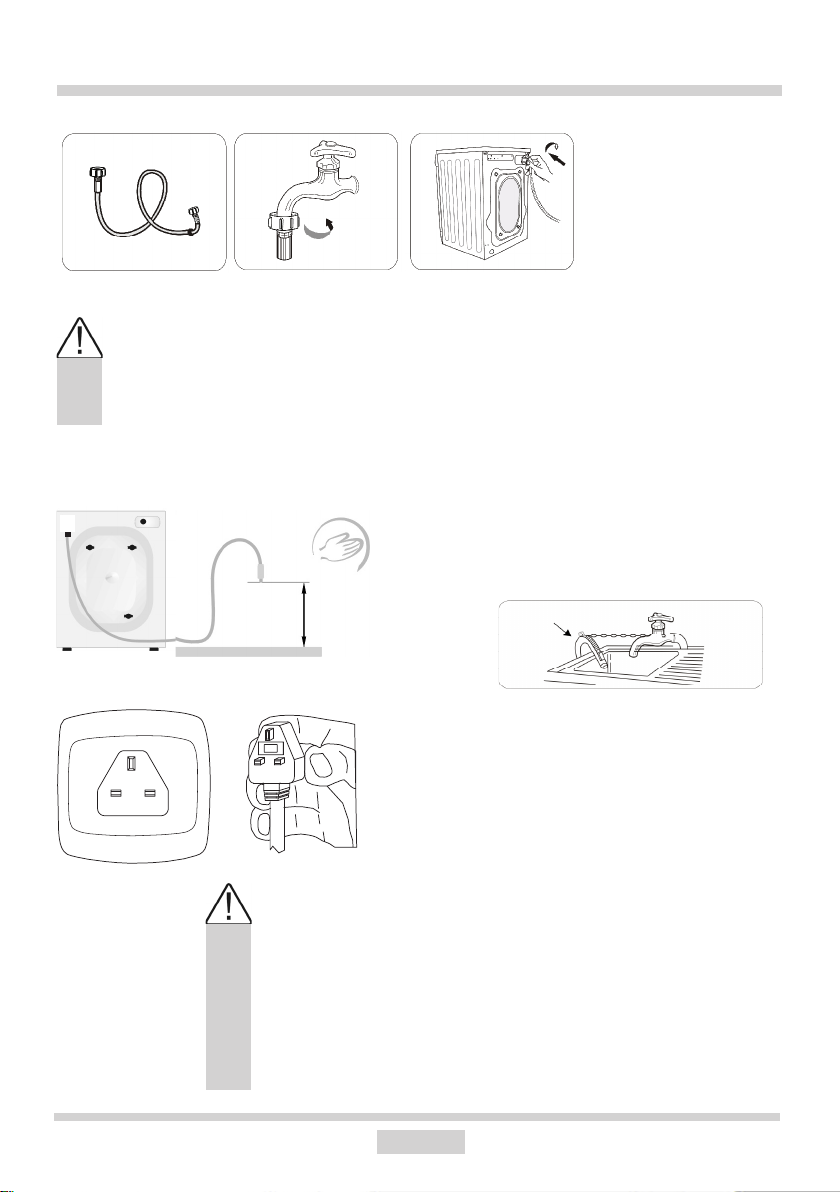

III. Connecting the water supply

IV. Water drain

V. Connecting the electric power supply

A water supply hose with seals is inside the drum of the machine.

lOnly plug the machine into a properly installed socket

with an earth pin!

lDo not connect to an adaptor or an extension cord!

lIn the event of the power lead being damaged, it must be

replaced by an authorised technician.

lThe electrical system to which the appliance is to be

connected must be protected with a 10 A fuse.

INSTALLING THE MACHINE

Water pressure min. 0,1 MPa (1 bar), max.1 MPa (10 bar). Supply the machine

with cold water

lafter connecting, make sure the hose is not twisted

lafter connecting the hose and the valve, check they are sealed tight

lregularly check the condition of the supply hose.

Use the new hoses sup-

plied with the machine.

Do not re-use old hoses.

lThe appliance’s mains connection (electrical wall socket)

should be in a visible and accessible place!

Detergent Drawer

Drum

P u m p  l t e r

cover

Door

handle

Control panel

■■

■

DESCRIPTION OF THE APPLIANCE

UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS

Always pay attention to the symbols on garments’ labels

when choosing a washing setting.

I. Washing

II. Chemical cleaning

III. Spin dryer

boiling

temp. 900

normal

temp 600C

normal

temp 400C

DO NOT

wash!

delicate handwash

all

solvents

all

except TRI

petrol

only

DO NOT

dry clean!

normal low high DO NOT

dry!

IV. Ironing

1100C1500C 2000CDO NOT

iron!

DESCRIPTION OF CONTROL PANEL

■

3 4 5 6

10 11

910

■ ■ ■■■

■■ ■ ■

■

1. Programme selector knob

2. Display

3. Temperature indicator (60°C, 40°C, 30°C, cold water ) and Washing progress

indicator ( )

4. Spin speed indicator

5. Rapid Wash indicator

6. Anti Allergic indicator

7. Temperature button

8. Spin speed button

9. Rapid Wash button

10. Anti Allergic button

11. START/PAUSE button

9+10. Child Lock
