American Standard 153 User manual

791116-100 Rev. F

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE

AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

Tub Installation Instructions

0153/0155 Series

Introduction: Thank you for selecting our products...products which have been the benchmarks of fine quality for years.

To help insure that the installation process will proceed smoothly, please read these instructions carefully before you

begin. Also, review the recommended tools and materials list; carefully unpack and examine your new plumbing fixture.

Recommended Tools & Materials

Observe Local Plumbing and Building Codes

Adjustable Wrench Regular Screwdriver

10'

Pipe Wrench

Putty Knife

Tape Measure

Hacksaw

762mm

(30)

1524mm

(60)

19mm

(3/4)

19mm

(3/4)

365mm

(14-3/8)

197mm

(7-3/4)

13mm

(1/2)

305mm

(12)

102 (4)

102

(4)

102mm

(8)

356mm

(14)

229 x 305mm

(9 x 12") CUTOUT

FINISHED

WALL

1-1/2 N.P.T.M. THREADS

1-1/2 O.D. TAILPIECE

C/L OF VALVES

(44mm [1-3/4"]

DIA. HOLES)

SPOUT

1/2" S.P.S.

ROUGH

FLOOR

PLUMBER NOTE:

PROVIDE SUITABLE FULL LENGTH

SUPPORT AT THIS POINT.

OPTIONAL TO FINISHED TO FINISHED

FLOOR (USUALLY BETWEEN 1651 to

1981mm ( 65" & 78')

C/L OF SHOWER CURTAIN ROD

(USUALLY 1930mm (76")

FROM FIN. FLOOR)

1/2 S.P.S. OR 1/2"

C.W.T. SUPPLIES

FINISHED

WALL

FINISHED

WALL

C/L OF DRAIN

SHOWER 1/2" S.P.S.

NOTE: NO CONCEALED

PIPING FURNISHED

SUMP PAD

LEFT HAND TUB IS ILLUSTRATED. RIGHT HAND TUB IS REVERSED.

Level

Roofing Nails

(Drain Assembly and Fitting Purchased Separately)

Plumbers' Putty

or Caulking Vice Grips

Teflon Tape

DIMENSION SHOWN FOR OUTLET IS SUGGESTED

711mm

(28) 203mm

(8) 76mm

(3) 57mm

(2-1/4)

Hammer

Product names listed herein are trademarks of American Standard Inc.

Roughing-in Dimensions

-2-

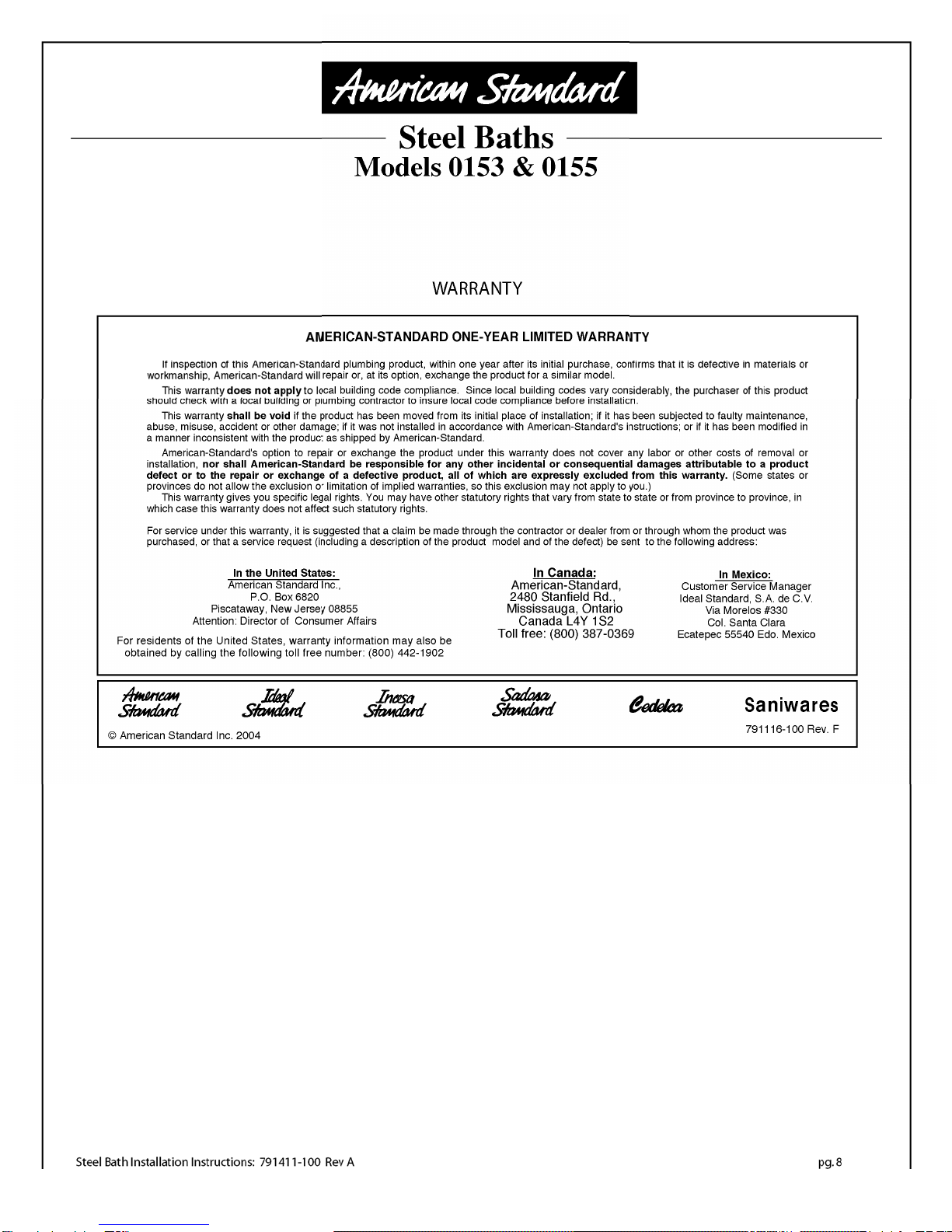

AMERICAN-STANDARD ONE-YEAR LIMITED WARRANTY

If inspection of this American-Standard plumbing product, within one year after its initial purchase, confirms that it is defective in materials or

workmanship, American-Standard will repair or, at its option, exchange the product for a similar model.

This warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser of this product

should check with a local building or plumbing contractor to insure local code compliance before installation.

This warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance,

abuse, misuse, accident or other damage; if it was not installed in accordance with American-Standard's instructions; or if it has been modified in

a manner inconsistent with the product as shipped by American-Standard.

American-Standard's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or

installation, nor shall American-Standard be responsible for any other incidental or consequential damages attributable to a product

defect or to the repair or exchange of a defective product, all of which are expressly excluded from this warranty. (Some states or

provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not apply to you.)

This warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or from province to province, in

which case this warranty does not affect such statutory rights.

For service under this warranty, it is suggested that a claim be made through the contractor or dealer from or through whom the product was

purchased, or that a service request (including a description of the product model and of the defect) be sent to the following address:

In the United States:

American Standard Inc.,

P.O. Box 6820

Piscataway, New Jersey 08855

Attention: Director of Consumer Affairs

For residents of the United States, warranty information may also be

obtained by calling the following toll free number: (800) 442-1902

In Mexico:

Customer Service Manager

Ideal Standard, S.A. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

In Canada:

American-Standard,

2480 Stanfield Rd.,

Mississauga, Ontario

Canada L4Y 1S2

Toll free: (800) 387-0369

Saniwares

AMERICAN

STANDARD

NAIL

FINISHED TILE FLOOR

UNDERLAYMENT

SUB FLOOR

Framing Instructions

Note that the typical recess is 1527 x 813mm (60 1/8 x 32”).

229 x 305mm (9 x 12”) hole in sub floor for drain, centered

365mm (14 3/8) as shown. Locate studs as required, then

ensure rough opening dimensions are proper and supports

are plumb and square.

Install 51 x 102mm (2 x 4") stringer, as shown (356mm [14”]

off floor).

1527mm

(60-1/8)

762mm

(30)

365mm

(14-3/8)

813mm

(32) TYP.

TUB WIDTH

LEVELED SUPPORT

STRINGER

Install the overflow

and drain assembly

onto the tub per

manufacturer's

instructions.

Be certain to apply a

bead of putty on the

underside of drain

(part "A") in order to

ensure a water tight

seal between the

tub and drain.

Remove excess

putty after installing

drain on tub.

AMERICAN

STANDARD

Position bathtub within the recess, check level, front to back,

side to side. Also check drain clearance hole in sub floor. To

secure the tub, use roofing nails immediately above the rear

flange of the tub.

Caution: Take extra care when driving nails to avoid damaging

the tub. The tile or similar finished floor will be butted against

the bottom of the tub apron also holding the tub in place.

STUD

SHIM

DRY WALL

TILE

SEALANT

TUB

ROOFING NAIL

51 x 102mm (2 x 4)

WOOD STRINGER

FULL LENGTH

At right is a cross section of the tub

rim showing typical wall construction.
