Amazfit GTS 2e User manual
Amazfit GTS 2e
Product Manual
A2021

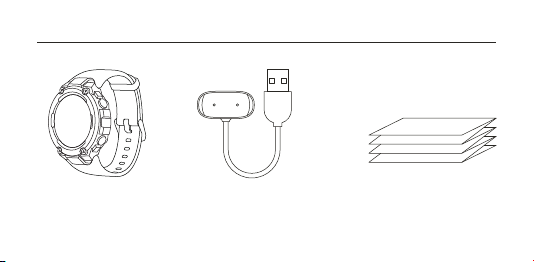

01 Package Contents
Smartwatch with
band × 1
Charging base × 1
1
Instruction Manual × 1
02 About the Watch
2
Note: Press and hold the power button to turn on the watch. If the watch cannot be
turned on, please charge it and then try again.
Heart rate
sensor
Charging
plates
Power/Select button
Touch screen
Upper
button
Lower
button
Back button
03 Pairing the Watch
3
1.
2.
3.
4.
Scan the QR code on the Instruction Manual with your mobile phone to download the
app to your mobile phone. You can also download the latest version of app from the
Google Play Store or Apple App Store.
Open the app, register an account and log in.
Follow the steps in the app to pair your watch correctly.
Once pairing is complete, the watch will display the
correct time.
You can set the other watch functions as needed.
Download Zepp App
4
Note:
1.
2.
3.
For a better user experience, please use the most recent version of the app.
The operating system needs to be Android 5.0, iOS 10.0, or above.
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the
steps in the app to pair your watch correctly.
04 Charging the Watch
5
Note:
1.
2.
Please use the charging base that comes with the watch.
Make sure that the charging base is dry before charging.
Please use a 1A or above power adapter.
1.
2.
3.
Connect the watch's charging cable to a power adapter or a computer's USB port.
Put the watch into the charging base. Pay attention to the direction and position of
the watch, and make sure that the metal contacts on the back of the watch fit
closely with the charging base.
When charging starts, the watch screen displays the
charging progress.
05 Disassembly and Assembly of the Watch Strap
6
If you need to install or remove the strap, hold the screw on one side with a
screwdriver, and rotate the nut on the other side, as shown in the figure below.
Note:
Once the strap is assembled, pull the strap properly to ensure it is installed successfully.
06 Wearing the Watch
7
1.
2.
3.
Wear the watch strap not too tightly or too loosely, and leave enough space for
the skin to breathe. This makes you feel comfortable and allows the sensor to
function.
When measuring blood oxygen saturation, wear the watch correctly. Avoid
wearing the watch on the wrist joint, keep your arm flat, maintain comfortable
(appropriately tight) fitting between the watch and the skin of your wrist, and
keep your arm still throughout the measurement process. When aected by
external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement
result may be inaccurate or the measurement may fail and provide no output.
We recommend that you tighten the watch strap during exercise and loosen it
afterwards.
07 Basic Parameters
8
Product model: A2013
Input: 5V d.c. 500mA MAX
Bluetooth version: BLE V5.0
BLE output power: <5 dBm
View product certification information on the watch's Settings > System > Regulation page.
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions
Operating temperature: 0°C to 45°C
Water resistance rating: 10 ATM
Bluetooth frequency: 2400–2483.5 MHz
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Anhui
Huami Information Technology Co., Ltd. is under license. Other
trademarks and trade names are those of their respective owners.
08 Regulatory Notice
9
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: 2AC8UA2013
Any changes or modifications that are not expressly approved by the party
responsible for the compliance may void the user’s authority to operate the device.
