Amana AFB2234WES2 User manual

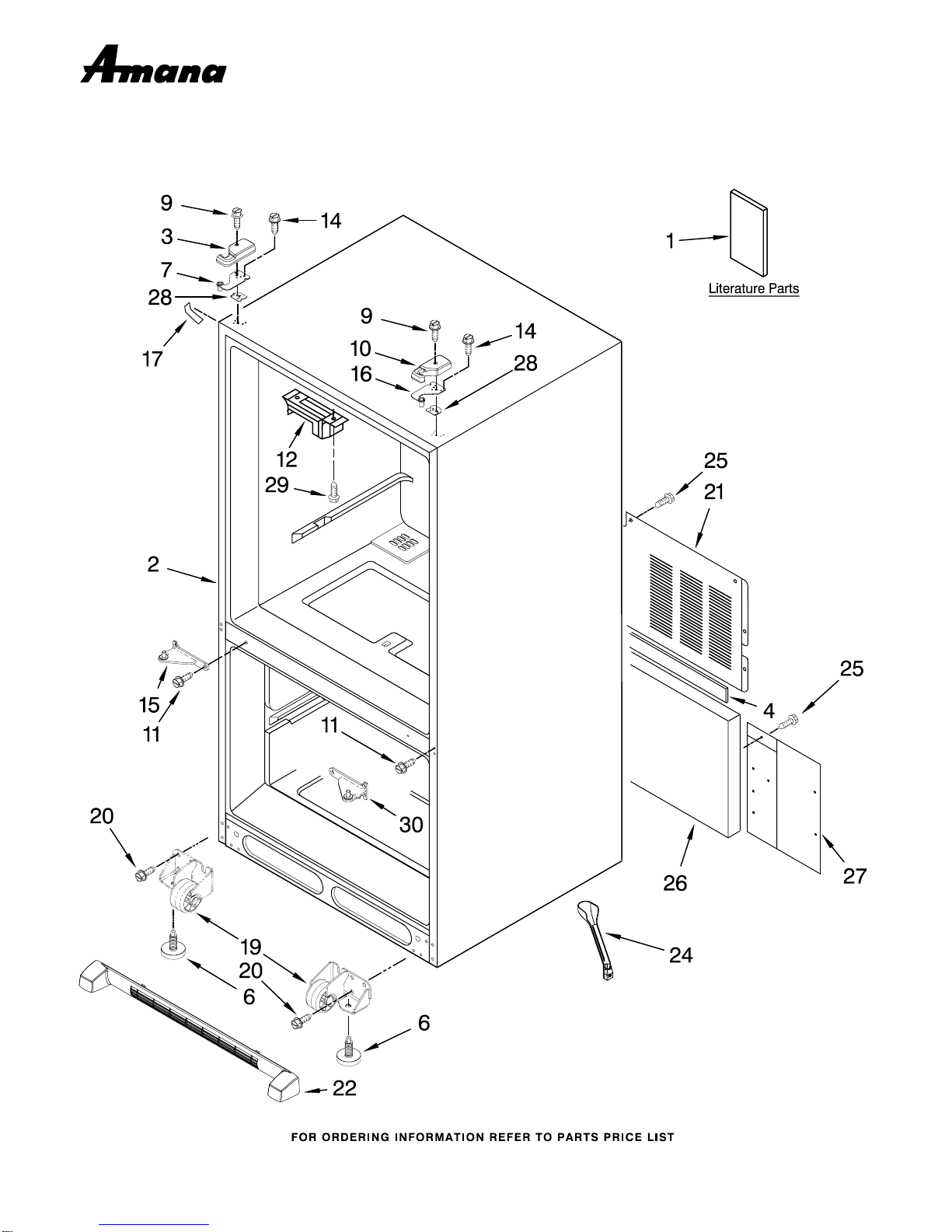

CABINET PARTS

For Models: AFB2234WES2

(Stainless Steel)

8−09 Litho In U.S.A. (mat)(bay) Part No. W10289731 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Use & Care Guide

W10260550

Energy Guide

W10255316

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Cover, Left Hinge

12962301B

Black

4 B5759655 Gasket

W10141622

Foot, Brake

12963204ED

Hinge, Left Top

9 12992602 Screw

10 Cover, Right Hinge

12962302B

Black

11 12990101 Screw

12 12698403 Block, Pivot

14 12992403 Screw (3)

15 Hinge, Center (LT)

13000007ED

Black

12963205ED

Hinge, Right Top

17 Cover, Corner

12587703B

Black

19 Roller Assembly

W10275850

Left

W10275849

Right

20 12991302 Screw (4)

W10210979

Cover, Unit

22 Grille, Toe

W10236196

Black

W10210988

Tube, Drain

25 12990511 Screw

26 12820505 Fiber, Acoustic

W10217701

Cover, Water Valve

28 Shim, Top Hinge

12999501 Left

12999502 Right

29 12990303 Screw, Block

30 Hinge, Center (RT)

13000008ED

Black

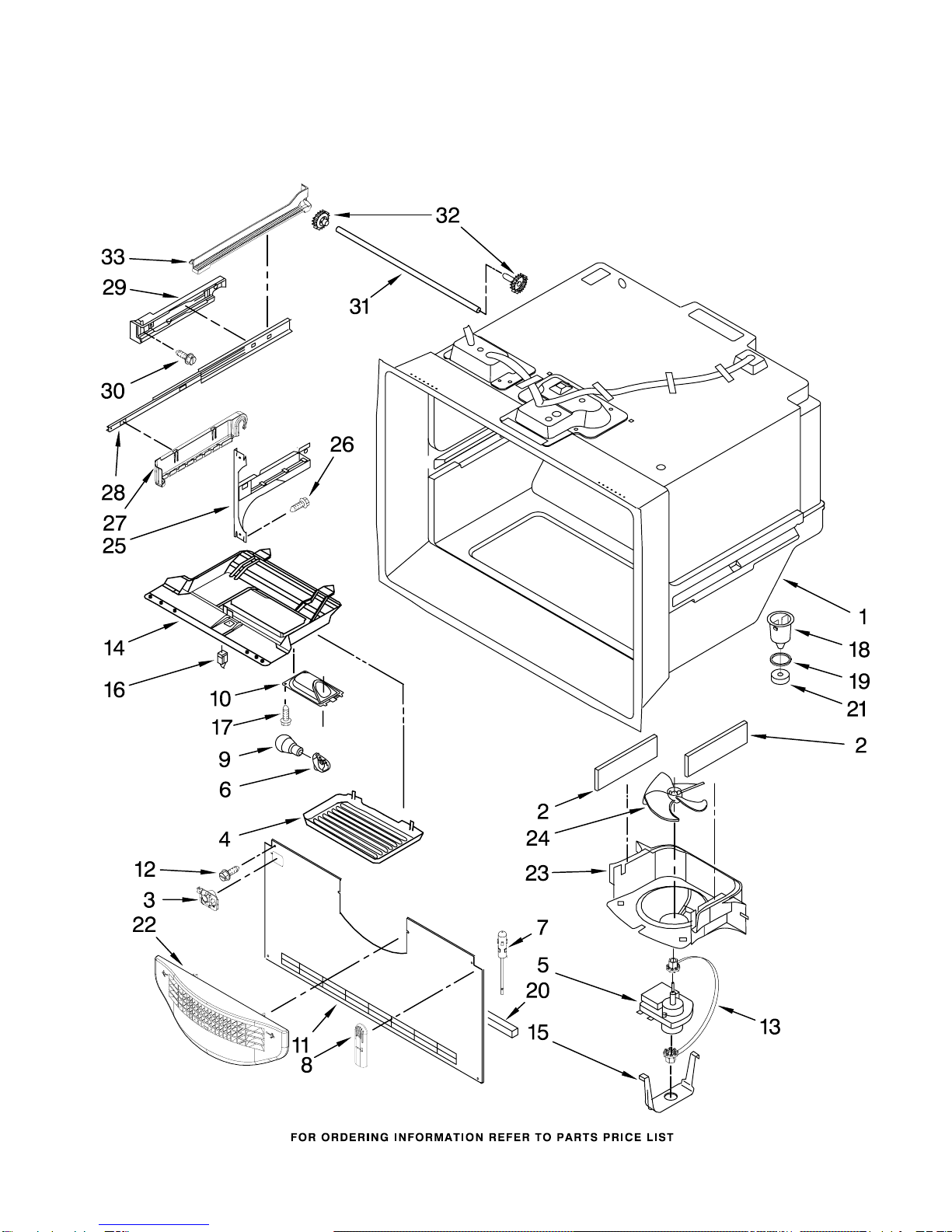

FREEZER LINER PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

FREEZER LINER PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12932103 Guide, Fill Tube

4 12804901 Cover, Light

W10128551

Motor, Evaporator

12570701V

Socket, Light

7 12002355 Thermistor

8 12815301 Cover, Thermistor

W10194422V

Bulb, Light

12806601V

Housing, Light

11 12226111 Cover, Evaporator

12 12990511 Screw

W10121318

Grommet

14 12805001 Module, Light

15 13058002 Clip, Evap. Motor

16 12466105 Switch, Light

12991603V

Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 A3189395 Gasket, Bottom

21 B8381501 Gasket

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 12990521 Screw (8)

27 Cradle, Basket

12812303 Left

12812304 Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10149390

Left

W10149391

Right

30 12990501 Screw (6)

12812905WD

Shaft

32 Gear

W10158749

Left

W10146446

Right

33 Rack, Side

W10216619

Left

W10216620

Right

Following Parts Not Illustrated

13014801 Harness, Lights

(Freezer)

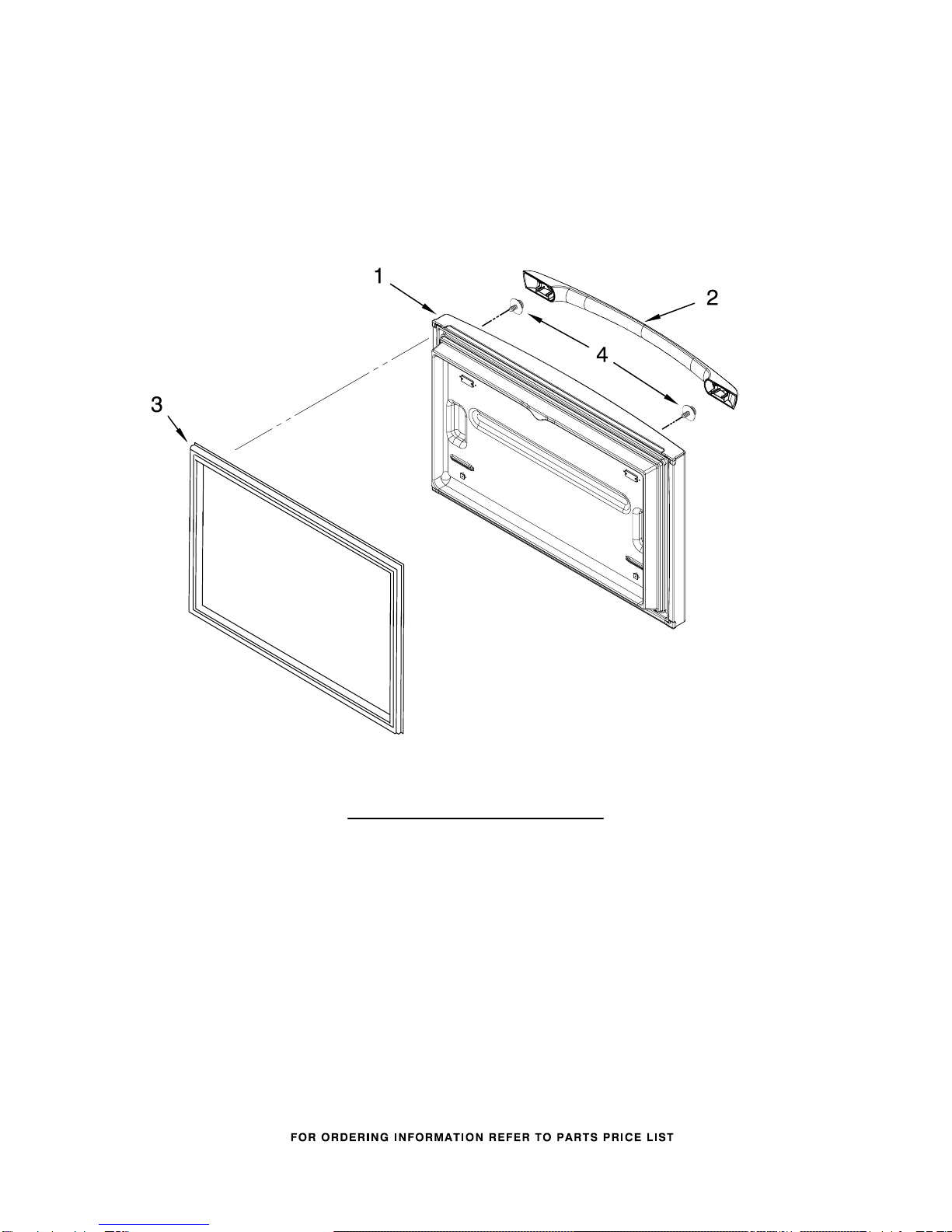

FREEZER DOOR PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

12977827SQ

Stainless Steel

2 Handle, Door

W10123790

Stainless Steel

3 Gasket, Door

W10164037

Black

4 12991703 Screw, Handle

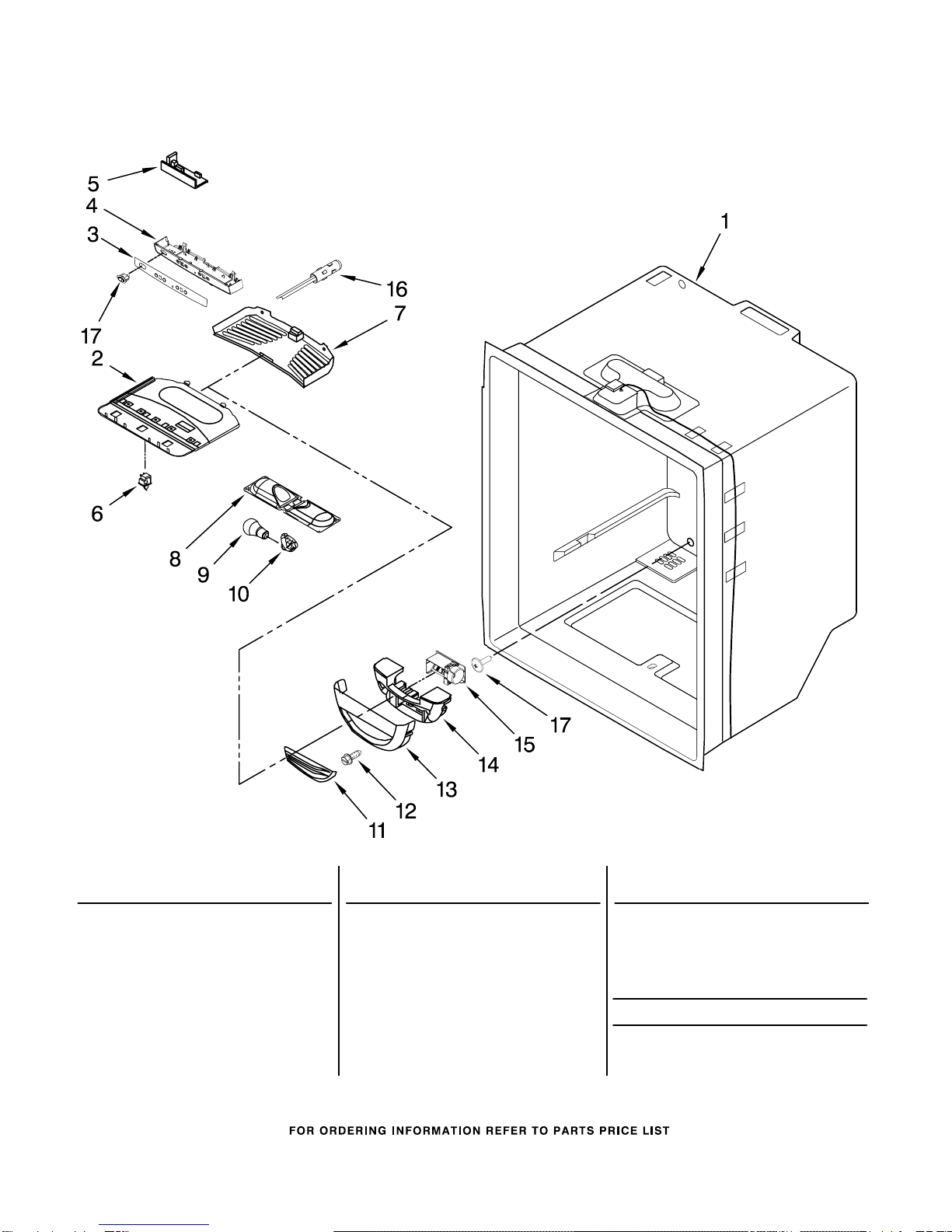

REFRIGERATOR LINER PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806303 Module, Light

3 12816511 Overlay

4 12806407 Module, Control

5 12868513 Board, Control

(Incl Instr Sheet)

6 12466104 Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

(Includes Harness)

16 12002355 Thermistor

17 12861601 Switch, Energy

Saver

Following Parts Not Illustrated

W10216622

Harness, Controls

(Refrigerator)

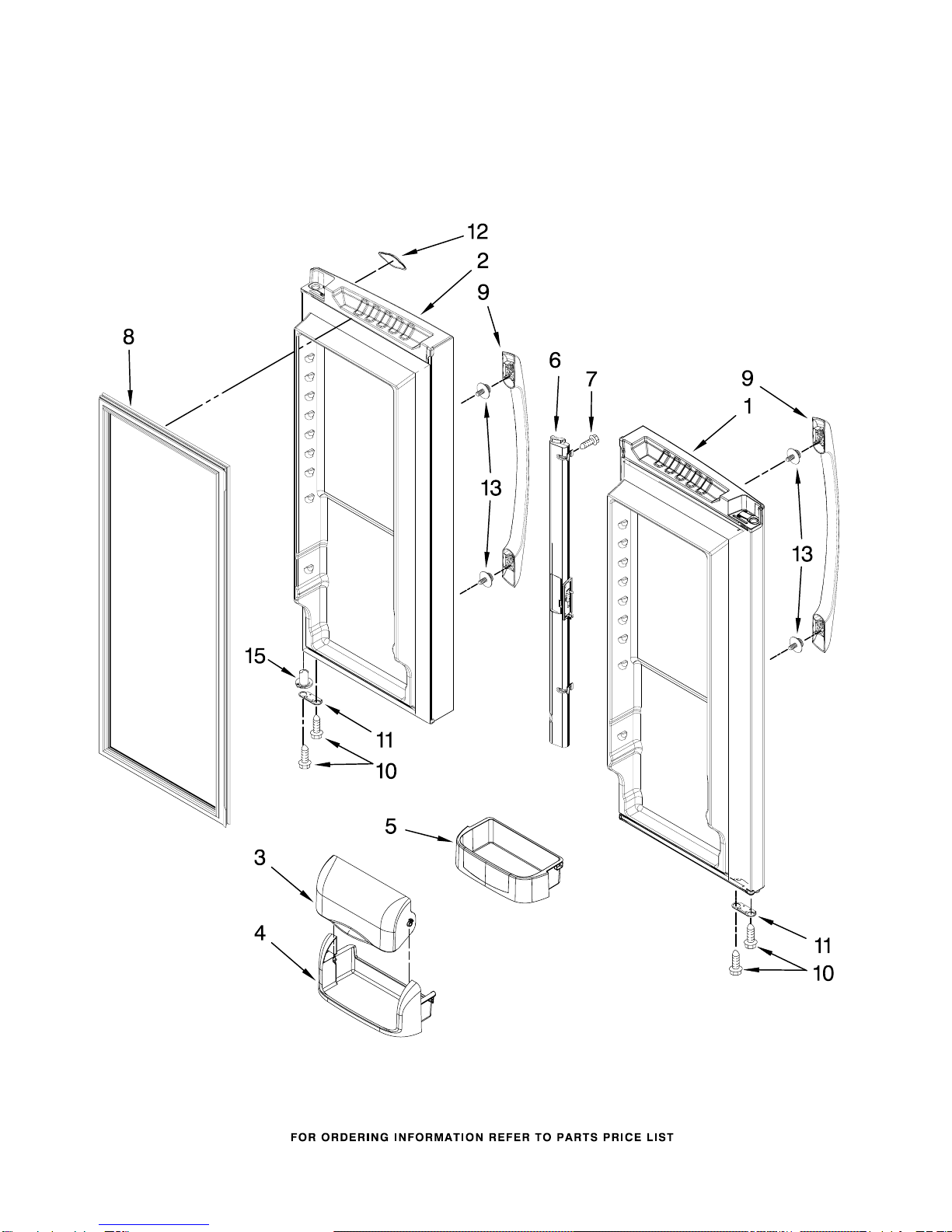

REFRIGERATOR DOOR PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

REFRIGERATOR DOOR PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION

1 Door, Left

12978050SQ

Stainless Steel

2 Door, Right

12978054SQ

Stainless Steel

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

5 Bucket, Door

12557211V

Small (2)

12918504V

33 Inch

12918204K

Gallon

12557214K

Medium

6 Mullion, Door

12722803B

Black

7 12990204 Screw

8 Gasket, Door

W10163895

Black

9 Handle, Door

W10197305N

Stainless (LH&RH)

10 12990504 Screw

11 Stop, Door

12968202B

Black

12 12528501 Nameplate

13 13001201 Mount, Handle

15 Closure, Door

12028505B

Black

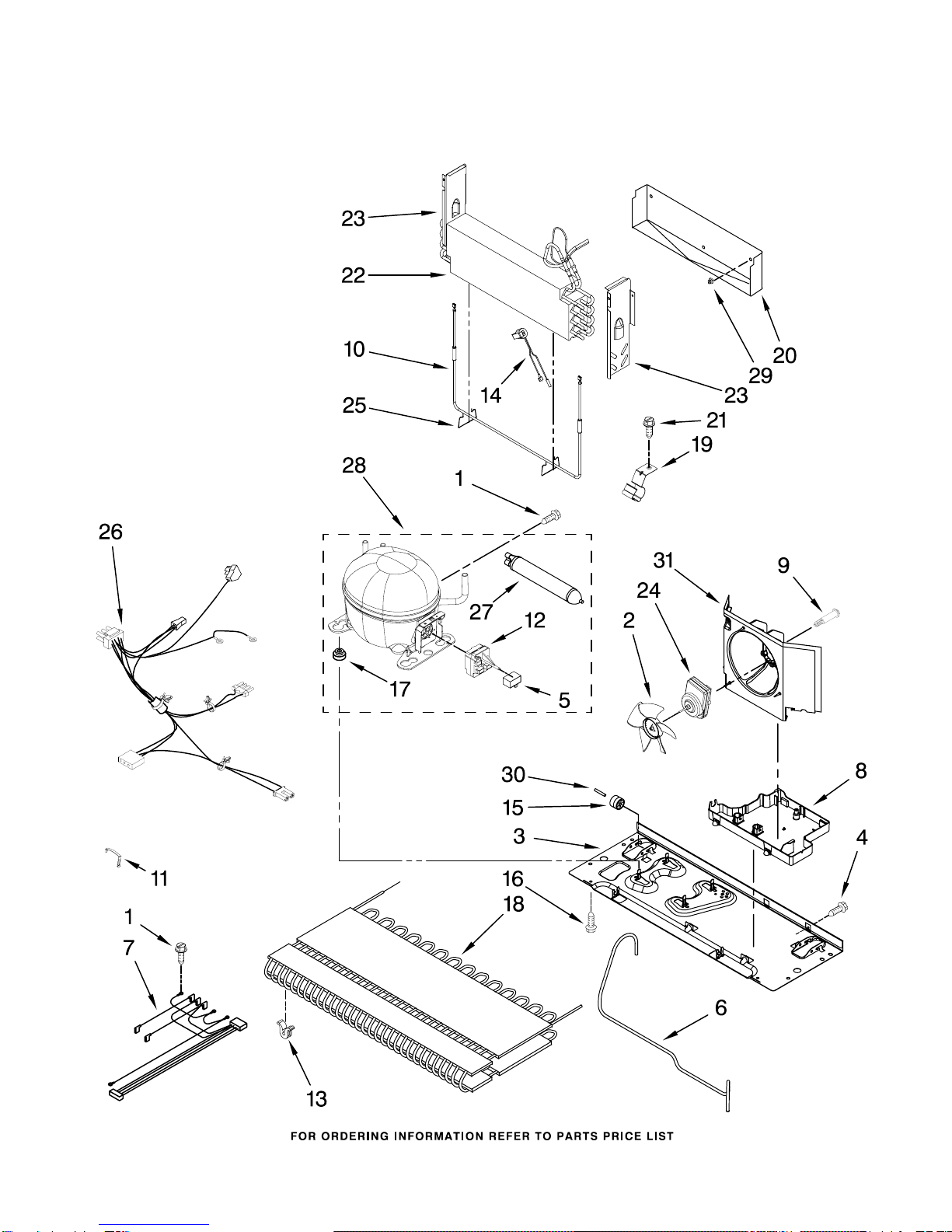

UNIT PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

UNIT PARTS

For Models: AFB2234WES2

(Stainless Steel)

W10289731

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210983

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10217748

Tube, Discharge

W10224241

Harness, Evap.

Heater

W10189185

Pan, Drain

W10216919

Screw, Shoulder

10 12729128 Heater, Defrost

W10204187

Strap, Bale

W10197428

Start Device

W10137529

Grommet, Cond.(4)

12639324SP

Thermostat,

Defrost

15 12477102 Roller (2)

16 12992101 Screw

17 Grommet (4)

10835903SP

Service

W10135027

Condenser

19 10547003 Clip, Drier

12225402WD

Tray, Drip

21 12990701 Screw

22 12001919 Evaporator Kit

(Incl. Evaporator

#67003719, Heat

Shield & Instruct.

Sheet)

23 Dam

12225702 Right Side

12225602 Left Side

24 12825101 Motor, Fan

25 10428101 Clip, Heater

W10234024

Harness, Unit

with Power Cord

W10143759

Drier (service)

W10134623

Compressor

(Includes items

5, 12, 17, & 27)

(Also Order

482801

Installation Kit

and 876765

Tube Kit)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
