Amana TSI25V Manual

Amana Technical Information--Refrigerator

TSI25V P1308102W

Due to a possibility of personal injuryor propertydamage, always contact an authorized technician for servicing

or repair of this refrigerator.

•Refer to Service Manual RS1100000 for installation, operating, disassembly, ice maker, testing, and

troubleshooting information.

•Refer to Parts Manual RP1100056 for parts information.

I CAUTION

All safety information must be followed as provided in Service Manual RS1100000. t

IWARNING

To avoid risk of electrical shock, personal injury,or death, disconnect power to refrigerator before servicing,

unless testing requires power. Wires removed during disassembly must be replaced on proper terminals to

insure correct earthing and polarization.

Model TSI25V

Capacity 24.5 cuft

Electrical 115 VAC 60 Hz

requirements 15 Amps

separate circuit

Refrigerant type R134a

Width 35.625"

without side

extrusions

Depth 32.655"

without handle

includes door

extrusions

Height 68.295"

including top

hinge cap

Ambient °F

Kw/24 hr +10%

65°90 °110°

1,2 1.9 2.8

No Load Performance Controls In Normal Position

Percent Run Time Cycles/24 hr Refdgerator Center

+10% _Compartment Food

Avera_le Temperature +3°F

65 ° 90" lm10° 65 _90 ° 110 ° 65 ° 90° 110 °

22.1 33,5 50.7 37.9 38.3 30. 35.7 41.8 41,2.

Freezer Compartment

Food Average

Temperature :P.3°F

65° 90° 110°

I 0.6 0.9 -0.3

Temperature Relationshi ) Test Chart

T-I Outlet T-2 inlet +3°F

±3OF

65° 90 ° 65° 90°

-9.5 -12.2 -16.7 -12.

T-3 Suction Line

+7OF

65° gO°

65.9 90.

Head

Average Total Suction Pressure Pressure

Wattage ±10% :L2 PSIG :t:5PSIG

65°90 °65° 90° 65 ° 90°

190. 204. 1. 2. 87. 135.

April1999 1 RTl100035 Rev. 0

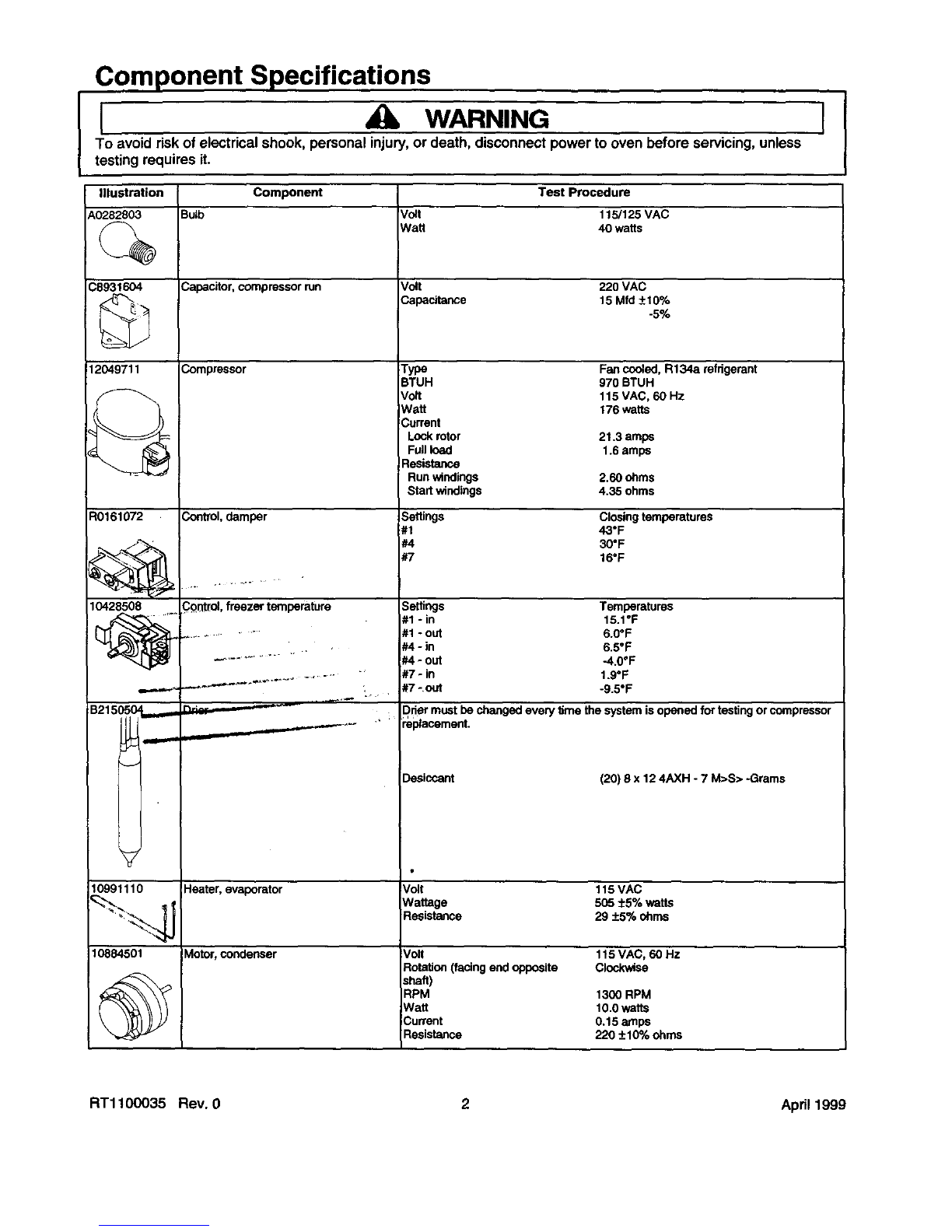

Component Specifications

[ WARNING I

To avoid risk of electrical shook, personal injury, or death, disconnect power to oven before servicing, unless

testing requires it.

Component Test Procedure

Bulb Colt 115/125 VAC

Hatt 40 wars

Capacitor, compressor run Volt 220 VAC

_,apacitance 15 Mfd + 10%

-5%

Compressor

Illustration

_0282803

38931604

12049711

_0161072

10428508

B215050 ___

2._1, damper

_r_, freezer tembemture

Type Fan cooled, R134a refrigerant

BTUH 970 BTUH

Volt 115 VAC, 60 Hz

Watt 176 watts

Current

Lock rotor 21.3 amps

Full load 1.6 amps

Resistance

Run windings 2.60 ohms

Start windings 4.35 ohms

Settings Closingtemperatures

if1 43"F

#4 30°F

#7 16°F

Settings Temperatures

#1 -in 15.1°F

#1 -out 6.0°F

#4 - in 6.5°F

#4 - Out -4.0°F

#7 -in 1.9°F

#7 -out -9.5°F

Driermostbechangedevery timethe systemisoponedfortestingor compressor

rep/acemant.

Desiccant (20) 5 x 12 4AXH - 7 M>S> -Grams

10991110 Heater, evaporator Volt 115 VAC

_Wattage 505 ±5% watts

Resistance 29 +5% ohms

10884501 Motor, condenser Volt 115 VAC, 60 Hz

Rotation (facing end opposite Clockwise

shaft)

RPM 1300 RPM

Watt 10.0 watts

Current 0.15 amps

Resistance 220 ±10% ohms

RTl100035 Rev. 0 2April 1999

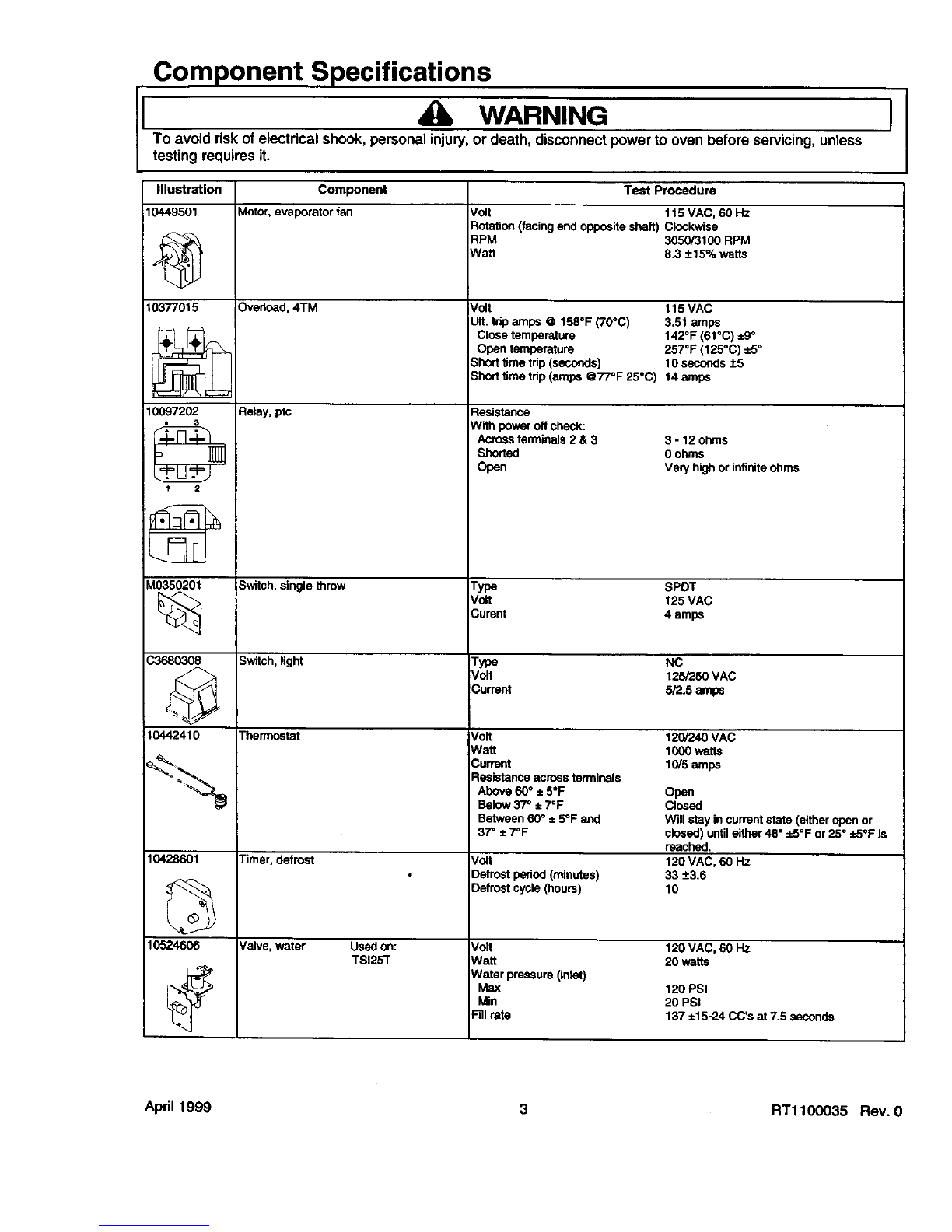

Component Specifications

I WARNING I

To avoid risk of electrical shook, personal injury,or death, disconnect power to oven before servicing, unless

testing requires it.

Component Test Procedure

Motor, evaporator fan Volt 115 VAC, 60 Hz

Rotation (facing end opposite shatt) Clockwise

RPM 3050/3100 RPM

I/Vatt 8.3 _+15% watts

Overload, 4TM Volt 115 VAC

UIt. trip amps @158°F (70°C) 3.51 amps

Close temperature 142°F (61°C) _9°

Open temperature 257=F (125°C) ±.5°

Short time trip (seconds) 10 seconds -+5

Shorttimetdp(amps @770F25°C) 14amps

Relay, ptc

Illustration

10449501

10377015

10097202

•3

_0350201

Resistance

With poweroffcheck:

Acrossterminals2& 3

Shorted

Open

3-12ohms

0 ohms

Very highor infiniteohms

Switch, single throw Type SPDT

Volt 125 VAC

Curent 4 amps

.33680308 Switch, light Type NC

Volt 125/250 VAC

Current 5/2.5 amps

10442410 Thermostat 120/'240 VAC

1000 watts

10/5 amps

Volt

Watt

Current

Resistanceacrossterminals

Above 60° ±5°F

Below37=±7°F

Between60° ± 5°F and

37_± 7°F

10428601 Timer, defrost Volt

Defrost peried (minutes)

Defrost cycle (hours)

10524606 Valve, water Used on: Volt 120 VAC, 60 HZ

TSI25T Watt 20 watts

Water pressure (inlet)

Max 120 PSI

Min 20 PSI

Fill rate 137 ±15-24 CC's at 7.5 seconds

Open

Closed

Will stay in current state (either open or

closed) until either 48° ±5°F or 25 ° ±5°F is

reached,

120 VAC, 60 Hz

33 +-3.6

April 1999 3 RTl100035 Rev. 0

Wiring Diagrams and Schematics

4_ WARNING II

To avoid risk of electrical shook, personal injury, or death, disconnect power to oven before servicing, unless

testing requires it.

TSI25V P1308102W

I4_ WARNING I

To avoid risk of electrical shock, personal injury, or death, disconnect power to refrigerator before servicing,

unless testing requires it. Wires removed during disassembly must be replaced on proper terminals to insure

correct grounding. After servicing, reconnect power.

_lk CAUTION

High Voltage

_UI_L

IL2_ DEFROST

LI" HOT

D_F

HTR

DEF

TERM

LO H= _-

CABINETMOISTURE

FAN CONTROLSWITCH

MOTOR

HTR LT

REF_ (

uc_

WATER

VALVE

FRZ

12412201 PRINTED IN THE USA

RTl100035 Rev. 0 4 April 1999

Wiring Diagrams and Schematics

II 4J_ WARNING

To avoid risk of electrical shook, personal injury,or death, disconnect power to oven before servicing, unless

testing requires it.

TSI25V P1308102W

IAWARNING I

To avoid risk of electrical shook, personal injury, or death, disconnect power to refrigerator before servicing,

unless testing requires it. Wires removed during disassembly must be replaced on proper terminals to insure

correct grounding. After servicing, reconnect power.

OUTER

REO

12412201PRINTEDINU.S._.

April 1999 5 RTl100035 Rev. 0
