Amana ADB1500AWB1 Setup guide
DOOR AND PANEL PARTS
1
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
10−09 Litho In U.S.A. (cre) (psw) Part No. W10260589 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10158012
Instructions,
Installation
W10208025
Energy Guide
W10157793
Guide, Use & Care
2 Bracket, Hinge
W10202226
Left
W10202227
Right
3 99001075 Screw
4
Y99002587
Pad, Foam
5 Panel, Front
99002768 Black
99002770 White
99002769 Bisque
99002771 Stainless
6 Screw
912366 Black
99001194 White
99002114 Bisque
7 Panel, Toe
99002765 Black
99002766 White
99002767 Bisque
8 Support, Front
99002591 Black
99002593 White
99002592 Bisque
9
W10117748
Insulation, Door
10
W10185633
Liner, Door
Secondary
11 99003481 Foam Strip (Short)
12 99003482 Foam Strip (Long)
13 99003541 Bracket, Secondary
Door Liner
CONTROL PANEL PARTS
2
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1 99002575 Housing, Board
(Top)
2
W10218832
Board, Control
3 99002576 Housing, Board
4 Panel, Control
99003414 Black
99003368 White
99003367 Bisque
5 99002751 Switch, Door
6
W10130695
Latch, Assembly

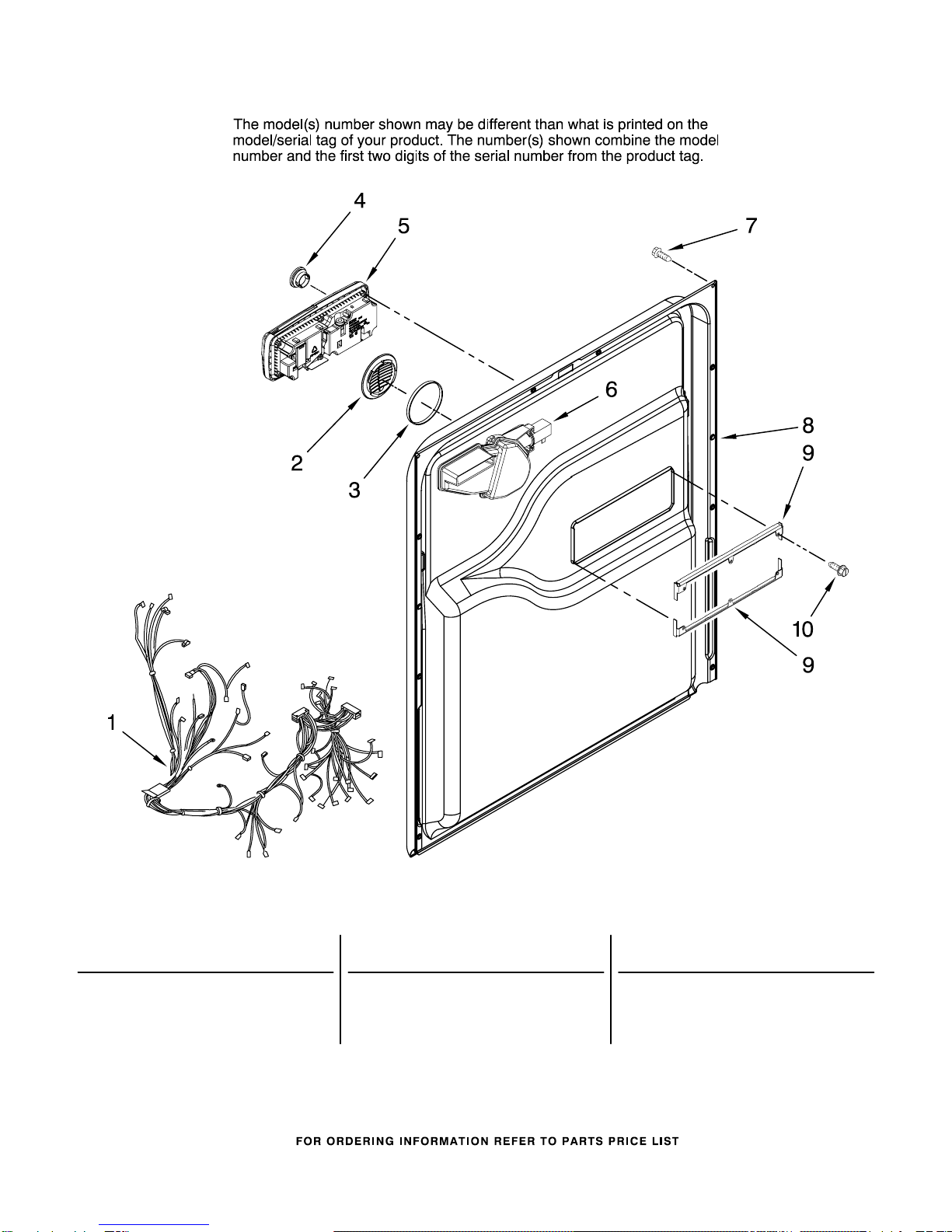

DOOR AND LATCH PARTS
3
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 99003537 Harness, Wiring
2 99002590 Bezel, Door Vent
3 99002186 Seal, Door Vent
4 99002992 Cap, Rinse Aid
5 99003321 Dispenser, Rinse
Aid
6
W10190890
Housing, Vent Assy
7 Y912620 Screw, Door
8 99003424 Inner Door
W/ Damper
9 99003316 Bracket, Dispenser
10 912615 Screw
LOWER WASHARM PARTS
4
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1 99002654 Cap, Wash Arm
2 99002678 Wash Arm, Lower
(Includes Item 3)
3
W10218606
Shield, Radiant
HEATER PARTS
5
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1 99002971 Heater Element
Assembly
W/ Gasket
2 99002972 Nut, Heater
3 99002626 Bracket, Heater
Support
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1 99002852 Hose, Inlet
2 911856 Clamp, Spring
3 99002975 Valve, Water
4
W10205539
Housing, Float
Switch
5 99002652 Hose, Drain
6
W10130095
Float
7 99002645 Inlet, Air/Water

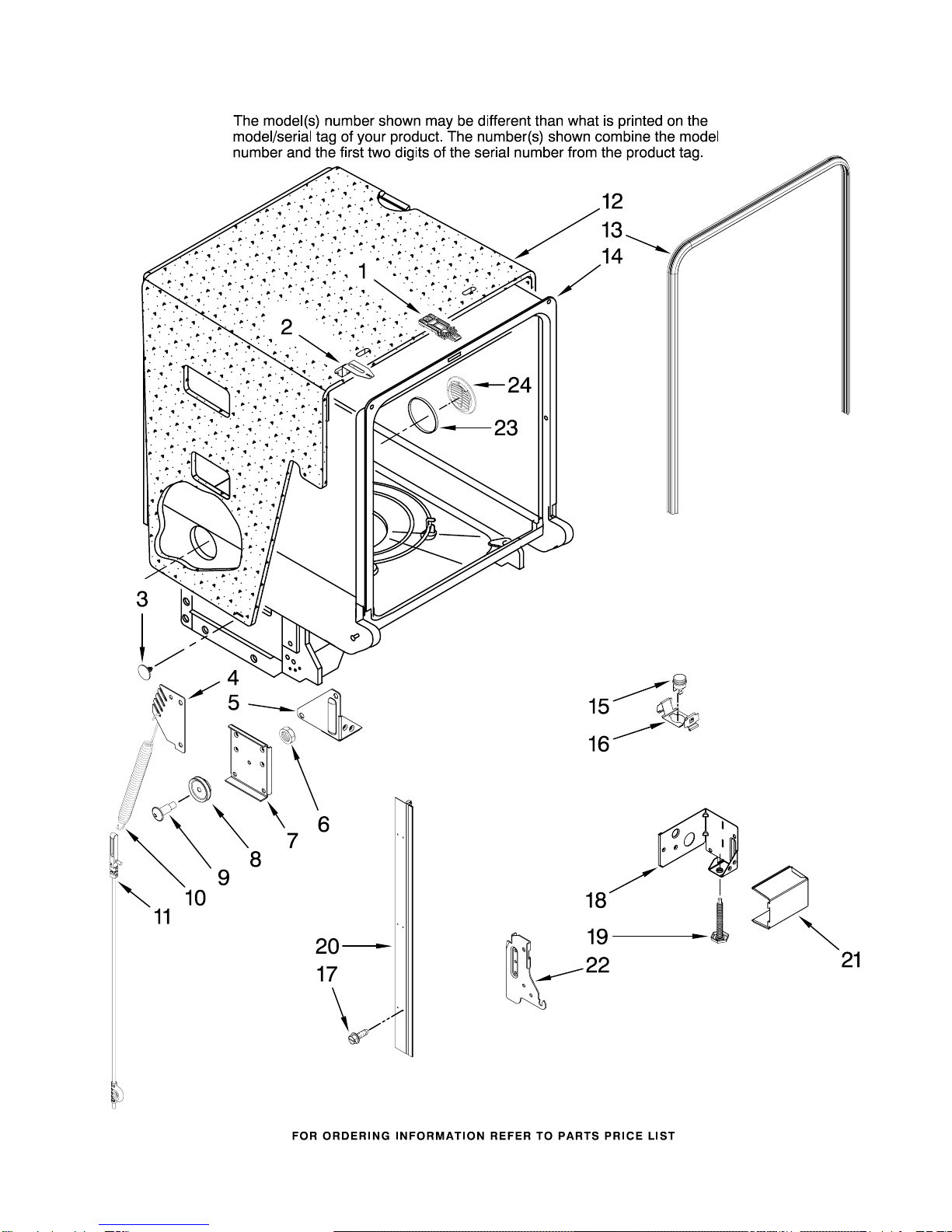

TUB AND FRAME PARTS
7
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
TUB AND FRAME PARTS
8
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1
W10119337
Strike, Door
2 99002648 Bracket, Cabinet
Mounting
3 99002640 Fastener
4 99002610 Bracket, Spring
Adjustment
5 Bracket, Support
99002636 Left
6 99003688 Nut
7
W10173920
Bracket, Cable
8 99002608 Roller, Cable
Bracket
9 99003687 Bolt, Shoulder
10 99002598 Spring, Door
11 99003446 Door Cable Assy.
12 99002639 Insulation, Tub
13 99002588 Seal, Door
14
W10142297
Tub Assembly
15 99002633 Thermostat,
Limiting
16 99002634 Clip, Thermostat
17 99002692 Screw, Trim
Mounting
18 99002637 Bracket, Junction
Box
19
W10143258
Leg, Leveling
20 99002649 Strip, Trim
21 99002638 Cover, Junction
Box
22 Support, Hinge
W10137496
Left
W10137495
Right
23
W10200542
Seal, Air/Water
Inlet
24 99002948 Grill, Air/Water
Inlet
PUMP AND MOTOR PARTS
9
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
PUMP AND MOTOR PARTS
10
For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
(Black) (White) (Bisque) (Stainless)
W10260589
Illus. Part
No. No. DESCRIPTION
1 99002666 Screw
2
W10166788
Guard, Filter
3 99002668 Screw
4 99002677 Discharge, Housing
Assembly
5 99002659 Wash Impeller
Assembly
6
W10192799
Filter/Flowplate,
Assembly
7 99002663 Gasket, Motor
Mount
8 99002651 O−Ring, Turbidity
Sensor
9
W10120019
Sensor, Turbidity
10 99003697 Pivot, Wash Arm
11 99002664 Screw
12 99003427 Chopper
13 6−919922 Wash Motor Assy.
14 99003309 Flapper, Drain
Pump Inlet
15 99002857 O−Ring, Drain Pump
16 99002740 Screw
17
W10200518
Drain Pump Assy.
18
W10167912
Shield, Capacitor
19 99002665 Capacitor
20 99002601 Screw
