ALLPOWER APG3014G User manual

Warning To Reduce The Risk Of Injury, User Must

Read And Understand Instruction Manual.

www.jdna.com

DANGER

Carbon Monoxide

Using a generator indoors WILL KILL YOU IN MINUTES.

Generator exhaust contains high levels of carbon monoxide (CO), a poisonous

gas you cannot see or smell. If you can smell the generator exhaust, you are

breathing CO. But even If you cannot smell the exhaust, you could be breathing

CO.

other partly

enclosed areas. Deadly levels of carbon monoxide can build up in these areas.

Using a fan or opening windows and doors does NOT supply enough fresh air.

doors, and

vents. These openings can pull in generator exhaust.

Even when you use a generator correctly, CO may leak into the home. ALWAYS

use a battery-powered or battery-backup CO alarm in the home.

If you start to feel sick, dizzy, or weak after the generator has been running,

move to fresh air RIGHT AWAY. See a doctor. You could have carbon

monoxide poisoning.

Distributed by:

JD North America, Corp.

www.jdna.com

2000 WATT GENERATOR

CONTENTS

SAFETY PRECAUTIONS .......................................................................2

CONTROL FUNCTION .......................................................................3

PRE-OPERATION CHECKS ...................................................................5

OPERATION ...........................................................................................6

OIL SENSER ..........................................................................................9

PERIODIC MAINTENANCE ...................................................................10

TROUBLE SHOOTING ..........................................................................12

STORAGE ..............................................................................................14

COMPLIANCE ........................................................................................14

SPECIFICATIONS ..................................................................................15

SYMBO .....................................................................................................16

WARRANTY ..............................................................................................17

PARTS LISTING ......................................................................................19

OWNER’S MANUAL

PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY

BEFORE OPERATING.

1. SAFETY PRECAUTIONS

1) EXHAUST FUMES ARE POISONOUS

- Never operate the machine in a closed area or it may cause

unconsciousness and death within a short time.Operate the engine in a

well ventilated area.

2) FUEL IS HIGHLY FLAMMABLE AND POISONOUS

- Always turn off the engine when refueling.

Never refuel while smoking or in the vicinity of an open flame.

Take care not to spill any fuel on the engine or muffler when refueling.

- If you sallow any fuel,inhale fuel vapor,or allow any to get in your eyes,

see your doctor immediately. If an fuel spills on your skin or clothing,

immediately wash with soap and water and change your clothes.

- When operating or transporting the machine,be sure it is kept upright.If it

tilts,fuel may leak from the carburetor or fuel tank.

3) ENGINE AND MUFFLER MAY BE HOT

- Put the machine in a place where pedestrians or children are not likely to

touch the machine.

- Avoid placing any flammable materials near the exhaust outlet during

operation.

- Keep the machine away at least 1 m(3 ft) from buildings or other equipment,

or the engine may overheat.

- Avoid operating the engine with a dust cover.

WARING:

2000 WATT GENERATOR

NOTE:

4) ELECTRIC SHOCK PREVENTION

- Never operate the engine in rain or snow.

- Never touch the machine with wet hands or electrical shock will occur.

- Be sure to ground (earth) the generator.

- Use ground (earth) lead of sufficient current

capacity. Ground (earth) lead Diameter :

0.12mm(0.005 in)

- Some types of generators have no ground bolts,

so do not operate the machine in rain or snow!

While the machine is operating, don’t touch it with wet hands!

5) CONNECTION NOTES

- Avoid connecting the generator to commercial power outlet.

- Avoid connecting the generator in parallel with any other generator.

6) BATTERY

- No smoking while handing the battery.

- The battery emits flammable hydrogen gas,which can explode if exposed

to electric arcing or open flame.

- Keep the area well-ventilated and keep open flames/sparks away when

handing the battery.

2. CONTROL FUNCTION

1) ENGINE SWITCH

The engine switch controls the ignition system.

OWNER’S MANUAL

“ON” ( “ENGINE SWITCH” on “RUN” position)

Ignition circuit is switched on.

The engine can be started.

“OFF”(”ENGINE SWITCH” on “STOP” position)

Ignition circuit is switched off.

The engine will not run.

2) AC PROTECTOR

The AC breaker turns off automatically when the load exceeds the

generator rated output.

CAUTION:

Reduce the load to within specified

generator rated output if the protector

turn off !

3) COMPONENTS

ENGINE SWITCH

AC PROTECTOR

1. Fuel tank

2. Fuel tank cap

3. AC socket

4. Ground terminal

5. AC proctector

6. Pilot lamp

7. Oil filter cap

8. Oil drain plug

9. Engine switch

10. Starter

11. Air filter cover

12. Muffler

13. Spark plug

14. Choke lever

12 13

2000 WATT GENERATOR

3. PRE-OPERATION CHECKS

NOTE:

Pre-OPERATION checks should be made each time the generator is used.

1) CHECK ENGINE FUEL

- Check fuel level with the tank cap removed.

- If fuel level is low,refill with unleaded

automotive gasoline.

- Be sure to use the fuel filter on the fuel filter

neck.

- Recommended fuel: unleaded gasoline

WARNING:

- DO NOT refill tank while engine is running or hot.

- Close fuel cock before refueling with fuel.

- Be careful not to admit dust ,dirt,water or other foreign objects info fuel.

- Wipe off spilt fuel thoroughly before starting engine.

- Keep open flames away.

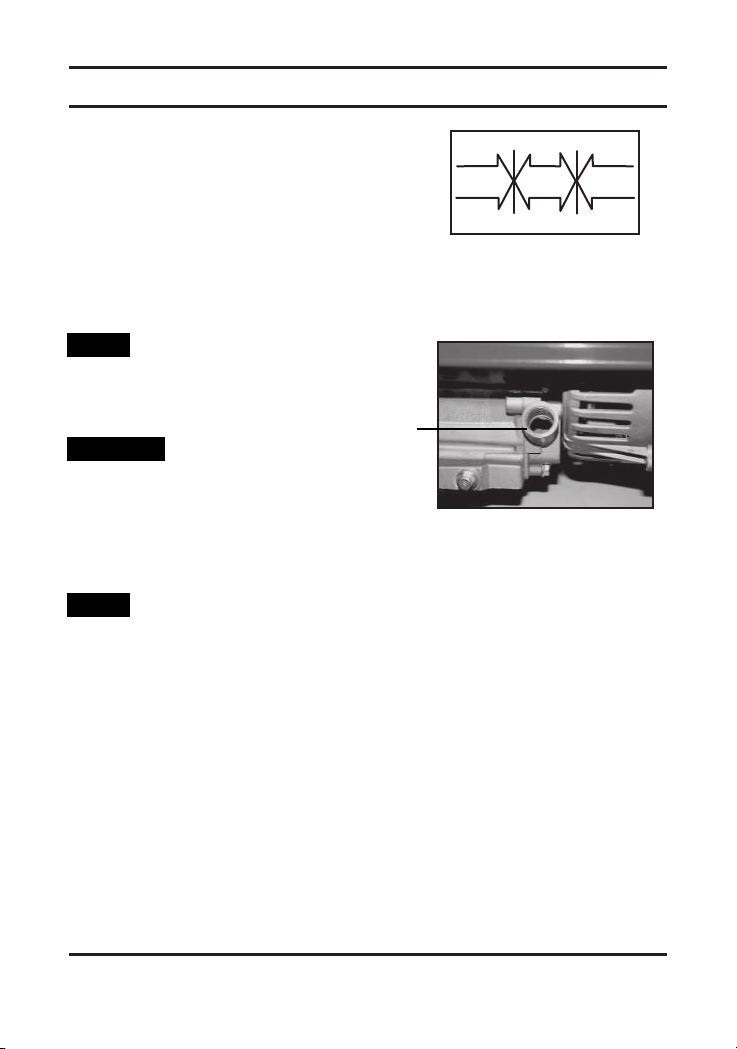

2) CHECK ENGINE OIL

- Before checking or refilling oil,be sure the

generator is put on a stable and level

surface with engine stopped.

- Fuel level is below the lower level line,refill

with suitable oil to upper level line. Do not

screw in the oil filler cap when checking

oil level.

OWNER’S MANUAL

- Recommended engine oil: SAE 30

10W-30

3) GROUND ( Earth )

Makee sure to ground (earth) the generator.

4. OPERATION

NOTE:

The generator has been shipped without

engine oil. Fill with oil or it will not start.

WARNING:

Before starting the machine, you must check

the oil level, or the engine can be damaged !

1) STARTING THE ENGINE

NOTE:

- Before starting the engine, do not connect the electric apparatus to the

generator.

1. Turn the fuel cock to “ ON ”.

2. Turn the engine switch to “ ON ”.

3. Turn the choke level to the “ CLOSE ” position. Not necessary if the

engine is warm.

4. Pull the starter handle slowly until resistance is felt. This is the

compression point. Return the handle to its original position and pull

swiftly. Do not fully pull out the rope. After starting allow the starter

handle ro return to its original position while still holding the handle.

0oC 25oC

32oF 80oF

C SAE 10W B SAE #20 A SAE #30

or 10W-30 or 10W-30 or 10W-10

or 10W 40 or 10W-40 or 10W-40

OIL INLET

2000 WATT GENERATOR

5. Warm up the engine.

6. Turn the choke level back to the operating position.

7. Warm up the engine without a load for a few minutes.

2) USING ELECTRIC POWER

1. AC PROTECTOR

(a) Check the pilot lamp for proper voltage.

(b) Turn off the switch of the electrical appliances before connecting to the

generator.

CAUTION:

- Be sure the electric apparatus is turned off before plugging in.

- Be sure the total load is within generator rated output.

- Be sure the socket load current is within socket rated current.

NOTE:

When the circuit breaker no-fuse breaker turns off during operation，

the generator is overloaded

OWNER’S MANUAL

3）STOPPING THE ENGINE

1. Turn off the power switch of the

electric apparatus or unplug the

cord from receptacle of the generator.

2. Turn the engine switch to “STOP”.

3. Turn the fuel cock lever to “OFF”.
