ALLPOWER APG3014 User manual

APG3014

Owner’s Manual

2000 W Generator

Warning To Reduce The Risk Of Injury, User Must

ReadAnd Understand Instruction Manual.

www.allpoweramerica.com

General Parts Listing

Owner’s Manual

A PA P a r t N o. P a r t N o D e sc r ip ti o n Q t y.

This list is provided for reference

purposes only.

All repairs and part replacement

should be performed by a

qualified technician.

Some parts may not be

available as single replacements.

SP-GG200-A-01-JD EG-LY152-A01 Crankcase assy. 1

SP-GG200-A-02-JD EG-HT152-A02 Oil seal 2

SP-GG200-A-03-JD EG-HT152-A03 Bearing 6203 1

SP-GG200-A-04-JD EG-HT152-A04 Crankcase gasket 1

SP-GG200-A-05-JD EG-HT152-A05 Drain bolt 2

SP-GG200-A-06-JD EG-HT152-A06 Washer 2

SP-GG200-A-07-JD EG-HT152-A07 Dowel pin 2

SP-GG200-A-08-JD EG-HT152-A08 Bearing 6203 1

SP-GG200-A-09-JD EG-HT152-A09 Crankcase cover 1

SP-GG200-A-10-JD EG-HT152-A10 Oil level cap assy. 2

SP-GG200-A-11-JD EG-HT152-A11 Flange bolt 6

SP-GG200-A-12-JD EG-HT152-A12 ”O” Ring 2

FIG A. CRANKCASE ASSY

General Parts Listing

2000W Generator

SP-GG200-B-03-JD EG- LY 152-B03 Flange bolt 4

SP-GG200-B-02-JD EG- LY 152-B02 Wire board 1

SP-GG200-B-01-JD EG- LY 152-B01 Pipe 1

SP-GG200-B-04-JD EG- LY 152-B04 Head cover comp 1

SP-GG200-B-05-JD EG- LY 152-B05 Head cover gasket 1

SP-GG200-B-06-JD EG- LY 152-B06 Press board 1

SP-GG200-B-07-JD EG- LY 152-B07 Bolt M6x90 2

SP-GG200-B-08-JD EG- LY 152-B08 Flange bolt 4

SP-GG200-B-09-JD EG- LY 152-B09 Bolt M6x38 2

SP-GG200-B-10-JD EG- LY 152-B10 Cylinder head assy. 1

SP-GG200-B-11-JD EG- LY 152-B11 Cylinder head gasket 1

SP-GG200-B-12-JD EG- LY 152-B12 Dowel pin 2

FIG B. CYLINDER HEAD

A PA P a r t N o. P a r t N o D e sc r ip ti o n Q t y.

General Parts Listing

Owner’s Manual

APA Part No. Part No. Description Qty.

SP-GG200-C-01-JD EG-LY152-C01 Connecting rod 1

SP-GG200-C-02-JD EG-LY152-C02 Semicircle key 2

SP-GG200-C-03-JD EG-LY152-C03 Crankshaft assy. 1

SP-GG200-C-04-JD EG-LY152-C04 Connecting rod cover 1

SP-GG200-C-05-JD EG-LY152-C05 Flange bolt 2

SP-GG200-C-09-JD EG-LY152-C09 Spring 1

SP-GG200-C-10-JD EG-LY152-C10 Piston 1

SP-GG200-C-06-JD EG-LY152-C06 First piston ring 1

SP-GG200-C-07-JD EG-LY152-C07 Second piston ring 1

SP-GG200-C-08-JD EG-LY152-C08 Oil ring guide slot 1

SP-GG200-C-11-JD EG-LY152-C11 Piston pin clip 2

SP-GG200-C-12-JD EG-LY152-C12 Piston pin 1

FIG C. CRANKSHAFT PISTON

General Parts Listing

2000W Generator

SP-GG200-D-02-JD EG-LY152-D02 Spring 1

SP-GG200-D-01-JD EG-LY152-D01 Pin A 1

SP-GG200-D-03-JD EG-LY152-D03 Pin B 1

SP-GG200-D-04-JD EG-LY152-D04 Slide block 1

SP-GG200-D-05-JD EG-LY152-D05 Lock ring 1

SP-GG200-D-06-JD EG-LY152-D06 Valve lifter 2

SP-GG200-D-07-JD EG-LY152-D07 Push rod 2

SP-GG200-D-08-JD EG-LY152-D08 Intake valve 1

SP-GG200-D-09-JD EG-LY152-D09 Exhaust valve 1

SP-GG200-D-10-JD EG-LY152-D10 Camshaft 1

SP-GG200-D-11-JD EG-LY152-D11 Pin 1

SP-GG200-D-12-JD EG-LY152-D12 Pinion 1

FIG D. CAMSHAFT

APA Part No. Part No. Description Qty.

General Parts Listing

Owner’s Manual

APA Part No. Part No. Description Qty.

SP-GG200-D-13-JD

SP-GG200-D-14-JD

SP-GG200-D-15-JD

SP-GG200-D-16-JD

SP-GG200-D-17-JD

SP-GG200-D-18-JD

SP-GG200-D-19-JD

SP-GG200-D-20-JD

SP-GG200-D-21-JD

EG-LY152-D13 Valve spring 2

EG-LY152-D14 Spring retainers 2

EG-LY152-D15 Rocker ring 4

EG-LY152-D16 Rocker seat 1

EG-LY152-D17 Rocker arm shaft 2

EG-LY152-D18 Adjusters screw 2

EG-LY152-D19 Exhaust rocker 1

EG-LY152-D20 Net M6 2

EG-LY152-D21 Intake rocker 1

FIG D. CAMSHAFT

General Parts Listing

2000W Generator

APA Part No. Part No. Description Qty.

SP-GG200-E-01-JD

SP-GG200-E-02-JD

SP-GG200-E-03-JD

SP-GG200-E-04-JD

SP-GG200-E-05-JD

SP-GG200-E-06-JD

SP-GG200-E-07-JD

SP-GG200-E-08-JD

SP-GG200-E-09-JD

EG-LY152-E01 Bolt 2

EG-LY152-E02 Filter cover 1

EG-LY152-E03 Air cleaner element 1

EG-LY152-E04 Hold rack 1

EG-LY152-E05 Net M6 2

EG-LY152-E06 Filter seat 1

EG-LY152-E07 Gasket 3

EG-LY152-F01 Carburetor assy. 1

EG-LY152-E09 Carburetor pipe 1

FIG E. AIR CLEANER

General Parts Listing

Owner’s Manual

APA Part No. Part No. Description Qty.

SP-GG200-F-01-JD EG-LY152-F01 Carburetor assy. 1

SP-GG200-F-02-JD EG-LY152-F02 Float 1

SP-GG200-F-03-JD EG-LY152-F03 Float pin 1

SP-GG200-F-04-JD EG-LY152-F04 Main nozzle 1

SP-GG200-F-05-JD EG-LY152-F05 Gasket 1

SP-GG200-F-06-JD EG-LY152-F06 Float chamber body 1

SP-GG200-F-07-JD EG-LY152-F07 Gasket 1

SP-GG200-F-08-JD EG-LY152-F08 Bolt 1

SP-GG200-F-09-JD EG-LY152-F09 Spring 1

SP-GG200-F-10-JD EG-LY152-F10 Pilot screw 1

SP-GG200-F-11-JD EG-LY152-F11 Bracket 1

SP-GG200-F-12-JD EG-LY152-F12 Needle assembly 1

FIG F. CARBURETOR

General Parts Listing

2000W Generator

APA Part No. Part No. Description Qty.

1tejniaM31F-251YL-GESP-GG200-F-13-JD

SP-GG200-F-14-JD

SP-GG200-F-15-JD

SP-GG200-F-16-JD

SP-GG200-F-17-JD

1tejtoliP41F-251YL-GE

1tloB51F-251YL-GE

1gnirpS61F-251YL-GE

1tloB71F-251YL-GE

FIG F. CARBURETOR

General Parts Listing

Owner’s Manual

APA Part No. Part No. Description Qty.

SP-GG200-G-01-JD EG-LY152-G01 Bolt 2

SP-GG200-G-02-JD EG-LY152-G02 Nut M6 1

SP-GG200-G-03-JD EG-LY152-G03 Platen 1

SP-GG200-G-04-JD EG-LY152-G04 Spring washer 1

SP-GG200-G-05-JD EG-LY152-G05 Handle 1

SP-GG200-G-06-JD EG-LY152-G06 Washer 1

SP-GG200-G-07-JD EG-LY152-G07 Shaft 1

SP-GG200-G-08-JD EG-LY152-G08 Insulationframe 1

SP-GG200-G-09-JD EG-LY152-G09 Bolt 1

SP-GG200-G-10-JD EG-LY152-G10 Spring 1

SP-GG200-G-11-JD EG-LY152-G11 Socket 1

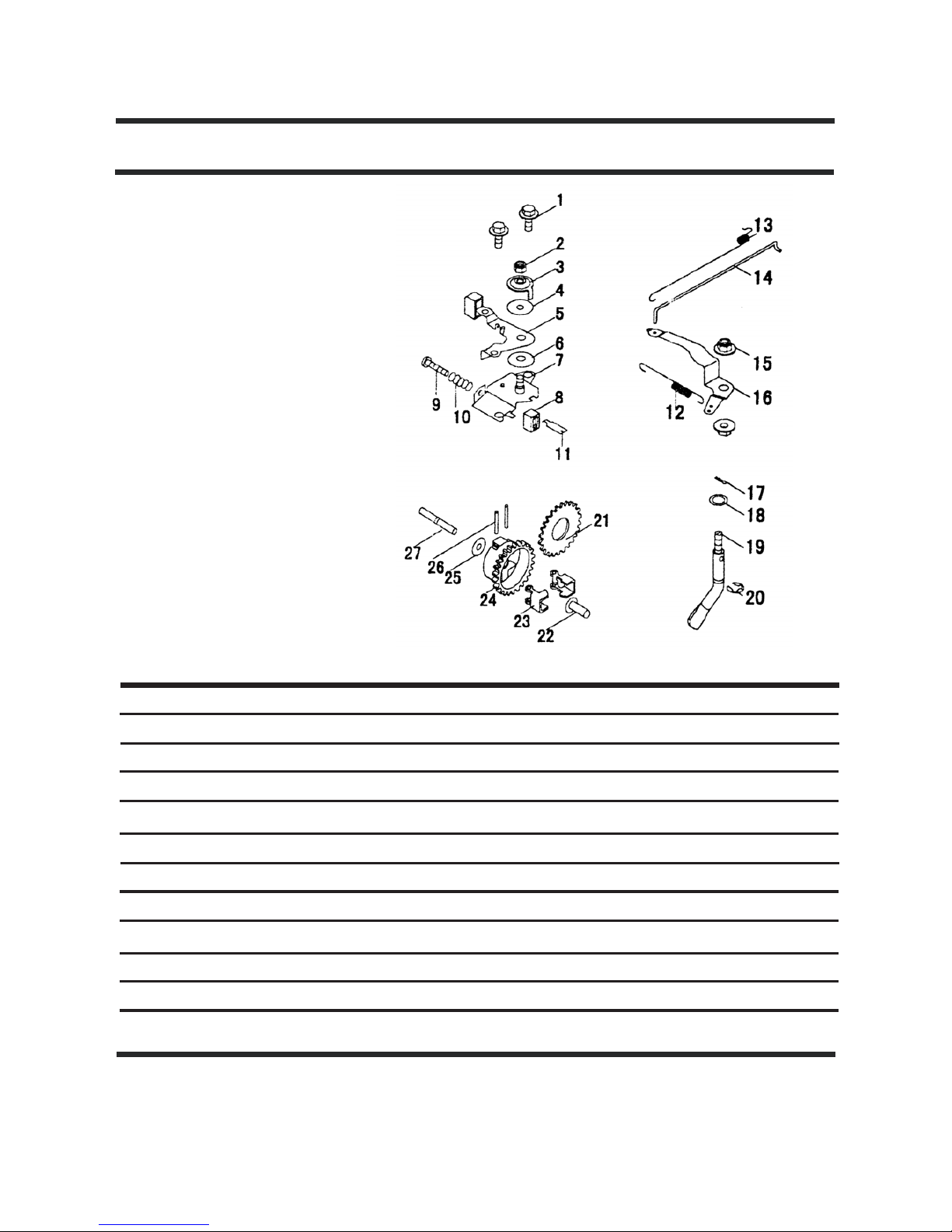

FIG G. GOVERNOR
